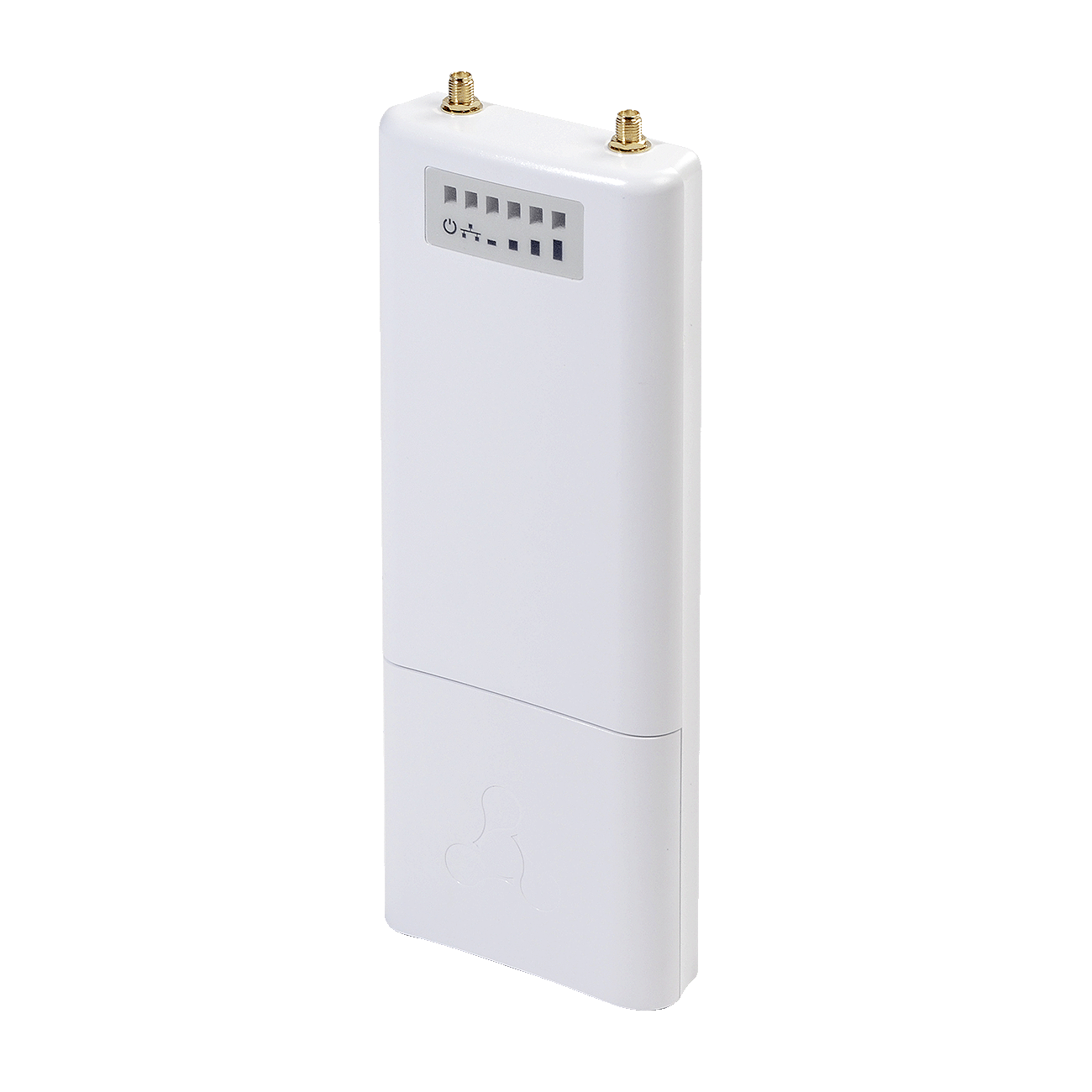

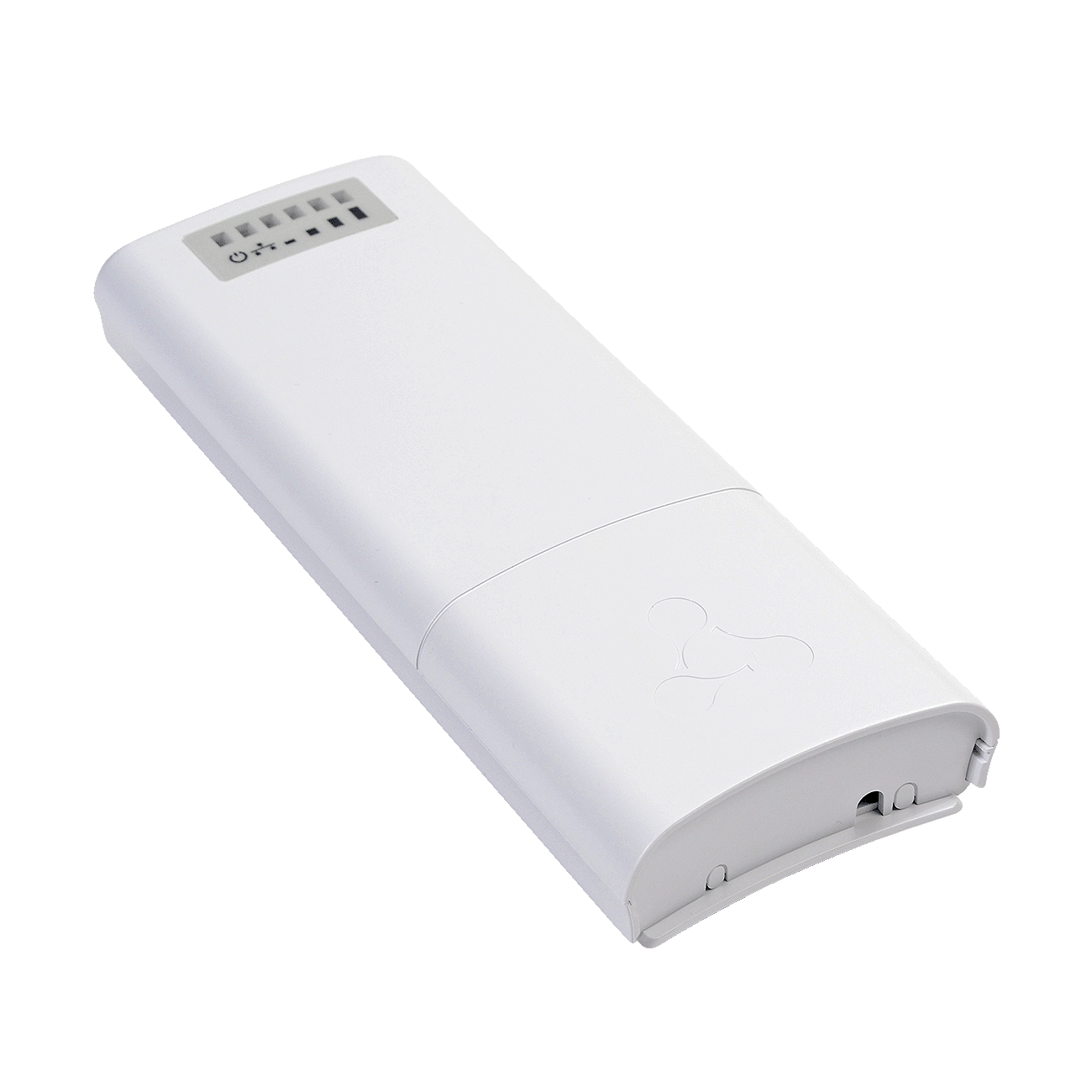

WOP-2ac-LR5 SYNC base station

Mass production
Key benefits
  • Base station with support for 802.11a/n/ac (5G Wi-Fi)
  • Radio interface with MIMO 2x2 support
  • Up to 30 clients on a base station
  • Radio module power of up to 28 dBm
Base station
WОP-2ac-LR5 SYNC is designed to organize broadband networks in private housing. The device provides clients with wireless Internet access in the long distances and Triple Play services.
The device is a good choice for wireless network construction in any climatic conditions: in a wide operating temperature range and in high humidity. The device allows connecting different sectoral antennas.

Scalability
WОP-2ac-LR5 SYNC base station is an up-to-date flexible solution that provides extending coverage zone due to the power of its transmitter (up to 28 dBm) and the use of sectoral antennas. It is possible to deploy wireless IT infrastructure quickly and easily by virtue of high-performance hardware, scalability and intuitive interface.

Wireless connection
Due to the support for IEEE 802.11ac standard, the base station WОP-2ac-LR5 SYNC provides data rate of up to 867 Mbps. Furthermore, the support for MIMO technology and the use of sectoral antennas make the device a universal solution for broadband access network organization.

Performance
To ensure stable and uninterrupted operation, the device is equipped with high-performance chipsets providing high data processing rates and effective operating via FBWA (Fixed Bandwidth Wireless Access) technology.

Inter-sector synchronization
WOP-2ac-LR5 SYNC devices support inter-sector synchronization mechanism. This functionality allows to construct multi-sector bases in conditions of limited frequency resource or use adjacent frequencies an neighboring sectors.



Security
Up-to-date authentication technologies provide a secure connection. The device uses WPA2 encryption and centralized authorization through a RADIUS server (WPA2-Enterprise).

Division of access rights by roles with the possibility of authentication by local account, as well as via the RADIUS server is provided for the management of the base station.

Power supply
The PoE+ technology makes it possible to install the equipment anywhere, regardless of the power supply location, reduces total cost by discarding power cables and makes installation easier and faster.
Specifications
Modules and additional devices
Documents and files
Warranty
Interfaces

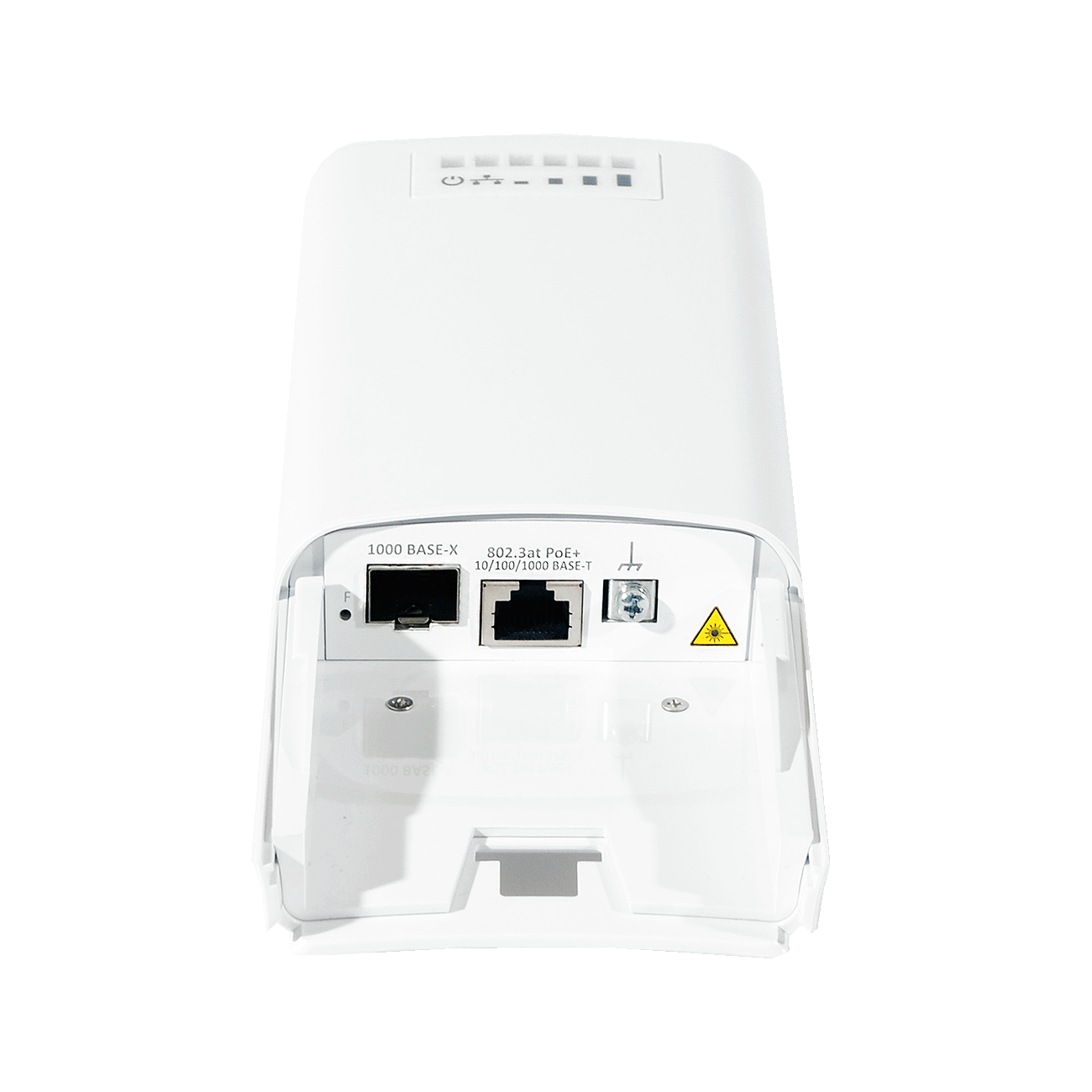

  • 1 Combo port 10/100/1000BASE-T (Ethernet)/100/1000BASE-X (SFP)
  • 2 SMA connectors (female) for external antennas (Omni, sectoral, panel, etc.)
  • Wi-Fi 5-6 GHz IEEE 802.11a/n/ac
WLAN capabilities
  • Support for IEEE 802.11a/n/ac
  • Data aggregation, including A-MPDU (Tx/Rx) and А-MSDU (Rx)
  • Priorities and packet planning based on WMM
  • Dynamic frequency selection (DFS)
  • Hidden SSID support
  • 4 virtual access points
  • Support for MAC ACL
  • External access points detection
  • APSD
  • Spectrum analyzer
  • Support for wireless bridges (WDS)
  • Support for fixed center frequency
  • Inter-sector synchronization (PTP)
Network functions
  • Automatic negotiation of speed and duplex mode, switching over MDI and MDI-X modes
  • Support for VLAN (Access, Trunk, General)
  • VLAN mapping
  • DHCP client
  • Support for NTP
  • Support for Syslog
  • DHCP snooping
  • IGMP snooping
  • BPDU filtering
QoS functions
  • Bandwidth limiting for each SSID
  • Client data rate limiting for each SSID
  • Changing WMM parameters for radio interface
  • Support for prioritization by CoS, DSCP and VLAN ID
Security
  • Centralized authentication via RADIUS server (WPA/WPA2 Enterprise)
  • WPA/WPA2 encryption
  • 64/128/152-bit WEP encryption of data
Wireless interface parameters
  • Frequency range 5170-6160 MHz
  • BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation
  • Support for MIMO 2х2
  • Bandwidth: 5, 10, 20, 40, 80 MHz
Operating channels1
  • 802.11a/n/ac: 36-230 (5170-6160 MHz)
Data rate2
  • 802.11a: up to 54 Mbps
  • 802.11n: up to 300 Mbps
  • 802.11ac: up to 867 Mbps
Receiver sensitivity
  • 5-6 GHz: up to -94 dBm
Maximum power of the transmitter1
  • 5-6 GHz: 28 dBm
Configuration
  • Remote control via Telnet, SSH
  • Web interface
  • CLI
  • NETCONF
  • SNMP (Monitoring)
Physical specifications
  • Power consumption up to 16 W
  • 32 MB Flash
  • 128 MB RAM
  • Power supply:
    • PoE+ 48V/56V (IEEE 802.3at-2009)
  • Operating temperature from -45 С to +65 С
  • IP54 protection level
  • Dimensions (WxHxD): 88x232.5x47 mm
  • Weight: 0.39 kg

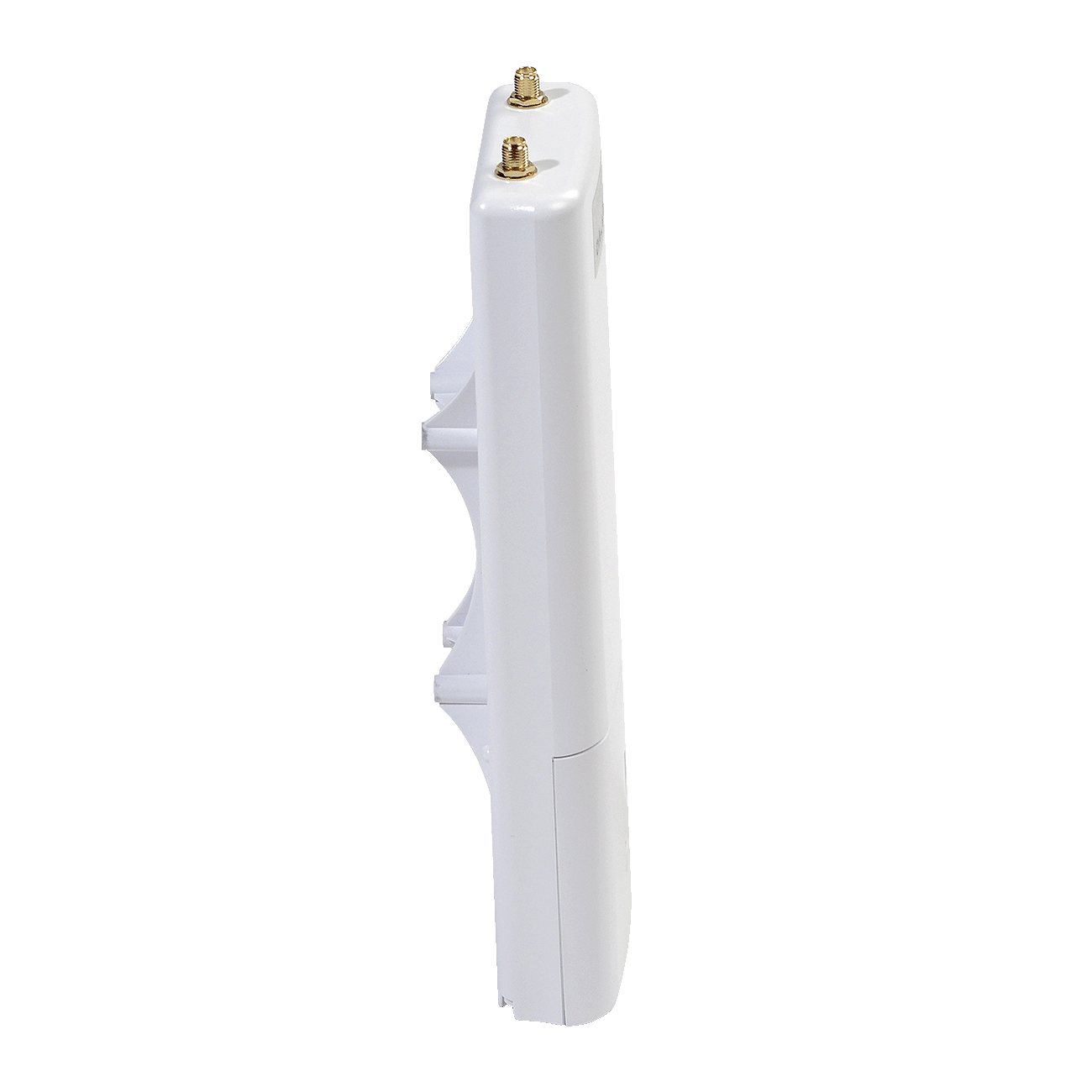

  • Pole mount

The number of channels and the value of the maximum output power will vary according to the rules of radio frequency regulation in your c ountry.

2 The maximum wireless data rate is defined according to IEEE 802.11n/ac standards. The real bandwidth will be different. Conditions under which a network operates, environmental factors (including a volume of network traffic), network service data, building materials and constructions might decrease the real bandwidth. Environmental factors might also influence a network coverage range.

RFE 50-65/90/16 MIMO antenna


Operating frequency range, MHz

5100 - 6500

Amplification ratio, dBi

16

VSWR

no more than 1.5

Max. power, W

50

Input resistance, Ohm

50

Polarization

Linear, Vertical and Horizontal

Antenna weight, kg

1.2

Antenna dimensions, mm

250х250х30

Attachment weight, kg

0.1

Attachment dimensions, mm

100х120х40

Attachment mast diameter, mm

25-53

Connector

2 x SMA Female

Operating temperature, °С

from -40°C to +60°C

Rear radiation level

-40 dB

Cross-polarization level

-23 dB

Isolation between ports

-30 dB

Radiation angle on horizontal plane

90°

Radiation angle on vertical plane

 Jumper for antenna, 1.5/3 mm, (SFF50-3)-SMA(J)-SMA(J)


Conductor material

 copper

 Isolation material

 RG142

 Termination by connector from the both sides

 SMA (Male)

 Available length

 1.5 and 3 mm

 Central conductor diameter

 0.94 mm

 Application

 Connector for sectoral antennas connection to Wi-Fi access points

 Form factor

 Outdoor for connection to Outdoor access points


Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
