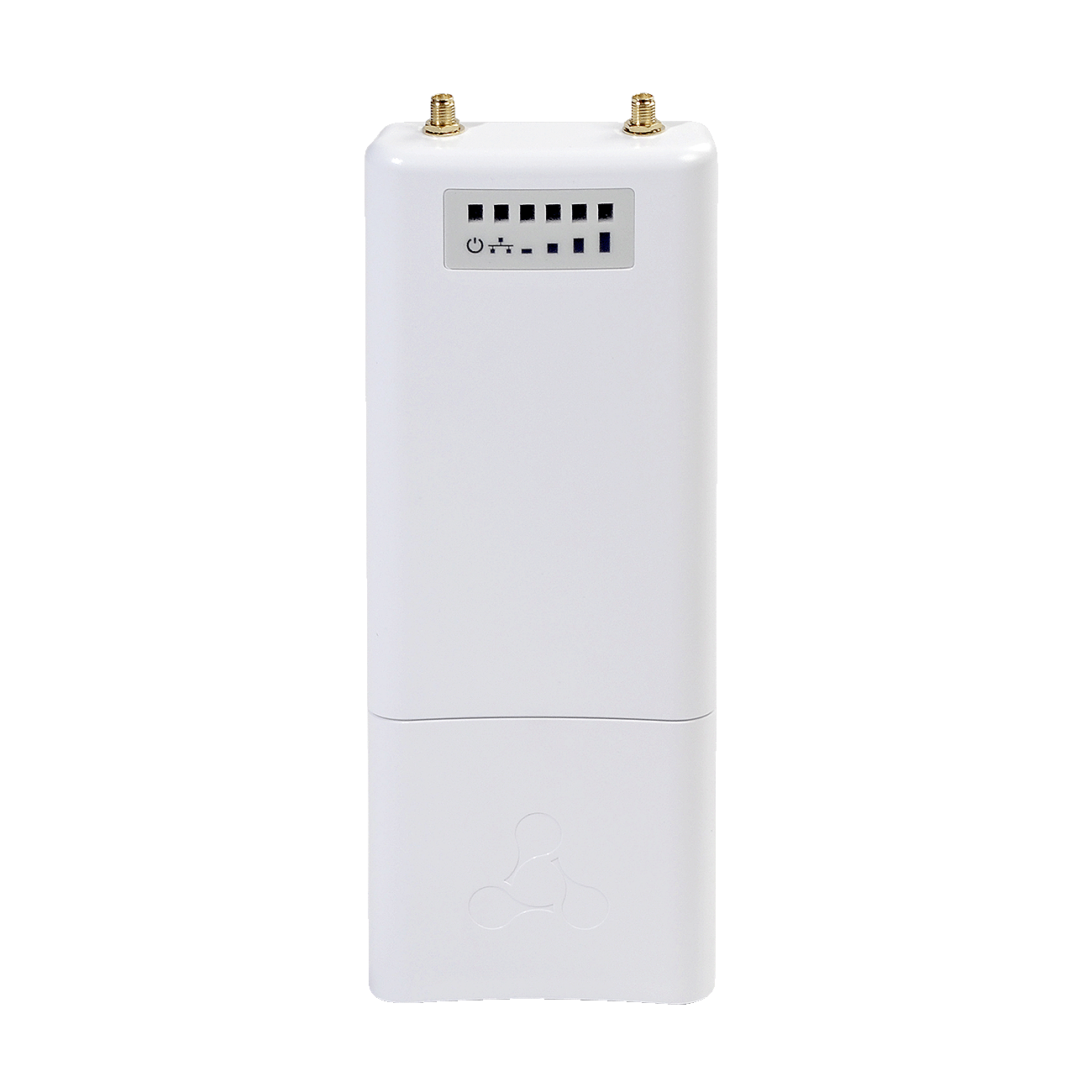

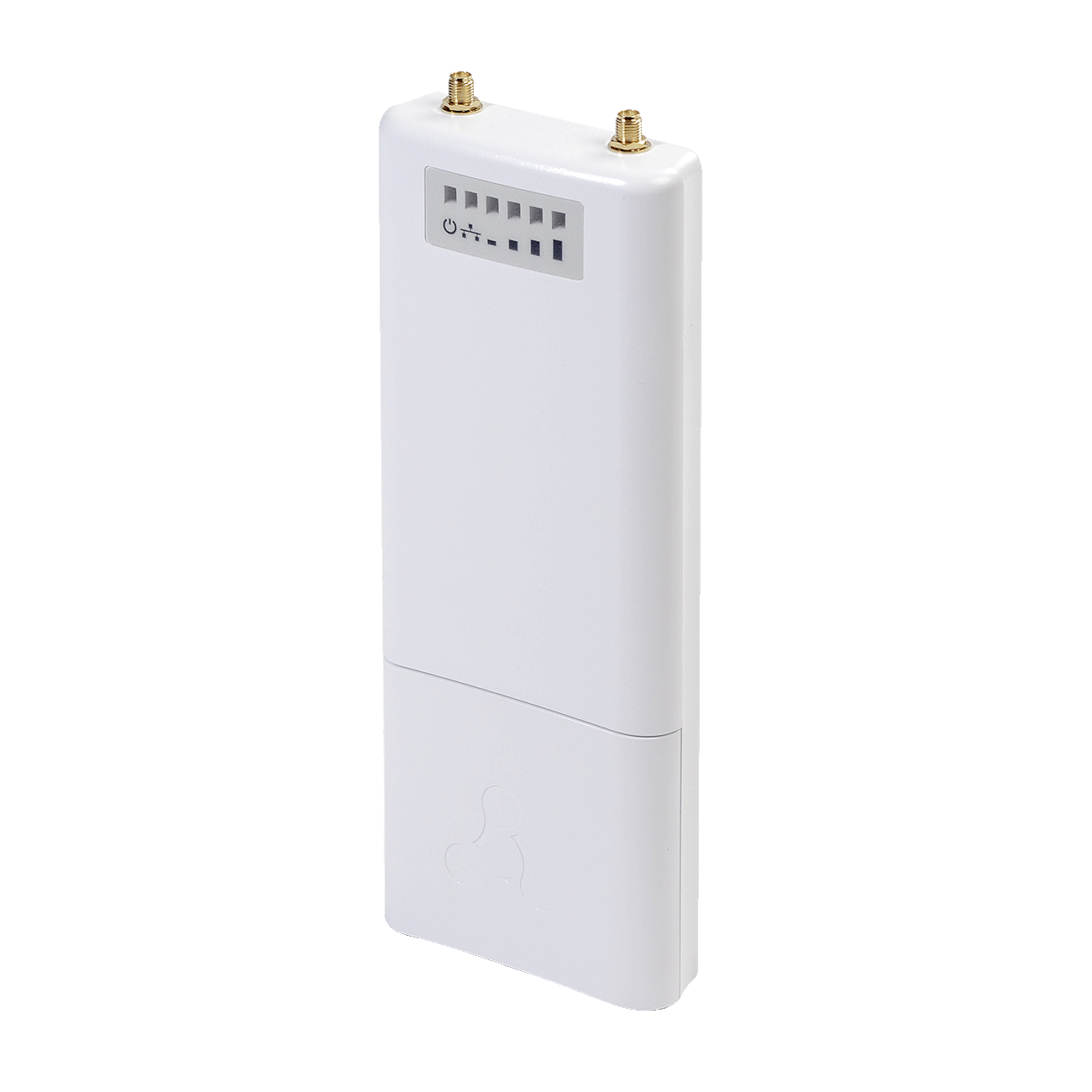

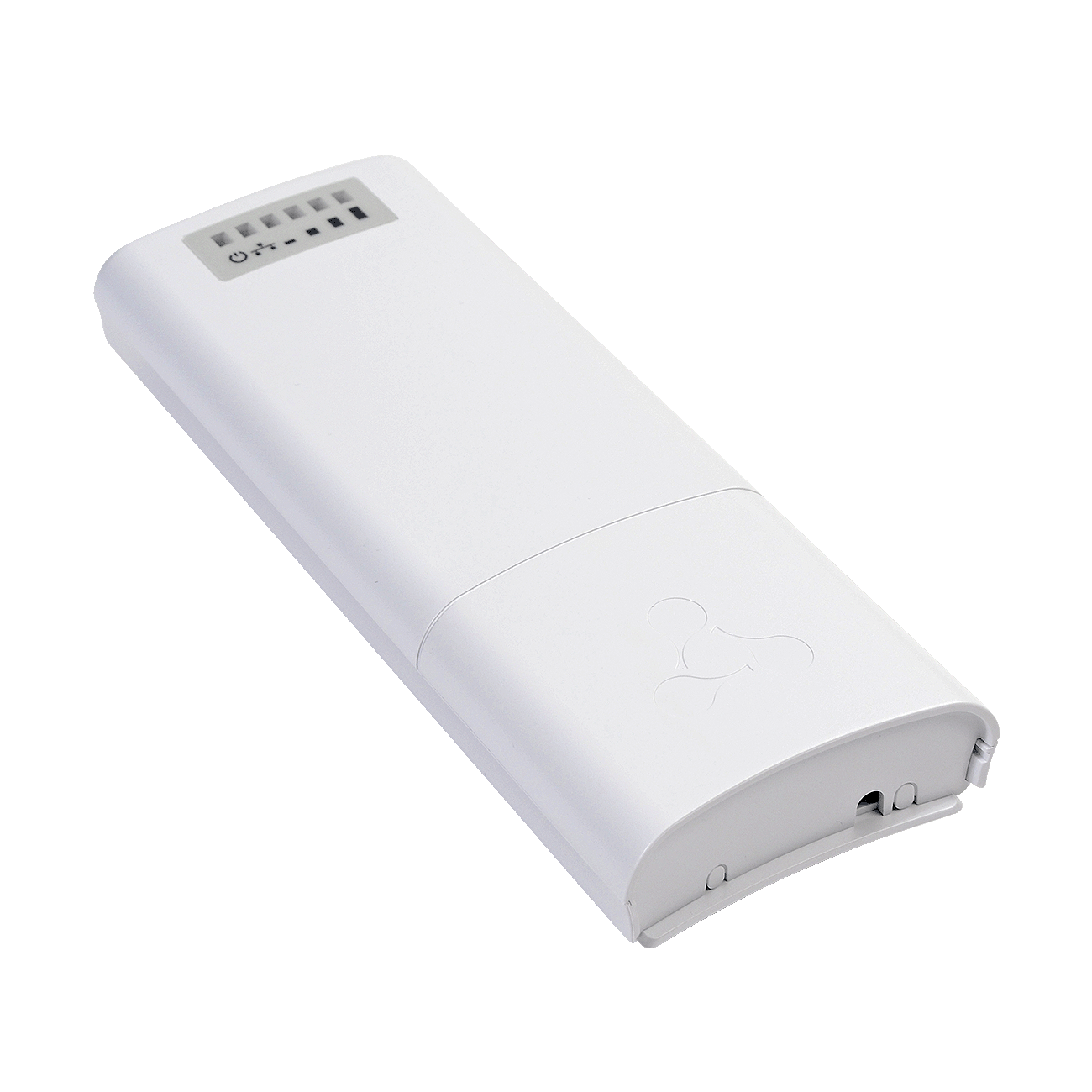

WOP-2ac-LR5 base station

Personal order only
Key features
  • Base station with support for 802.11a/n/ac (5G Wi-Fi)
  • Radio interface with MIMO 2x2 support
  • Up to 30 clients on a base station sector
  • Radio module power of up to 28 dBm

WОP-2ac-LR5 is designed to organize Broadband wireless networks in private housing, that provide broadband access to the Internet in a radius of 3 km and Triple Play services.
The device is a good choice for wireless network construction in a difficult climatic conditions. WOP-2ac-LR5 operates well in a wide operating temperature range and in high humidity (different climatic zones). The device allows connecting different sector antennas.

The base station WОP-2ac-LR5 provides data rate of up to 867 Mbps on each interface due to the support for IEEE 802.11ac standard.
The base station WОP-2ac-LR5 – an up-to-date flexible solution that provides extending coverage zone due to its power of the transmitter (up to 28 dBm) and extending number of clients per base station due to 3 radio interfaces. It is possible to deploy wireless IT infrastructure fast and easily by virtue of high-performance hardware, scalability and intuitive interface.
Wireless connection
To ensure stable and uninterrupted operation, the device is equipped with high-performance Realtek chipsets providing high data processing rates and effective operating via FBWA
technology (Fixed Bandwidth Wireless Access). Furthermore, the support for MIMO technology and use of narrow-band antennas turn the device into the universal solution for broadband access network organization.

To ensure stable and uninterrupted operation, the device is equipped with high-performance chipsets providing high data processing rates and effective operating via FBWA technology (Fixed Bandwidth Wireless Access).

The device uses up-to-date technologies of authentication to provide a secure connection. Particularly, WPA2 encryption is used, as well as centralized authorization through a RADIUS server (WPA2-Enterprise).

Division of access rights by roles with the possibility of authentication by local account, as well as via the RADIUS server is provided for the management of the base station.

Power supply
The PoE+ technology makes the installation possible practically at any place regardless of the power supply location, thus allowing for cost economy on power cables and making the installation easier and faster.

use case.png

Modules and additional devices
Documents and files

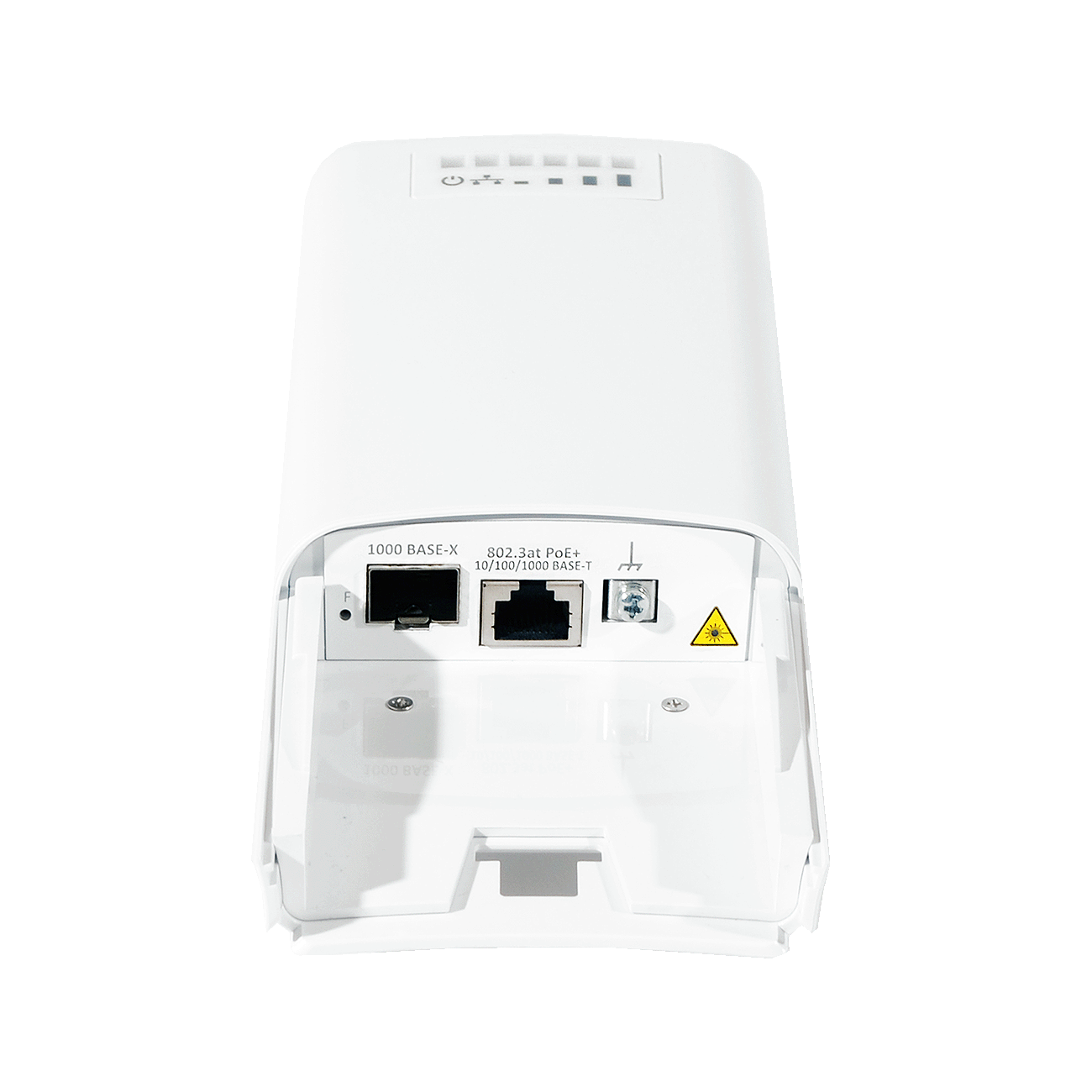

  • 1 Combo-port 10/100/1000Base-T (Ethernet) / 100/1000Base-X (SFP)
  • 2 SMA-type connectors (female) for external antennas (Omni, sector, rod, etc.)
  • Wi-Fi 5-6 GHz IEEE 802.11a/n/ac
WLAN capabilities
  • Support for IEEE 802.11a/n/ac
  • Data aggregation, including A-MPDU (Tx/Rx) и А-MSDU (Rx)
  • Priorities and packed planning based on WMM
  • Dynamic frequency selection (DFS)
  • Hidden SSID support
  • 4 virtual access points
  • Support for MAC ACL
  • External access points detection
  • APSD
  • Spectrum analyzer
  • Support for wireless bridges (WDS)
  • Polling
  • Support for central fixed frequency
Network function
  • Automatic negotiation of speed and duplex mode, switching over MDI and MDI-X modes
  • Support for VLAN (Access, Trunk, General)
  • VLAN mapping
  • DHCP-client
  • Support for NTP
  • Support for Syslog
  • DHCP snooping
  • IGMP snooping
  • BPDU filtering
QoS functions
  • Bandwidth limiting for each SSID
  • Client data rate limiting for each SSID
  • Changing WMM parameters for each radio interface
  • Support for prioritization by CoS, DSCP and VLAN ID
  • Centralized authentication via RADIUS server (WPA/WPA2 Enterprise)
  • WPA/WPA2 encryption
  • 64/128/152-bit WEP encryption of data
Wireless intarface parameters
  • Frequency range  5170–6160 MHz
  • BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation
  • Support for MIMO 2х2
  • Bandwidth: 5, 10, 20, 40, 80 MHz
Operation channels1
  • 802.11a/n/ac: 36-230 (5170-6160 MHz)
 Data rate2
  • 802.11ac: up to 54 Mbps
  • 802.11n: up to 300 Mbps
  • 802/11ac: up to 867 Mbps
Receiver sensitivity
  • 5-6 GHz: up to -94 dBm
Maximum power of the transmitter1
  • 5-6 GHz: 24 dBm (28 dBm)3
  • Remote control via Telnet, SSH
  • Web interface
  • CLI
  • SNMP (Monitoring)
Physical specifications
  • Power consumption up to 6.5 W (16 W)3
  • 32 MB Flash
  • 128 MB RAM
  • Power supply: PoE+ 48В/54В (IEEE 802.3at-2009)
  • Operating temperature from -45°С to +65°С
  • IP54 protection level
  • Weight: 0,33 kg (0,39 kg)3
  • Dimensions (WxHxD): 88x232.5x47 mm

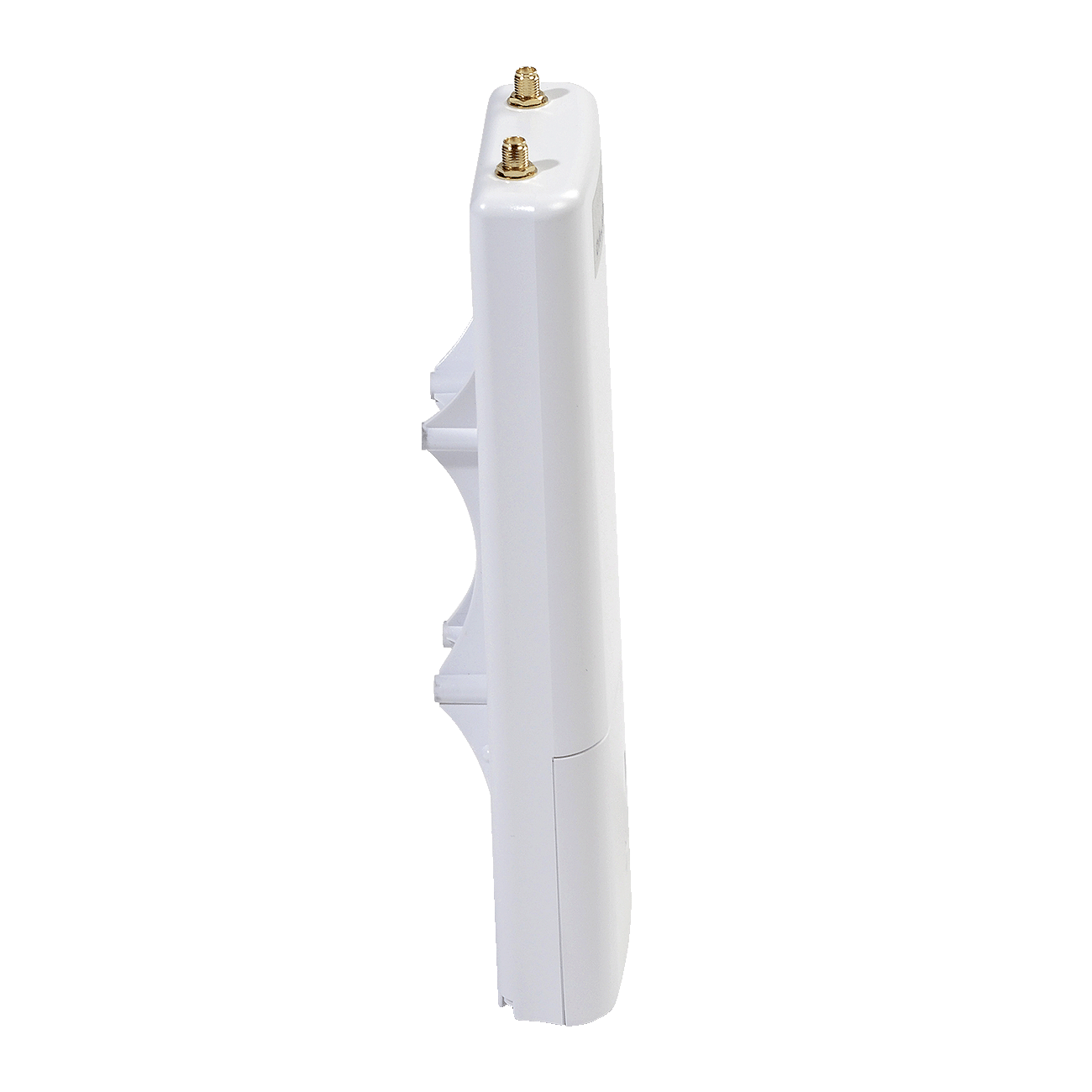

  • Pole mount

 The number of channels and the value of the maximum output power will vary according to the rules of radio frequency regulation in your country.

The maximum wireless data rate is defined according to IEEE 802.11n/ac standard. The real bandwidth might be different. Conditions of thenetwork, environment, the amount of traffic, building materials and constructions and network service data might decrease the real bandwidth. The environment mightinfluence on the network coverage range.

For WOP-2ac-LR5 rev.B

RFE 50-65/90/16 MIMO antenna


Operating frequency range, MHz

5100 - 6500

Amplification ratio, dBi



no more than 1.5

Max. power, W


Input resistance, Ohm



Linear, Vertical and Horizontal

Antenna weight, kg


Antenna dimensions, mm


Attachment weight, kg


Attachment dimensions, mm


Attachment mast diameter, mm



2 x SMA Female

Operating temperature, °С

from -40°C to +60°C

Rear radiation level

-40 dB

Cross-polarization level

-23 dB

Isolation between ports

-30 dB

Radiation angle on horizontal plane


Radiation angle on vertical plane

 Jumper for antenna, 1.5/3 mm, (SFF50-3)-SMA(J)-SMA(J)


Conductor material


 Isolation material


 Termination by connector from the both sides

 SMA (Male)

 Available length

 1.5 and 3 mm

 Central conductor diameter

 0.94 mm


 Connector for sectoral antennas connection to Wi-Fi access points

 Form factor

 Outdoor for connection to Outdoor access points

Operational lifetime of the ELTEX equipment
In development
Mass production
Mass production is over
Sold out
Support is over
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
