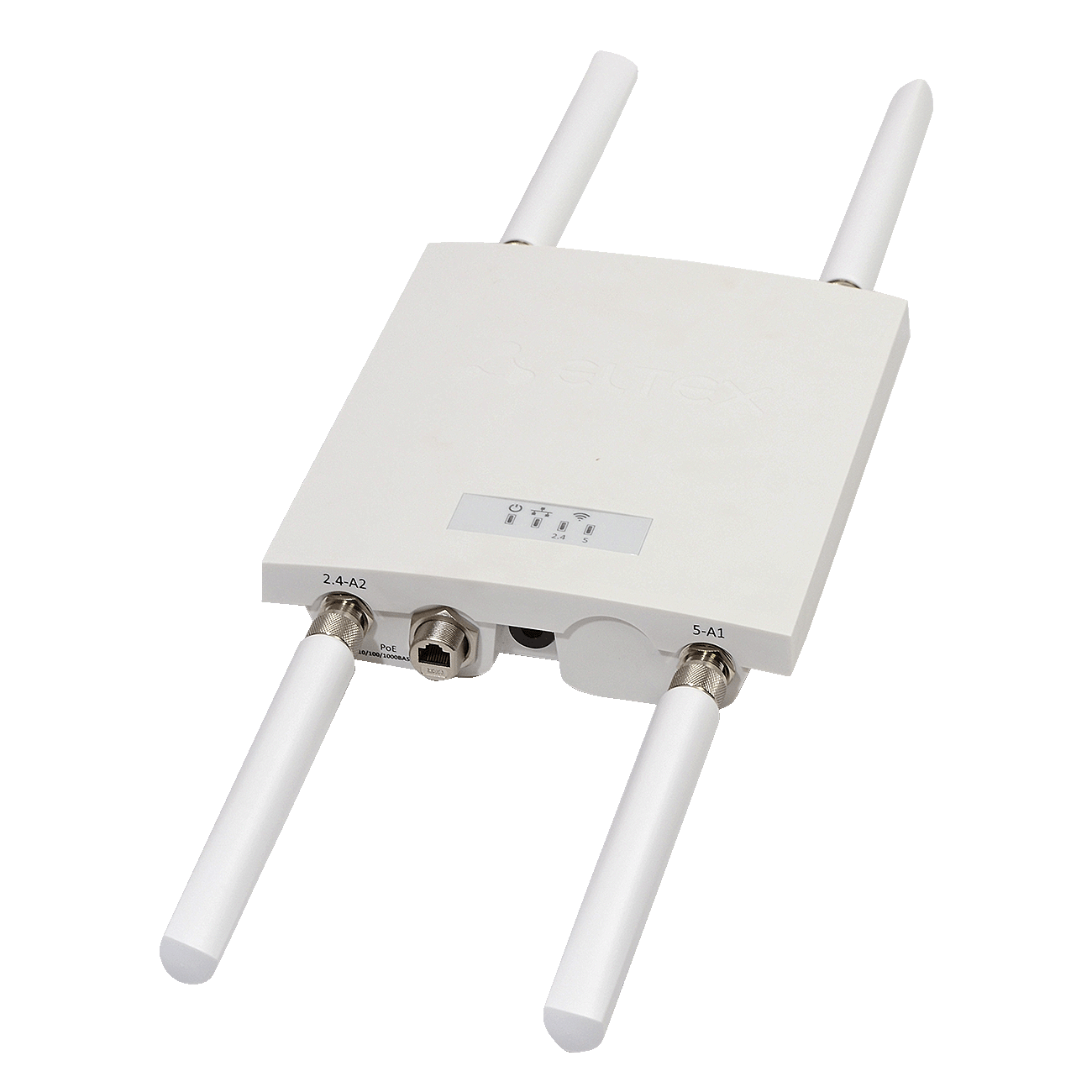

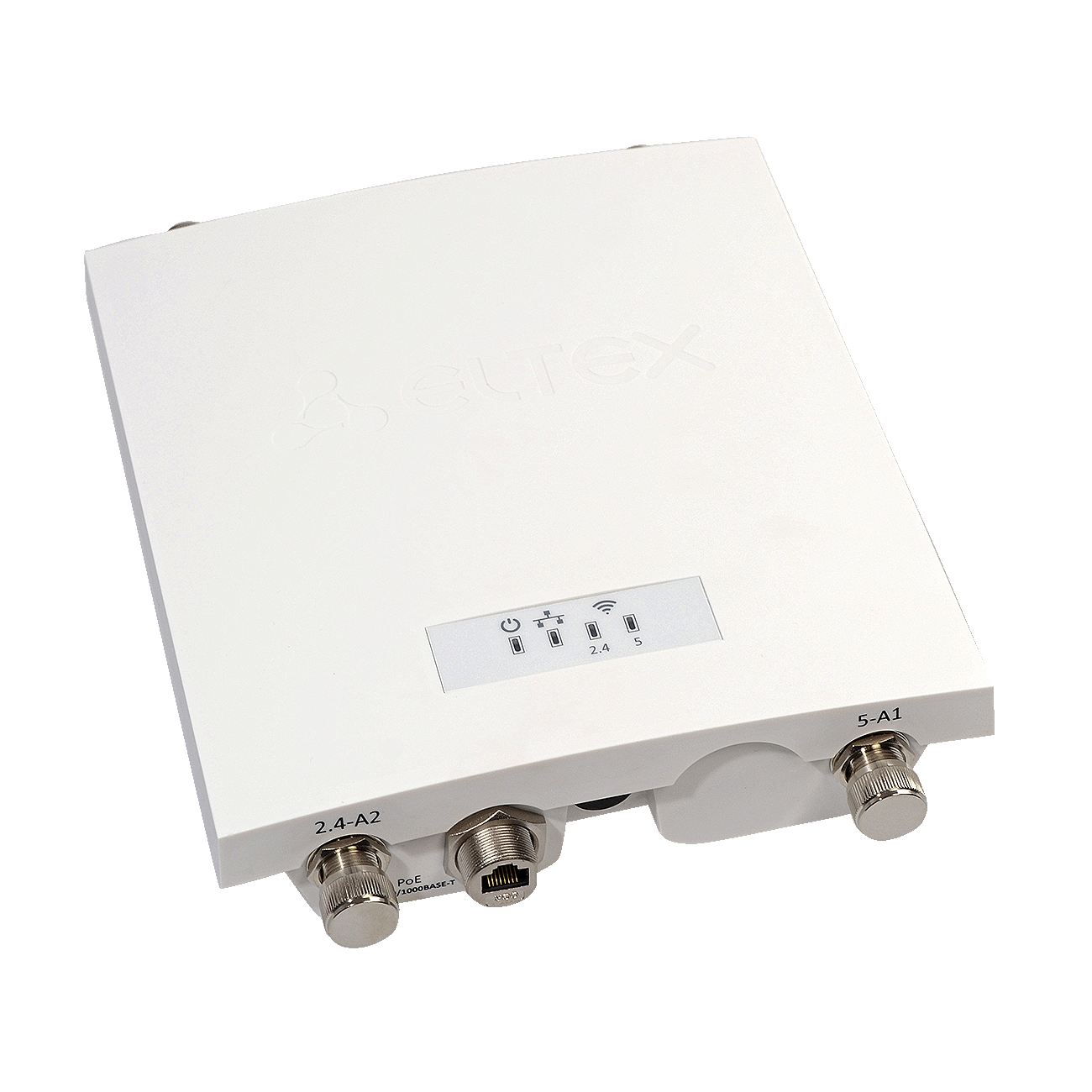

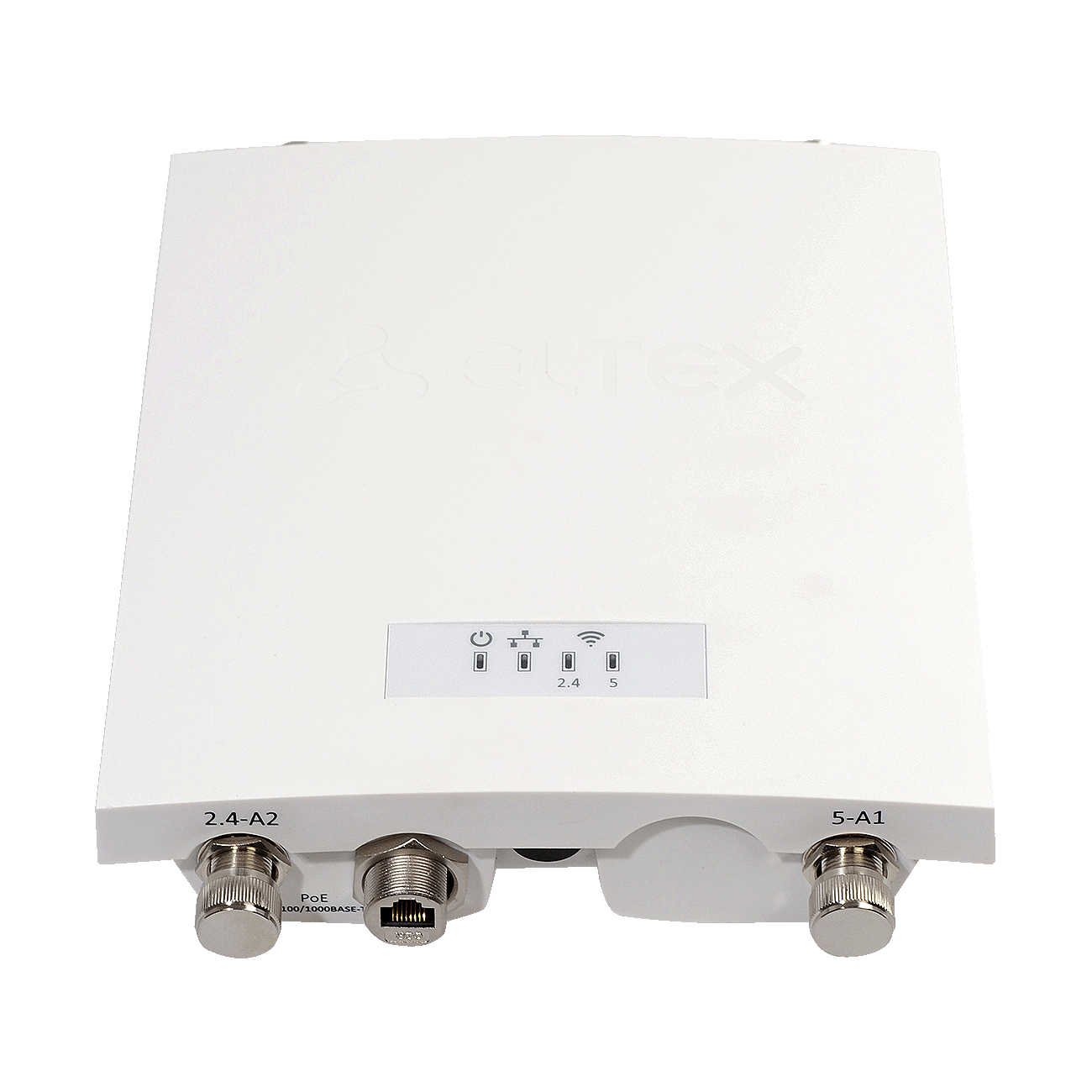

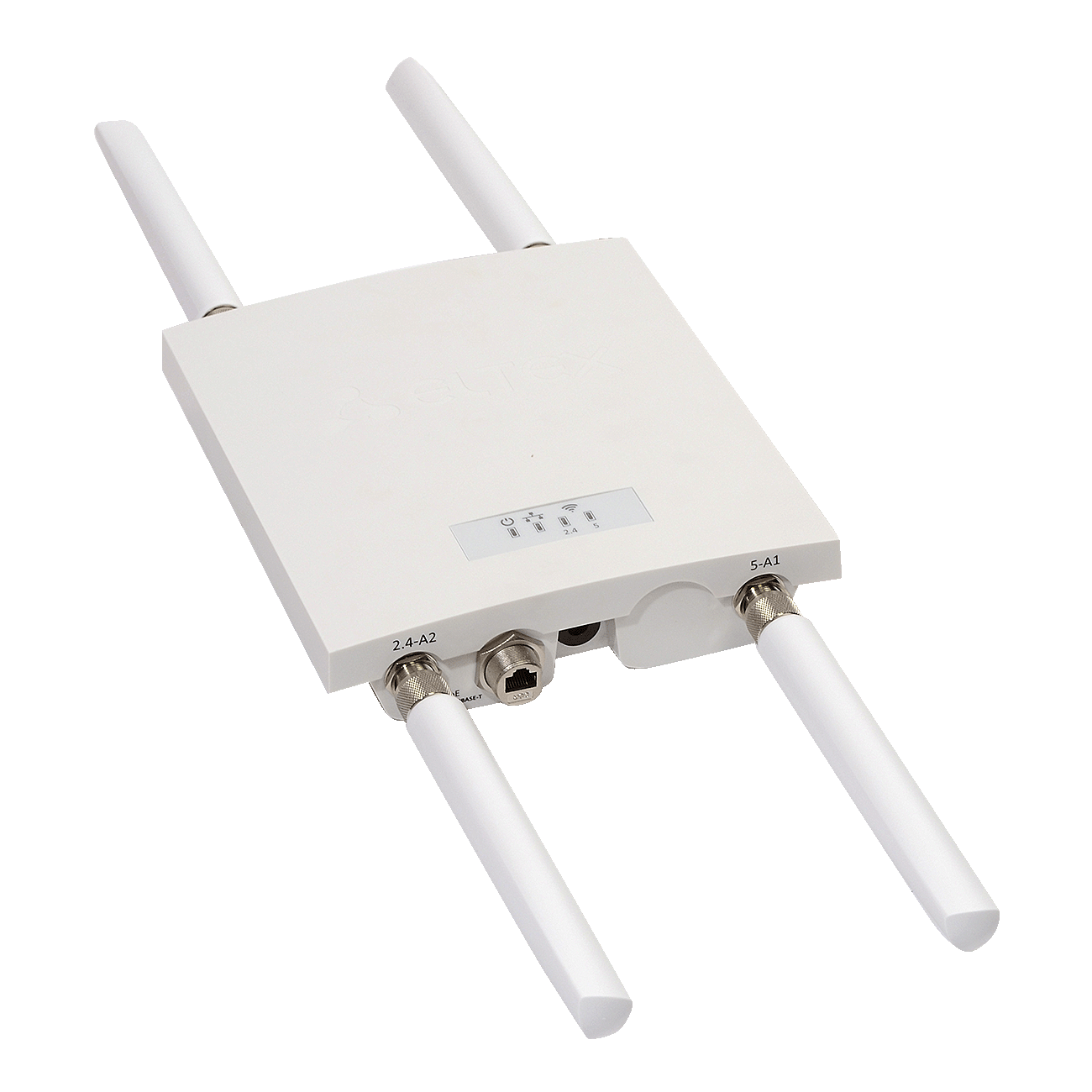

Wi-Fi Enterprise Access Point WOP-2ac

Mass production
Key benefits
  • High-performance solution based on the Broadcom chipset
  • Dual band Wi-Fi 802.11ac
  • Power supply: PoE+ (IEEE 802.3at)
  • Cluster operation without dedicated server (up to 64 devices)
  • Seamless roaming
  • Up-to-date authentication and encryption means
Short description

Outdoor access point
WOP-2ac provides high-performance and safe wireless connection that combines numerous features and services absolutely necessary for convenient network access in crowded areas. WОP-2ac is a proper solution for organization of wireless networks in various climatic conditions—in a wide range of operating temperatures and high humidity (in parks, at factories, stadiums, etc.)—and provides an optimal platform for   network organization in suburban settlements and remote locations.

Solution scalability
The WОP-2ac wireless access point is a new flexible solution that allows you to change the network coverage in order to increase the quantity of serviced mobile devices. Due to high-performance hardware platform, scalability features and understandable interface, it is possible to set up wireless IT infrastructure simply and fast.

Wireless Connection
The WOP-2ac provides 867 Mbps (5GHz) + 300 Mbps (2.4 GHz) data rate as it supports IEEE 802.11n/ac standards. Furthermore, the WOP-12ac supports MIMO technology and has omnidirectional antennas that makes it a universal solution for public network organization.

Security
WOP-2ac provides secure connection due to the support of up-to-date authentication technologies. Particularly, it uses a dynamic key that is unique for each mobile device that interacts with WOP-2ac.

Performance
To ensure a stable and uninterrupted operation, the device is equipped with high-performance Broadcom chipsets  providing high data processing rate.

Power Supply
The PoE+ technology makes it possible to install the equipment virtually anywhere, regardless of the power supply location, reduce total cost by discarding power cables and perform the installation easier and faster.


Specifications
Modules and additional devices
Documents and files
Warranty
Interfaces
  • 1 Ethernet port of 10/100/1000Base-T (RJ-45) - optionally
  • 1 Ethernet port of 100/1000Base-X (SFP) - optionally
  • 4 N-type (female) connectors for antennas (Omni, sector, panel, etc.)
WLAN
  • IEEE 802.11a/b/g/n/ac standards support
  • Data aggregation, including A-MPDU (Tx/Rx) and А-MSDU (Rx)
  • WMM-based packet priorities and planning
  • Dynamic frequency selection (DFS)
  • Hidden SSID support
  • 32 virtual access points
  • External access point detection
  • APSD
  • WDS
Network functions
  • Automatic speed negotiation, duplex mode negotiation, and MDI/MDI-X switch-over
  • VLAN support
  • 802.1X authentication support
  • DHCP client
  • LLDP
  • ACL
  • IРv6
Cluster mode operation
  • Cluster creation with the capacity of up to 64 access points
  • Load balancing for multiple access points
  • Automatic synchronization of access point configurations in cluster
  • Single Management IP—a single address for access point management in cluster
  • Automatic frequency channel allocation for multiple access points
  • Authentication via RADIUS server
QoS features
  • Packet priorities and planning based on profiles
  • Bandwidth restriction for each SSID
  • Modification of WMM parameters for each radio frequency interface
Security
  • Centralized authorization via RADIUS server (WPA Enterprise)
  • WPA/WPA2 encryption
  • Captive Portal support
  • Email notifications on system events
Wireless interface specifications
  • Frequency range: 2400–2480 МГц, 5150–5850 МГц
  • CCK, BPSK, QPSK, 16QAM, 64QAM, 256QAM modulations
  • 2х2 MIMO
  • Two integrated Broadcom chips: BCM47452 (IEEE 802.11a/n/ac) and BCM43217 (IEEE 802.11b/g/n)
Active Channels
  • 802.11b/g/n: 1–13 (2412–2472 MHz)
  • 802.11a/n/ac: 36–64 (5180–5320 MHz),
                          100–144 (5500–5720 MHz),
                          149–165 (5745–5825 MHz)1
Data rate
  • 802.11n: 300 Mbps
  • 802.11ac: 867 Mbps
Receiver sensivity
  • 2.4 GHz: up to -98 dBm
  • 5 GHz: up to -94 dBm
Maximum power of the transmitter
  • 2.4 GHz: up to 18 dBm1
  • 5 GHz: up to 21 dBm1
Physical specifications
  • Power consumption below 19.5 W
  • Broadcom BCM47452 processor
  • 128 MB NAND Flash
  • 256 MB RAM DDR3
  • Power supply: PoE+ 48V/54V (IEEE 802.3at-2009)
  • Operating temperature from -400С to +650С
  • Dimensions (WхHхD): 200х227х48 mm
Configuration
  • Software updates and configuration through DHCP autoprovisioning
  • Remote control via Telnet, SSH
  • Web interface
  • SNMP

1The number of channels and the value of the maximum output power will vary according to the rules of radio frequency regulation in your country.
2The maximum wireless data rate is defined according to IEEE 802.11n/ac standard.  The real bandwidth can be different. Conditions of the network,  environment, the amount of traffic, building materials and constructions and network service data can decrease the real bandwidth. The environment can influence on the network coverage range.

Omni LYNwave antenna (2.4 GHz)


Operating frequency range, MHz

2400 - 2500

Amplification ratio, dBi

5+1

VSWR

2.0 : 1

Max. power, W

1

Input resistance, Ohm

50

Polarization

Vertical

Weight, g

64.4

Dimensions, mm

Ø20 x 187

Connector

type-N Male

Operating temperature, °С

from -40°C to +70°C

Radiation angle on horizontal plane

360°

Radiation angle on vertical plane

30°


Omny LYNwave antenna (5 GHz)


Operating frequency range, MHz

5150 - 5825

Amplification ratio, dBi

5.5±1

VSWR

2.0 : 1

Max. power, W

1

Input resistance, Ohm

50

Polarization

Vertical

Weight, g

64.4

Dimensions, mm

Ø20 x 187

Connector

type-N Male

Operating temperature, °С

from -40°C to +70°C

Radiation angle on horizontal plane

360°

Radiation angle on vertical plane

25°


 RFE 50-65/90/16 MIMO antenna


Operating frequency range, MHz

5100 - 6500

Amplification ratio, dBi

16

VSWR

no more than 1.5

Max. power, W

50

Input resistance, Ohm

50

Polarization

Linear, Vertical and Horizontal

Antenna weight, kg

1.2

Antenna dimensions, mm

250х250х30

Attachment weight, kg

0.1

Attachment dimensions, mm

100х120х40

Attachment mast diameter, mm

25-53

Connector

2 x SMA Female

Operating temperature, °С

from -40°C to +60°C

Rear radiation level

-40 dB

Cross-polarization level

-23 dB

Isolation between ports

-30 dB

Radiation angle on horizontal plane

90°

Radiation angle on vertical plane



 Jumper for antenna, 1.5/3 mm, (SFF50-3)-SMA(J)-SMA(J)


Conductor material

 copper

 Isolation material

 RG142

 Termination by connector from the both sides

 SMA (Male)

 Available length

 1.5 and 3 mm

 Central conductor diameter

 0.94 mm

 Application

 Connector for sectoral antennas connection to Wi-Fi access points

 Form factor

 Outdoor for connection to Outdoor access points


Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
