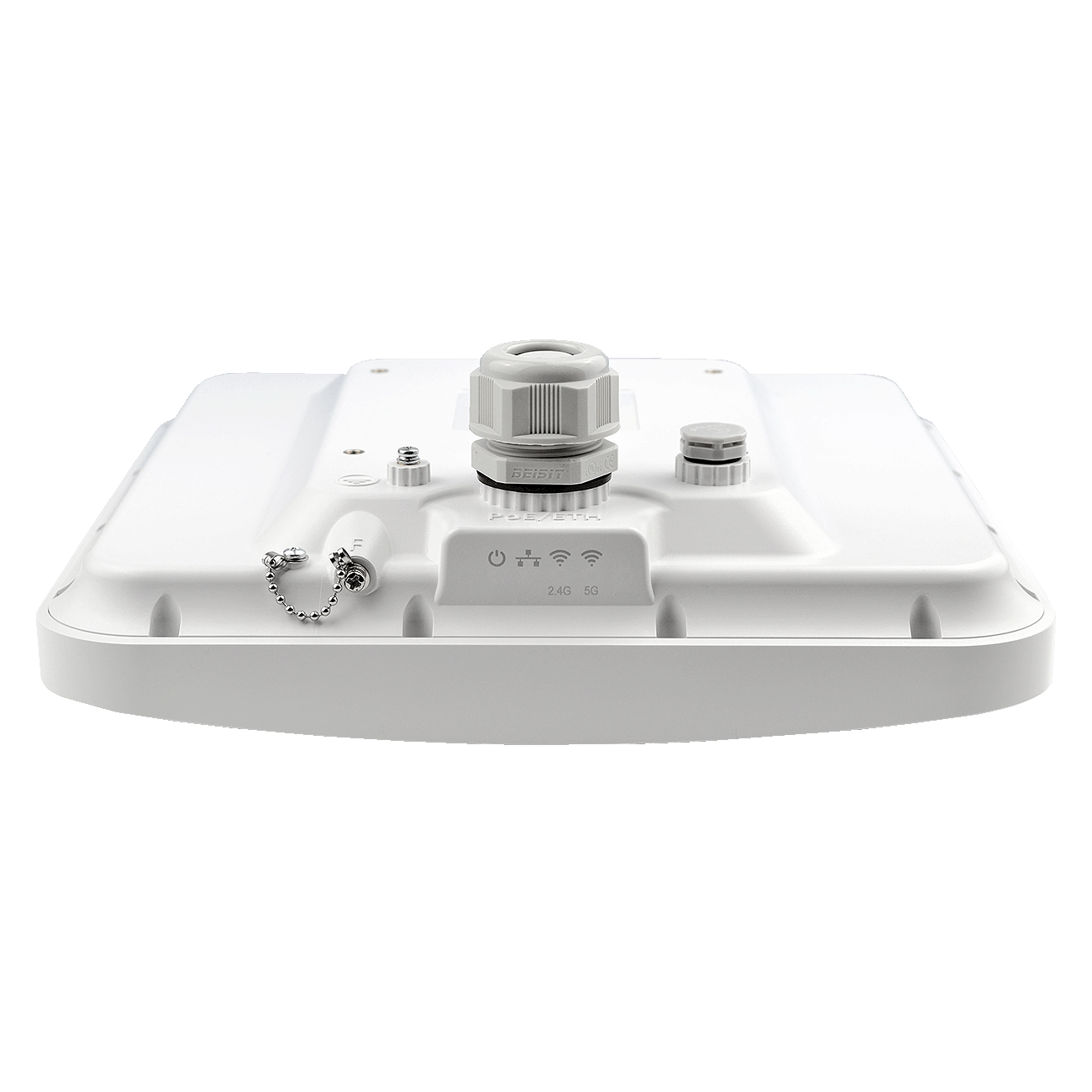

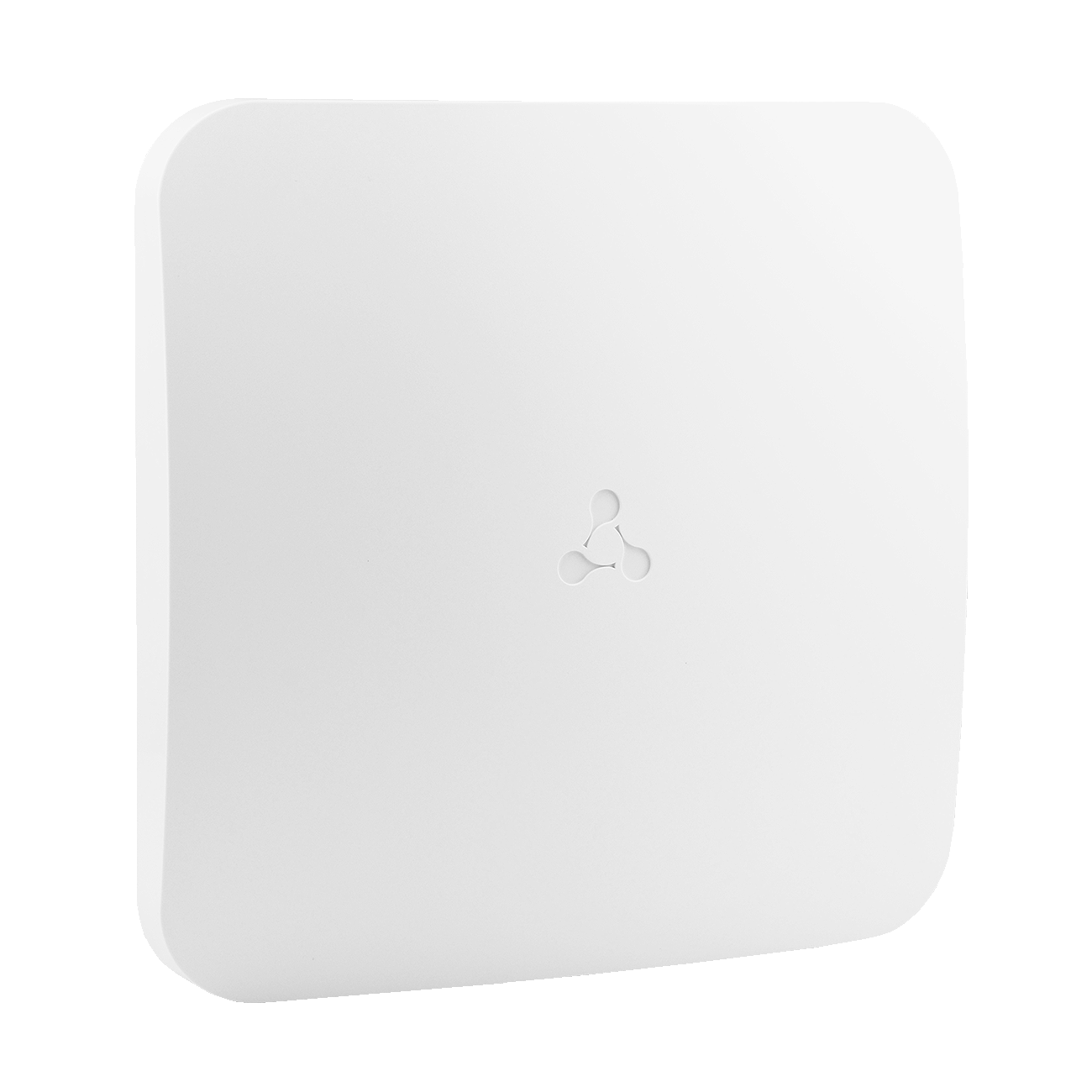

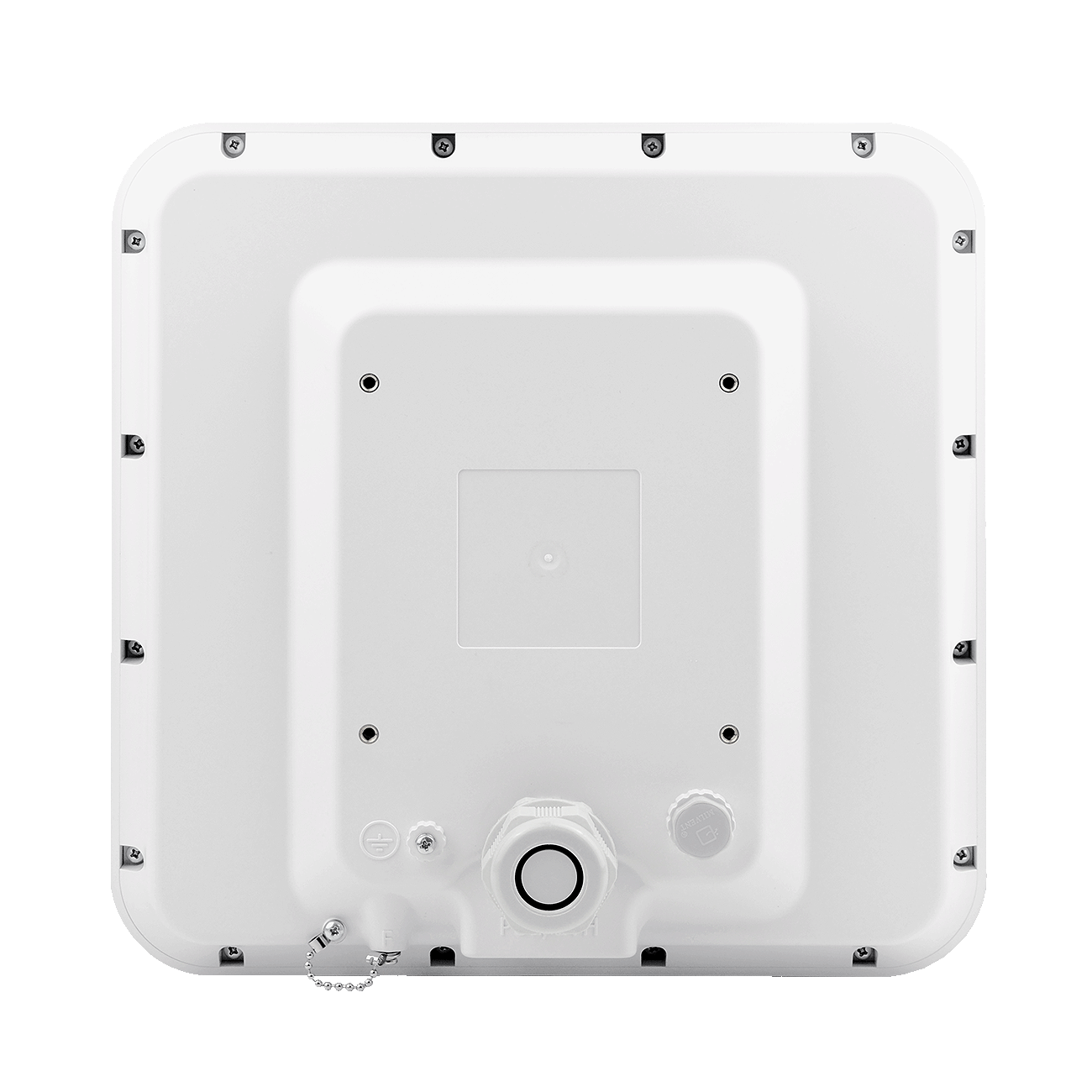

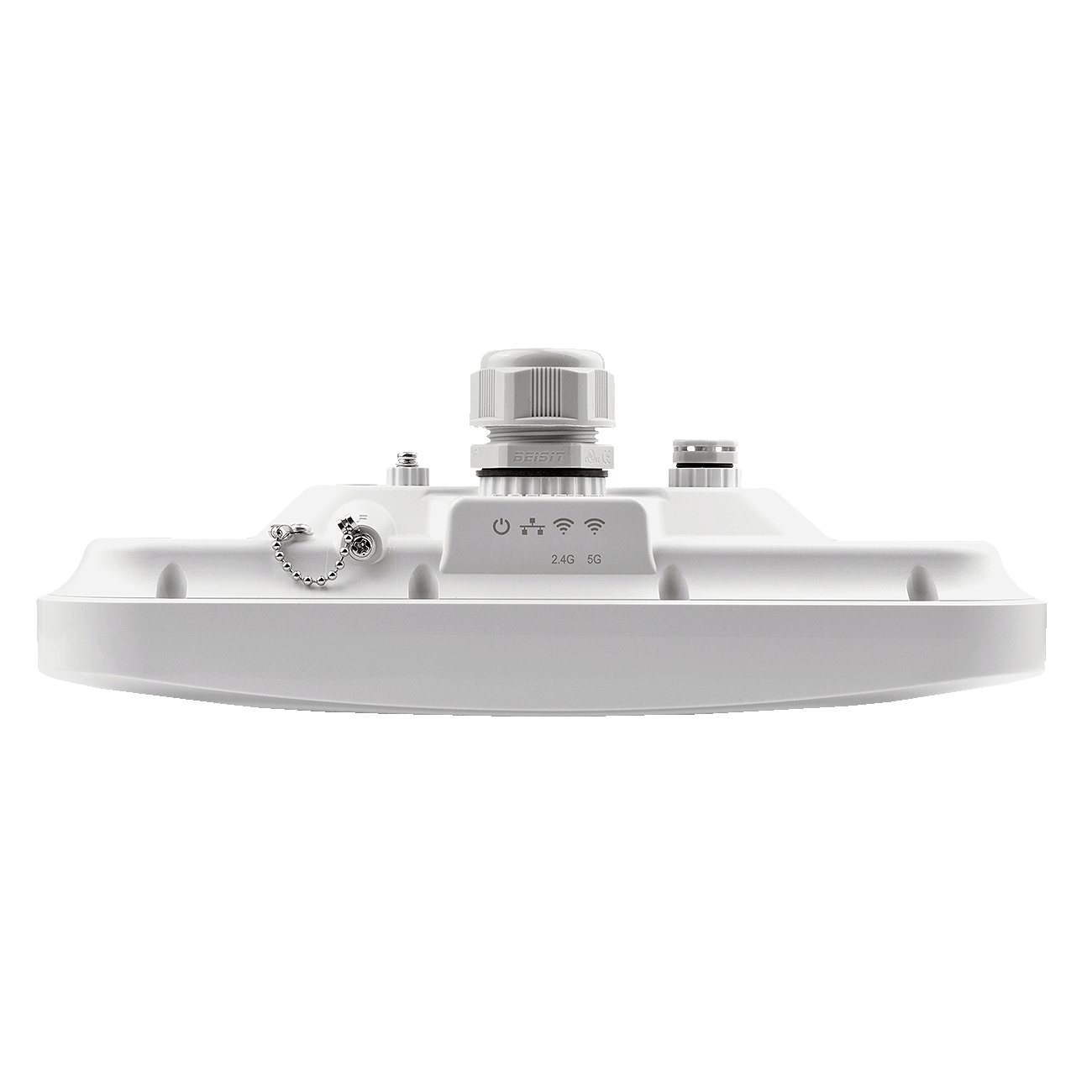

Wireless access point WOP-30LS

Wi-Fi 6:
802.11ax
MU-MIMO:
2×2
Frequency range:
2.4 GHz, 5 GHz
Roaming:
802.11r/k/v
Power supply:
PoE 48 V/56 V
New

Description

All-weather access point

WOP-30LS, a next-generation Wi-Fi 6 access point, provides a high-speed and secure wireless network, that combines many features and services needed for comfortable access in crowded places. With high speed, low latency, energy efficiency, increased bandwidth and extended range, new access points will be able to provide many additional services. WOP-30LS is an indispensable solution for organizing a wire-less network in areas with high-density coverage required (stadiums, parks, etc. ), as well as in rooms with a lot of reflec-tions from metal structures (production sites, warehouse complexes, etc. ).


Scalability

The WOP-30LS wireless access point is the latest flexible solution that allows changing the network coverage area, thereby increasing the number of mobile devices served. The high performance of the hardware platform, scalability and intuitive interface make it easy and quick to deploy a wireless IT infrastructure.


Wireless connection

Due to support for IEEE 802.11ax standard the WOP-30LS access point provides 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) data rates. Using a sector antenna allows decreasing the coverage area of the WOP-30LS access point, reducing the number of potential clients per point and thereby increasing the throughput per client.


Security

To ensure a secure connection, the modern WPA3 authentication and encryption technologies are supported. The new generation access points meet the highest security and compatibility requirements for earlier versions of the 802.11 standard.


Performance

The high-performance processors are used in the devices in order to provide reliability and high data processing rates.


Power supply

The PoE technology makes installation of the equipment possible virtually everywhere, regardless of the power supply location. That reduces total cost by discarding power cables and makes installation easier and faster.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
outdoor
MU-MIMO:
2x2
Interfaces:
1x2.5G
Roaming:
802.11r/k/v
Captive Portal
Encryption:
WPA/WPA2/WPA3
Wi-Fi 6:
802.11ax
SoftWLC
A software controller to provide a comprehensive solution for the organization of centralized Wi-Fi networks. It includes a number of modules that perform various functions (WIDS, AirTune, portal and enterprise authorization, etc.)
SoftWLC
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
10/100/1000/2500BASE-T (RJ-45) with PoE support
1
Wi-Fi 2.4 GHz
b/g/n/ax
Wi-Fi 5 GHz
a/n/ac/ax
WLAN capabilities:
Support for standards
IEEE 802.11 a/b/g/n/ac/ax
Support for roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx)
Yes
Packet priorities and planning
WMM-based
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Virtual access points
14
Detection of access points from other vendors
Yes
Spectrum analyzer
Yes
APSD
Yes
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN support
Access, Trunk, General
DHCP client
Yes
GRE
Yes
Transmission of subscriber traffic outside of tunnels
Yes
ACL
Yes
NTP
Yes
Syslog
Yes
IPv6
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS-server (802.1X WPA/WPA2/WPA3 Enterprise)
Encryption
WPA/WPA2/WPA3
Captive Portal
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
Modulation
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Support for MU-MIMO 2×2
Yes
Bandwidth
20, 40 MHz for 2.4 GHz
20, 40 and 80 MHz for 5 GHz
Operating channels:
802.11b/g/n/ax
1–13 (2401 –2483 MHz)
802.11a/n/ac/ax
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
802.11ax
2.4 GHz 574 Mbps
802.11ax
5 GHz 1201 Mbps
Maximum power of the transmitter
2.4 GHz: 20 dBm
5 GHz: 20 dBm
Antenna parameters:
Gain
2.4 GHz: up to 9 dBi
5 GHz: up to 12 dBi
Linear polarization
H/V
SWR
2.0:1
Beam width (H)
55±5°
Beam width (V)
40±5°
Receiver sensitivity
2.4 GHz: up to -94 dBm
5 GHz: up to -94 dBm
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
