Wireless access point WOP-30L

Wi-Fi 6:
802.11ax
MU-MIMO:
2×2
Frequency range:
2.4 GHz, 5 GHz
Roaming:
802.11r/k/v
Power supply:
PoE+ 48 V/56 V
New

Description

All-weather access point

WOP-30L, a next-generation Wi-Fi 6 access point, provides a high-speed and secure wireless network, that combines many features and services needed for comfortable access in crowded places. With high speed, low latency, energy efficiency, increased bandwidth and extended range, new access points will be able to provide many additional services.


WOP-30L is an indispensable solution for organizing a wireless network in various climatic conditions, in a wide range of operating temperatures and high humidity (parks, factories, stadiums, etc.), and is also an ideal platform for organizing communications in cottage settlements and remote settlements.


Scalability

The WOP-30L wireless access point is the latest flexible solution that allows changing the network coverage area, thereby increasing the number of mobile devices served. The high performance of the hardware platform, scalability and intuitive interface make it easy and quick to deploy a wireless IT infrastructure.


Wireless connection

Due to support for IEEE 802.11ax standard the WOP-30L access point provides 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) data rates. The use of MU-MIMO technology and omnidirectional antennas makes WOP-30L a universal solution for corporate networks construction.



Security

For the corporate environment, modern WPA3 authentication and encryption technologies are supported, which provide personal data protection and environment security. The new generation access points meet the highest security and compatibility requirements for earlier versions of the 802.11 standard.


Performance

The high-performance processors are used in the devices in order to provide reliability and high data processing rates.


Power supply

The PoE+ technology makes installation of the equipment possible virtually everywhere, regardless of the power supply location. That reduces total cost by discarding power cables and makes installation easier and faster.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
outdoor
Degree of protection:
IP55
Wi-Fi 6:
802.11ax
MU-MIMO:
2×2
Interfaces:
1 х 2.5G PoE/PoE+
Roaming:
802.11r/k/v
Captive Portal
Encryption:
WPA/WPA2/WPA3/OWE
Antennas:
external
SoftWLC
A software controller to provide a comprehensive solution for the organization of centralized Wi-Fi networks. It includes a number of modules that perform various functions (WIDS, AirTune, portal and enterprise authorization, etc.)
SoftWLC
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:

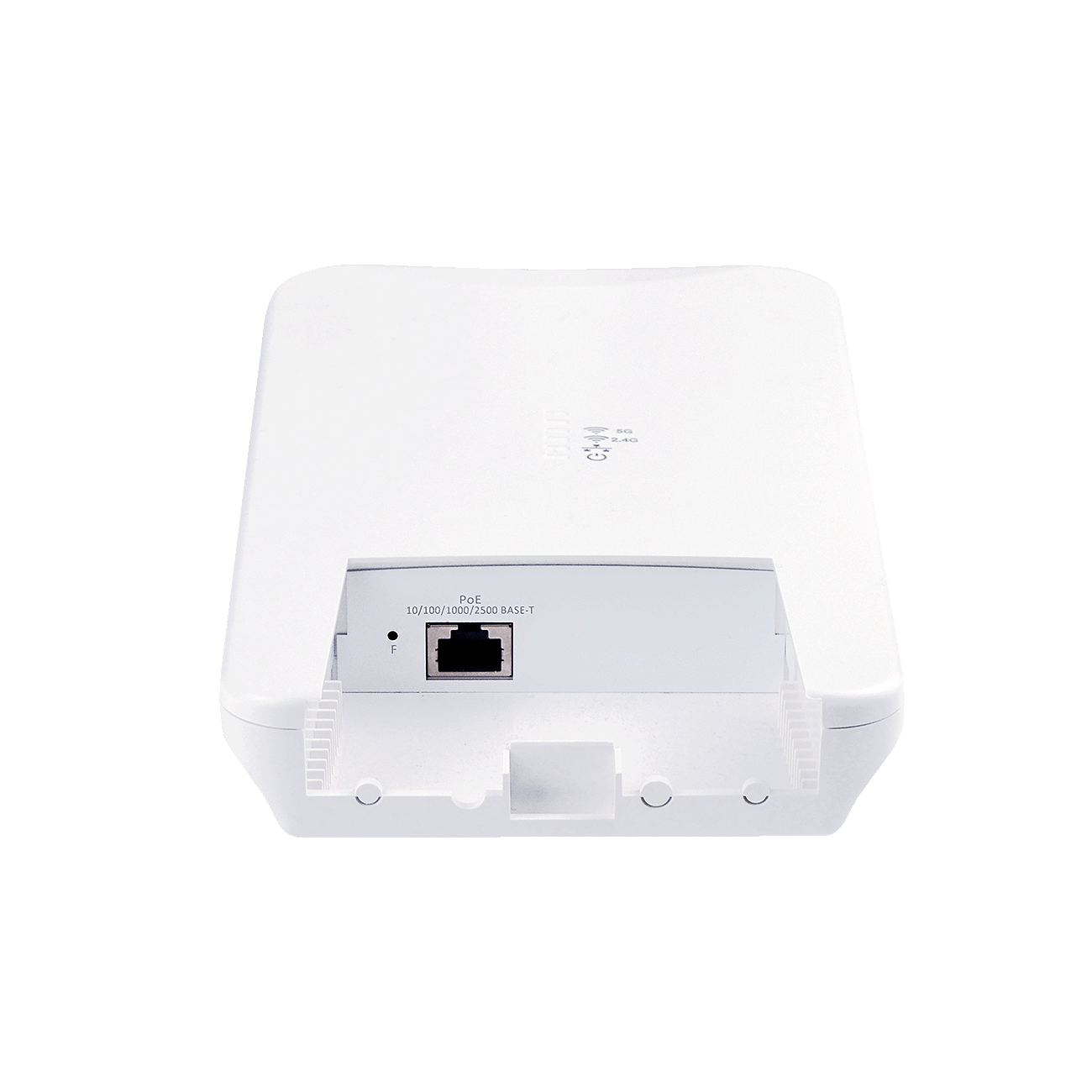

10/100/1000BASE-T (RJ-45) with PoE+ support
1
Wi-Fi 2.4 GHz
b/g/n/ax
Wi-Fi 5 GHz
a/n/ac/ax

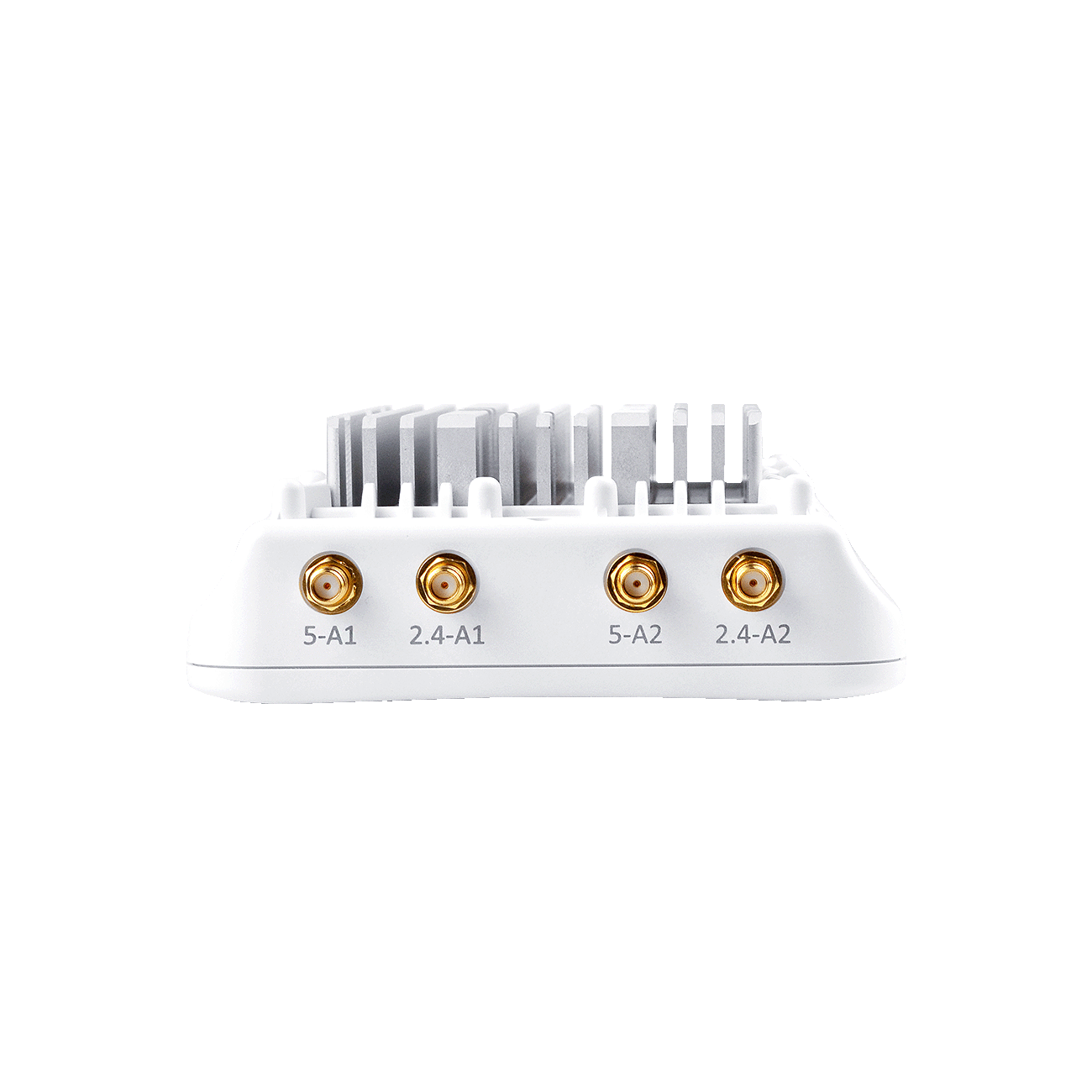

SMA-type connectors (female) for connecting external antennas (Omni, sector, panel, etc.)
Yes
WLAN capabilities:
Support for standards
IEEE 802.11 a/b/g/n/ac/ax
Support for roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx)
Yes
Packet priorities and planning
WMM-based
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Virtual access points
14
Detection of access points from other vendors
Yes
Spectrum analyzer
Yes
APSD
Yes
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN support
Access, Trunk, General
DHCP client
Yes
GRE
Yes
Transmission of subscriber traffic outside of tunnels
Yes
ACL
Yes
NTP
Yes
Syslog
Yes
IPv6
Yes
Security:
Centralized authorization
RADIUS-server (802.1X WPA/WPA2 Enterprise)
Enterprise
WPA/WPA2/WPA3/OWE
Captive Portal
Yes
Wireless interface specifications:
Frequency range:
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
Modulation
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Support for MU-MIMO 2×2
Yes
Bandwidth:
20, 40 MHz for 2.4 GHz
20, 40 and 80 MHz for 5 GHz
Operating channels:
802.11b/g/n
1–13 (2401 –2483 MHz)
802.11a/n/ac
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
2.4 GHz, 802.11ax
574 Mbps
5 GHz, 802.11ax
1201 Mbps
Maximum power of the transmitter
2.4 GHz: 20 dBm
5 GHz: 20 dBm
Receiver sensitivity
2.4 GHz: up to -92 dBm
5 GHz: up to -94 dBm
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
