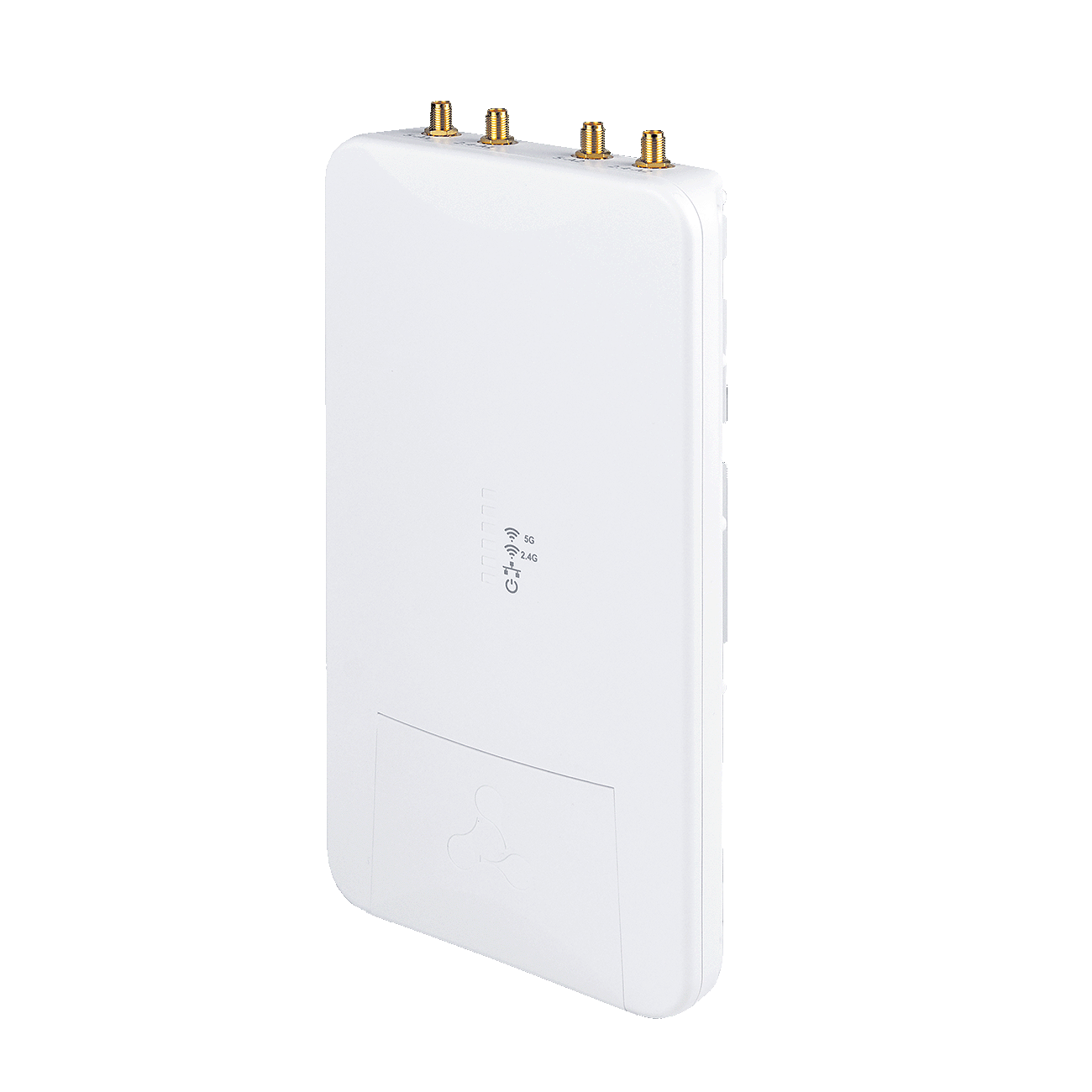

Wireless access point WOP-20L

Wi-Fi 5:
802.11ac
MIMO:
2x2
Frequency range:
2.4 GHz, 5 GHz
Roaming:
802.11r/k/v
Power supply:
PoE 48 V/56 V

Description

All-weather access point

The WОP-20L wireless access point provides easy and secure access to a high-performance wireless network that combines numerous features and services necessary for convenient network access in crowded areas.


With high speed, low latency, energy efficiency, increased bandwidth and extended range, new access points provide many additional services, compared to access points of the previous Wi-Fi standards.


The device is an indispensable solution for organizing a wireless network in various climatic conditions, in a wide range of operating temperatures and high humidity (parks, factories, stadiums, etc.), and is also an ideal platform for organizing communication in suburban settlements and remote locations.


Scalability

WOP-20L is an up-to-date flexible solution that allows changing the network coverage in order to increase the quantity of serviced mobile devices. Due to high performance hardware platform, scalability features and easy-to-use interface, it is possible to set up IT infrastructure simply and fast.


Wireless connection

Due to support for IEEE 802.11n/ac standards the WOP-20L access point provides up to 300 Mbps (at 2.4 GHz) and up to 867 Mbps (at 5 GHz) data rates.
The use of MIMO technology and omnidirectional antennas makes WOP-20L a universal solution for corporate networks construction.


Security

Up-to-date authentication technologies are provided to ensure a secure connection. In particular, a dynamic key is used, which is unique for each subscriber device connected to WOP-20L.


Performance

To ensure stable and uninterrupted operation of the device, high-performance processors are used, providing reliability and high data processing rates.


Power

The PoE technology makes it possible to install equipment in any place, regardless of the power supply source location. That reduces total cost by discarding power cables and makes installation easier and faster.


Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
outdoor
Wi-Fi 5:
2,4/5 GHz
MU-MIMO:
2x2
Interfaces:
1×1G
Roaming:
802.11r/k/v
Captive Portal
Encryption:
WPA/WPA2
Antennas:
external
SoftWLC
A software controller to provide a comprehensive solution for the organization of centralized Wi-Fi networks. It includes a number of modules that perform various functions (WIDS, AirTune, portal and enterprise authorization, etc.)
SoftWLC
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:

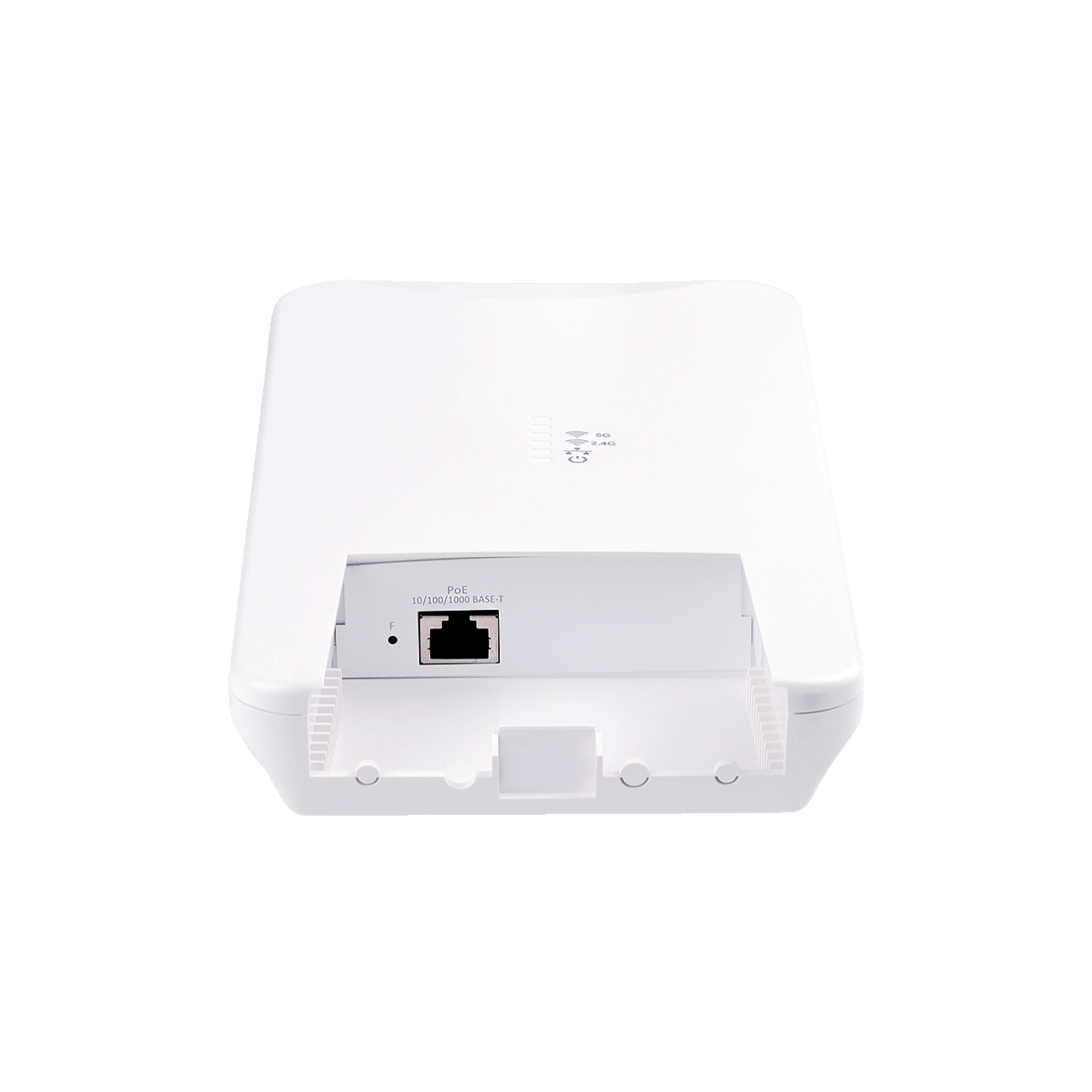

10/100/1000BASE-T (RJ-45) with PoE support
1
Wi-Fi 2.4 GHz
b/g/n
Wi-Fi 5 GHz
a/n/ac

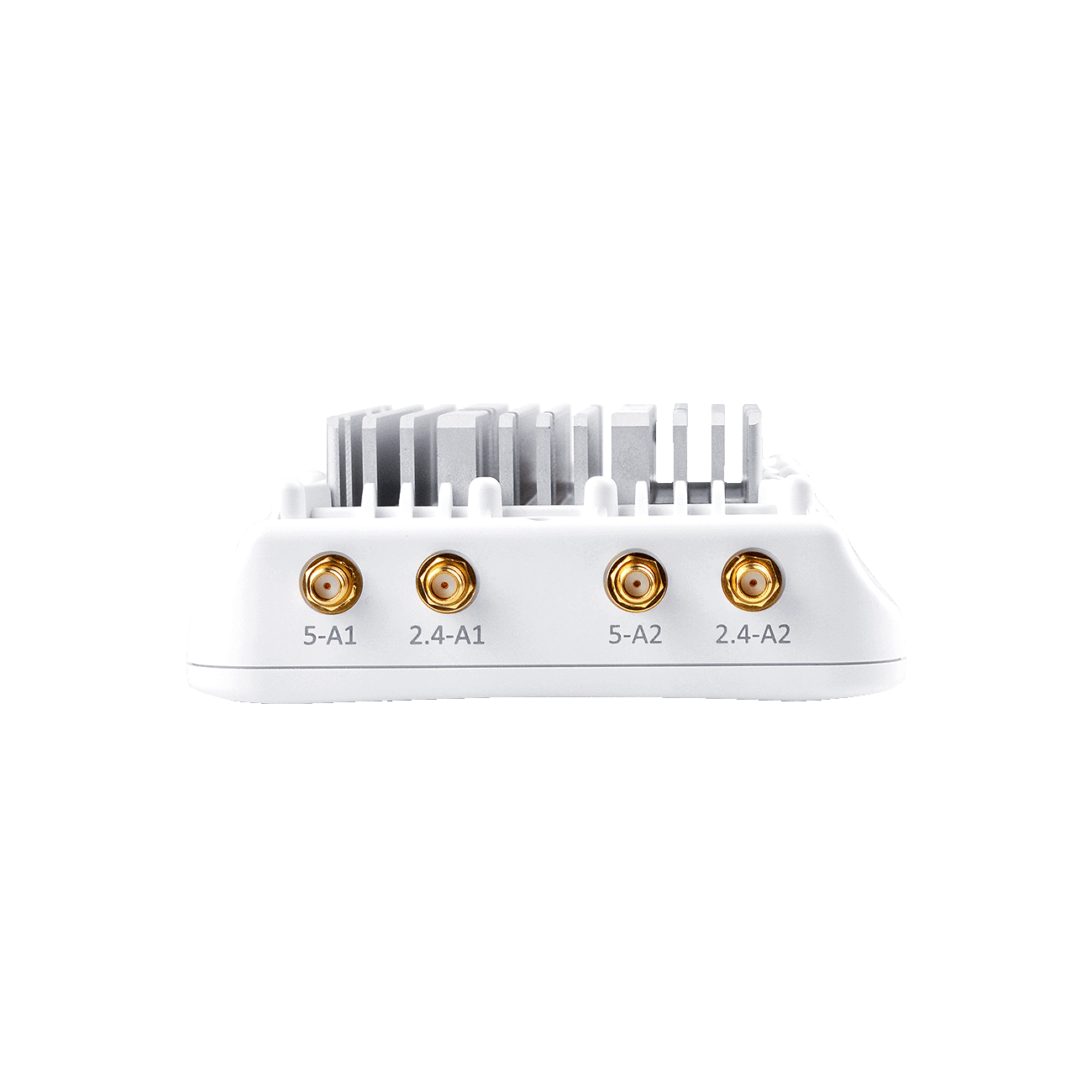

SMA connectors (female) for external antennas connection (Omni, sector, panel, etc.)
4
WLAN capabilities:
Support for standards
IEEE 802.11 a/b/g/n/ac
User roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and AMSDU (Rx)
Yes
Packet priorities and planning
WMM-based
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Virtual access points
14
External access points detection
Yes
Spectrum analyzer
Yes
WDS support
Yes
APSD support
Yes
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN support
Access, Trunk, General
DHCP-client
Yes
GRE support
Yes
Transmission of subscriber traffic out of tunnels
Yes
ACL support
Yes
NTP support
Yes
Syslog support
Yes
IPv6 support
Yes
Security:
Centralized authorization
RADIUS-server (802.1X WPA/WPA2 Enterprise)
Encryption
WPA/WPA2
Captive Portal
Yes
Authorization via RADIUS server when logging in to the device
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
Modulation
BPSK, QPSK, 16QAM, 64QAM, 256QAM
Support for MIMO 2x2
Yes
Bandwidth
20, 40 MHz для 2.4 GHz
20, 40 and 80 MHz для 5 GHz
Operating channels:
802.11b/g/n
1–13 (2401 –2483 MHz)
802.11a/n/ac
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
802.11a
up to 54 Mbps
802.11b
up to 11 Mbps
802.11g
up to 54 Mbps
802.11n
up to 300 Mbps
802.11ac
up to 867 Mbps
Maximum power of the transmitter
2.4 GHz: 18 dBm
5 GHz: 20 dBm
Receiver sensitivity
2.4 GHz: up to -91 dBm
5 GHz: up to -93 dBm
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
