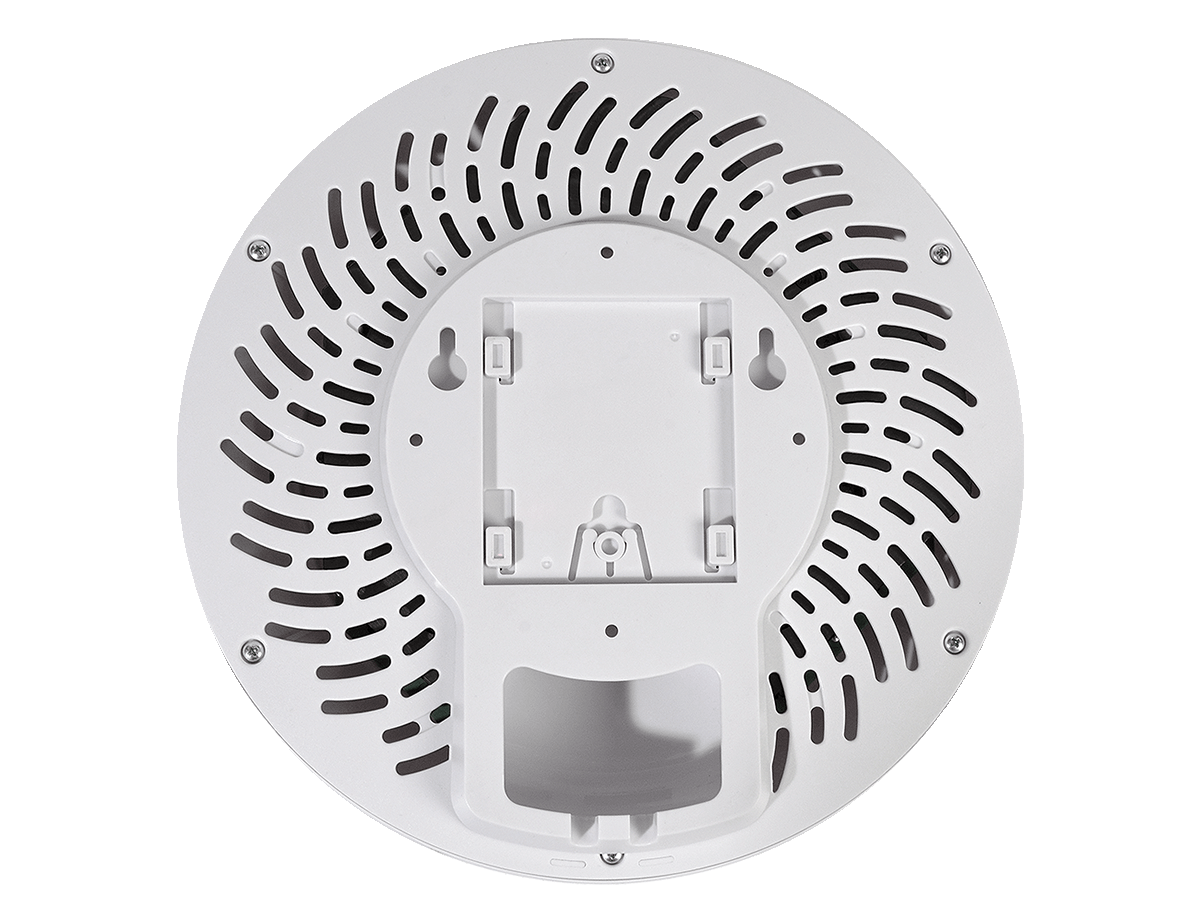

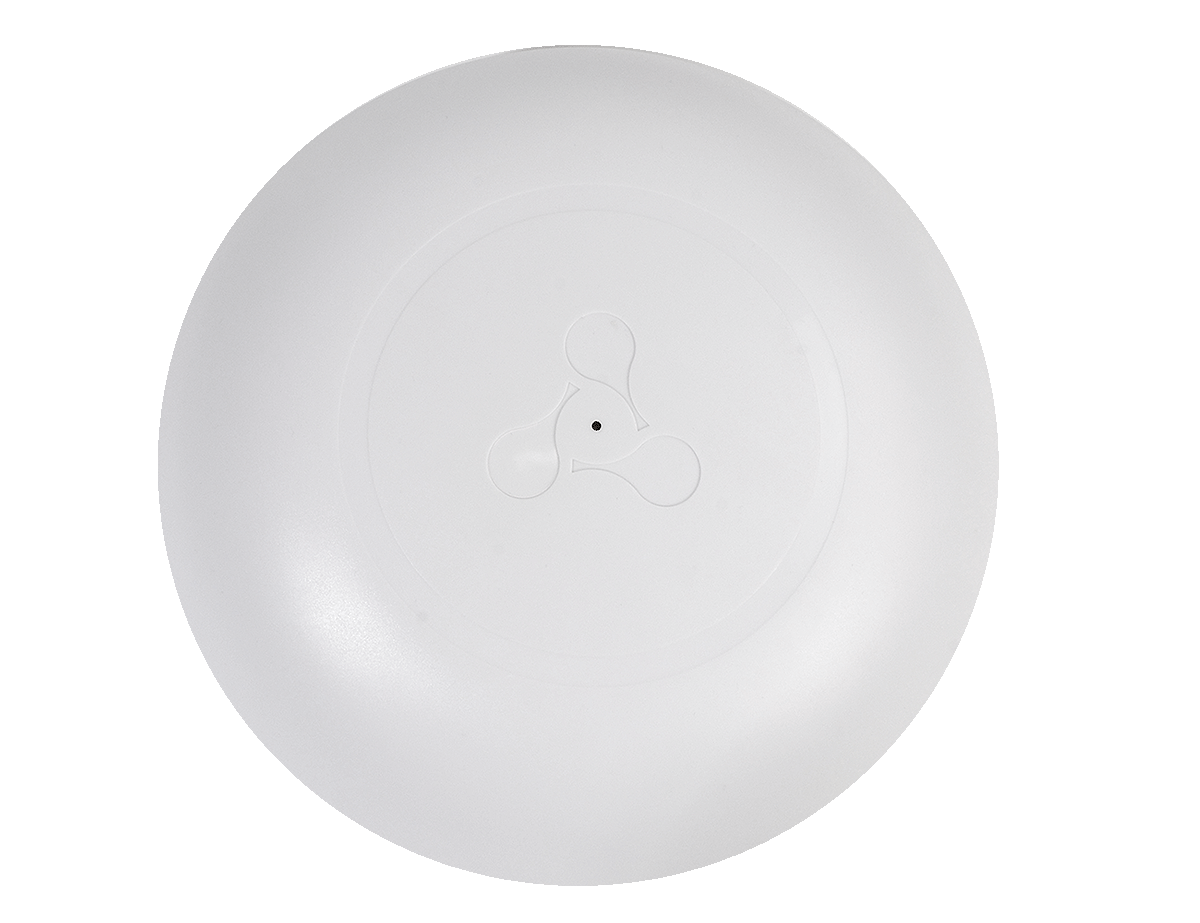

Wireless access point WEP-3ax

Mass production
Key benefits
  • Dual band access point with support for 802.11ax
  • Support for MU-MIMO 2x2
  • PoE+ power supply (IEEE 802.3at)
  • Seamless roaming
  • Up-to-date authentication and encryption means

Solution for enterprises
WEP-3ax is a new Wi-Fi 6 generation access point that will provide maximum bandwidth and stable wireless connection for all connected devices. 802.11ax access points support a broader set of applications that require maximum performance in demanding enterprise environments with low power consumption and low latency.
With high speed, low latency, energy efficiency, increased bandwidth and extended range, the new access points will be able to provide many additional services compared to previous Wi-Fi standards, including Internet of Things (IoT). WEP-3ax is a universal solution for organization of wireless networks in highly crowded areas and high traffic environ-ments (offices, state institutions, conference halls, laboratories, hotels etc.).

Scalability
WEP-3ax is an up-to-date flexible solution that allows changing the network coverage in order to increase the quantity of serviced mobile devices. Due to high-performance hardware platform, scalability features and easy-to-use interface, it is possible to set up IT infrastructure simply and fast.

Wireless connection
Due to support for IEEE 802.11ax standard the WEP-3ax access point provides 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) data rates.
The use of MU-MIMO technology and embedded omnidirectional antennas makes WEP-3ax a universal solution for corporate networks construction.

Security
For the corporate environment, modern WPA3 authentication and encryption technologies are supported, which provide personal data protection and environment security. The new generation access points meet the highest security and compatibility requirements for earlier versions of the 802.11 standard.

Performance
High-performance Broadcom processors are used in the devices in order to provide reliability and high data processing rates.

Power supply
The PoE+ technology makes installation of the equipment possible virtually everywhere, regardless of the power supply location. The use of PoE+ technology reduces total cost by discarding power cables and makes installation easier and faster.


Specifications
Documents and files
Warranty
Interfaces
  • 1 port of Ethernet 100/1000/2500 Base-T (RJ-45) with PoE+
  • Wi-Fi 2.4 GHz IEEE 802.11b/g/n/ax
  • Wi-Fi 5 GHz IEEE 802.11a/n/ac/ax
WLAN capabilities
  • Support for IEEE 802.11a/b/g/n/ac/ax
  • Support for roaming IEEE 802.11r/k/v
  • Data aggregation, including A-MPDU (Tx/Rx) and А-MSDU (Rx)
  • WMM-based packet priorities and planning
  • Dynamic frequency selection (DFS)
  • Support for hidden SSID
  • 32 virtual access points
  • Detection of access points from other vendors
  • Spectrum analyzer
  • Channel autoselection
  • BSS coloring
Network features
  • Automatic speed negotiation, duplex mode negotiation and MDI/MDI-X switch-over
  • Transmission of subscriber traffic outside of tunnels
  • VLAN support
  • NTP
  • GRE
  • DHCP client
QoS functions
  • Bandwidth limiting for each SSID
  • Client data rate limiting for each SSID
  • Support for prioritization by CoS and DSCP
Security
  • Centralized authorization via RADIUS server (802.1X WPA/WPA2/WPA3 Enterprise)
  • WPA/WPA2/WPA3 encryption
  • Support for Captive Portal
  • Support for WIDS/WIPS1
Configuration
  • Remote control via Telnet, SSH
  • CLI
  • Web interface
  • NETCONF
Wireless interface parameters
  • Frequency range: 2400–2483.5 MHz, 5150–5350 MHz, 5470–5850 MHz
  • BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM modulations
  • Built-in Omni-directional antennas
  • Support for MU-MIMO 2x2
  • Support for OFDMA
  • Bandwidth:
    • 20, 40 MHz for 2.4 GHz;
    • 20, 40, 80 MHz for 5 GHz.
Operating channels
  • 802.11b/g/n/ax: 1-13 (2402 - 2482 MHz)2
  • 802.11a/n/ac/ax:
    • 36-64 (5170 - 5330 MHz)
    • 100- 144 (5490 - 5730 MHz)
    • 149-165 (5745 - 5835 MHz)2
Data rate3
  • 2.4 GHz, 802.11ax: up to 574 Mbps
  • 5 GHz, 802.11ax: up to 1201 Mbps

Maximum power of the transmitter2

  • 2.4 GHz: 22.5 dBm
  • 5 GHz: 24 dBm

Built-in antenna gain

  • 2.4 GHz: ~ 3 dBi
  • 5 GHz: ~ 3 dBi
Receiver sensitivity
  • 2.4 GHz: up to -92 dBm
  • 5 GHz: up to -93 dBm
Physical specifications
  • Power consumption: no more than 13 W
  • 256 MB NAND Flash
  • 1 GB DDR4 RAM
  • Power supply: PoE+ 48V/56V (IEEE 802.3at-2009)
  • Operating temperature from +5 C to +40 C
  • Dimensions (Diameter x Height): 230x56 mm

1Support for WIDS/WIPS functionality is provided under license.

2The number of channels and the value of the maximum output power will vary according to the rules of radio frequency regulation in your country.

3The maximum wireless data rate is defined according to IEEE 802.11 standards. The real bandwidth can be different. Conditions of the network, environment, the amount of traffic, building materials and constructions and network service data can decrease the real bandwidth. The environment caninfluence the network coverage range.
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
