Wireless access point WOP-30LI

Wi-Fi 6:
802.11ax
MU-MIMO:
2×2
Frequency range:
2.4 GHz, 5 GHz
Roaming:
802.11r/k/v
Power supply:
PoE+ 48 V/56 V, DC 12–56 V
New

Description

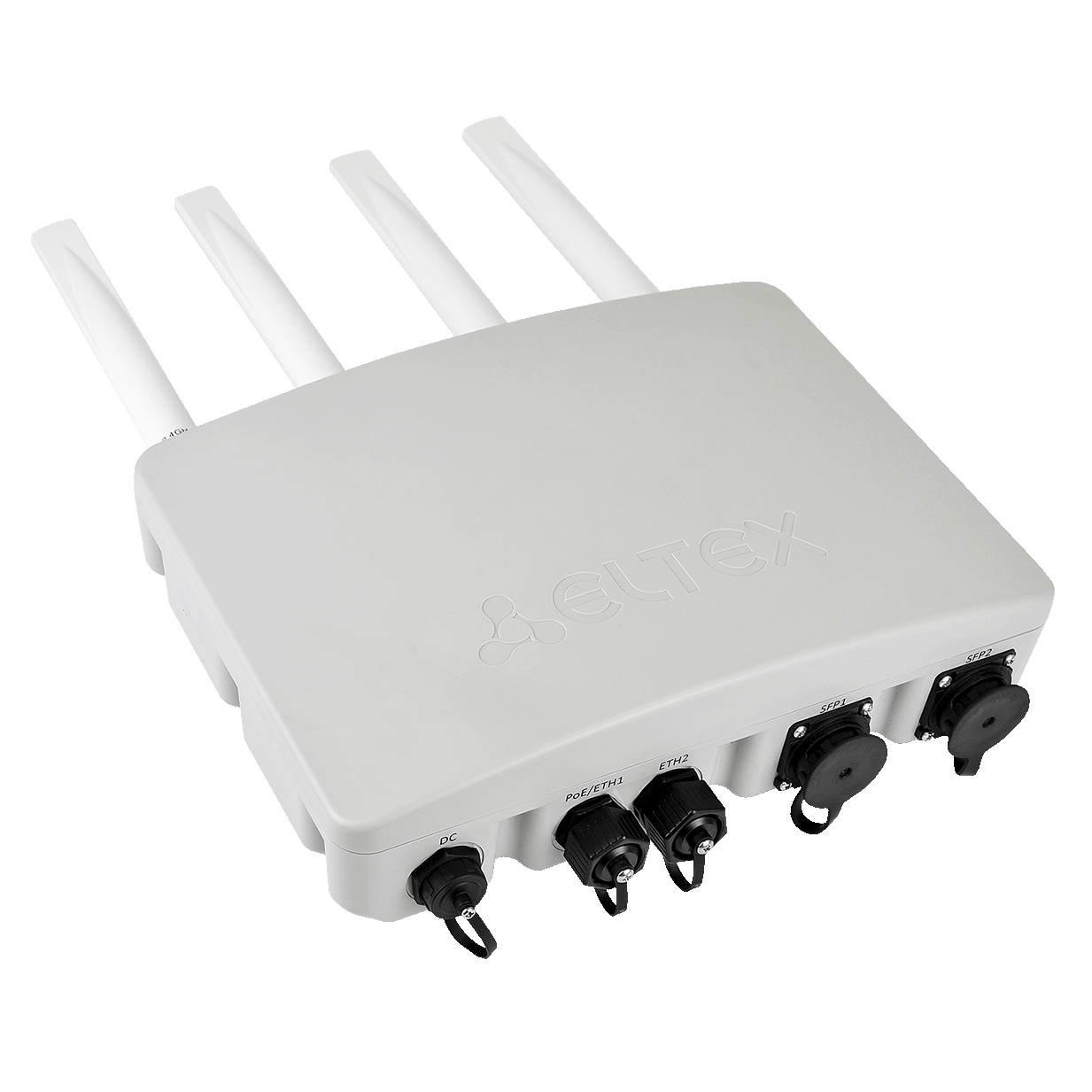

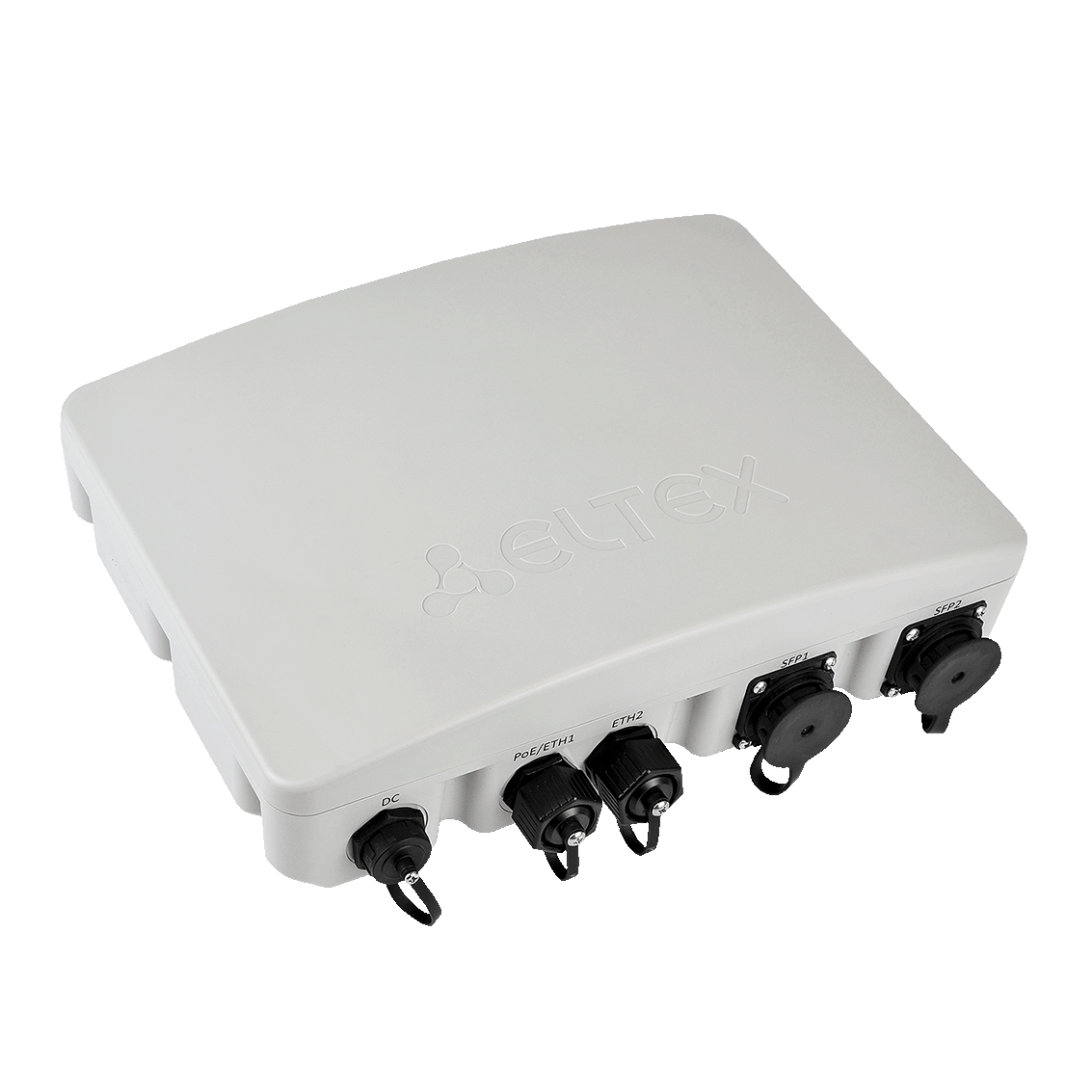

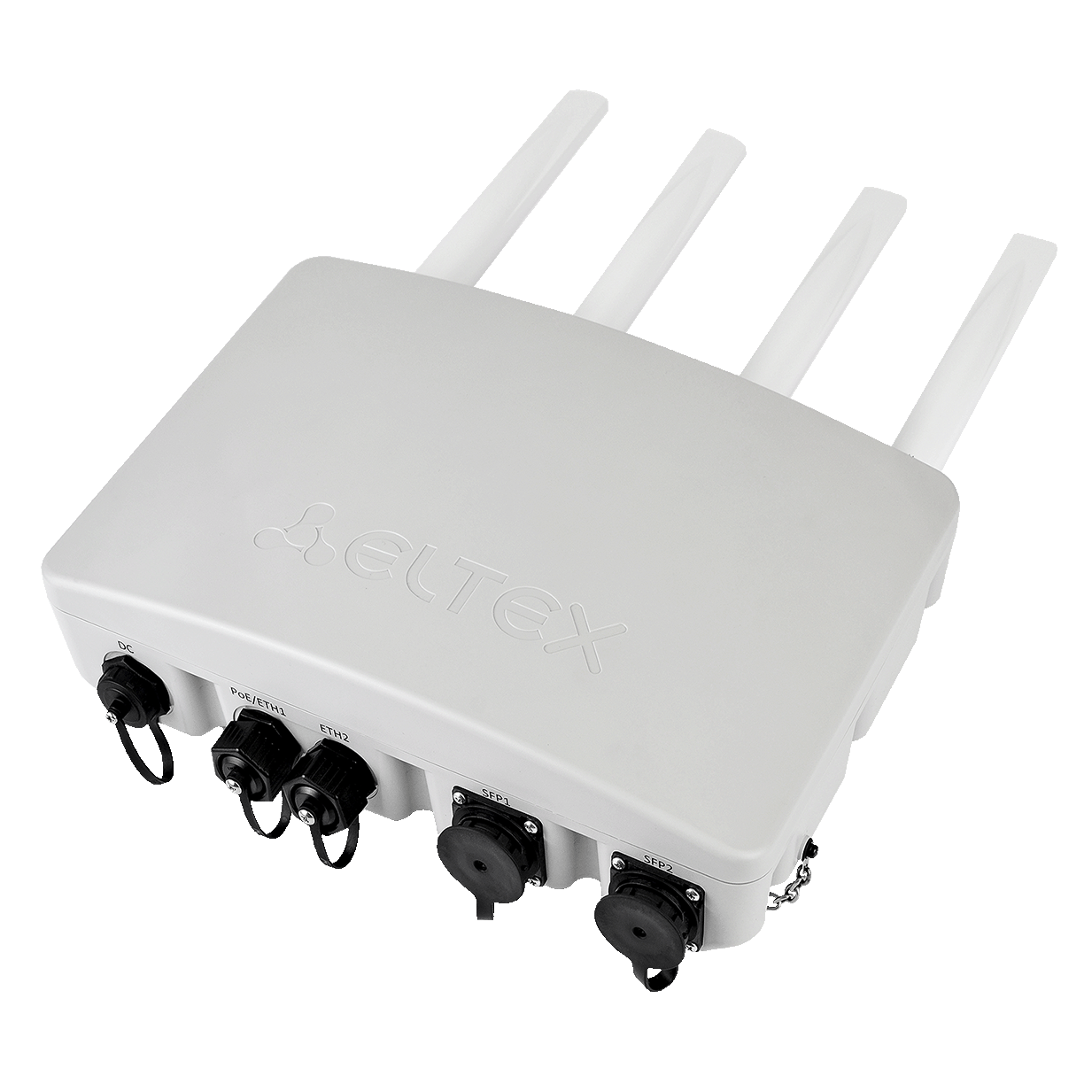

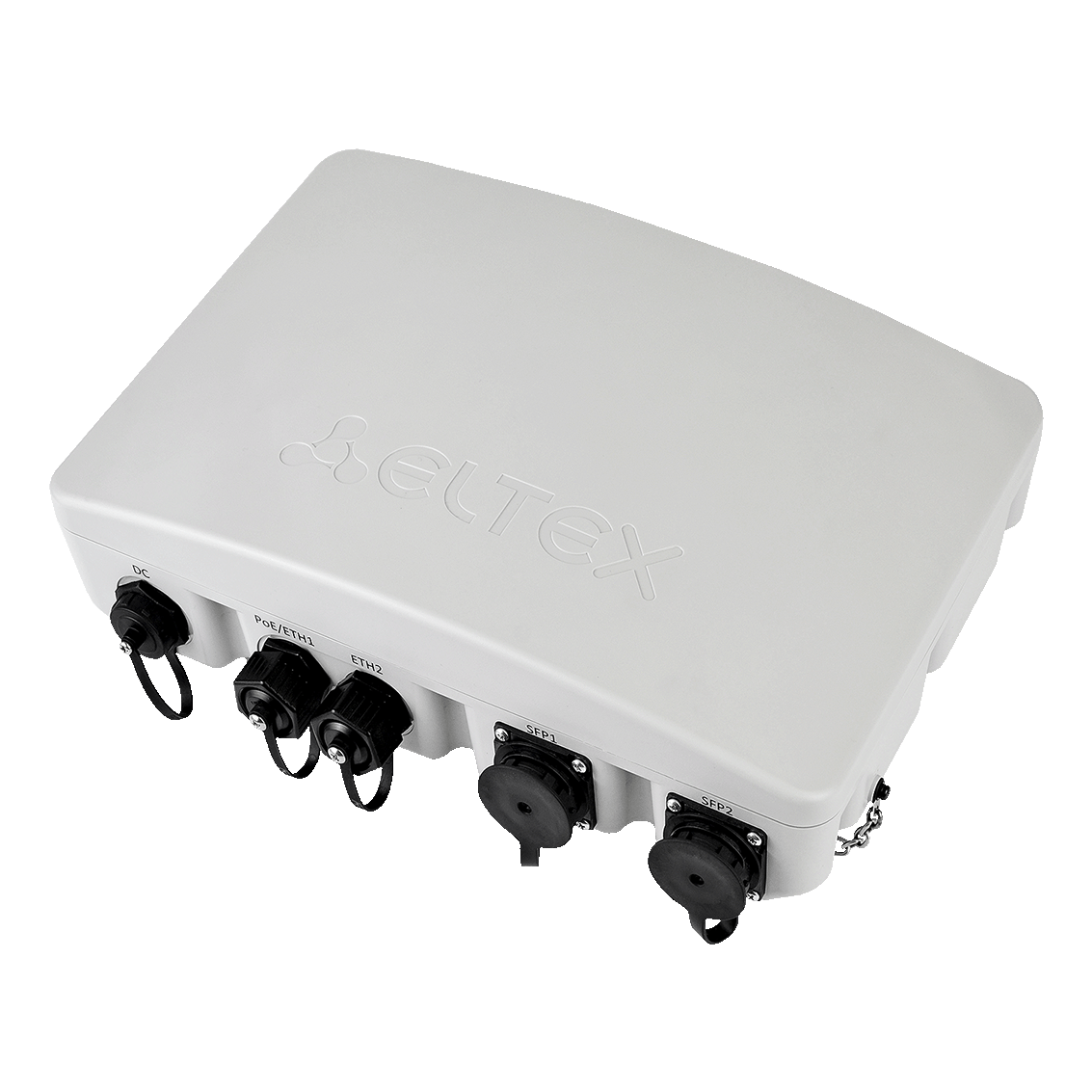

Industrial access point

WOP-30LI is a next-generation industrial access point of Wi-Fi 6 (IEEE 802.11ax) that provides a high-speed and secure wireless network. Due to built-in 2 × 1GE and 2 × SFP (1G) ports, WOP-30LI allows connecting other devices and cascading multiple access points into one network. The robust sealed housing of WOP-30LI with IP67 ingress protection is ideal for installing the device in extreme industrial facilities and open areas (factories, quarries, production buildings, large industrial complexes, warehouses, etc.)


Scalability

The WOP-30LI wireless access point is the latest flexible solution that allows changing the network coverage area, thereby increasing the number of mobile devices served. The high performance of the hardware platform, scalability and intuitive interface make it easy and quick to deploy a wireless IT infrastructure.


Wireless connection

Due to support for IEEE 802.11ax standard the WOP-30LI access point provides 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) data rates. Using the MU-MIMO technology and omnidirectional antennas makes WOP-30LI a universal solution for organizing public networks.


Security

To ensure a secure connection, the modern WPA3 authentication and encryption technologies are supported. The new generation access points meet the highest security and compatibility requirements for earlier versions of the 802.11 standard.


Performance

The high-performance processors are used in the devices in order to provide reliability and high data processing rates.


Power supply

WOP-30LI supports power supply variability, so the access point is powered either through a DC connector from a DC power supply or via an Ethernet cable (PoE+). The ability to choose a power source expands the application possibilities of the device.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
outdoor
Ingress protection:
IP67
Wi-Fi 6:
802.11ax
MU-MIMO:
2×2
Roaming:
802.11r/k/v
Captive Portal
Encryption:
WPA/WPA2/WPA3/OWE
Interfaces:
1 x 1G, 1 × 1G PoE/PoE+, 2 × 1G SFP
Antennas:
external
SoftWLC
A software controller to provide a comprehensive solution for the organization of centralized Wi-Fi networks. It includes a number of modules that perform various functions (WIDS, AirTune, portal and enterprise authorization, etc.)
SoftWLC
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
10/100/1000/1000BASE-T (RJ-45)with PoE+ support
1
10/100/1000/1000BASE-T (RJ-45)
1
100/1000BASE-X (SFP)
1
1000BASE-X (SFP)
1
Wi-Fi 2.4 GHz
b/g/n/ax
Wi-Fi 5 GHz
a/n/ac/ax
WLAN capabilities:
Standards support
IEEE 802.11a/b/g/n/ac/ax
Users roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx)
Yes
Packet priorities and planning
WMM-based
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Virtual access points
14
Third-party access points detection
Yes
Spectrum analyzer
Yes
Support for wireless bridges (WDS)
Yes
APSD
Yes
Network functions:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN support
Access, Trunk, General
DHCP-client
Yes
GRE
Yes
Transmission of subscriber traffic outside of tunnels
Yes
ACL
Yes
NTP
Yes
Syslog
Yes
IPv6
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS-server (802.1X WPA/WPA2/WPA3 Enterprise)
Enterprise
WPA/WPA2/WPA3/OWE
Captive Portal
Yes
Authorization via RADIUS server when logging into the device
Yes
Wireless interface specifications:
Frequency range:
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
Modulations
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Support for MU-MIMO 2×2
Yes
Bandwidth:
20, 40 MHz for 2.4 GHz
20, 40 и 80 MHz for 5 GHz
Operating channels:
802.11b/g/n/ax
1–13 (2401 –2483 MHz)
802.11a/n/ac/ax
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
802.11ax
2.4 GHz 574 Mbps
802.11ax
5 GHz 1201 Mbps
Maximum power of the transmitter
2.4 GHz: 20 dBm
5 GHz: 20 dBm
Receiver sensitivity
2.4 GHz: up to -93 dBm
5 GHz: up to -94 dBm
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
