Wireless user station WB-2P-LR5

Personal order only
Key benefits
  • 802.11a/n/ac (5G Wi-Fi)
  • MIMO 2x2
  • Power of the transmitter up to 28 dBm
  • Integrated antenna 12 dBi
  • РoЕ injector 24V
  • Reset button on the injector

WB-2P-LR5 - a high-performance wireless user station designed for up-to-date high speed service provision via Wi-Fi technology.

Wireless connection
WB-2P-LR5 is developed for connection to Wi-Fi access network which might be constructed using base stations within long distances.

To ensure a stable and uninterrupted operation, the device is equipped with high-performance processors providing high routing rates and ensuring the effective operation of FBWA (Fixed Broadband Wireless Access) technology.

wb-2p-lr5 (2).jpg

Documents and files

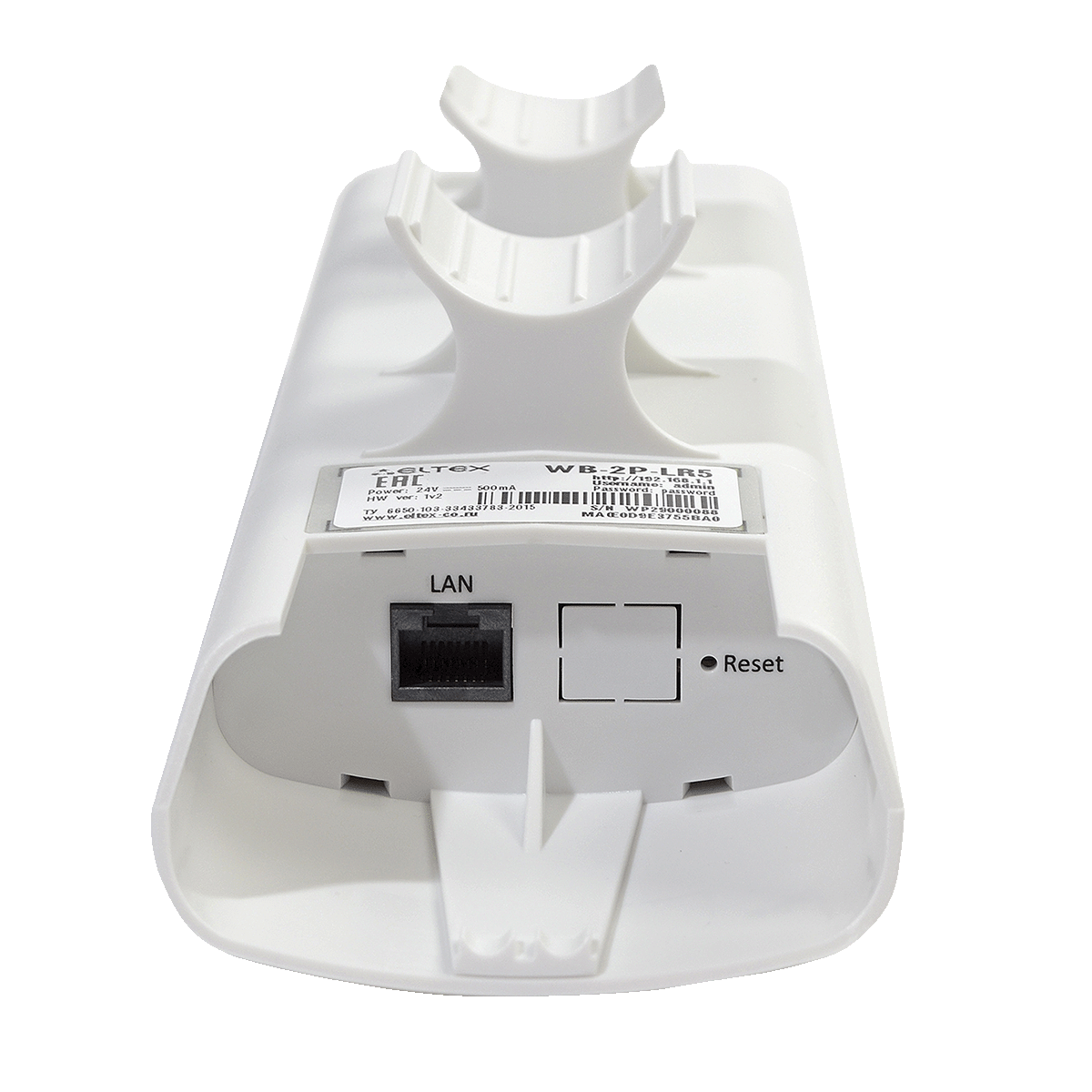

  • 1 Ethernet port 10/100/1000BASE-T (RJ-45)
  • Wi-Fi 5-6 GHz IEEE 802.11a/n/ac
  • Service Wi-Fi 2.4 GHz 802.11b/g/n (short-range interface for adjustment and device setup during the installation period)1
  • Support for IEEE 802.11a/n/ac standards
  • Data aggregation, including A-MPDU (Tx/Rx) and А-MSDU (Rx)
  • WMM-based priorities and packet planning
  • Access points detection
  • Spectrum analyzer
  • Polling
  • Support for wireless bridges (WDS)
  • Channel list limitation
  • Support for fixed center frequency
  • Centralized authentication via RADIUS server (WPA/WPA2 Enterprise)
  • WPA/WPA2 encryption
  • 64/128/152-bit WEP encryption
Network functions
  • VLAN Trunk
  • Management VLAN
  • General VLAN
  • Transparent Mode
  • MVR
  • Static routing
  • Time synchronization via NTP
  • Wireless transparent bridge
  • PPPoE client
  • VLAN Mapping
  • Limiting the number of MAC addresses learned
  • Firmware update and configuration via DHCP-autoprovisioning, TR-069
  • Remote management via Telnet, SSH
  • Web interface
  • SNMP (Monitoring)
Wireless interface parameters
  • Frequency range 5170 - 5835 MHz
  • Frequency range 5170 - 6160 Mhz (for WB-2P-LR5 rev.B and rev.C)
  • BPSK, QPSK, 16QAM, 64QAM, 256QAM modulations
  • MIMO 2x2
  • Bandwidth: 5, 10, 20, 40, 80 MHz
  • Channel selection in 5 MHz steps
Operating channels2
  • 802.11a/n/ac: 36-165 (5170-5835 MHz)
Operating channels (for WB-2P-LR5 rev.B and rev.C)2
  • 802.11a/n/ac: 36-230 (5170-6160 MHz)
Data rate3
  • 802.11a: up to 54 Mbps
  • 802.11n: up to 300 Mbps
  • 802.11ac: up to 867 Mbps
Receiver sensitivity
  • 5-6 GHz: up to -94 dBm
Maximum power of the transmitter
  • 5-6 GHz: 24 dBm (28 dBm)1
Antenna parameters
  • Antenna gain: 12 dBi
  • Linear polarization: H/V
  • SWR: 2.0:1
  • Beam width (H): 60°
  • Beam width (V): 15°
Physical specifications
  • Power consumption up to 8 W
  • RAM 128 MB
  • Flash 32 MB
  • Power supply: PoE 24 V
  • Operation temperature: from -45°С to +65°С
  • Operation humidity: up to 95%
  • Dimensions (WхHхD): 80x66x282 mm
  • IP54 protection

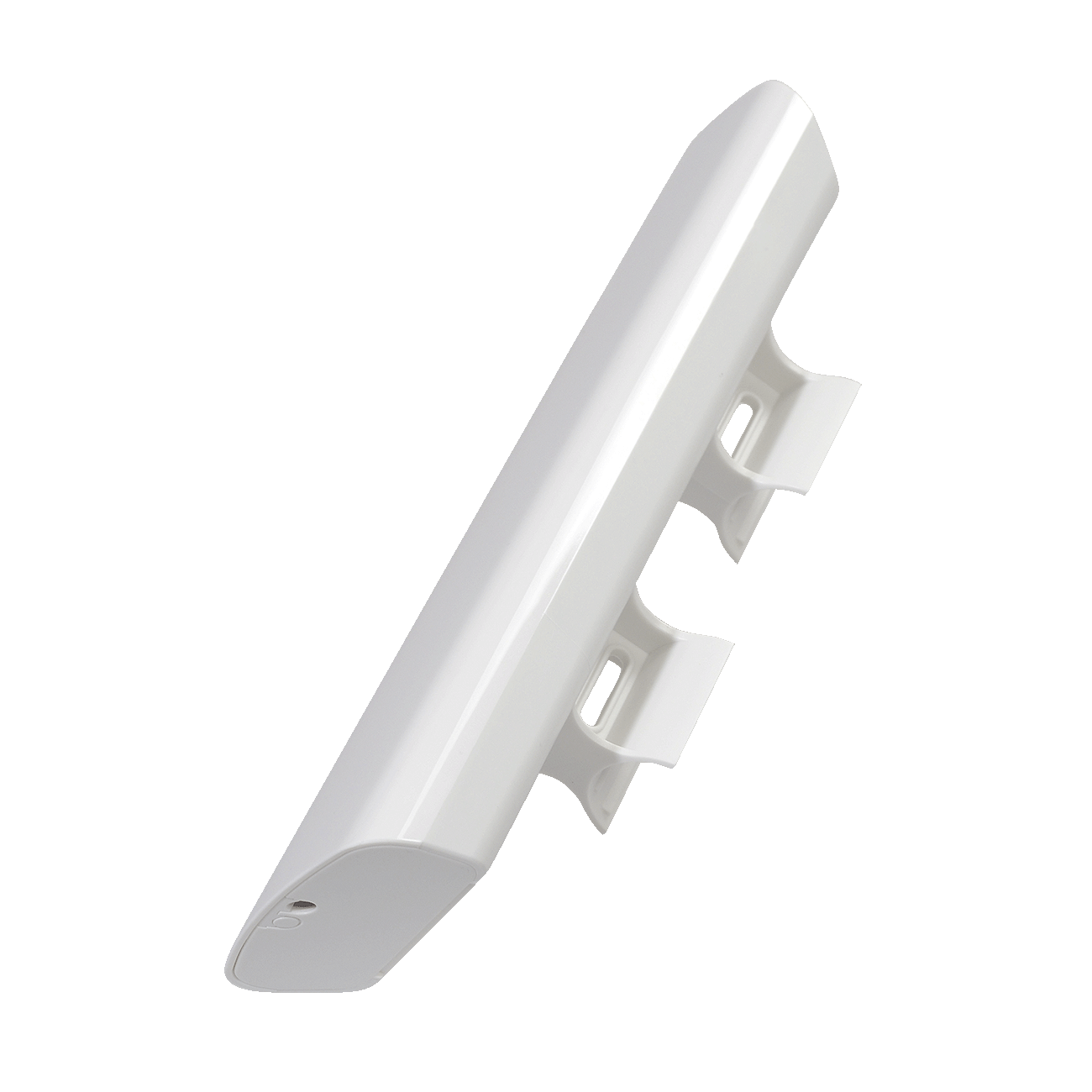

  • Pole mounting

¹For WB-2P-LR5 rev.C

2The number of channels and the value of the maximum output power will vary according to the rules of radio frequency regulation in your country.

3The maximum wireless data rate is defined according to IEEE 802.11a/n/ac standard. The real bandwidth can be different. Conditions of the network, environment, the amount of traffic, building materials and constructions and network service data can decrease the real bandwidth. The environment can influence on the network coverage range.

Operational lifetime of the ELTEX equipment
In development
Mass production
Mass production is over
Sold out
Support is over
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
