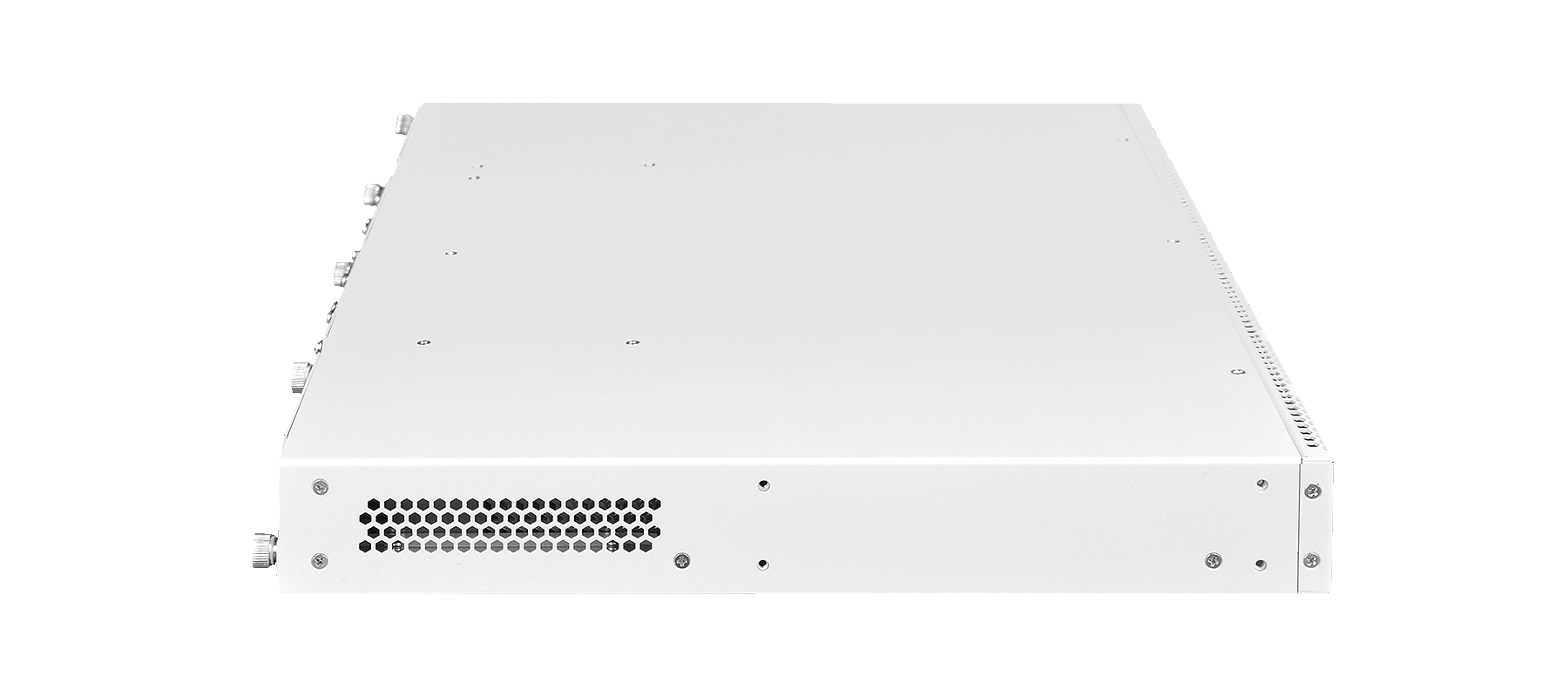

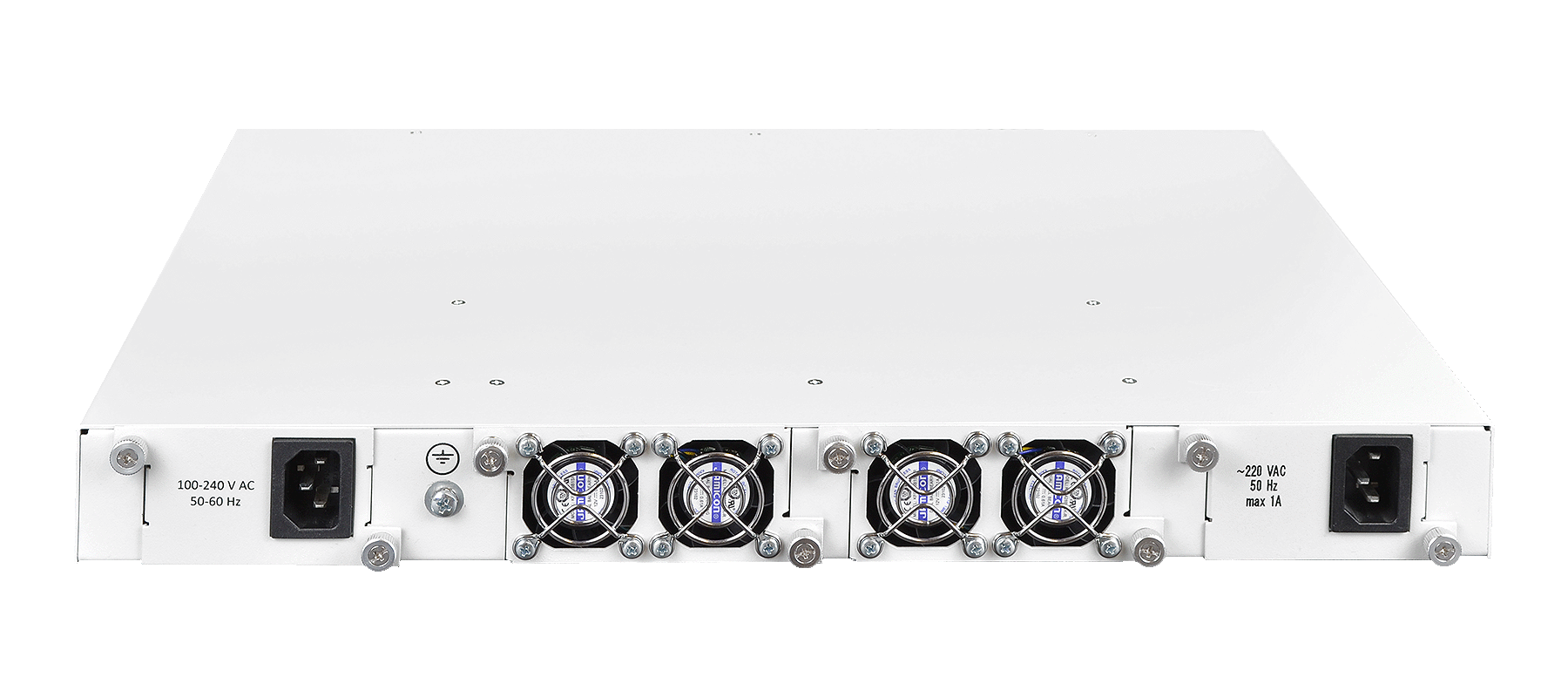

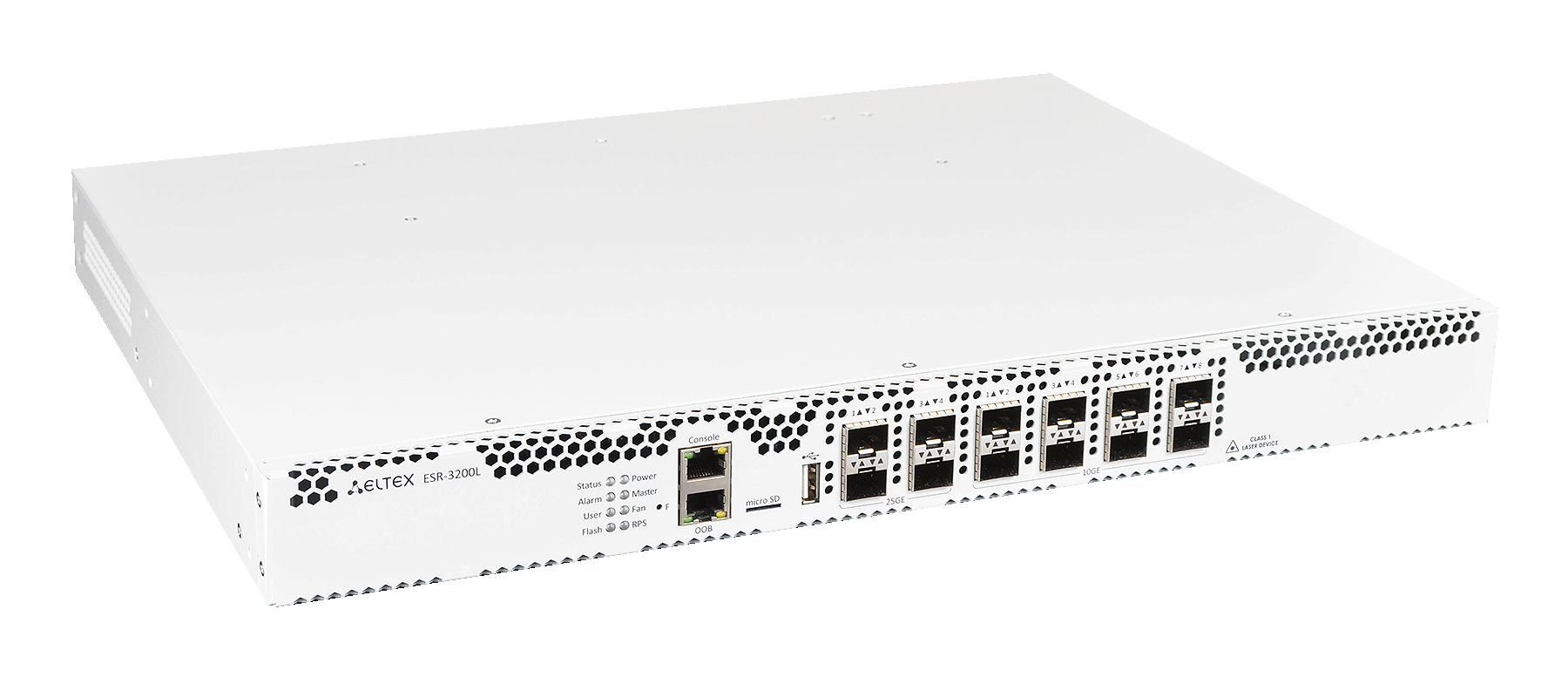

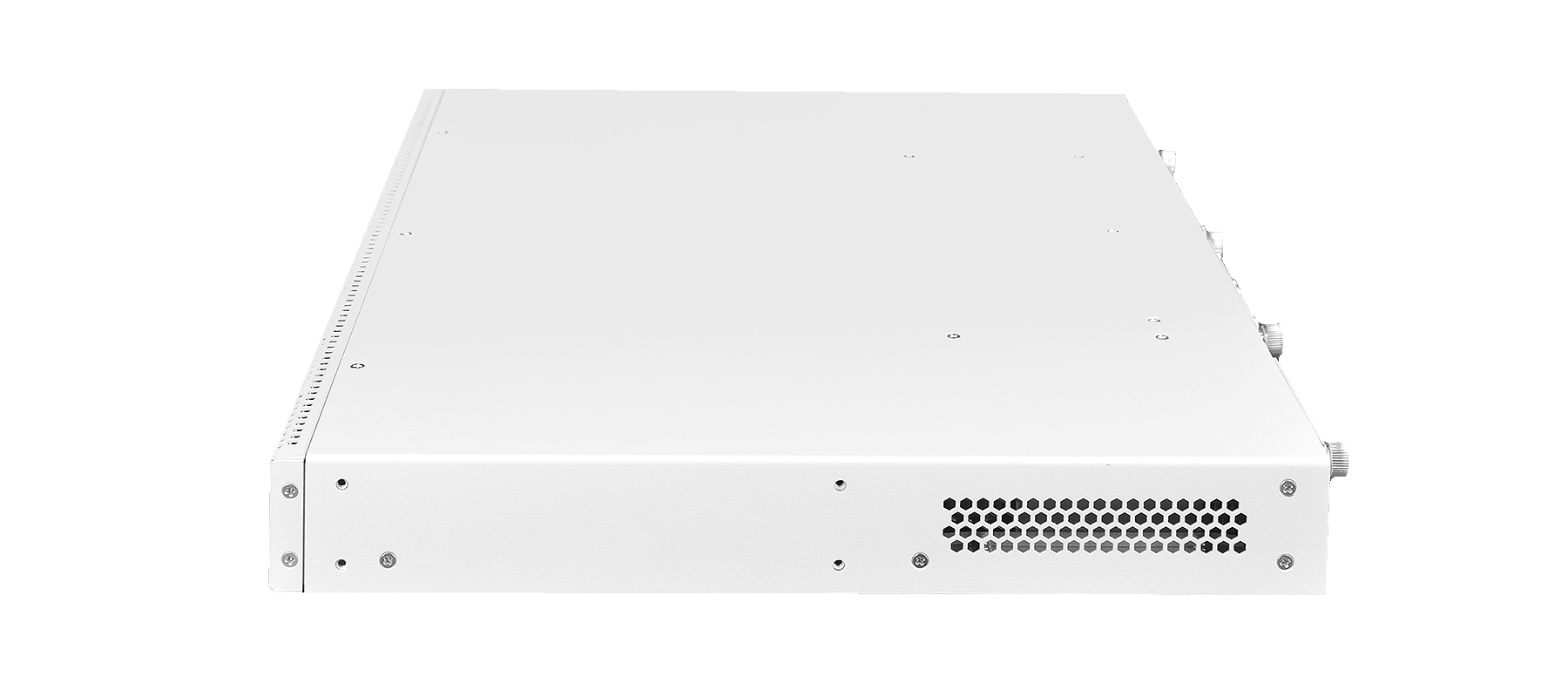

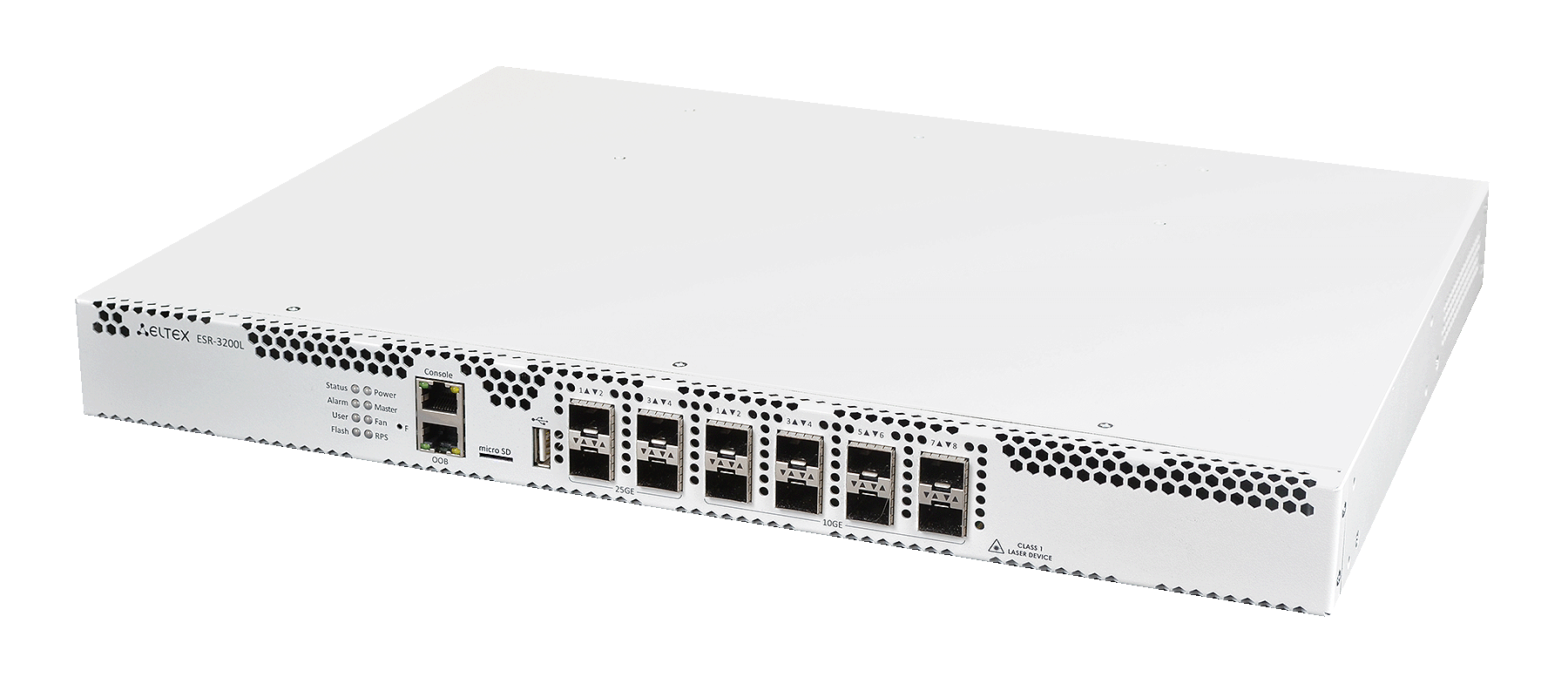

Service gateway ESR-3200L
- Interfaces:
- 8x10G SFP, 4x25G SFP28
- Performance:
- FW - 22 Gbps, IPsec VPN - 1,6 Gbps, IPS/IDS - 729 Mbps
- Power supply:
- AC/DC
Description
ESR-3200L service routers are universal hardware platform capable of performing a wide range of tasks related to network security, data encryption, subscriber termination, etc. The product line includes models that can be used in networks of various sizes: from small enterprise networks to carrier networks and data centers.
The key elements of the series are hardware-accelerated data processing. Optimal distribution of data processing functions among the device parts maximizes performance.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
1000BASE-X/10GBASE-R/25GBASE-R (LAN/WAN)
4
10GBASE-R SFP+/1000BASE-X SFP (LAN/WAN)
8
Console RS-232 (RJ-45)
1
OOB
1
USB 2.0
1
USB 3.0
No
SD card slot
No
microSD card slot
1
Performance:
Firewall/routing (frames 1518B)
22 Gbps
1811,4k pps
IPsec VPN (1456B frames)
1,6 Gbps
141k pps
IPS/IDS 10k rules
729 Mbps
135,6k pps
Maximum number of competitive sessions
8,5M
Network and service functions:
L2 Management
VLAN
LAG/LACP
Bridge
SPAN/RSPAN Mirroring
STP protocol family: rstp, vstp, mstp
Dynamic routing
BGP
OSPF
IS-IS
RIP
Tunneling
GRE
DMVPN
IPsec VPN
Remote access
PPTP, Open VPN, WireGuard, L2TP over Ipsec
Support for PPPoE/PPTP/L2TP client
Security
ACL
Zone-based Firewall
Protection against DoS/DDoS/Spoof attacks
IPS/IDS
Filtering by applications
Redundancy and clustering
VRRP
Tracking
DHCP/Firewall failover
MultiWAN
Cluster according to the 1+1 scheme
Monitoring
Netflow
SNMP
Zabbix
SLA
Syslog Support
Service and quality management
DHCP
NAT
QOS
HTTP/HTTPS Proxy
Physical specifications:
RAM
16 GB DDR4
Flash memory
8 GB eMMC
Maximum power consumption
105,3 W
Power supply
100–240 V AC, 50–60 Hz
36–72 V DC
Operating temperature range
From -10 to +45 °С
Storage temperature range
From -40 to +70 °С
Relative humidity during operation
No more than 80 %
Relative humidity during storage
From 10 to 95 %
Dimensions
430x44x330 mm
Weight
5 kg
