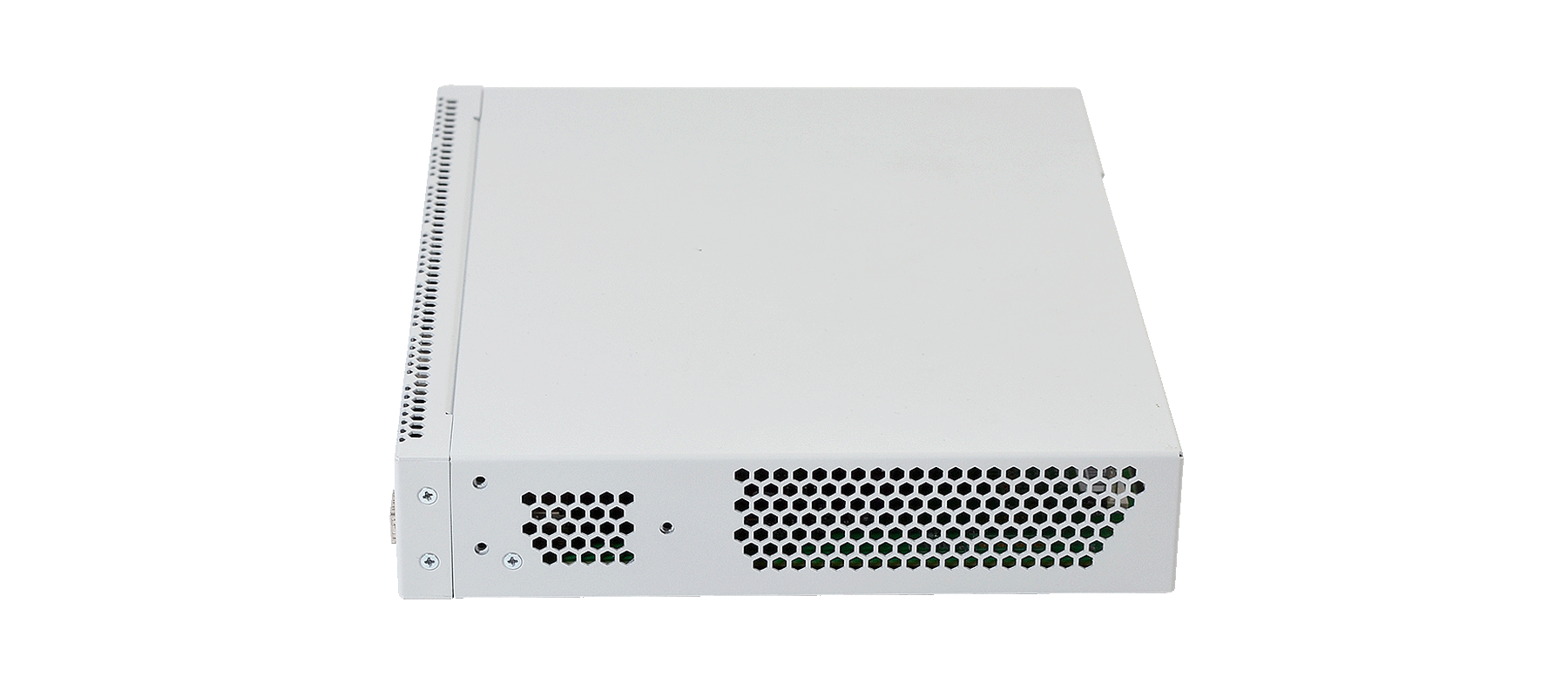

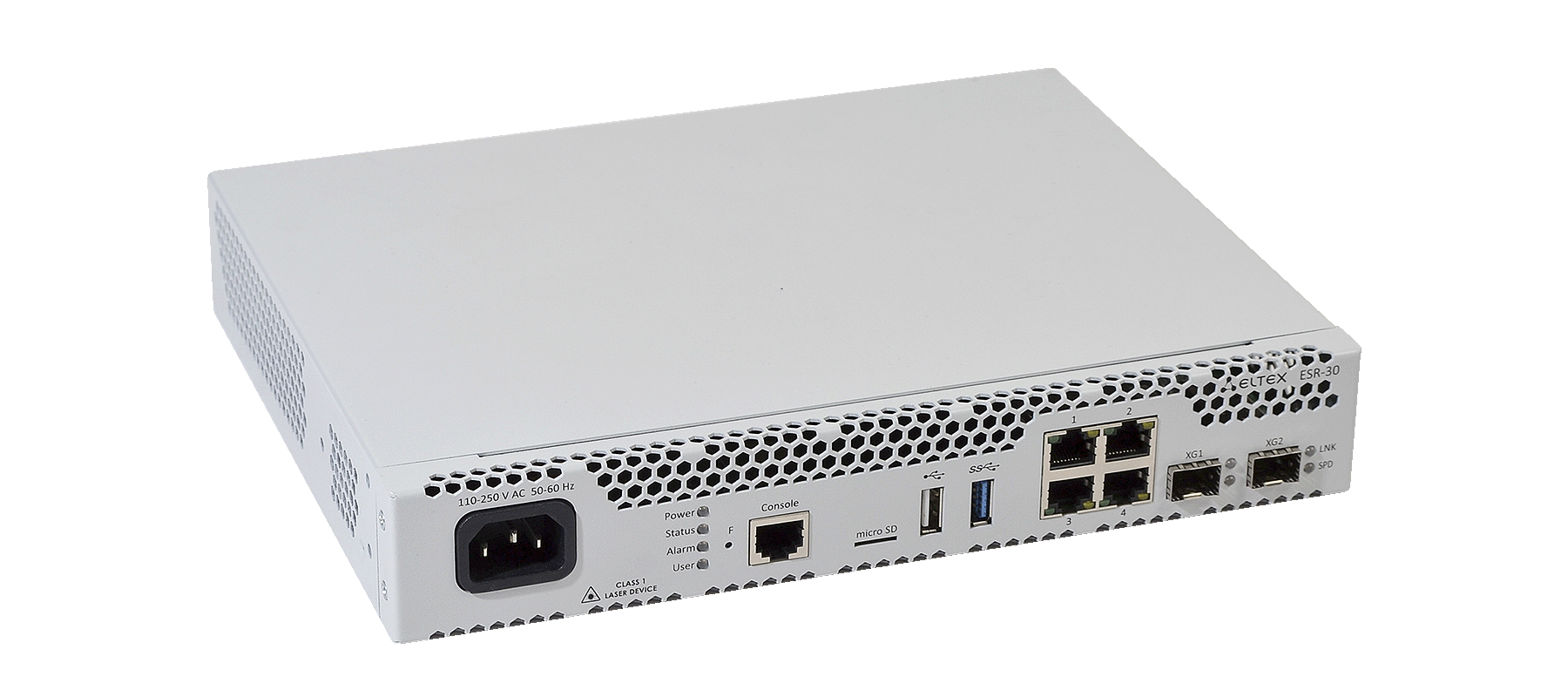

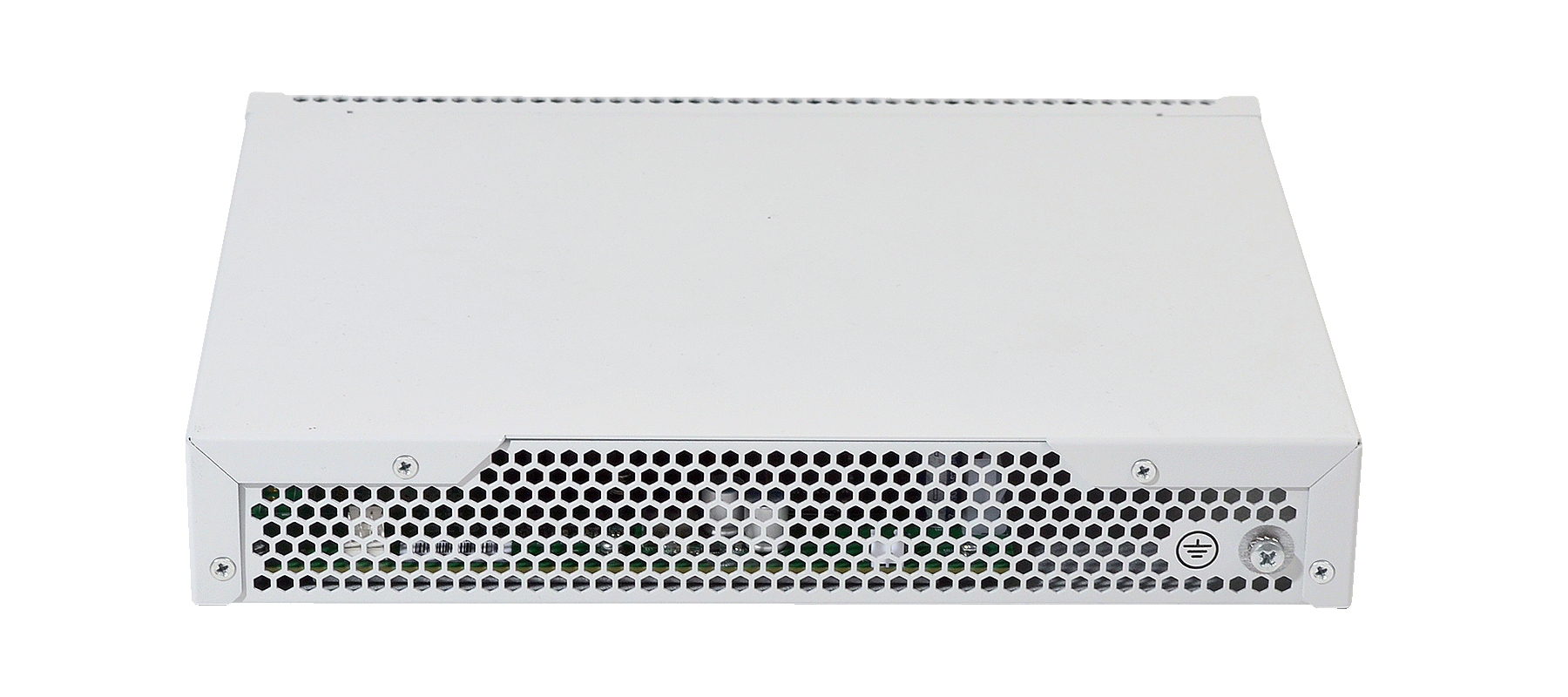

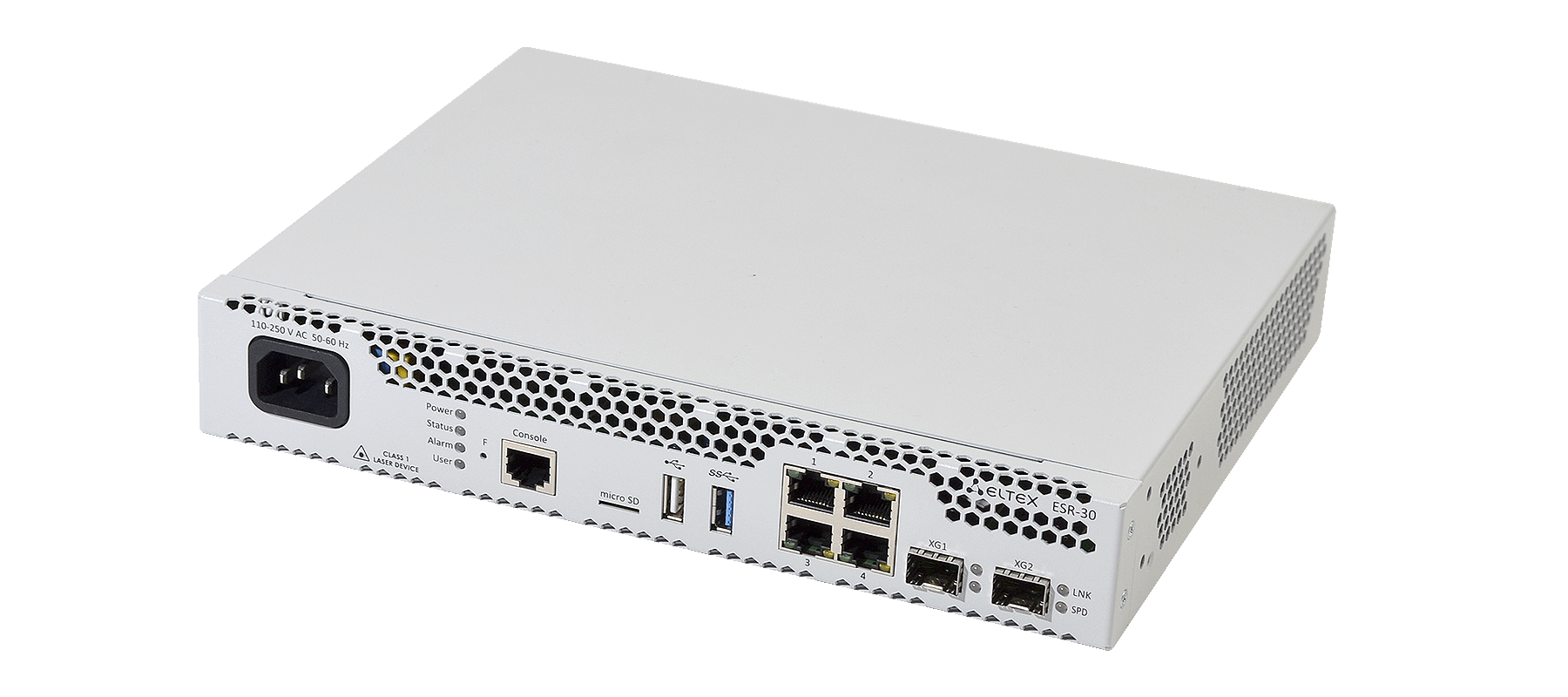

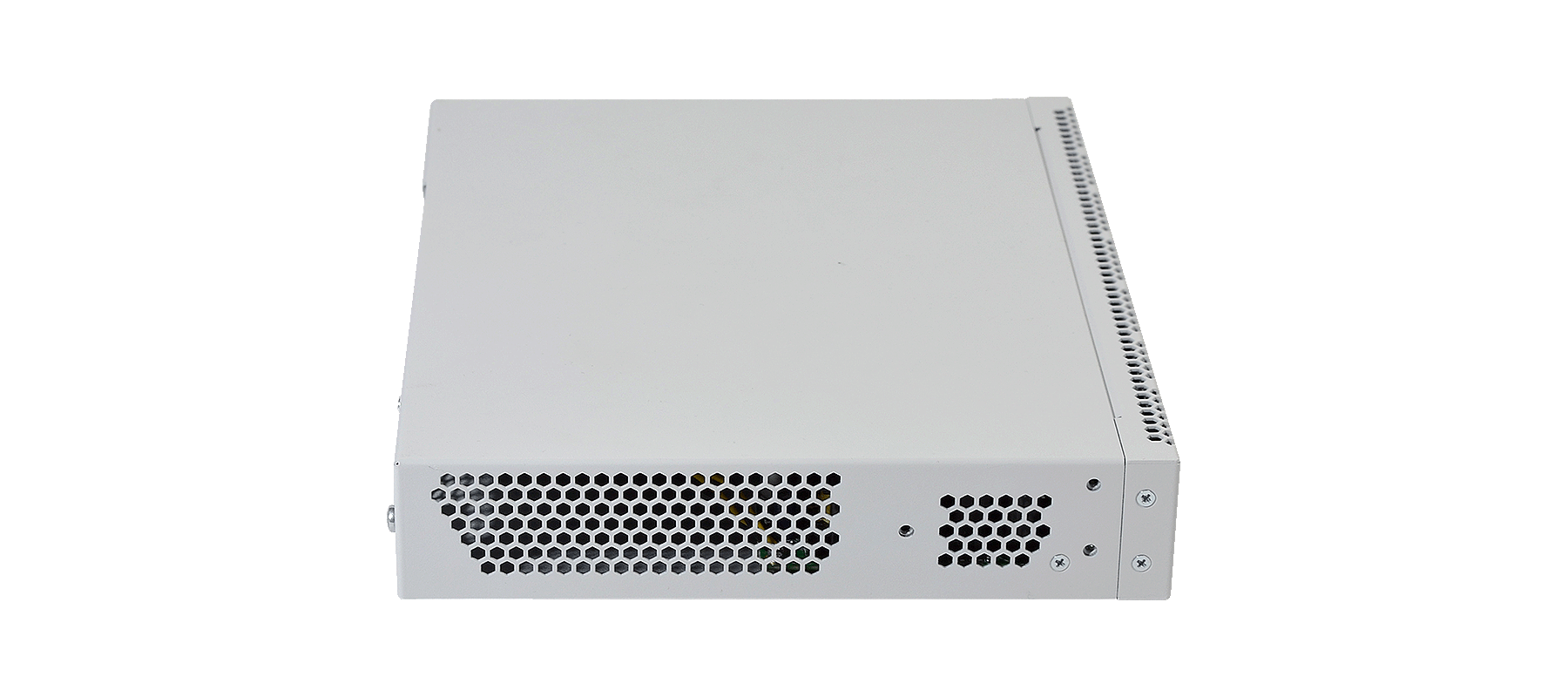

Service gateway ESR-30

Version 1.30.4

Revisions:

• Implemented synchronization of AP firmware in the backup scheme
• Monitoring and management:

  • Addedcritlog directory to show tech-support command output
  • WEB:
    • Full audit of administrator actions in the WEB interface via TACACS+ / RADIUS
    • Optimized operation of WEB server when operating with clients and AP
    • Improved adaptation of the WEB interface to different screen resolution
    • Monitoring

      • Filtering on the "Access points" and "Clients" pages
      • Pagination when displaying data on the "Access points", "Clients", "Event log" pages
      • CPU load graph
      • Client IP address on client monitoring pages
      • "VLAN number" column in the virtual access points table
      • "Range" column in the clients table
      • Monitoring of the 802.11v parameter on the "Roaming data" page
      • Client IP address changed check-box in the client log
      • Unified pop-up windows and snack bars when operating with tables
    • Configuration

      • Portal authorization settings
      • Ability to limit the traffic speed (clients, VAP, broadcast, multicast)
      • Configuring the 82 DHCP option on AP in radio profile
      • Configuring the 802.11v in the AirTune profile
      • Configuring the "Country code" in the AP profile to comply with local restrictions on channels and transmitter power corresponding to the selected country
      • Changed order of settings in the SSID profile
      • Configuring the IEEE 802.11 n/ac, a/n/ac modes for 5 GHz radio interface in the individual AP settings
  • WLC:
    • wlc-journal storage command to transfer WLC logs to HDD
    • Optimized AP connection speed
    • Optimized AP connection stability
    • Monitoring

      • Display the "VLAN" in the show wlc ap vap command output
      • Display the range in which the client operates in the show wlc clients command output
      • Display the ap-location in the AP log(show wlc journal ap)
      • Display the band in the AP log (show wlc journal client)
    • Configuration
      • country-code command in the ap-profile to comply with local restrictions on channels and transmitter power corresponding to the selected country
      • The maximum size of WLC logs is limited to 90 days. When updating to 1.30.4 firmware version, the size of existing logs will be automatically reduced
      • Configuring the MQTT positioning for WEP-1L, WEP-2L, WOP-2L, WEP-3L
      • Configuring the WIDS/WIPS for WEP-200L and WOP-20L
      • neighbour-scan command in the ap-profile for configuring passive scanning on WOP/WEP-30L, WEP-30L-Z, WOP-30LS, WOP-30LI
      • show wlc statistics command block for displaying statistics on clients and AP events
      • arp suppression command for configuring ARP conversion
      • lldp-server command block in ap-profile/services for configuring LLDP
      • lldp command block in ap-profile/trace for configuring LLDP logging
      • Ability to add NAS IP to the redirect address when configuring portal authorization via RADIUS
      • Processing of deauth-attack in WIDS
      • load-balance roaming clients max/min commands in airtune-profile for configuring the maximum/minimum number of users during balancing
      • 802.11r cross-location-roaming command in AirTune settings to enable 802.11r roaming between locations
  • Syslog:
    • syslog web-commands for logging actions on WEB
    • logging wlc-events/logging wlc-journal command for enabling WLC logs to syslog server
  • SNMP:
    • Optimization of WLC tables

Fixed:

• Duplication of wireless client sessions in the WEB
• Incorrect status when ending a session in the WEB
• Error "RRM:rrm request for start optimization, location '<location name>' failed, reason: 'failure from airtune api'" when starting AirTune optimization for location
• Reason for the "RRM:Cannot backup domains info: 'malformed answer from airtune api'" log
• AP status change to the "Cfg failed" after deleting radio-2g-profile/radio-5g-profile
• AP status change to the "Failed" due to: "CoA timeout expired" when switching to the backup controller
• Service wlc_gre error termination
• Problem with obtaining an IP address via DHCP for clients using Broadcast check-box in the tunneling scheme
• Reason for the "IS_NE check failed: stat_map->entry_sz (170 != 8) !!! on WLC-3200" log
• Error when entering the path of external media for storing IPS rules
• Error "PLUGIN_AUTH_USER_PASS_VERIFY failed with status 1" due to the use of uppercase letters in the OpenVPN server configuration
• Traffic classification by match access-group and DSCP
• show mac address-table command output when WLC is operating in a client traffic tunneling scheme
• Allowed to specify the user name as a MAC address in the access profile
• IPsec tunneling with XAuth authorization
• Speed of SoftGRE tunnel establishment with LLDP enabled
• Error in the show wlc ap detailed command output when using 40 MHz radio channel width
• Error ESRinfo_wlc_service_activator_aps_MAX when requesting VAP
