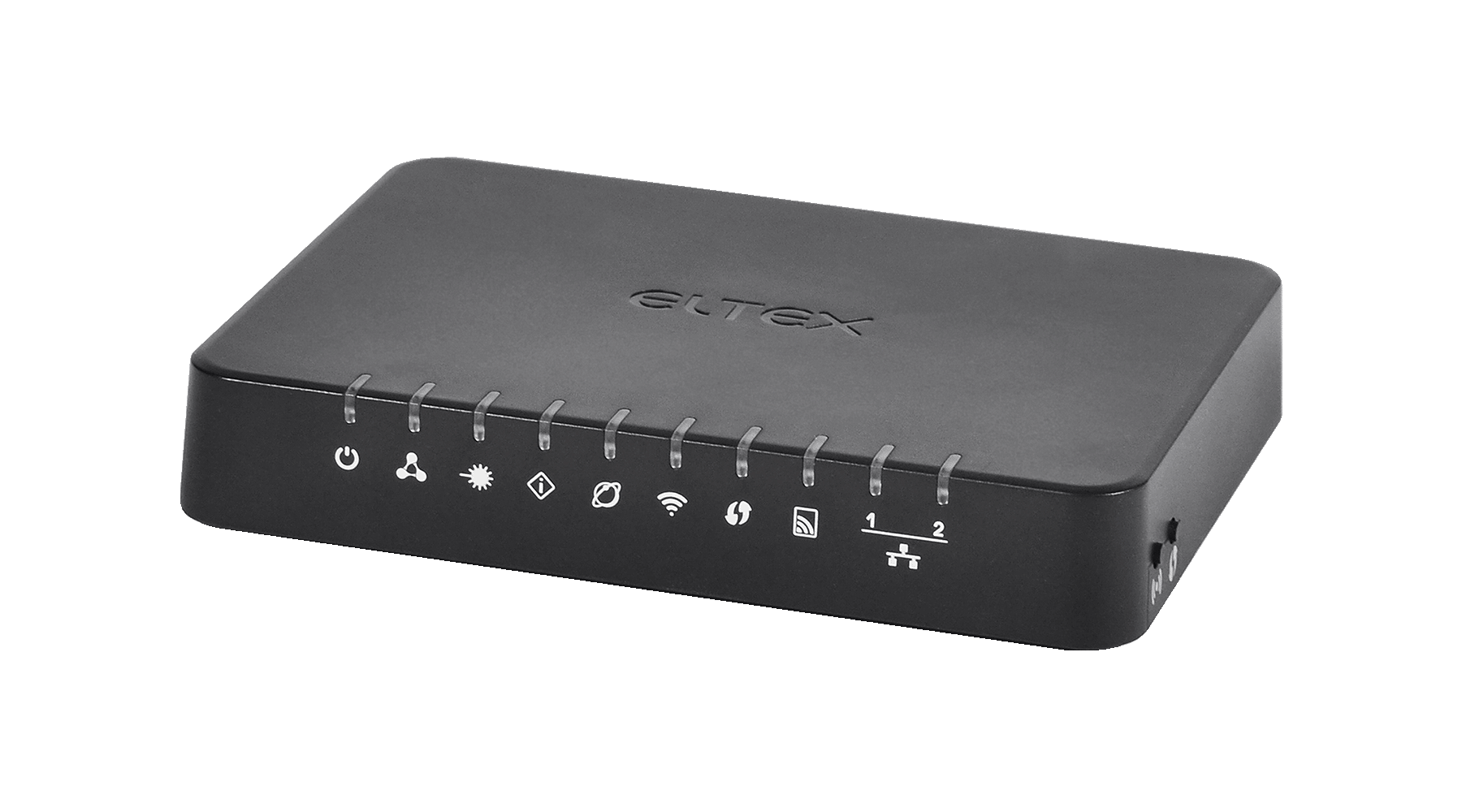

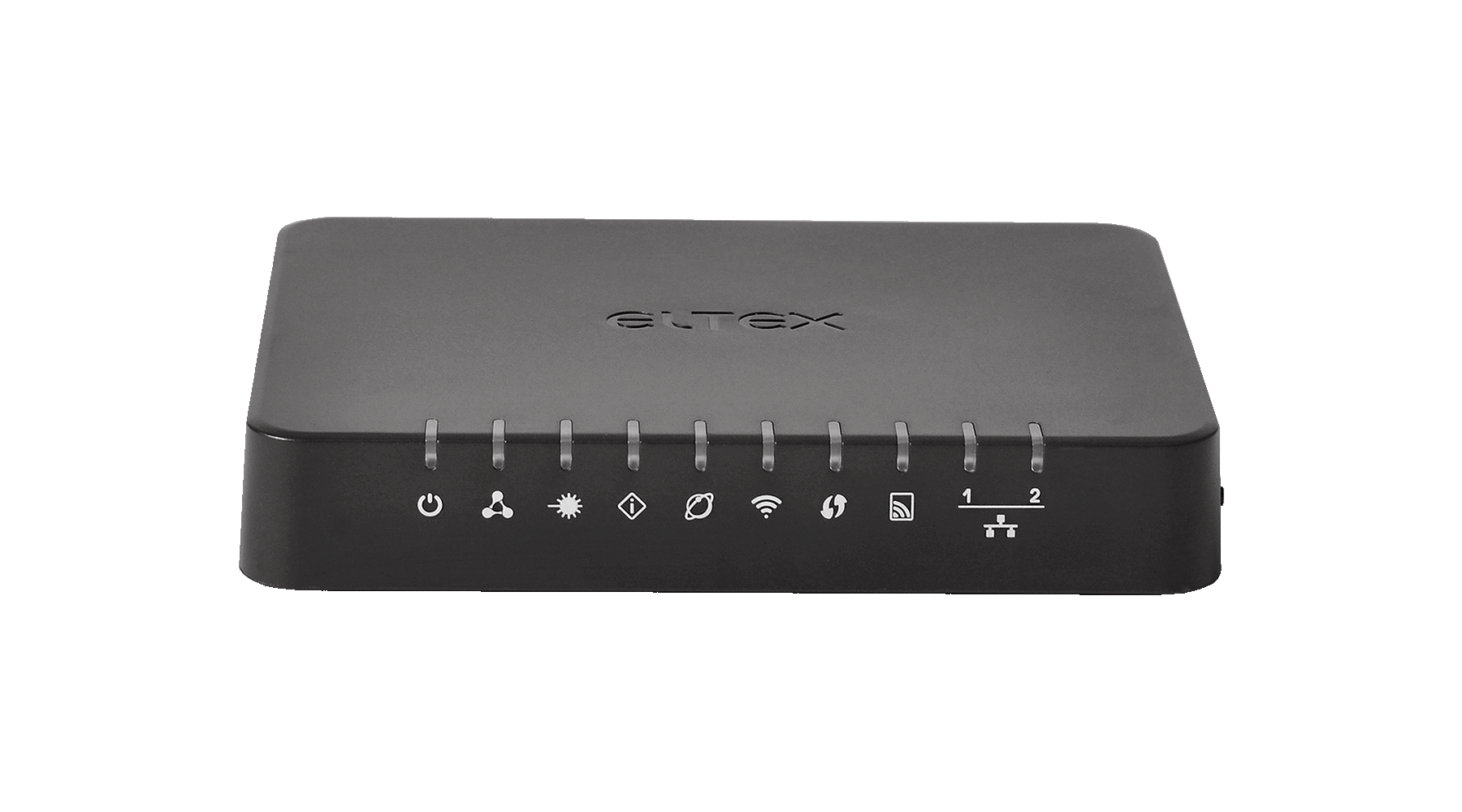

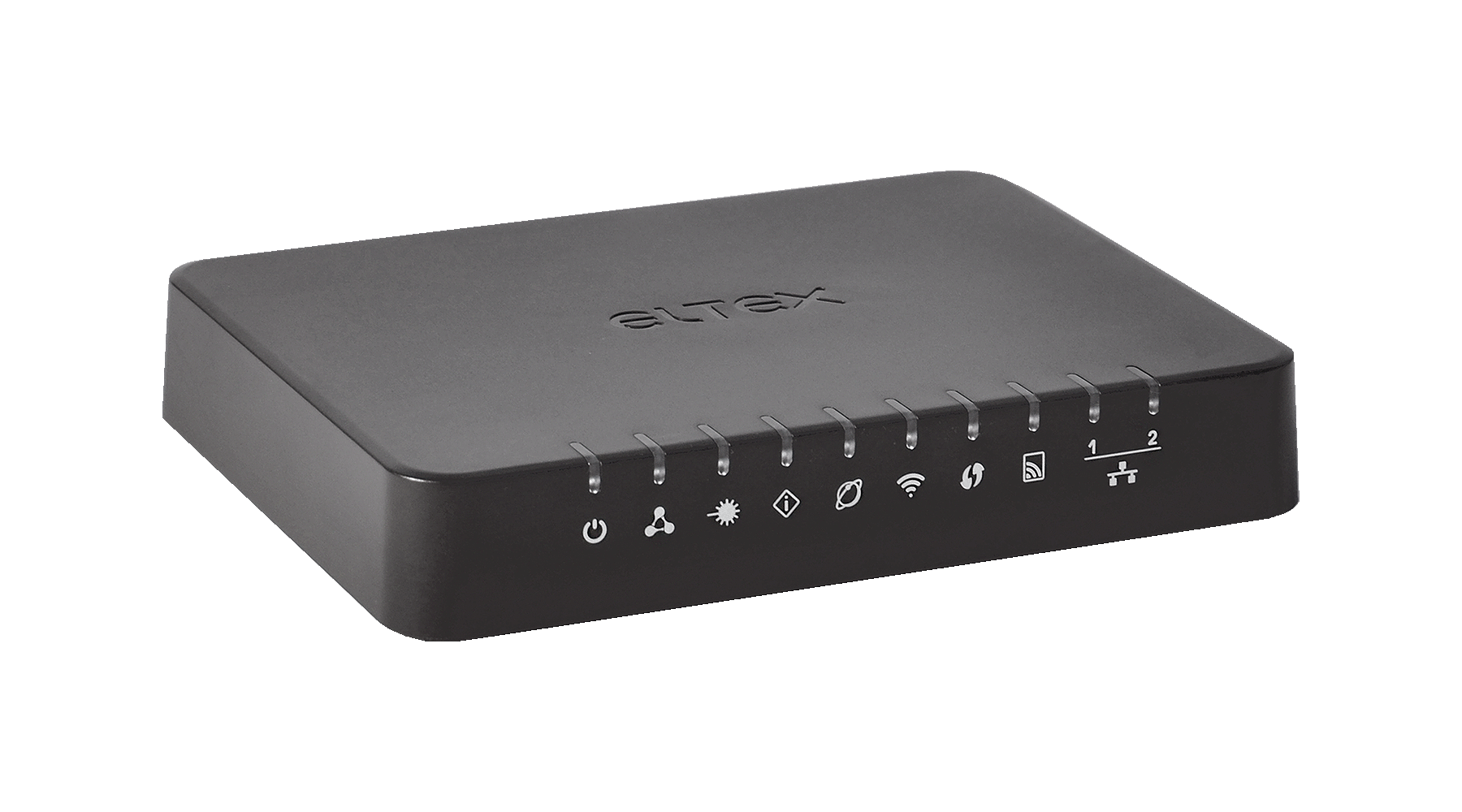

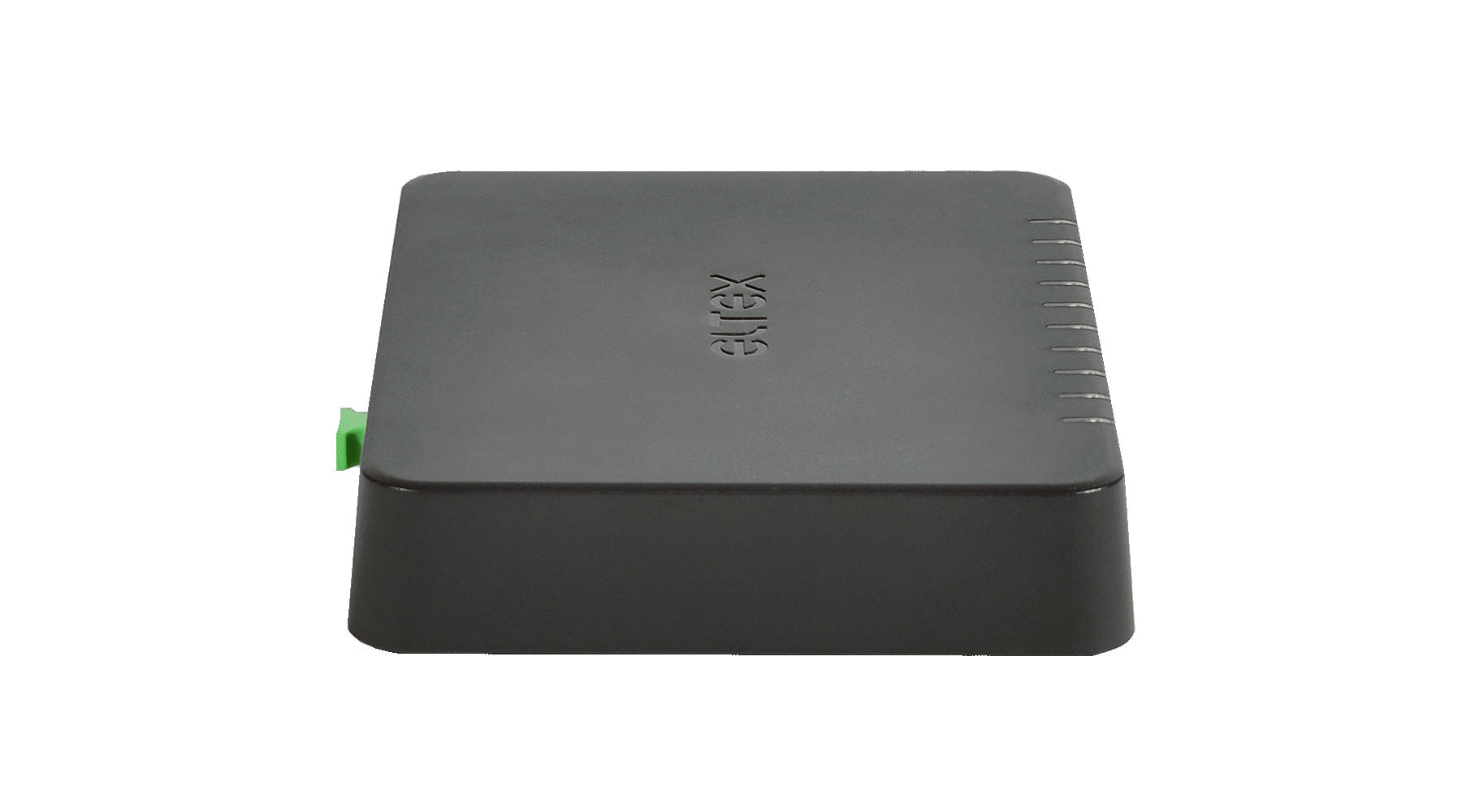

ONT NTU-52W
- Technology:
- GPON
- Interfaces:
- 1xGPON, 1x1G, 1x100M
- Wi-Fi 4:
- 802.11n
- MIMO:
- 2x2
Description
NTU-52W — high performance multifunctional subscriber terminal designed to access modern telephony, IPTV, OTT services, as well as high-speed Internet. Furthermore, subscriber terminal allows carriers to offer their clients a wide range of services and opportunities to work in a local network.
PON technology
PON technology is one of the most effective last mile solutions. The technology allows to reduce costs for cable infrastructure and ensures data rates up to 2.5 Gbps downlink and 1.25 Gbps uplink. The use of PON technology in access networks allows providing end users with access to IP services.
Provided services
- High-speed access to the Internet
- Stream video/High Definition TV/IP TV, Video on Demand (VoD), video conference
- Online educational and entertainment programs
Application
- Providing broadband access services to subscribers in apartment houses, residential areas, campuses or suburban settlements
- Constructing corporate networks at large strategic enterprises or in office buildings with high requirement in terms of security and data transfer rates
Wireless connection
NTU-52W subscriber terminal allows connecting Wi-Fi clients via IEEE 802.11 b/g/n standard.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- GPON
- Interfaces:
- 1xGPON, 1x1G, 1x100M
- Wi-Fi 4:
- 802.11n
ACS
The Automatic Configuration Server(ACS) is designed to automate and facilitate the configuration of subscriber devices (CPEs) using the protocol described in the TR-069 standard. Allows the operator to centrally manage client equipment
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
GPON port
1
100M
1
1G
1
Compliance with ITU-T G.984.2, ITU-T G.984.5 Filter, FSAN Class B+, SFF-8472
Yes
Connector type
SC/APC
Transmission media
Single-mode optical fiber (SMF) — 9/125, G.652
Maximum operating distance
20 km
Transmitter:
1310 nm DFB laser, burst mode
Data rate
1244 Mbps
Average output power
+0.5..+5 dBm
Spectral line width
1 nm (-20 dB)
Receiver:
1490 nm APD/TIA Downstream digital receiver, CW Mode
Data rate
2488 Mbps
Receiver sensitivity
-28 dBm, BER≤1.0x10
Receiver optical overload
-8 dBm
Wireless module parameters:
Supported standards
802.11 b/g/n
MIMO
2х2
Frequency range
2400 ~ 2483,5 MHz
Security
WEP; WPA/WPA2
Data rate:
802.11b
1, 2, 5.5 and 11 Mbps
802.11g
6, 9, 12 , 18, 24, 36, 48 and 54 Mbps
802.11n
From 6,5 to 300 Mbps (from MCS0 to MCS15)
Maximum power of the transmitter:
802.11b (11 Mbps)
18 dBm
802.11g (54 Mbps)
16 dBm
802.11n (MCS7)
16 dBm
802.11n (MCS0)
18 dBm
Modulation:
IEEE 802.11b
DQPSK, DBPSK, CCK
IEEE 802.11g
BPSK, QPSK, 16QAM, 64QAM, OFDM
IEEE 802.11n
BPSK, QPSK, 16QAM, 64QAM with OFDM
Functional features:
TR-069
Yes
"Bridge" and "Router" (including virtual ones) operation modes
Yes
PPPoE (auto, PAP, MSCHAP and CHAP authorization)
Yes
IPoE (DHCP-client and static)
Yes
QoS
Yes
DHCP server on LAN side
Yes
DNS (Domain Name System)
Yes
UPNP (Universal Plug and Play)
Yes
NAT (Network Address Translation)
Yes
IGMP Snooping
Yes
VLAN
In accordance with IEEE 802.1Q
Configuration:
Remote management via OMCI
Yes
Remote management via TR-069
Yes
Local management via WEB/CLI
Yes
Firmware update
OMCI, TR-069, HTTP, TFTP
Physical parameters:
Power supply
12 V DC, 0.5 A adapter
Maximum power consumption
6 W
Operating temperature range
From +5 to +40 °C
Operating humidity
Up to 80%
Dimensions
147x24x110 mm
