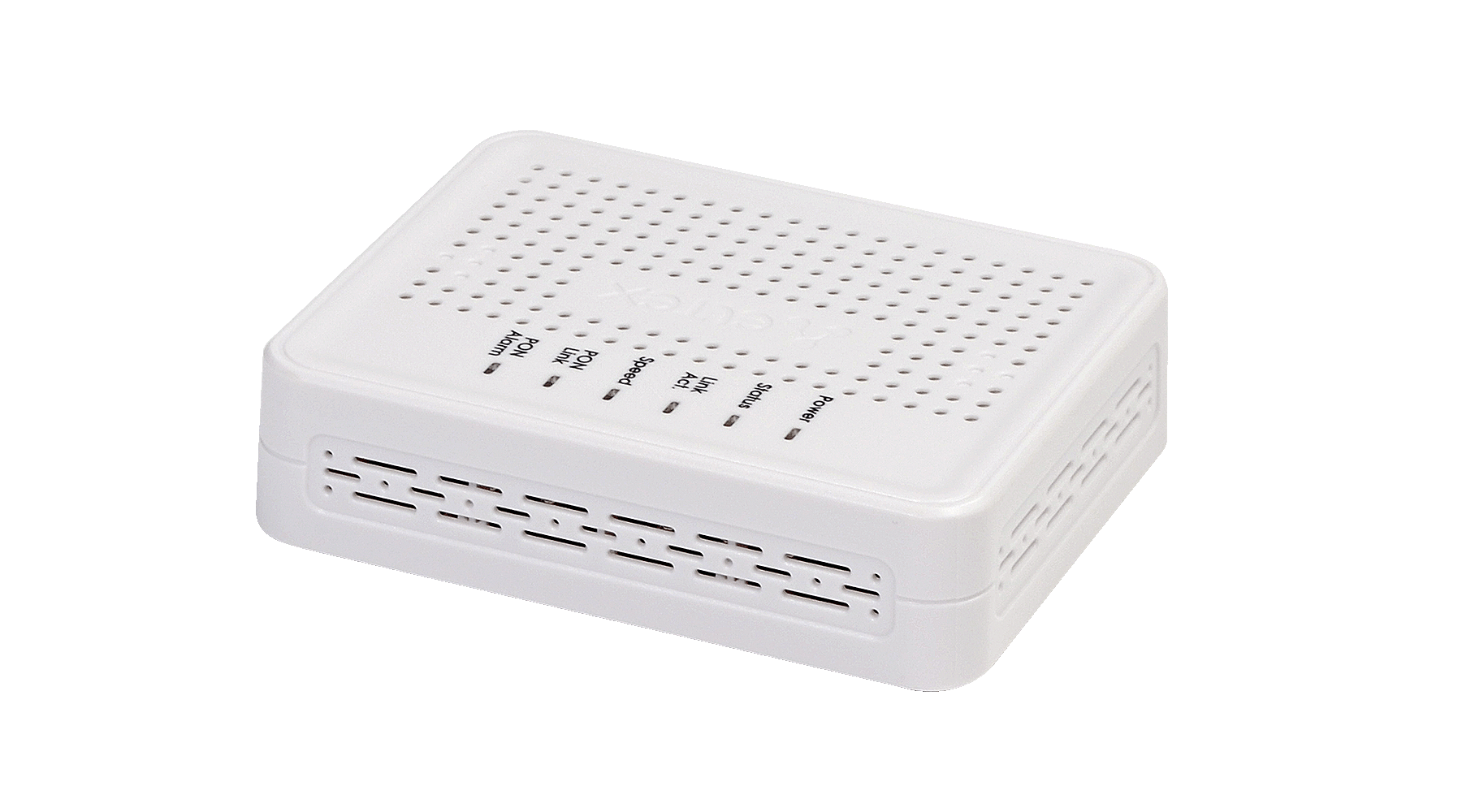

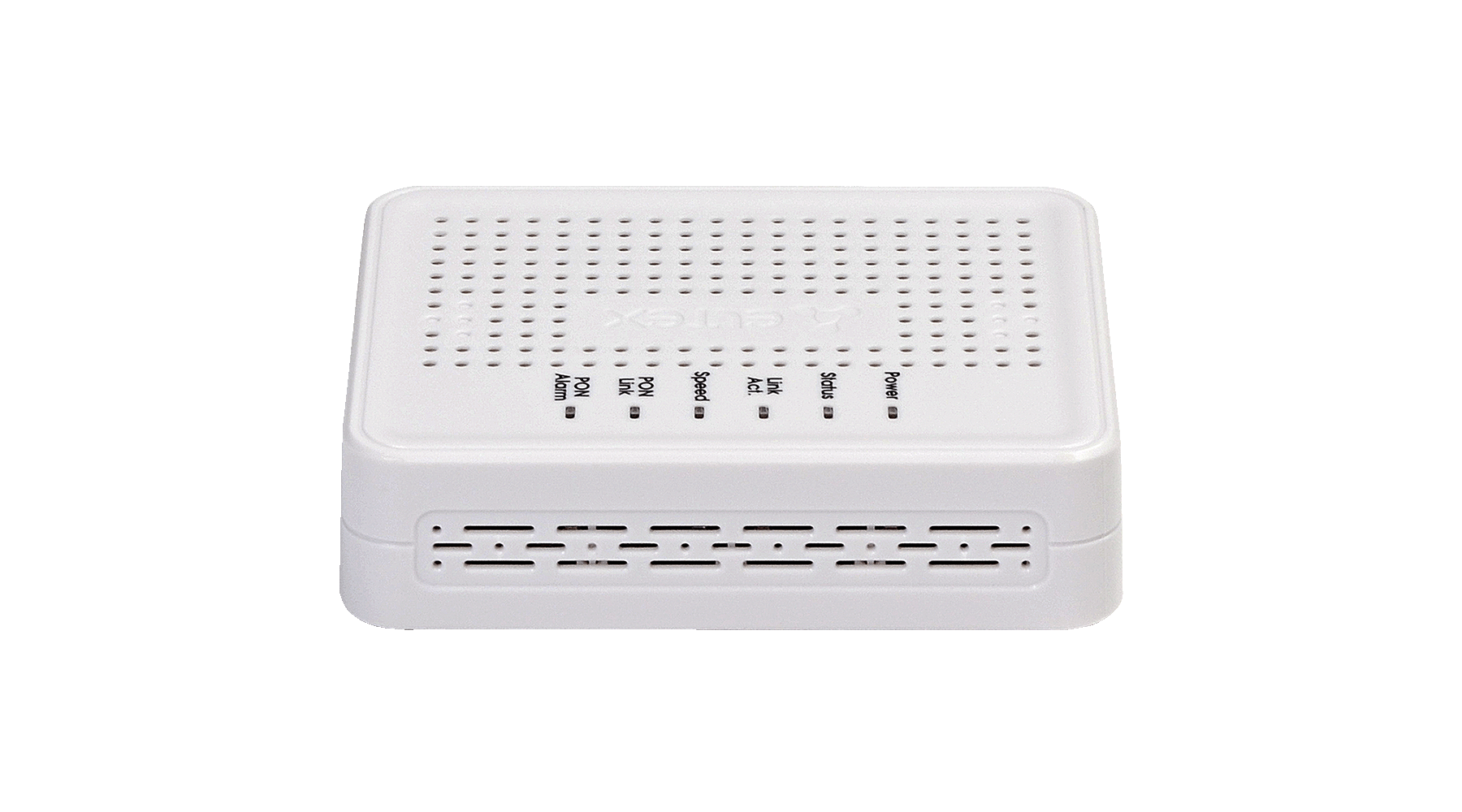

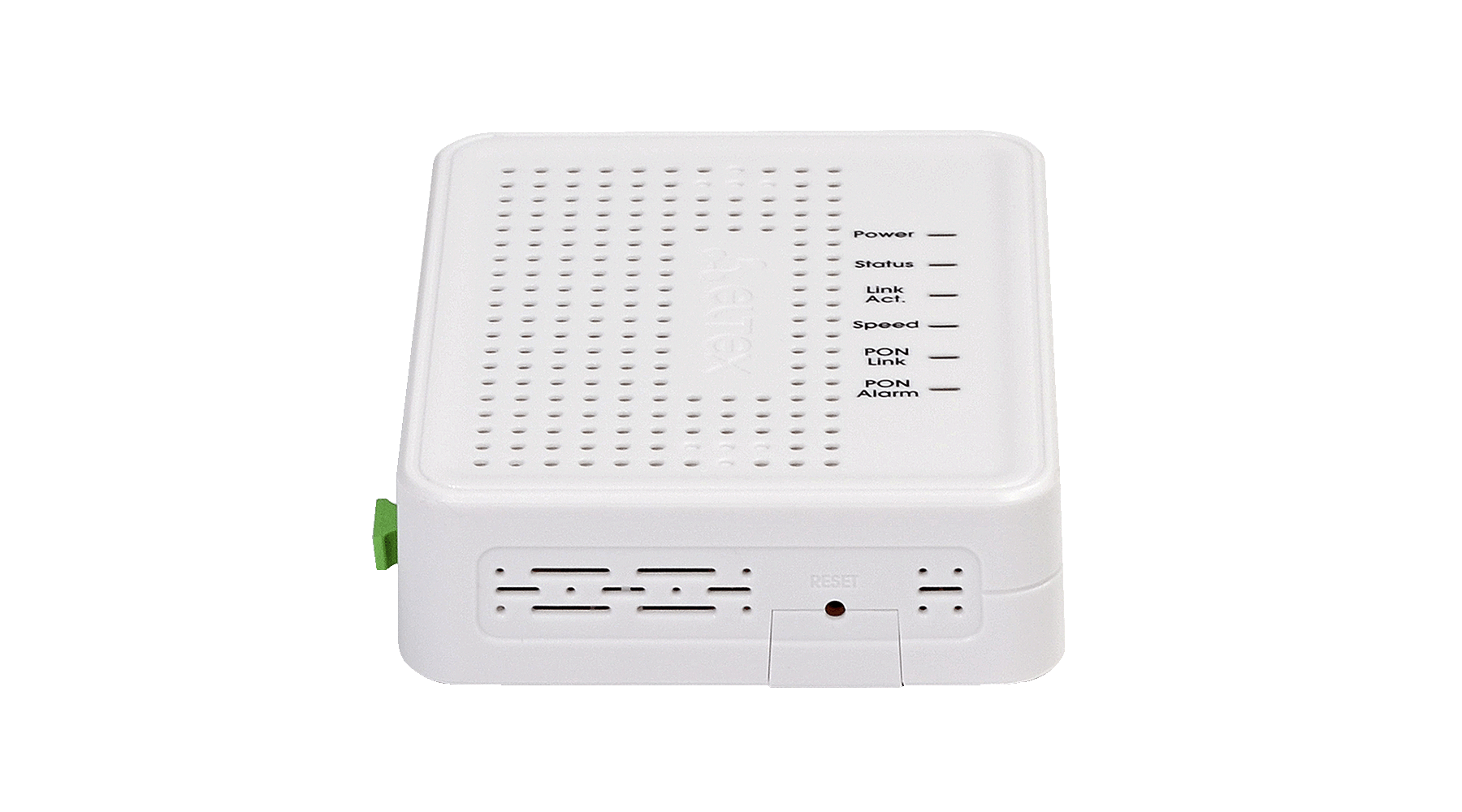

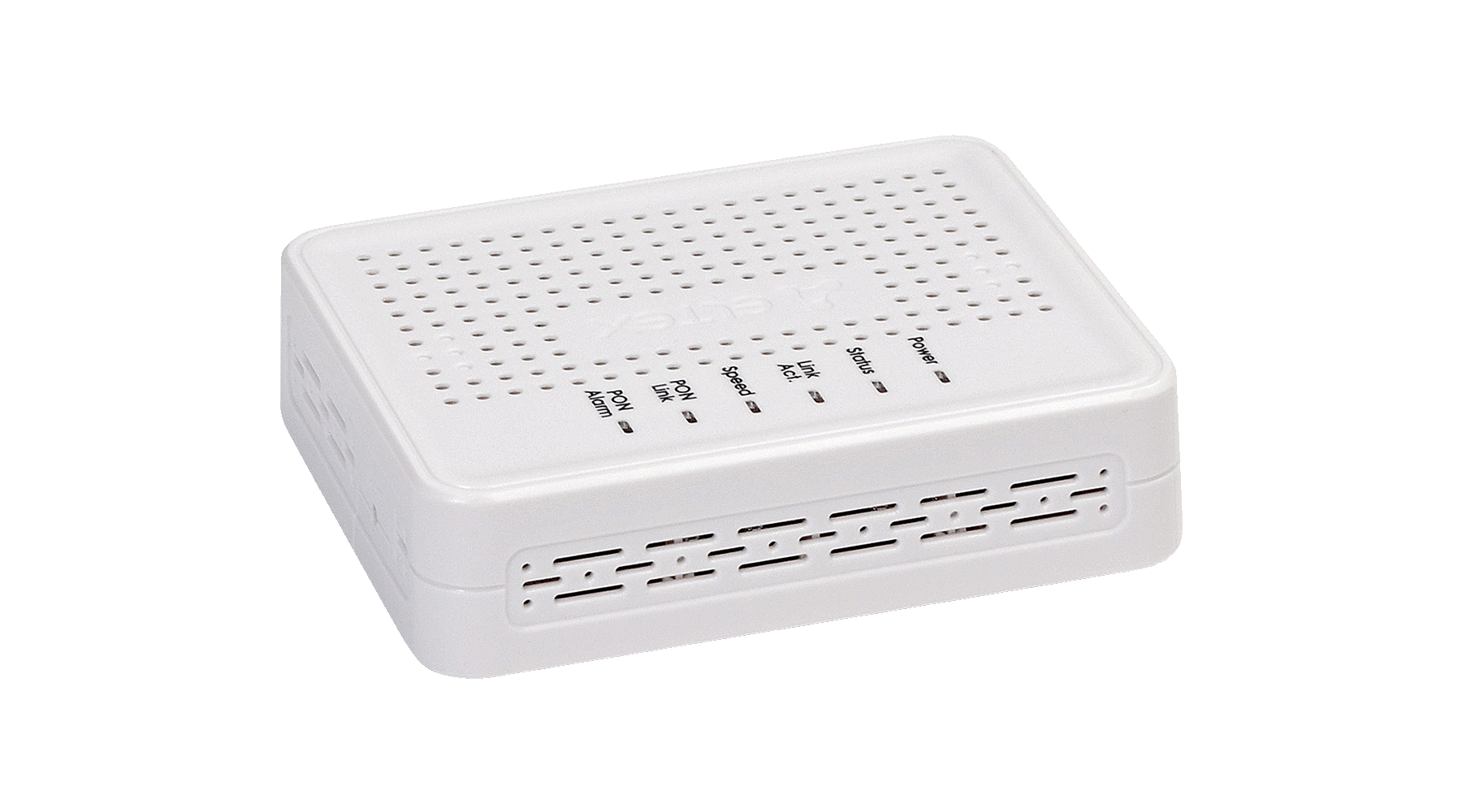

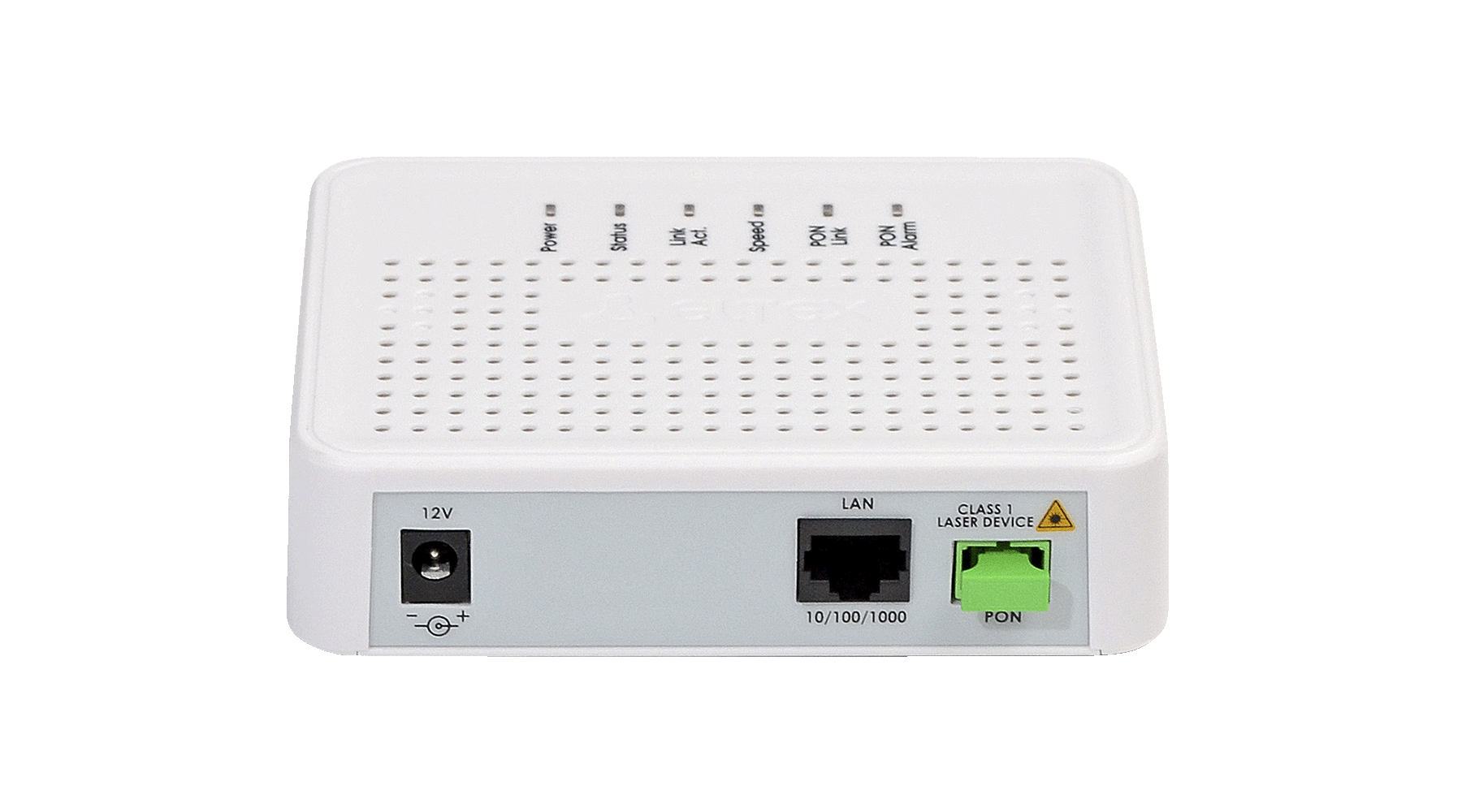

ONT NTU-1

Technology:
GPON
Interfaces:
1xGPON, 1x1G

Description

ONT NTU-1 — subscriber terminals (ONT) dedicated to connect users to data network through GPON technology.


Use cases

  • connecting users in apartment buildings, residential areas, student campuses and facilities to broadband services;
  • constructing corporate networks for strategic industrial facilities and business centres with high safety and data rate requirements.


GPON technology

GPON network belongs to one of the varieties of passive optical networks (PON). This is one of the most modern and effective solutions for "last mile", which allows significant savings on cable infrastructure and provides data transmission rates of up to 2.5 Gbps downlink and 1.25 Gbps uplink. The use of GPON-based solutions in access networks makes it possible to provide end users with new IP services.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

GPON
Interfaces:
1xGPON, 1x1G
ACS
The Automatic Configuration Server(ACS) is designed to automate and facilitate the configuration of subscriber devices (CPEs) using the protocol described in the TR-069 standard. Allows the operator to centrally manage client equipment
ACS
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
PON interface parameters:
GPON port
1
10/100/1000Base-T/1000Base-X (SFP)
2
Compliance with ITU-T G.984.2, ITU-T G.984.5 Filter, FSAN Class B+, SFF-8472
Yes
Connector type
SC/APC
Transmission medium
single-mode optical fiber (SMF) - 9/125, G.652
Transmitter:
1310 nm DFB laser, burst mode
Data rate
1244 Mbps
Average output power
+0.5..+5 dBm
Spectral line width
1 nm (-20 dB)
Receiver:
1490 nm APD/TIA Downstream digital receiver, CW Mode
Data rate
2488 Mbps
Receiver sensitivity
-28 dBm, BER≤1.0×10
Receiver optical overload
-8 dBm
Functional features:
Support for QoS mechanisms
Yes
VLAN
In compliance with IEEE 802.1Q
Physical specifications:
Power supply
Through DC power adapter 12 V / 2 A
Maximum power consumption
5 W
Operating temperature range
From +5 to +40 С
Operating humidity
Up to 80 %
Dimensions
112x32x100 mm
