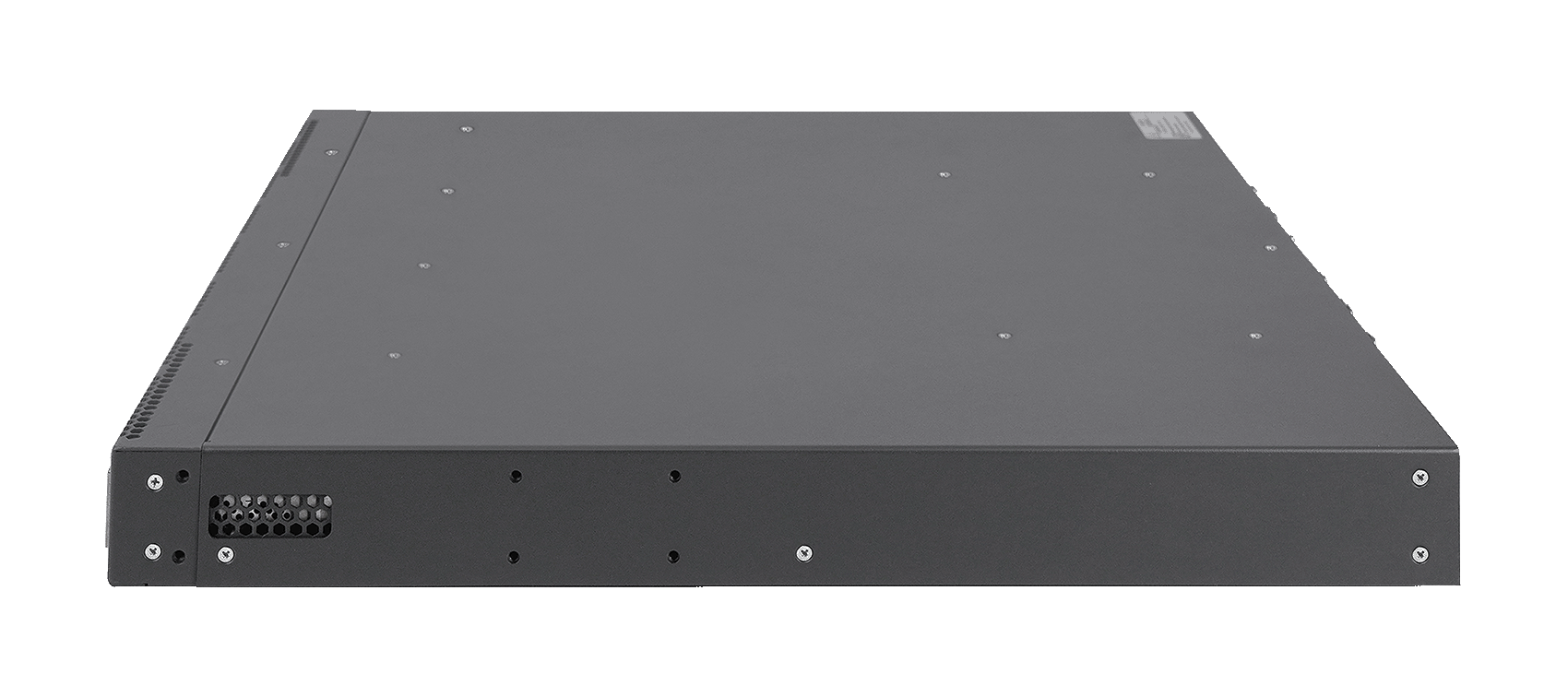

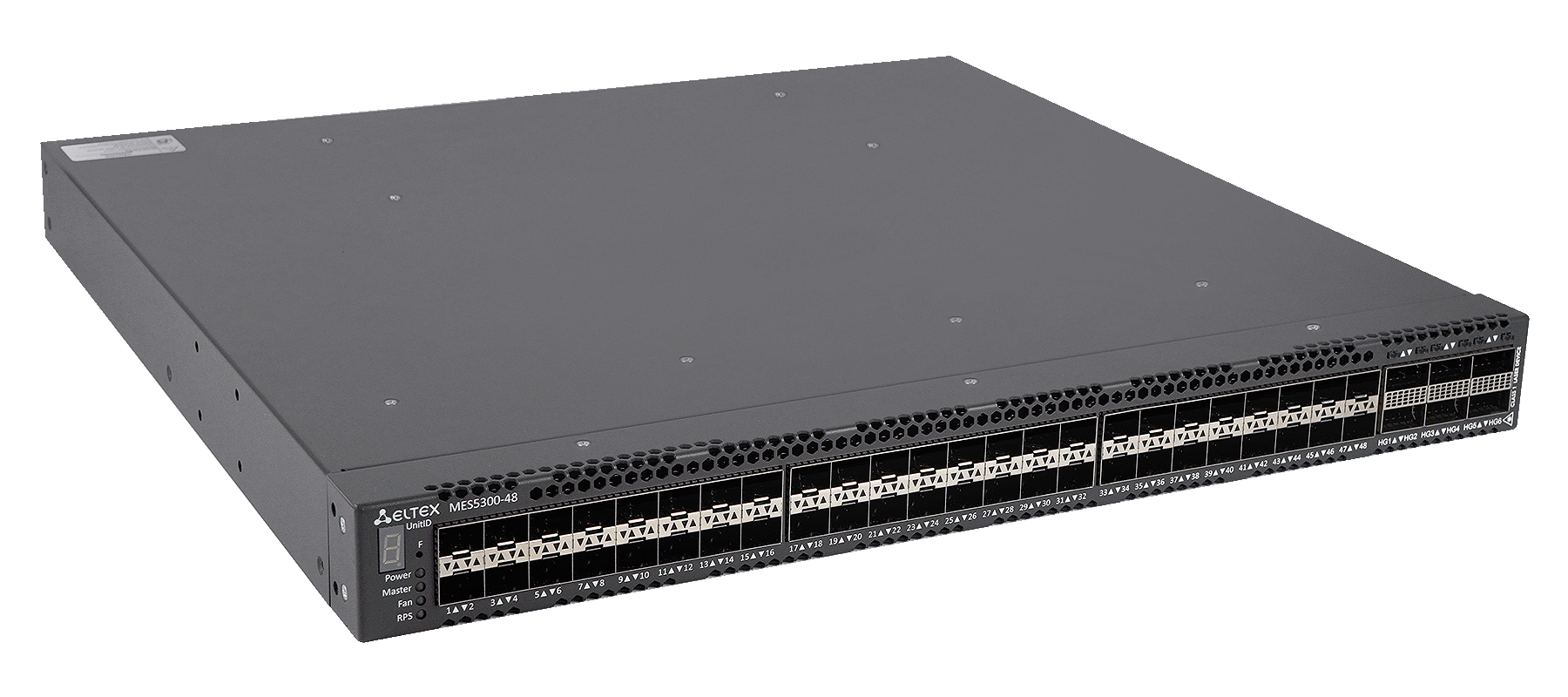

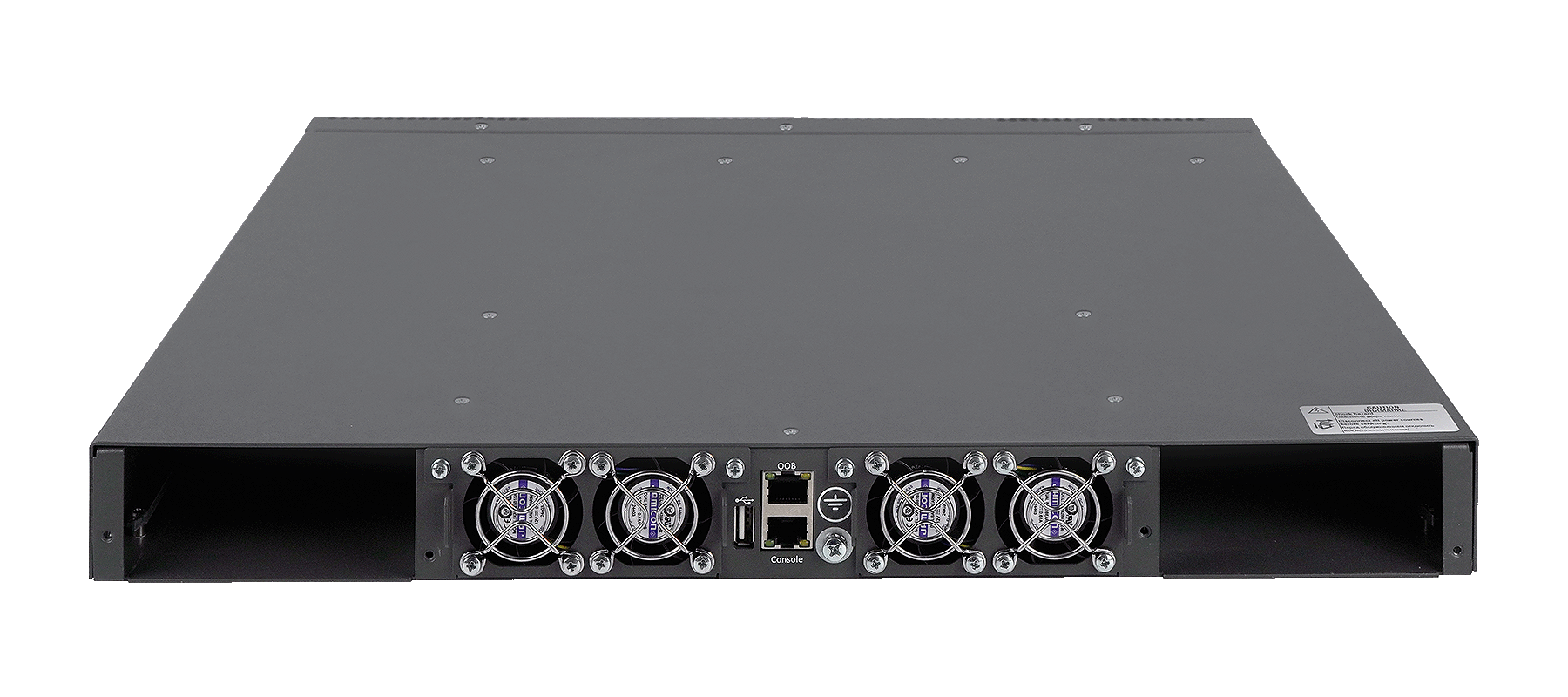

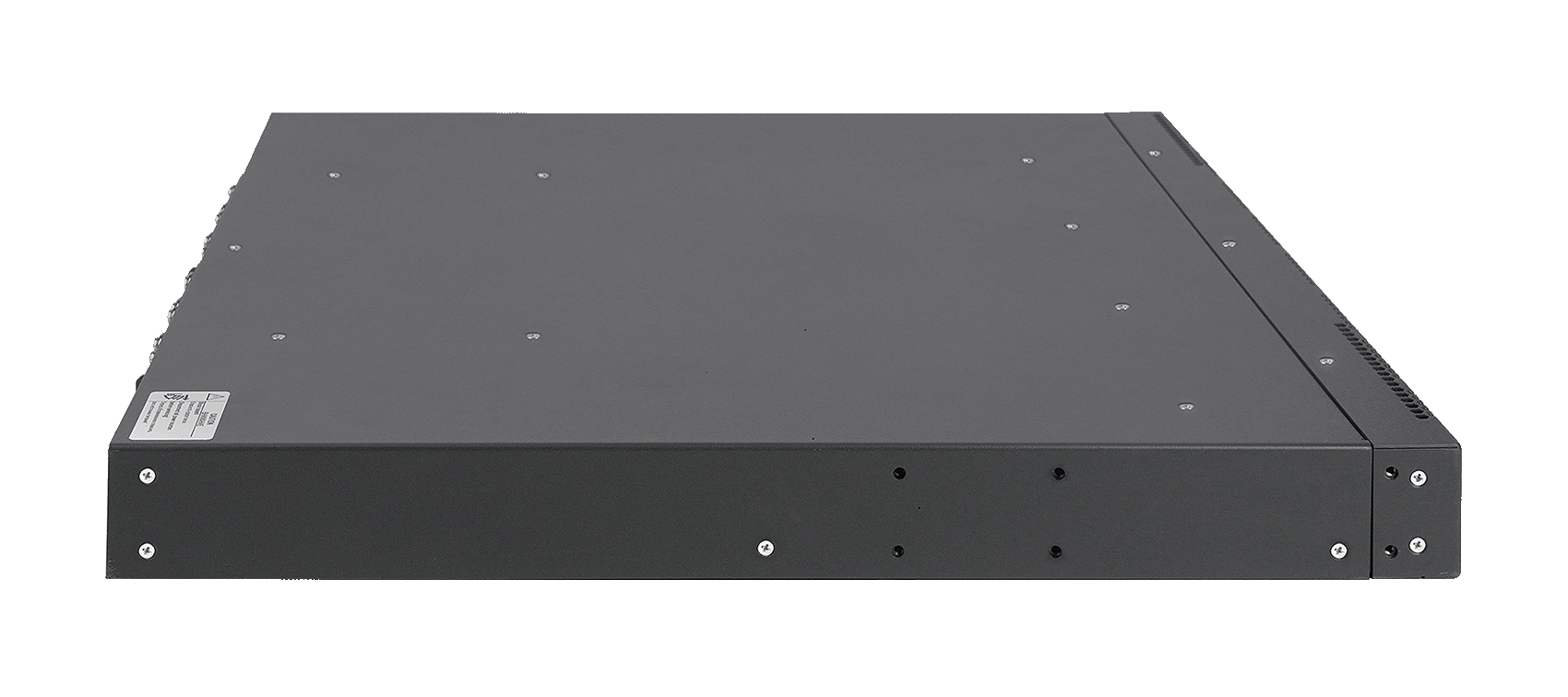

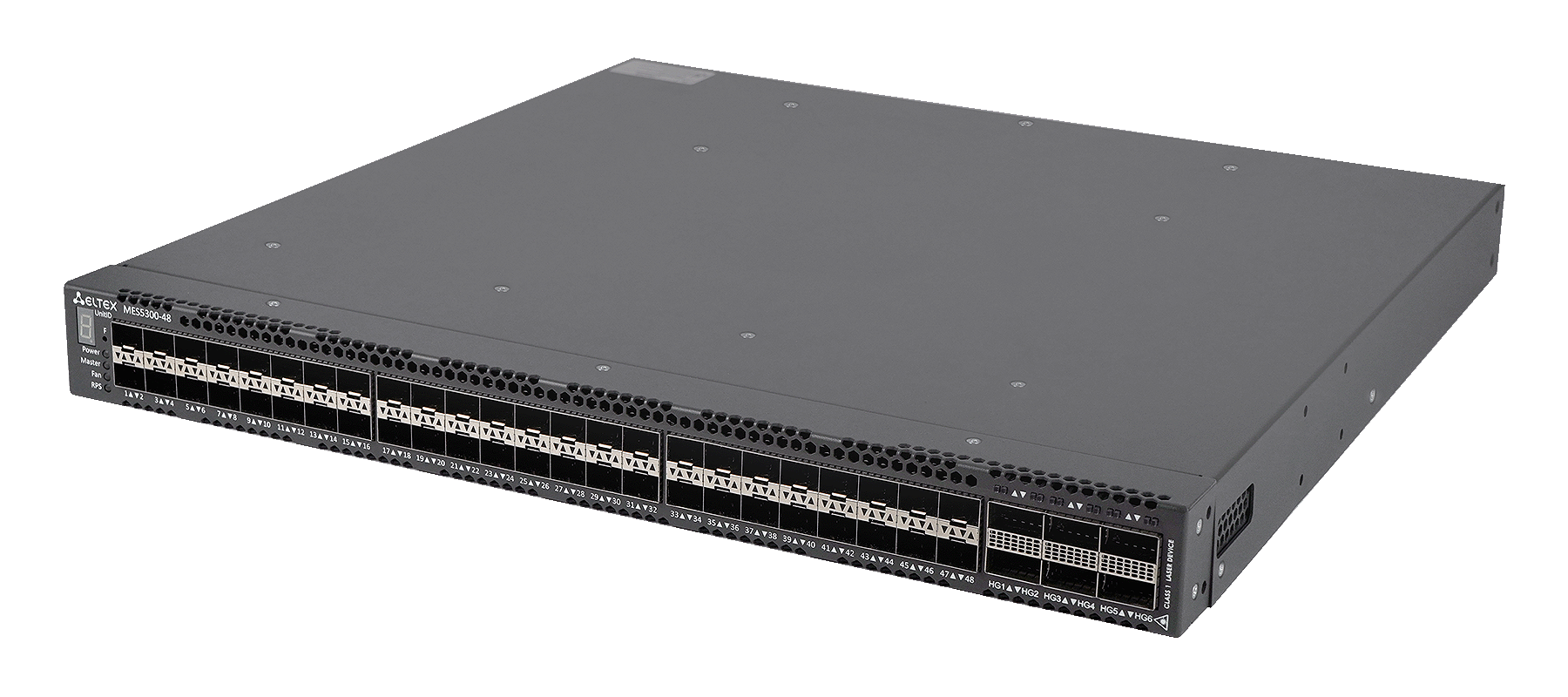

Data center switch MES5300-48
- Level:
- L3
- Bandwidth:
- 2.16 Tbps
- Interfaces:
- 48х10G SFP+, 6х100G QSFP28, 1xOOB
- Power supply:
- AC/DC, 2 hot-swappable power supplies
Description
MES5300-48 switches are high performance devices with 40GBASE-R and 100GBASE-R interfaces that can be used as aggregation switches in carrier networks and as Top-of-Rack or End-of-Row switches for datacenters.
The devices ports support operation at rates of 1 Gbps (SFP), 10 Gbps (SFP+), 40 Gbps (QSFP+) and 100 Gbps (QSFP28). In the split mode of the HG interface, operation at speeds 1 Gbps, 10 Gbps and 25 Gbps is supported. The split mode a lows splitting up to 6 HG interfaces, which gives 24 TWE interfaces in total.
The non-blocking architecture guarantees lossless packet forwarding at wire speed with minimum and predictable delays for all types of traffic.
The front-to-back cooling provides effective cooldown in modern data centers.
The redundant and hot-swappable fans and AC/DC power supplies along with advanced hardware monitoring functions provide high reliability and uninterrupted services.The devices support EVPN/VXLAN technology to create networks with simple, high-performance and scalable data center architecture.
Specifications
- Interfaces:
- 48х10G SFP+, 6х100G QSFP28, 1xOOB
- MAC table:
- 32768
- Dynamic routing:
- RIP/OSPF/IS-IS/BGP
- ARP:
- 16375
- Bandwidth:
- 2.16 Tbps
- Power supply:
- AC/DC, 2 hot-swappable power supplies
- Cooling:
- Front-to-Back
