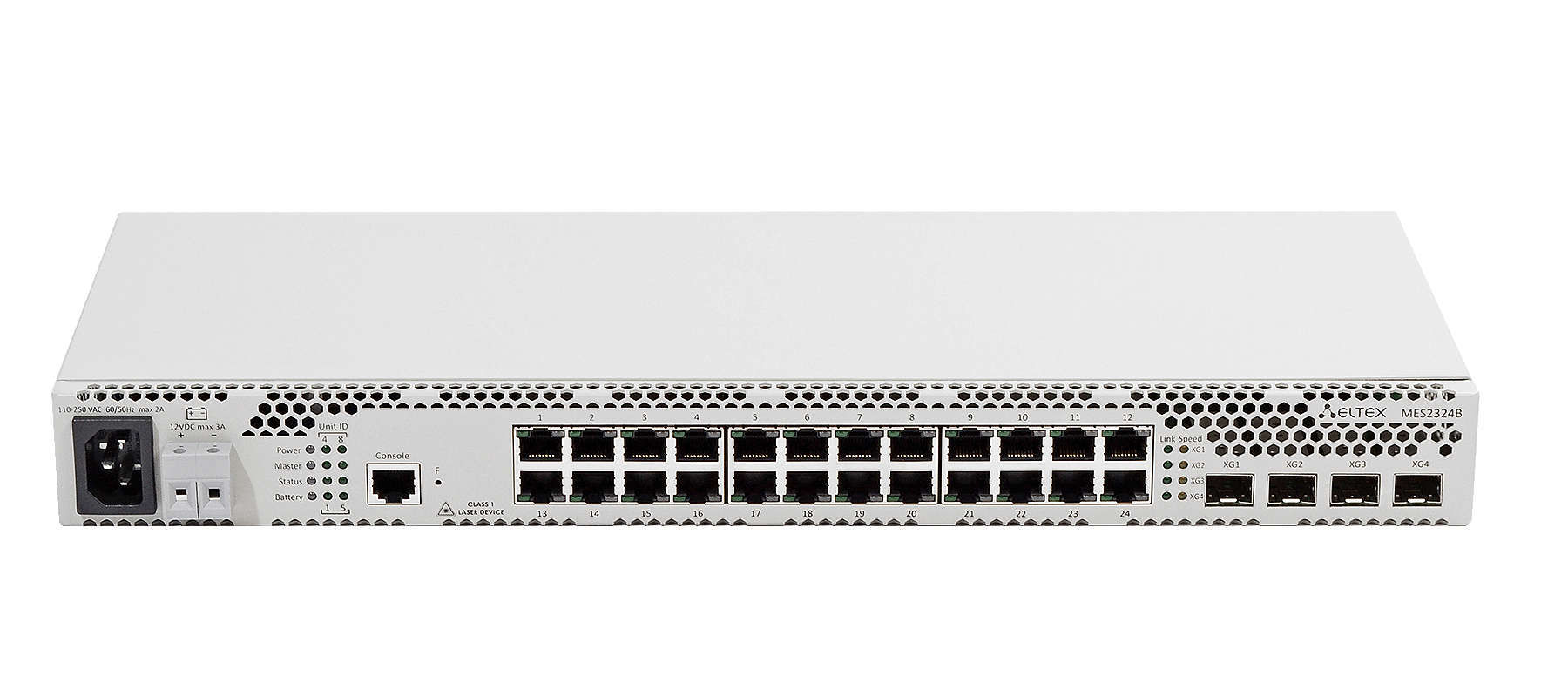

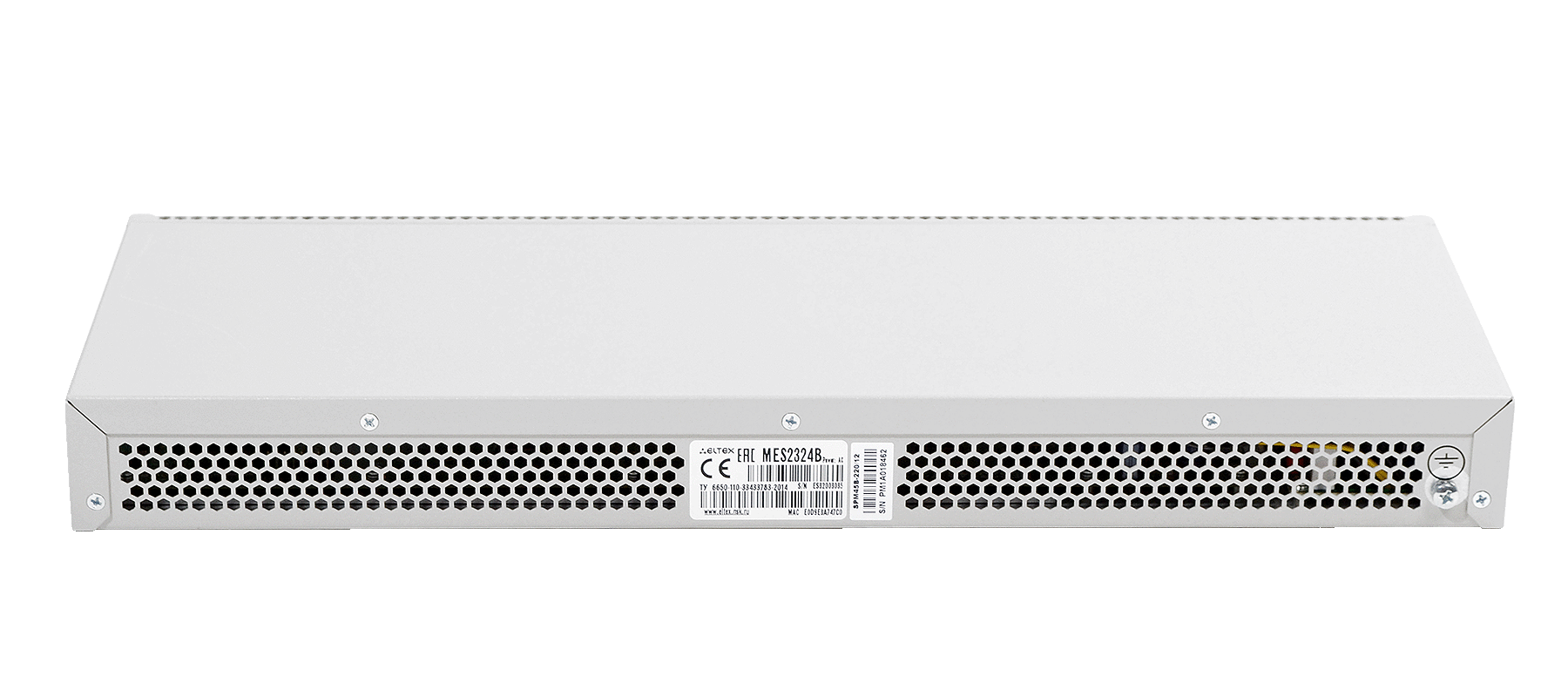

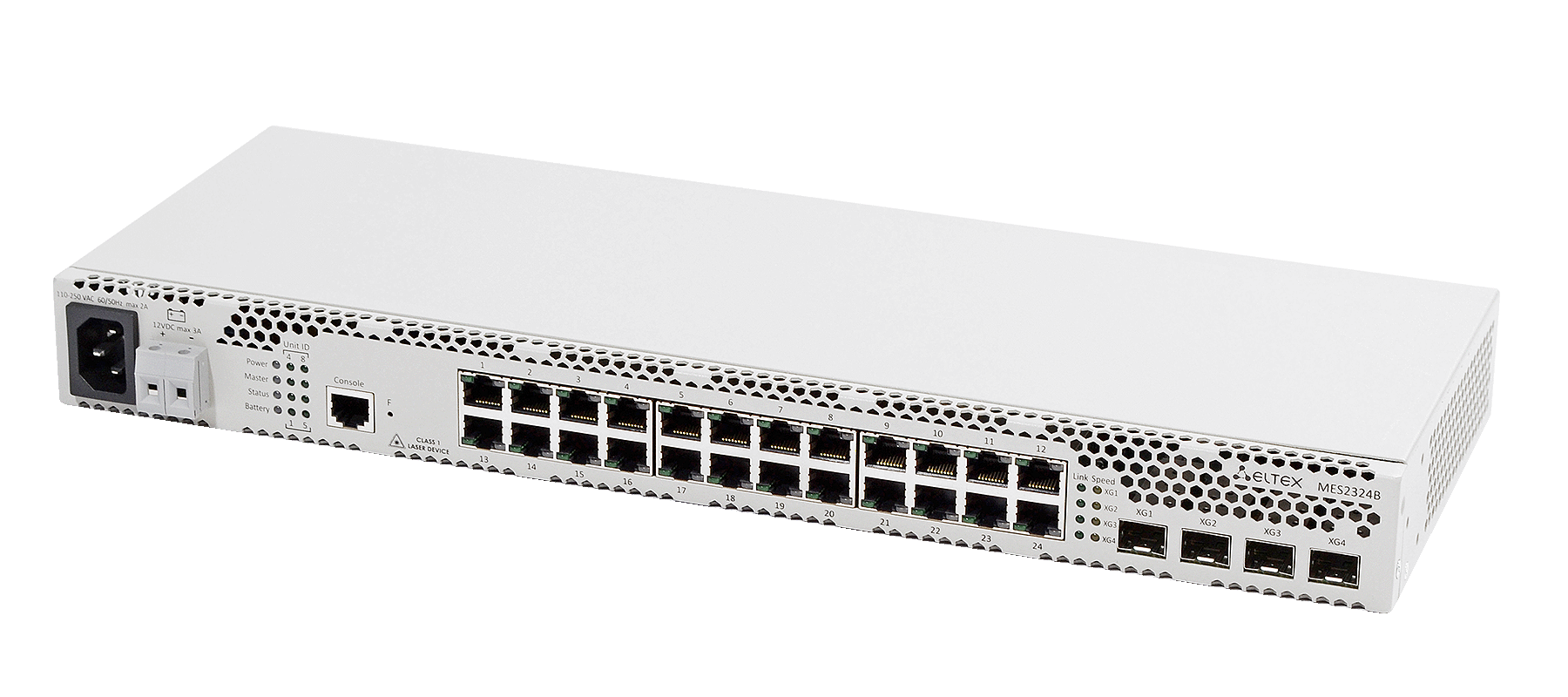

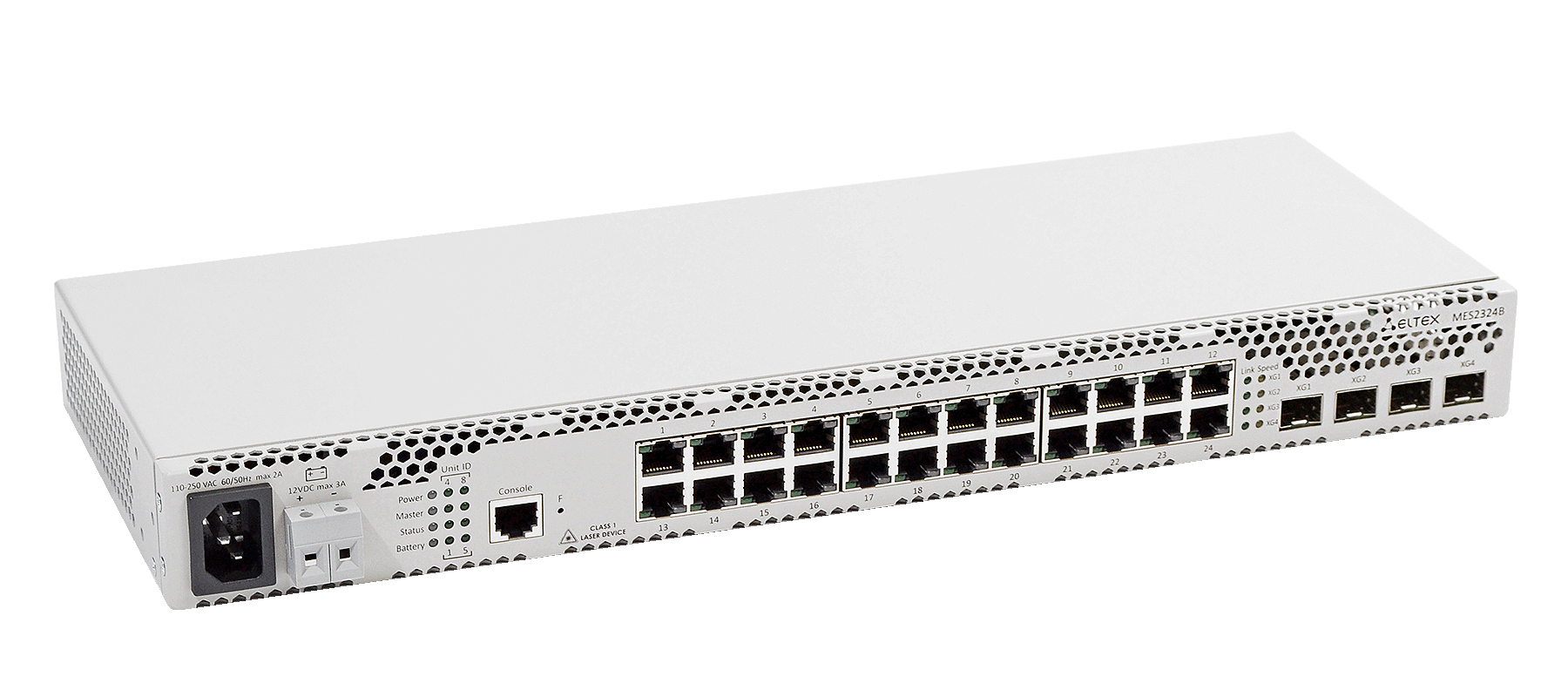

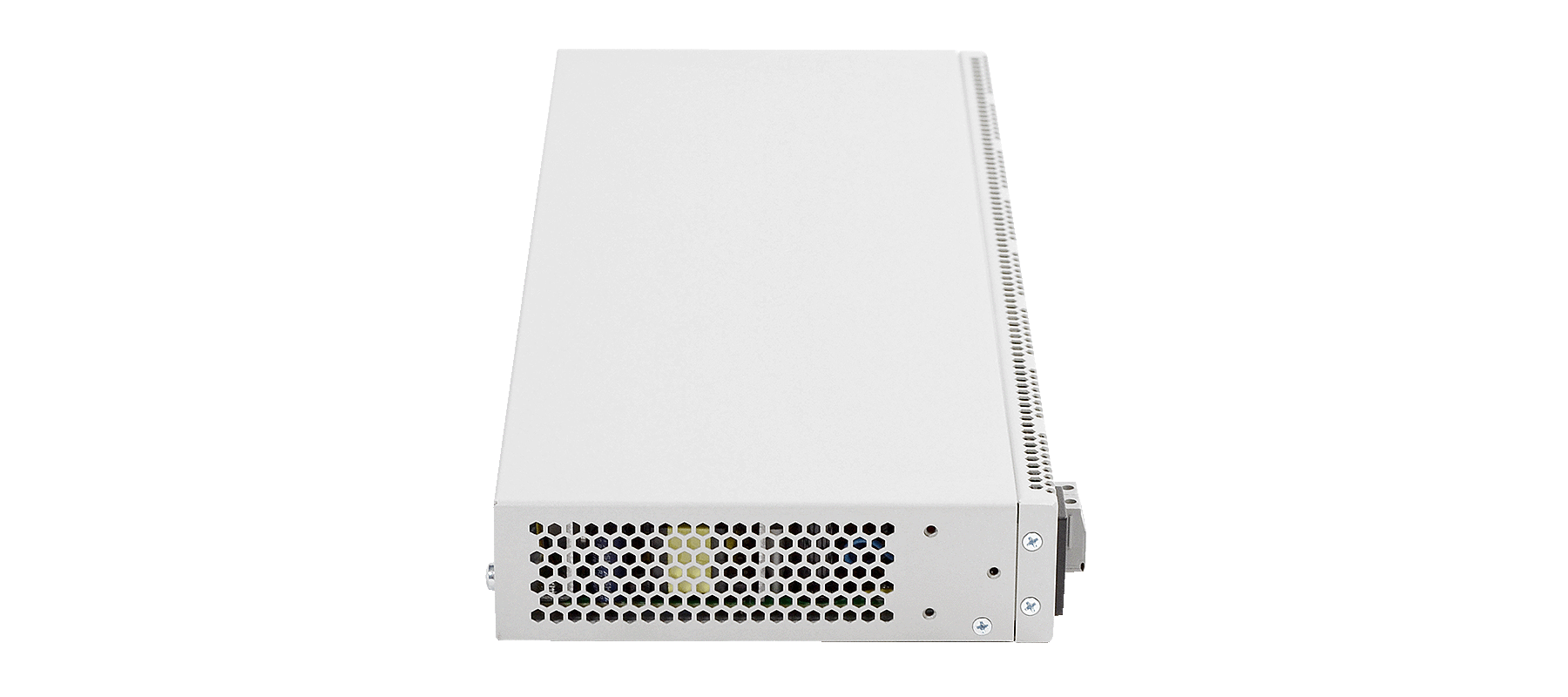

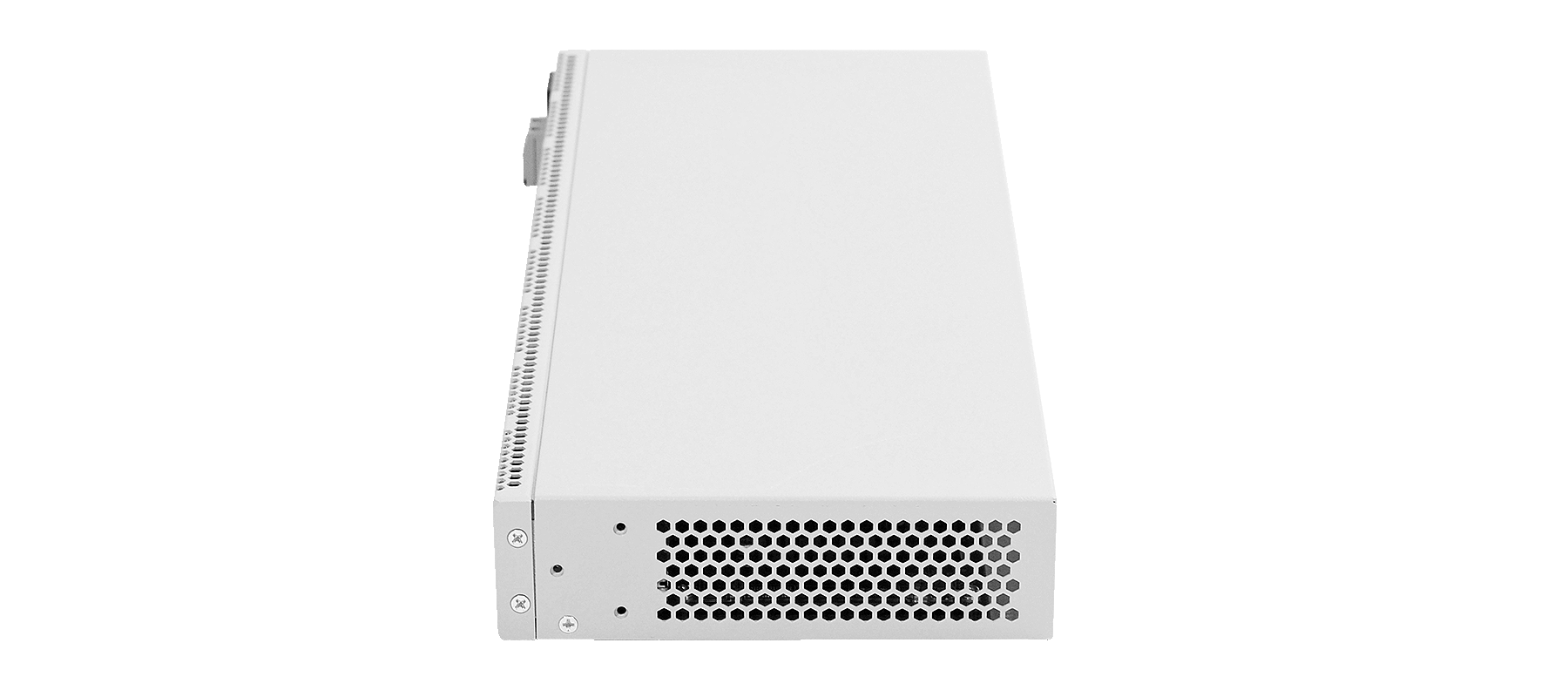

Ethernet Access Switch MES2324B

Mass production
Key features
  • Throughput capacity 176 Gbps
  • Non-blocking switching fabric
  • L3 functions
  • Stacking support
  • Multicast support (IGMP, IGMP snooping, MVR)
  • Extended safety services (L2-L4 ACL, IP Source address guard, Dynamic ARP Inspection and etc.)

New generation of access switches provides end users connection to a large-scale corporate network, small and medium business networks and to a service provider networks using 1G/10G interfaces.

The switches support physical stacking, VLANs, multicast groups and advanced security functions

Specifications
Modules and additional devices
Documents and files
Warranty
Interfaces
  • 24x10/100/1000BASE-T (RJ-45)
  • 4x10GBASE-R (SFP+)/1000BASE-X (SFP)
  • 1xConsole port - RS-232/RJ-45
Performance
  • Bandwidth - 128 Gbps
  • Throughput for 64 bytes1 - 92.1 MPPS
  • Buffer memory - 1.5 MB
  • RAM (DDR3) - 512 MB
  • ROM (RAW NAND) - 512 MB
  • MAC table - 16384
  • ARP table2 - 820
  • VLAN table - 4094
  • L2 Multicast groups - 2047
  • SQinQ rules - 958 (ingress/egress)
  • ACL rules - 958
  • L3 IPv4 Unicast1 - 818
  • L3 IPv6 Unicast1 - 210
  • L3 IPv4 Multicast (IGMP Proxy, PIM)1 - 412
  • L3 IPv6 Multicast (IGMP Proxy, PIM)1 - 103
  • VRRP switches - 255
  • Maximum size of ECMP groups - 8
  • VRF - 16 (including default VRF)
  • L3 interfaces - 130
  • Link Aggregation Groups (LAG) - 48, up to 8 ports per LAG
  • Quality of Service (QoS) - 8 egress queues per port
  • Jumbo frames - 10240 bytes
  • Stacking - 8 devices
Interfaces functions
  • Head-of-line blocking (HOL) protection
  • Back pressure
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow control (IEEE 802.3X)
  • Port mirroring (SPAN, RSPAN)
  • Stacking
MAC table functions
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses
  • Static MAC Entries
  • MAC Flapping logging
VLAN functions
  • Voice VLAN
  • 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
L2 Multicast functions
  • Multicast profiles
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Port/host based IGMP Snooping Fast Leave
  • Pim-Snooping
  • IGMP proxy-report
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • IGMP Querier
  • MVR
L2 functions
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spanning Tree protocol, IEEE 802.1w)
  • MSTP (Multiple Spanning Tree, IEEE 802.1s)
  • STP Multiprocess
  • PVSTP+
  • RPVSTP+
  • Spanning Tree Fast Link option
  • STP Root Guard
  • STP Loop Guard
  • BPDU Filtering
  • STP BPDU Guard
  • VLAN-based Loopback Detection (LBD)
  • ERPS (G.8032v2)
  • Flex-link
  • Private VLAN, Private VLAN Trunk
  • Layer 2 Protocol Tunneling (L2PT)
L3 functions
  • Static IP routes
  • Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP² (IPv4 Unicast, IPv4 Multicast, IPv6 Unicast)
  • BFD (for BGP)
  • Address Resolution Protocol (ARP)
  • Proxy ARP
  • Policy-Based Routing (IPv4)
  • VRRP
  • PIM SM, PIM DM, IGMP Proxy, MSDP
  • IP Unnumbered
  • ECMP Load Balancing
  • IP Unnumbered
  • VRF
Link Aggregation functions
  • Static LAG
  • Dynamic LAG (LACP)
  • LAG Balancing Algorithm
  • Multi-Switch Link Aggregation Group (MLAG)
IPv6 functions
  • IPv6 Host
  • Dual-stack
Service functions
  • Virtual Cable Testing (VCT)
  • Optical transceiver diagnostic
  • Green Ethernet
Security functions
  • DHCP Snooping
  • DHCP Option 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • First Hop Security
  • sFlow
  • MAC-based authentication, Port Security, Static MAC entries
  • Port-based authentication IEEE 802.1x
  • Guest VLAN1
  • DoS attack prevention
  • Traffic segmentation
  • Protection against non-authorized DHCP servers
  • DHCP clients filtering
  • BPDU attacks prevention
  • NetBIOS/NetBEUI filtering
  • PPPoE Intermediate Agent
ACL (Access Control List)
  • L2-L3-L4 ACL
  • Time-Based ACL
  • IPv6 ACL
  • ACL based on:
    • Physical port number
    • IEEE 802.1p
    • VLAN ID
    • Ether Type
    • DSCP
    • Protocol type
    • TCP/UDP port number
    • User Defined Bytes
Quality of Service (QoS) and rate limiting
  • QoS statistics
  • Shaping, Policing
  • IEEE 802.1p Class of Service (CoS)
  • Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
  • Bandwidth management
  • Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
  • Three marking colors
  • ACL-based CoS/DSCP mark assignment
  • Setting the IEEE 802.1p priority for management VLAN
  • DSCP to CoS/CoS to DSCP remarking
  • ACL-based VLAN assignment
  • 802.1p, DSCP mark assignment for IGMP
ОАМ/CFM
  • 802.3ah Ethernet Link OAM
  • Dying Gasp
  • 802.1ag Connectivity Fault Management (CFM)¹
  • 802.3ah Unidirectional Link Detection (UDLD)
Management functions
  • Download and upload of configuration file via TFTP/SCP
  • Redirecting the output of CLI commands to an arbitrary file on ROM
  • SNMP
  • Command line interface (CLI)
  • Web interface
  • Syslog
  • SNTP (Simple Network Time Protocol)
  • Traceroute
  • LLDP (802.1ab) + LLDP MED
  • Processing traffic management with two 802.1Q headers
  • Authorization of entered commands using TACACS+ server
  • Access control - privilege levels
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS, TACACS+ (Terminal Access Controller Access Control System) clients
  • Change of Authorization (CoA)
  • SSH server, Telnet server
  • SSH client, Telnet client
  • Remote start of commands via SSH
  • SSL
  • Macrocommands
  • CLI commands logging
  • System log
  • DHCP autoprovision
  • DHCP Relay (Option 82)
  • DHCP Option 12
  • DHCP Relay, DHCPv6 LDRA (Option 18, 37)
  • PPPoE Circuit ID tag
  • Debugging commands
  • Rate limit of traffic to CPU
  • Password encryption
  • Password recovery
  • Ping (IPv4/IPv6 support)
  • DNS server (Resolver)
Monitoring functions
  • Statistics on interfaces
  • RMON/SMON
  • IP SLA
  • CPU utilization monitoring per task and per traffictype
  • RAM utilization monitoring
  • Temperature monitoring
  • TCAM utilization monitoring
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 1271,1757, 2819 RMON MIB
  • RFC 2465 IPv6 MIB
  • RFC 2466 ICMPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 3289 DIFFSERV MIB
  • RFC 2021 RMONv2 MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 2925 Ping & Traceroute MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 4884 Extended ICMP for Multi-Part messages support
  • RFC 793 TCP
  • RFC 2474, 3260 DS field definition in IPv4 and IPv6 headers
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet
  • IEC 61850
Physical parameters
  • Power supply -110–250 V АС, 50–60 Hz; 12 V DC
  • Maximum power consumption - 50 W
  • Maximum power consumption (excluding battery charge) - 26 W
  • Heat dissipation - 28 W
  • Hardware support for Dying Gasp - no
  • Operating temperature - from -20 to +50°С
  • Storage temperature - from -50 to +70°С
  • Operating humidity - no more than 80% max
  • Cooling - passive
  • Form factor - 19", 1U
  • Dimensions (W x H x D) - 430 x 44 x 158
  • Weight - 2.25 kg

1 Values are given for 1-way transmission
2 For each host in the ARP table, an entry is created in the routing table

 1 fiber

Part Number

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS3 / FH-SB5312CDS3

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL3 / FH-SB5312CDL3

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS20 / FH-SB5312CDS20

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL20 / FH-SB5312CDL20

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM, INDUSTRIAL

FH-SB3512IDS20 / FH-SB5312IDS20

 SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL40 / FH-SB5312CDL40

 SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS40 / FH-SB5312CDS40

 SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL80 / FH-SB5412CDL80

 SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS80 / FH-SB5412CDS80

 SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL120 / FH-SB5412CDL120

 SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS120 / FH-SB5412CDS120

 SFP 1.25 GE module 160 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL160 / FH-SB5412CDL160

 2 fibers



 SFP 1.25 GE module 550 m, MM, 2 fibers, 850 nm,  LC,  DDM

FH-S8512CDL05

 SFP 1.25 GE module 2 km, ММ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL2

 SFP 1.25 GE module 20 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL20

SFP 1.25 GE module 40 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL40

 SFP 1.25 GE module 80 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL80

 SFP 1.25 GE module 120 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL120

 SFP 1.25 GE module 160 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL160

SFP+



 1 fiber



 SFP+ 10GE module 3 km, SM, 1 fiber, TX/RX 1290/1310 LC set, DDM

FH-SPB311TCDL3 / FH-SPB191TCDL3

 SFP+ 10GE module 20 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM

FH-SPB231TCDL20 / FH-SPB321TCDL20

 SFP+ 10GE module 40 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM

FH-SPB231TCDL40 / FH-SPB321TCDL40

 SFP+ 10GE module 60 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM

FH-SPB231TCDL60 / FH-SPB321TCDL60

 SFP+ 10GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SPB451TCDL80 / FH-SPB541TCDL80

 SFP+ 10GE module 100 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SPB451TCDL100 / FH-SPB541TCDL100

 2 fibers



 SFP+ 10GE module, 0.3 km, MM, 2 fibers, 850 nm, LC, DDM

FH-SP851TCDL03

 SFP+ 10GE module, 20 km, SM, 2 fibers, 1310 nm, LC, DDM

FH-SP311TCDL20

 SFP+ 10GE module, 40 km, SM, 2 fibers, 1550 nm, LC, DDM

FH-SP551TCDL40

 SFP+ 10GE module, 80 km, SM, 2 fibers, 1550 nm, LC, DDM

FH-SP551TCDL80

 SFP+ 10GE module, 100 km, SM, 2 fibers, 1550 nm, LC, DDM

FH-SP551TCDL100

SFP/SFP+ transceivers with RJ-45 interface



 SFP transceiver of 10/100/1000 BASE-T

FH-ST2

 SFP+ transceiver of 10GBASE-Т

FH-10SFP-T

SFP+ Direct Attach Cable



 SFP+ Direct attach cable, 10G, 1m

FH-DP1T30SS01

 SFP+ Direct attach cable, 10G, 2m

FH-DP1T30SS02

SFP+ Direct attach cable, 10G, 3m

FH-DP1T30SS03

SFP+ Direct attach cable, 10G, 5m

FH-DP1T30SS05

Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.

Помогите сделать
сайт лучше
