New

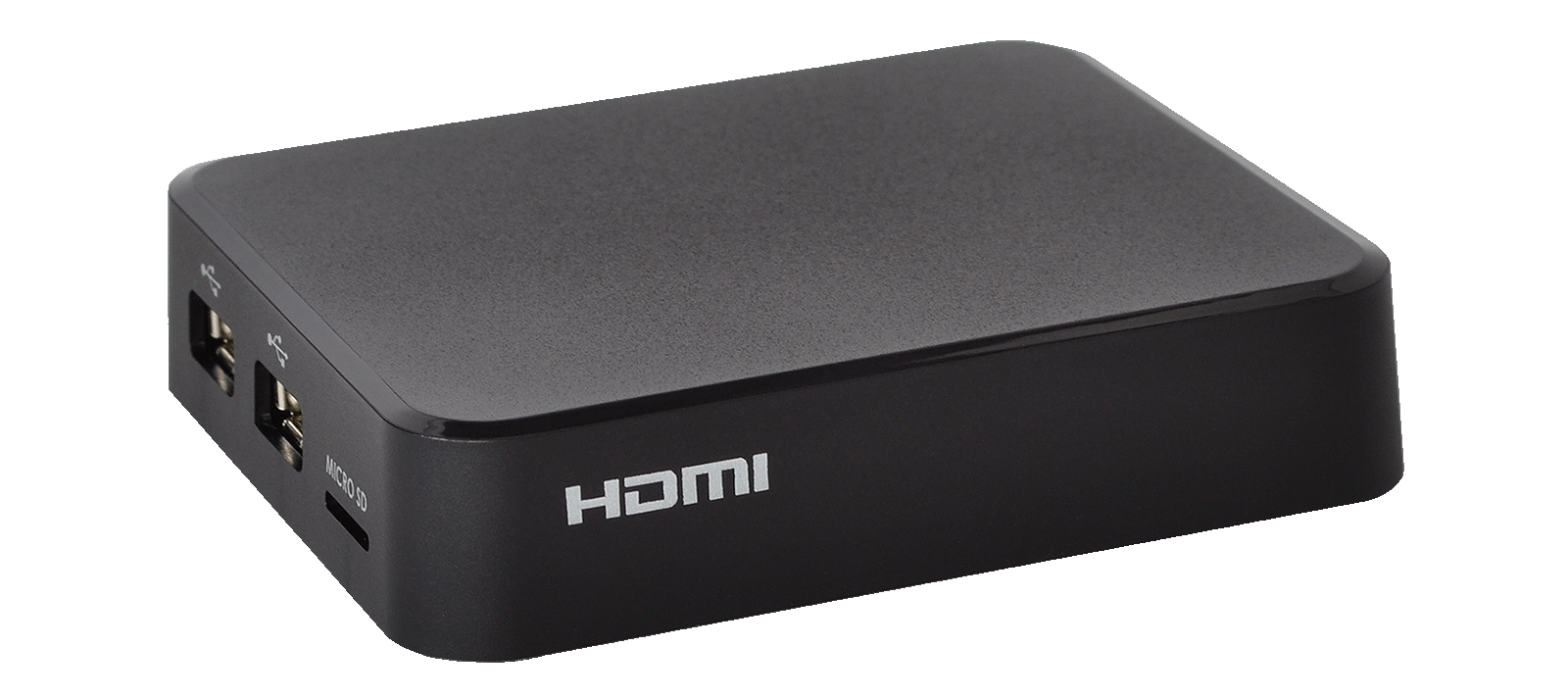

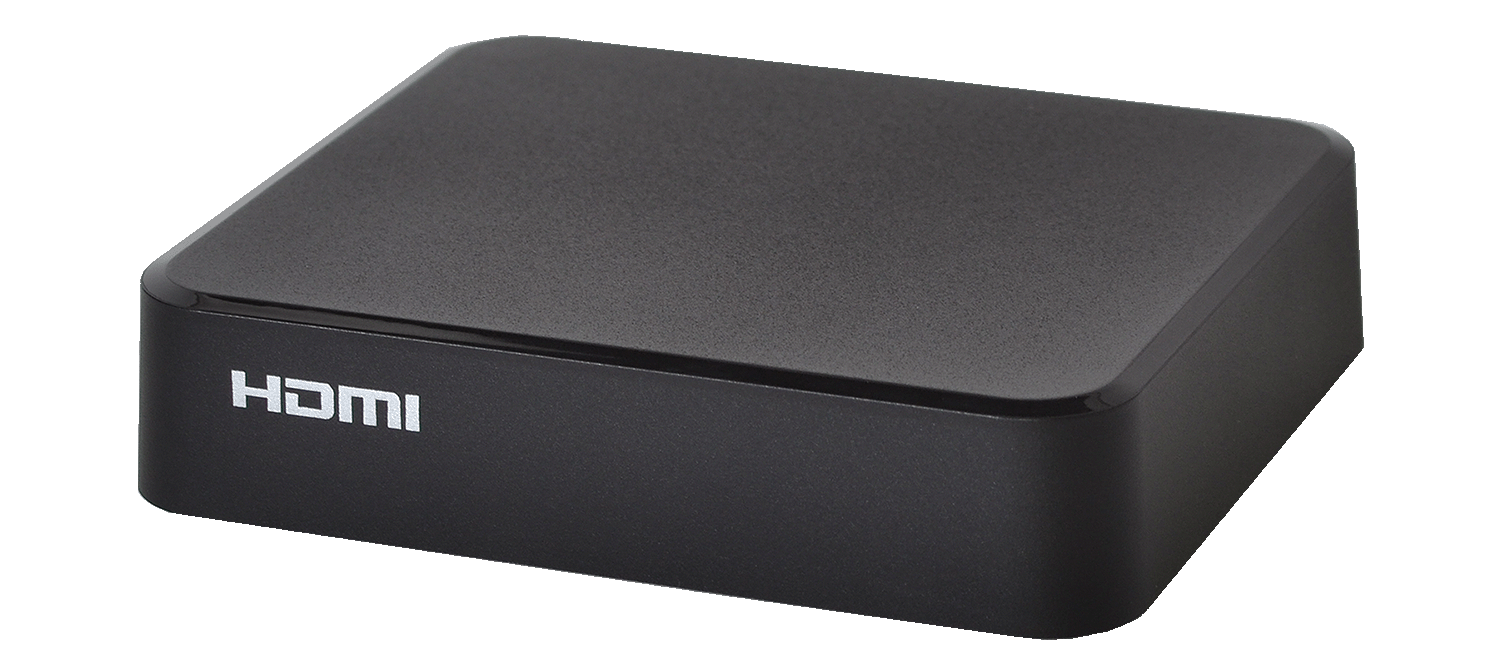

IPTV Set-top Box NV-731
Mass production
Key benefits
Android platform
Android enables creating a single universal platform with access to different services, including AndroidTV interface.
Customized app store creation
The open platform and development kit (SDK, API) allow service providers to manage access to services and create new ones.
Peer-to-Peer TV
NV-731 series devices support real-time playback of media files via DC++ protocol without connecting to a PC or files preloading to local disk. Background loading of files, load queue creation and organization of an illustrated page (catalogue) for media content are available with NV-731 series set-top boxes.
Basic services
- 2D/3D-accelerators, support for OpenGL 3.2
- OS Android 11
- App store
- Support for widely used Middleware
- Android API, SDK
- H.265
- 4Kp60 decoding
- HDMI 2.1
Android platform
Android enables creating a single universal platform with access to different services, including AndroidTV interface.
Customized app store creation
The open platform and development kit (SDK, API) allow service providers to manage access to services and create new ones.
Peer-to-Peer TV
NV-731 series devices support real-time playback of media files via DC++ protocol without connecting to a PC or files preloading to local disk. Background loading of files, load queue creation and organization of an illustrated page (catalogue) for media content are available with NV-731 series set-top boxes.
Basic services
- HD/UHD IPTV
- OTT
- VoD
- Media player (files playback from external storage or local network)
- Electronic program guide (EPG)
- Support for cloud services
- Online sources: YouTube, Internet radio, etc.
- Provider’s app store
- Support for HLS
- Peer-to-Peer TV (streaming via DC++)
Show all
Specifications
Documents and files
Warranty
Hardware capabilities
- 16560 DMIPS
- 1 GB RAM
- 8 GB Flash
- 2D/3D-accelerators, OpenGL
- OS Android 11
- Support for H.265
- 4Kp60 decoding
- HDR
- Support for HLS
- Support for CAS, DRM
- Support for UHD 4K, FHD 1080p/i, HD 720p/i
- Multilingual interface
- Keyboard and mouse connection support
-
Management and voice search:
- IR remote control
- Software remote control — Android app

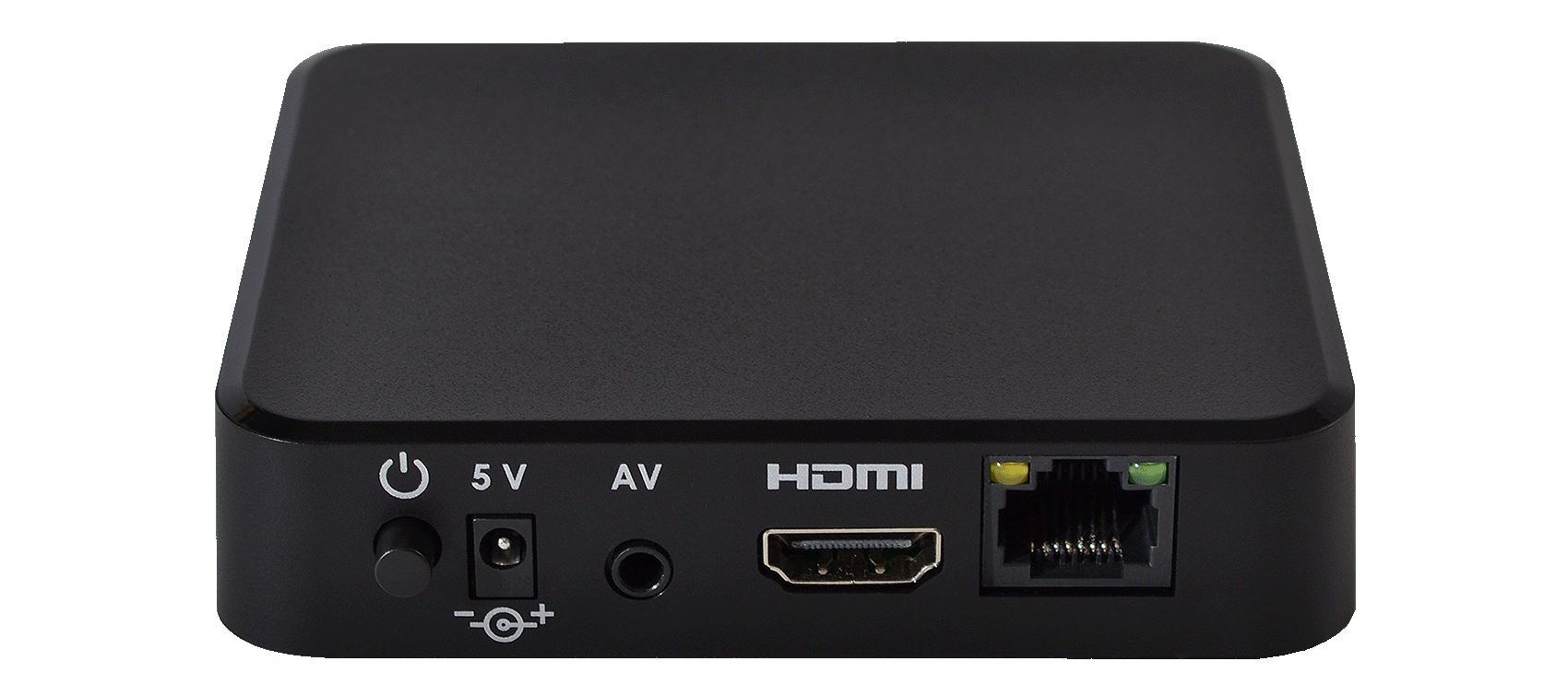

- 1 × LAN 10/100

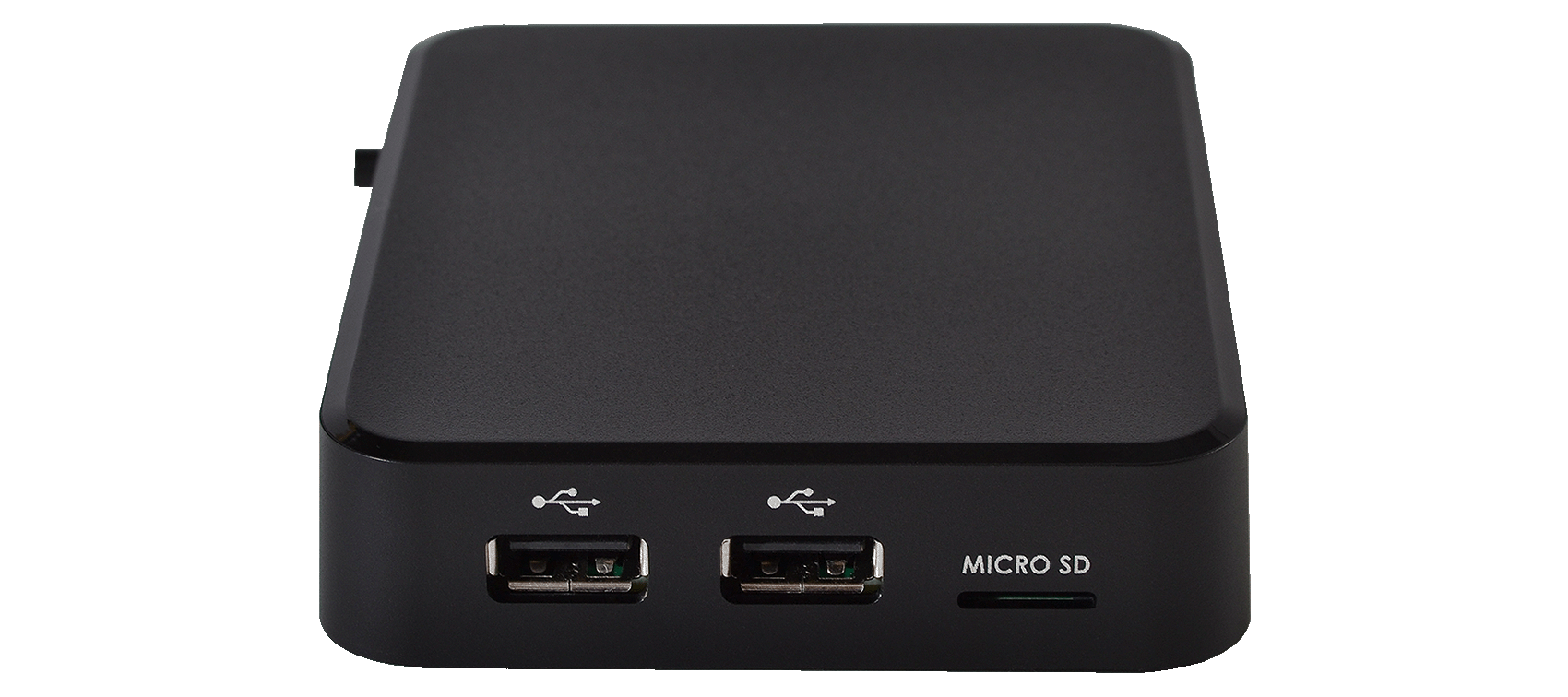

- 2 × USB 2.0
- HDMI 2.1
- AV output
- MicroSD
- Resolution: UHD 2160p, FHD 1080p, HD 720p
- Supported formats: MPEG1, MPEG(+HD), MPEG4(+HD), XvID, DivX, H.264, AVCHD, Vc1, H.265
- 44.1, 48, 96 kHz
- Supported protocols: IP, HTTP, DHCP, NTP, IGMP (multicast), ICMP, UDP, RTP, RTSP, DLNA, SAMBA, HLS
- Customized app store, Android applications, Google Play
- Firmware update via a customized app store
- Support for local update
- Interface and settings customization
- Dimensions (W × H × D): 100 × 22 × 84 mm
- Desktop case
- Case material: IR transparent plastic
- Power adapter: 5.3 V / 2 A
- Smart TV set-top box
- Power adapter
- IR remote control
- Batteries for IR remote control — 2 pcs.
- HDMI cable
- Installation and initial configuration guide
Show all
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
