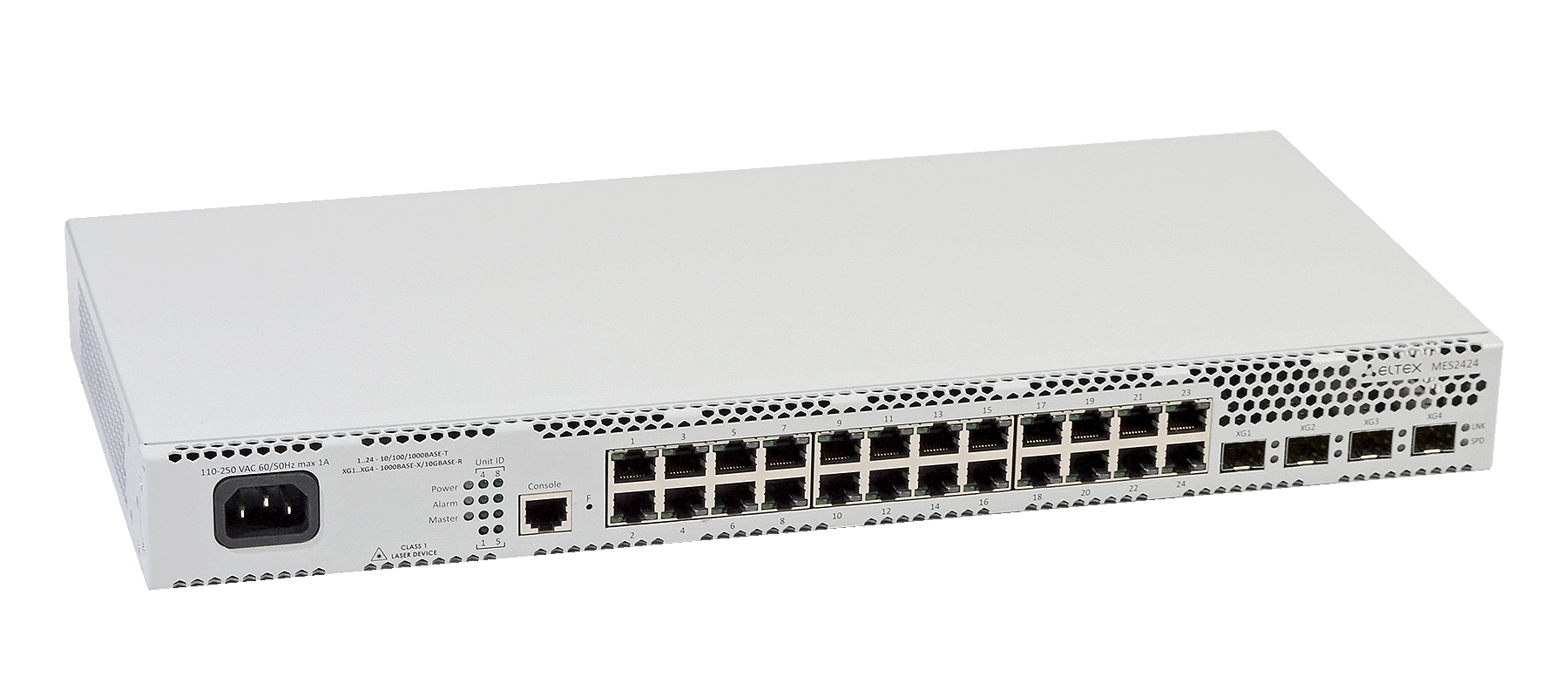

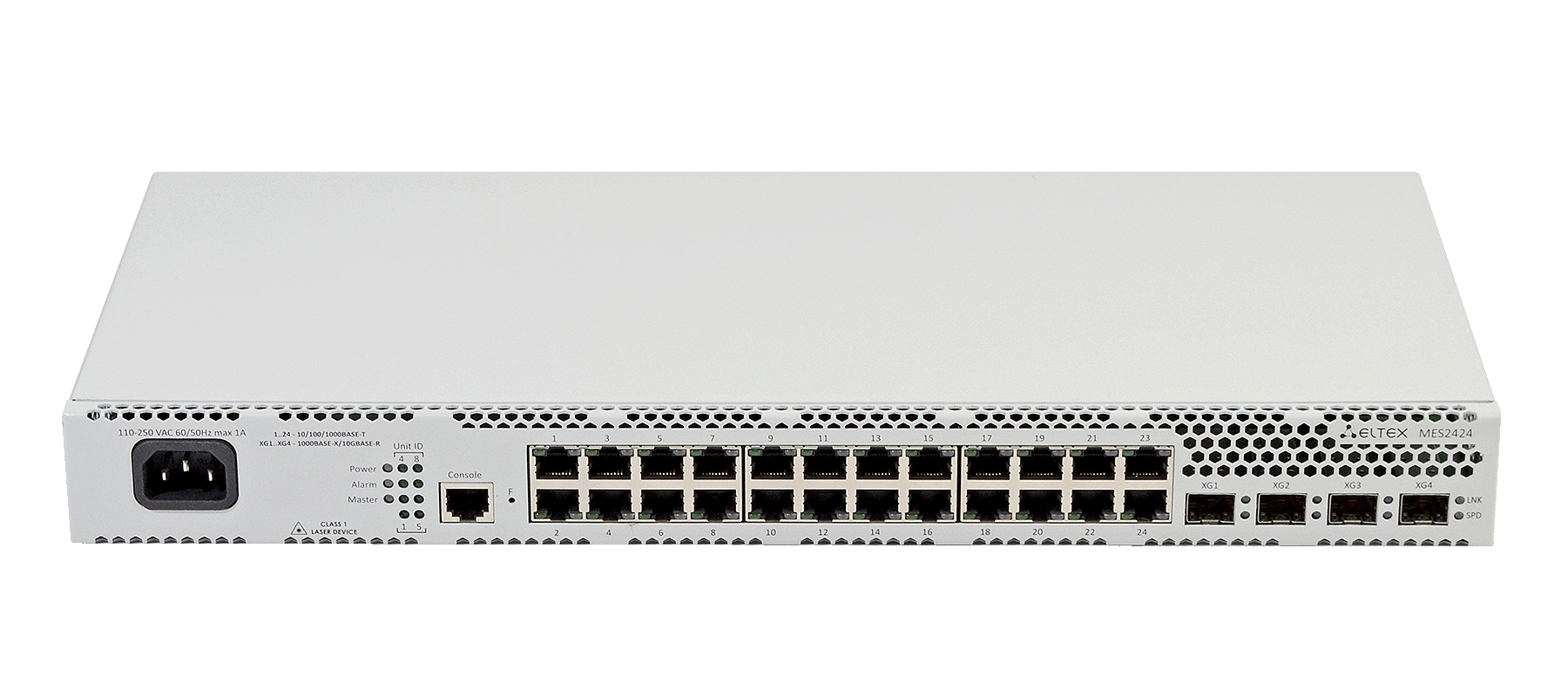

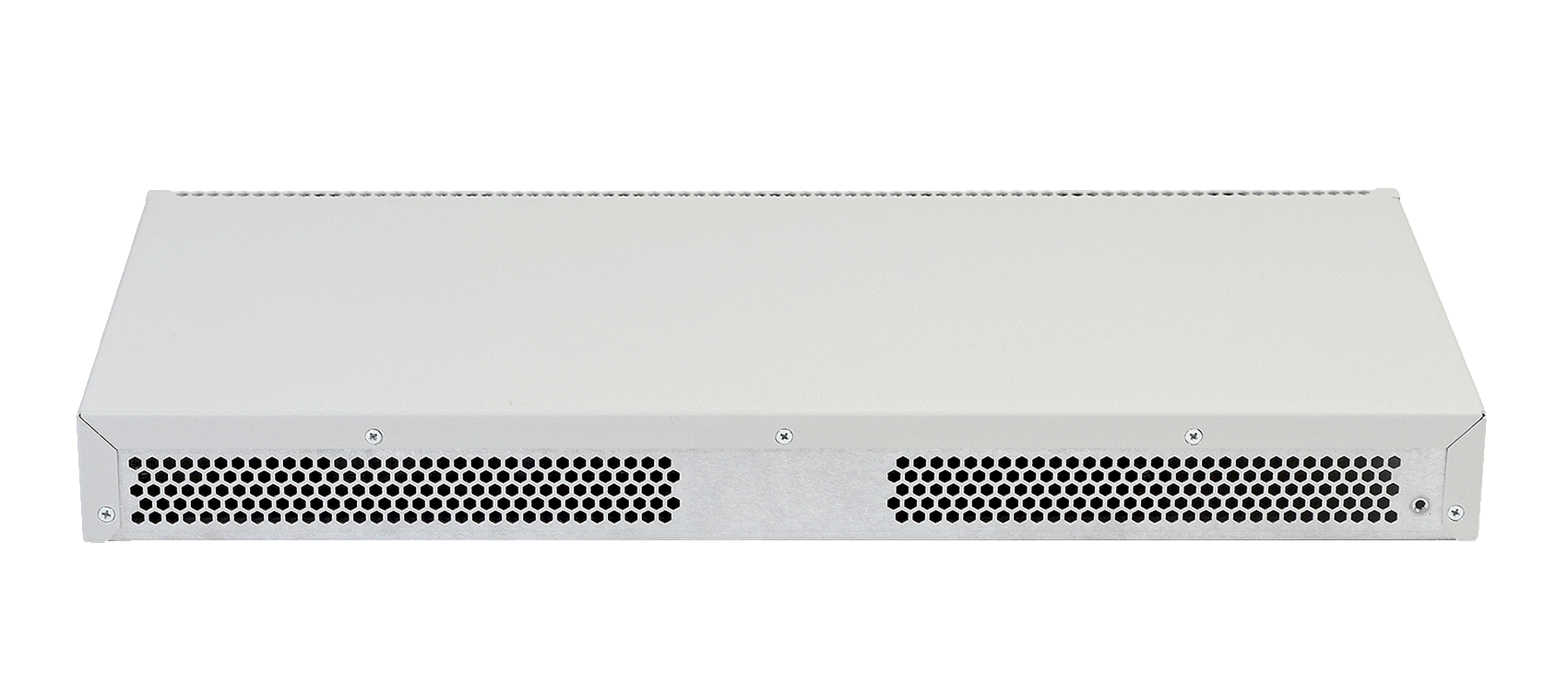

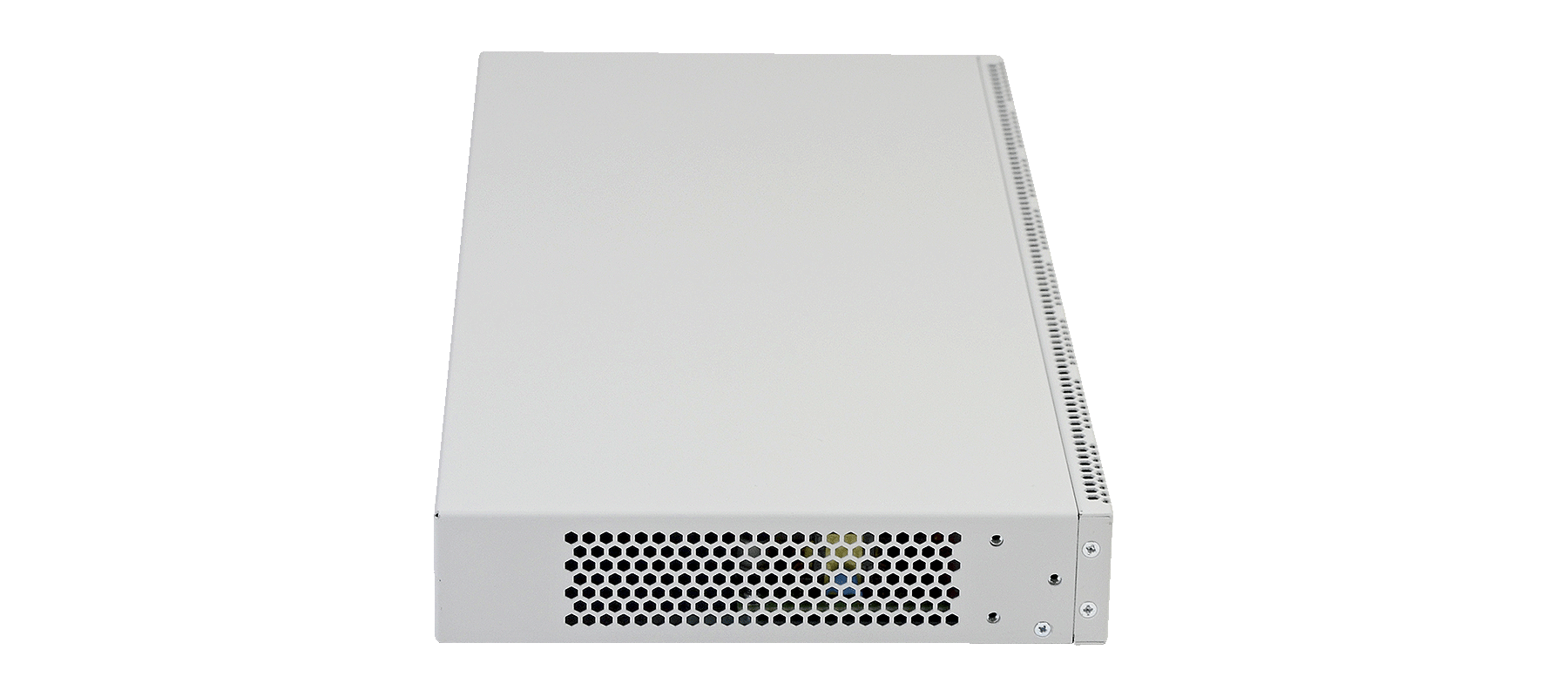

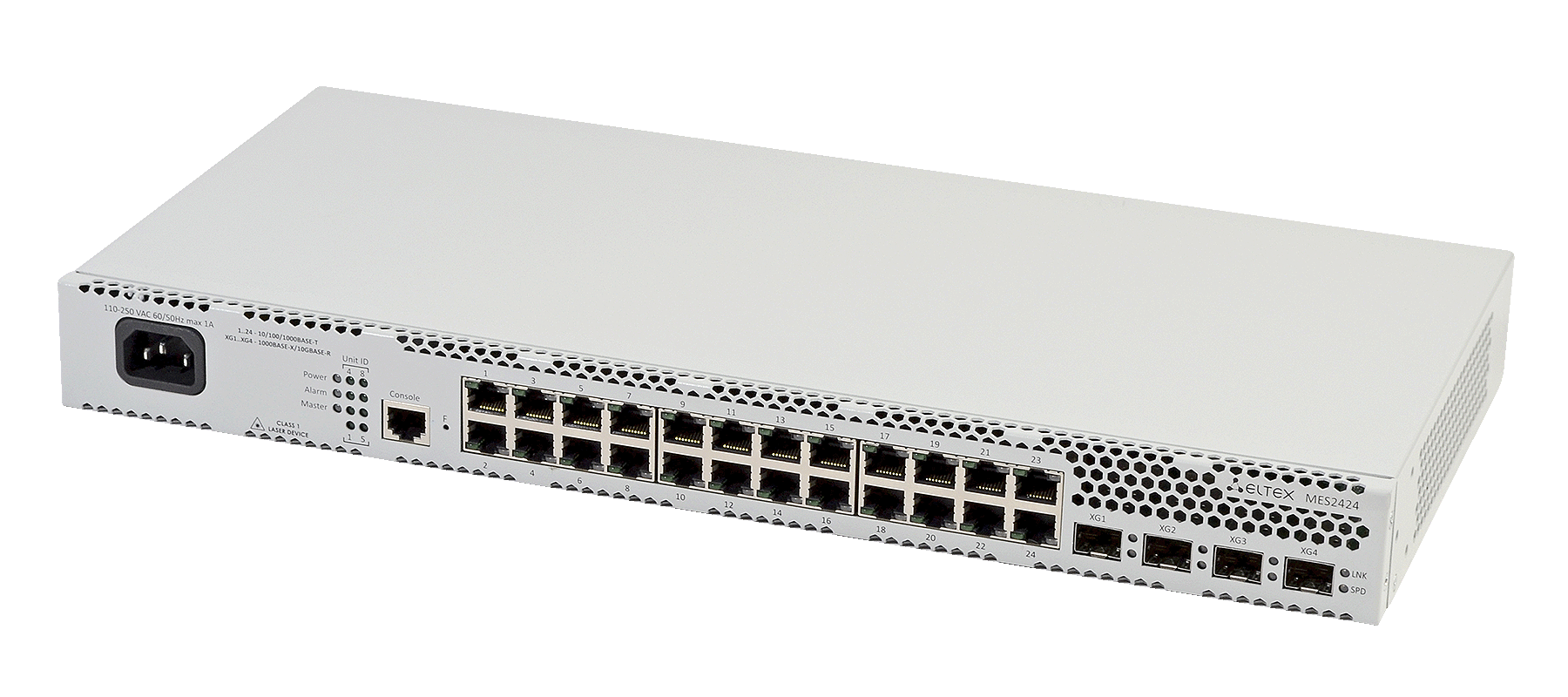

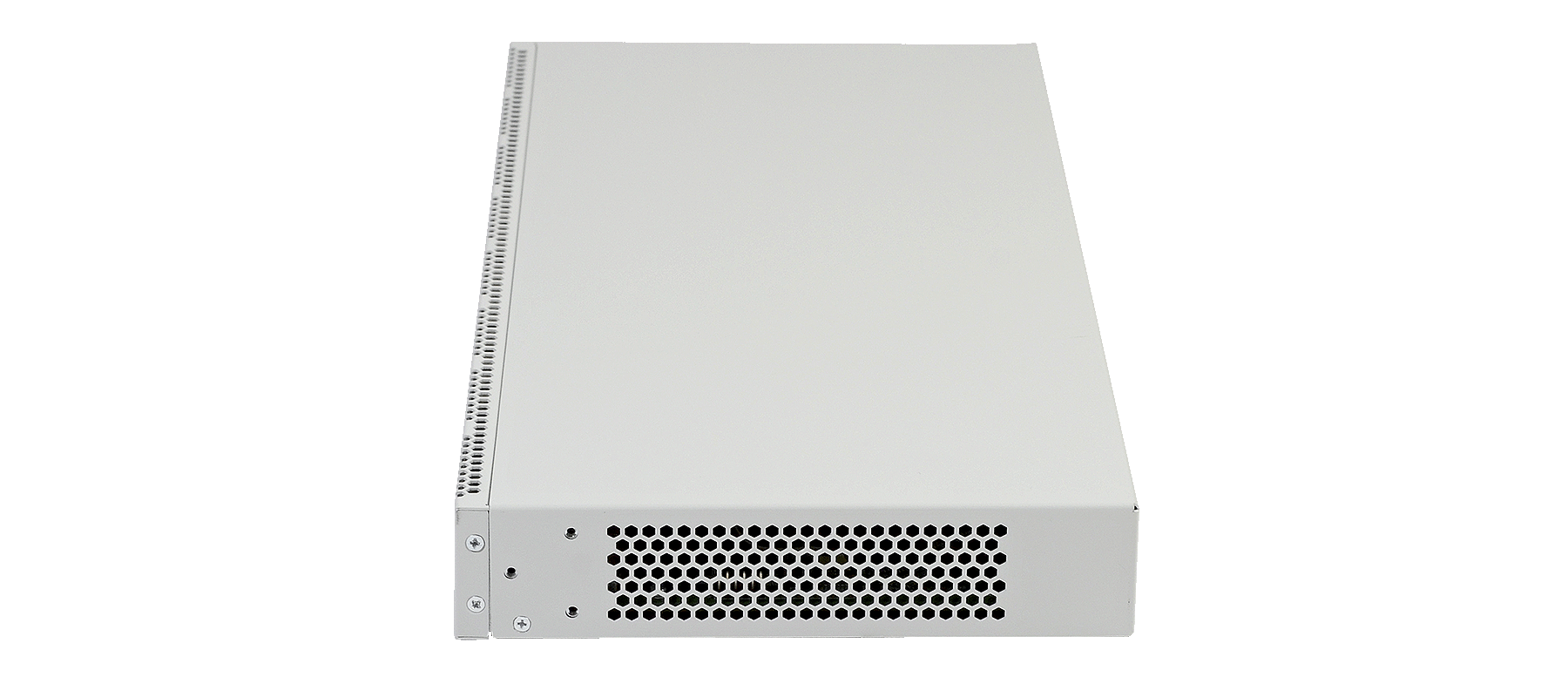

Ethernet Access Switch MES2424

Mass production

Key features

Advanced L2 features
Support for Multicast (IGMP Snooping, MVR)

The Ethernet access switches provide end users connection to networks of large enterprises, small and mid-sized businesses and service providers via 1G/10G interfaces.

The switches support Virtual Local Area Networks (VLAN), multicast groups and advanced security functions.

Show all

Interfaces

10/100/1000BASE-T (RJ-45) - 24
1000BASE-X(SFP)/ 10GBASE-R(SFP+) - 4
Console port RS-232 (RJ-45) - 1

Performance

Bandwidth - 128 Gbps
Throughput on 64-byte packets¹ - 95.2 MPPS
Buffer memory - 1.5 MB
RAM (DDR3) - 512 MB
ROM (SPI Flash) - 64 MB
MAC table - 16384
ARP table - 1000
VLAN table - 4094
L2 Multicast groups (IGMP Snooping) - 1023
SQinQ rules number - 384 (ingress)/512 (egress)
MAC ACL rules - 509
IPv4/IPv6 ACL rules - 384/192
L3 interfaces - 8 VLANs, up to 5 of IPv4 addresses for each VLAN, up to 300 of IPv6 GUA for all VLANs in summary
Link Aggregation Groups (LAG) - 24 groups, up to 8 ports in one LAG
QoS - 8 output queues with different priorities for each port
Jumbo frame size - 12288 bytes

Interface features

Head-of-line blocking (HOL) protection
Auto MDI/MDIX
Jumbo frames
Flow Control IEEE 802.3X
Port mirroring (SPAN, RSPAN)

МAC table

Independent learning mode per VLAN
MAC Multicast Support
Configurable aging time of MAC addresses
Static MAC Entries
MAC change events monitoring per ports
MAC Flapping

VLAN features

IEEE 802.1Q
Q-in-Q
Selective Q-in-Q
GVRP
MAC-based VLAN
Protocol-based VLAN

L2 Multicast features

Multicast profiles
Static Multicast groups
IGMP Snooping v1,2,3
IGMP Snooping fast leave
IGMP Proxy reporting
IGMP authorization via RADIUS
MLD Snooping v1,2
MLD Snooping fast-leave
IGMP Querier
MVR

L2 features

STP (Spanning Tree Protocol, IEEE 802.1d)
RSTP (Rapid Spanning Tree Protocol, IEEE 802.1d)
MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
STP Root Guard
STP Loop Guard
STP BPDU Guard
BPDU Filtering
Spanning Tree Fast Link option
Loopback Detection (LBD)
Port isolation
Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
Layer 2 Protocol Tunneling (L2PT)
ERPS (G.8032v2)

L3 Multicast features

IGMP proxy (RFC 4605)
IGMP proxy fast-leave

Link Aggregation functions

Static LAG
Dynamic LAG
LAG Balancing Algorithm

Service functions

Virtual cable Test (VCT)
Optical transceiver diagnostics

IPv6 functions

IPv6 Host
Dual-stack IPv4, IPv6

Security functions

DHCP Snooping
DHCP option 82
MAC-based authentication, Port Security, static MAC addresses
IEEE 802.1x port-based authentication
DoS attacks prevention
Traffic segmentation
DHCP clients filtering
BPDU attacks prevention
PPPoE Intermediate Agent
IP Source Guard
Dynamic ARP Inspection
DHCPv6 Snooping
IPv6 Source Guard
IPv6 ND Inspection
IPv6 RA Guard

ACL (Access Control List)

L2-L3-L4 ACL (Access Control List)
IPv6 ACL
ACL based on:
- Switch port
- IEEE 802.1p priority
- VLAN ID
- EtherType
- DSCP
- IP protocol type
- TCP/UDP port number
- User Defined Bytes

Quality of service (QoS) and rate limiting

Port rate limiting (shaping)
Rate limiting according to srTCM and trTCM policing algorithms
IEEE 802.1p Class of Service (CoS)
Queue scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
IEEE 802.1p priority tagging for VLAN management
ACL-based traffic classification
ACL-based CoS/DSCP marking
DSCP to CoS remarking
CoS to DSCP remarking
ACL-based VLAN assignment

OAM

IEEE 802.3ah, Ethernet OAM
Dying Gasp
IEEE 802.3ah Unidirectional Link Detection (UDLD)

Main management functions

Download and upload of configuration file via TFTP/SFTP
Automated backup of configuration file via TFTP/SFTP
Simple Network Management Protocol (SNMP)
Command Line Interface (CLI)
Web interface
Syslog
SNTP (Simple Network Time Protocol)
Traceroute
LLDP (IEEE 802.1ab) + LLDP MED
Two 802.1Q headers traffic control
Commands Authorization using TACACS+ server
IPv4/IPv6 ACL support for device control
Switch access management — privilege levels for users
Management interface blocking
Local authentication
IP addresses filtering for SNMP
RADIUS and TACACS+ (Terminal Access Controller Access Control System) clients
Telnet client, SSH client
Telnet server, SSH server
Macro commands
Input commands logging via TACACS+ protocol
DHCP auto configuration
DHCP Relay (IРv4 support)
DHCP Relay Option 82
DHCP server
PPPoE Circuit-ID tag adding
Flash File System
Debug commands
CPU traffic limiting
Password encryption
Ping (IPv4/IPv6 support)
IPv4/IPv6 static routing
Support for several versions of configuration file

Monitoring functions

Interface statistics
CPU utilization monitoring per task and per queue
RAM usage monitoring
Temperature monitoring
TCAM monitoring

MIB/IETF standards

RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1493, 4188 Bridge MIB
RFC 1157, 2571-2576 SNMP MIB
RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
RFC 2465 IPv6 MIB
RFC 2737 Entity MIB
RFC 4293 IPv6 SNMP Mgmt Interface MIB
Private MIB
RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
RFC 2668 802.3 MAU MIB
RFC 2674, 4363 802.1p MIB
RFC 2233, 2863 IF MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 3289 MIB for Diffserv
RFC 2620 RADIUS Accounting Client MIB
RFC 768 UDP
RFC 791 IP
RFC 792 ICMPv4
RFC 2463, 4443 ICMPv6
RFC 793 TCP
RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6 Headers
RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
RFC 2571, RFC 2572, RFC 2573, RFC 2574 SNMP
RFC 826 ARP
RFC 854 Telnet

Physical specifications and environmental parameters

Power supply:
- 110–240 V AC, 50-60 Hz
- 18–72 V DC
Input current:
- AC: 0.3–0.2 A
- DC: 1.5–0.4 A
Maximum power consumption:
- AC: 25 W
- DC: 26 W
Heat dissipation:
- AC: 25 W
- DC: 26 W
Hardware support for Dying Gasp for MES2424 AC
Operating temperature² - from -20 to +50 °С
Storage temperature - from -40 to +70 °С
Operating humidity - no more than 80%
Form factor - 19", 1U
Passive cooling
Dimensions (WxHxD), mm - 430x44х203
Weight
- AC: 2.44 kg
- DC: 2.42 kg

¹Values are for one-way transmission
²MES2424 ACWhen using commercial SFP+ transceivers operating temperature must not exceed +45 °С

Show all

1 fiber	Part Number
SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM	FH-SB3512CDS3 / FH-SB5312CDS3
SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM	FH-SB3512CDL3 / FH-SB5312CDL3
SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM	FH-SB3512CDS20 / FH-SB5312CDS20
SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM	FH-SB3512CDL20 / FH-SB5312CDL20
SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM, INDUSTRIAL	FH-SB3512IDS20 / FH-SB5312IDS20
SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM	FH-SB3512CDL40 / FH-SB5312CDL40
SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM	FH-SB3512CDS40 / FH-SB5312CDS40
SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM	FH-SB4512CDL80 / FH-SB5412CDL80
SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM	FH-SB4512CDS80 / FH-SB5412CDS80
SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM	FH-SB4512CDL120 / FH-SB5412CDL120
SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM	FH-SB4512CDS120 / FH-SB5412CDS120
SFP 1.25 GE module 160 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM	FH-SB4512CDL160 / FH-SB5412CDL160
2 fibers
SFP 1.25 GE module 550 m, MM, 2 fibers, 850 nm, LC, DDM	FH-S8512CDL05
SFP 1.25 GE module 2 km, ММ, 2 fibers, 1310 nm, LC, DDM	FH-S3112CDL2
SFP 1.25 GE module 20 km, SМ, 2 fibers, 1310 nm, LC, DDM	FH-S3112CDL20
SFP 1.25 GE module 40 km, SМ, 2 fibers, 1310 nm, LC, DDM	FH-S3112CDL40
SFP 1.25 GE module 80 km, SМ, 2 fibers, 1550 nm, LC, DDM	FH-S5512CDL80
SFP 1.25 GE module 120 km, SМ, 2 fibers, 1550 nm, LC, DDM	FH-S5512CDL120
SFP 1.25 GE module 160 km, SМ, 2 fibers, 1550 nm, LC, DDM	FH-S5512CDL160
SFP+
1 fiber
SFP+ 10GE module 3 km, SM, 1 fiber, TX/RX 1290/1310 LC set, DDM	FH-SPB311TCDL3 / FH-SPB191TCDL3
SFP+ 10GE module 20 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM	FH-SPB231TCDL20 / FH-SPB321TCDL20
SFP+ 10GE module 40 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM	FH-SPB231TCDL40 / FH-SPB321TCDL40
SFP+ 10GE module 60 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM	FH-SPB231TCDL60 / FH-SPB321TCDL60
SFP+ 10GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM	FH-SPB451TCDL80 / FH-SPB541TCDL80
SFP+ 10GE module 100 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM	FH-SPB451TCDL100 / FH-SPB541TCDL100
2 fibers
SFP+ 10GE module, 0.3 km, MM, 2 fibers, 850 nm, LC, DDM	FH-SP851TCDL03
SFP+ 10GE module, 20 km, SM, 2 fibers, 1310 nm, LC, DDM	FH-SP311TCDL20
SFP+ 10GE module, 40 km, SM, 2 fibers, 1550 nm, LC, DDM	FH-SP551TCDL40
SFP+ 10GE module, 80 km, SM, 2 fibers, 1550 nm, LC, DDM	FH-SP551TCDL80
SFP+ 10GE module, 100 km, SM, 2 fibers, 1550 nm, LC, DDM	FH-SP551TCDL100
SFP/SFP+ transceivers with RJ-45 interface
SFP transceiver of 10/100/1000 BASE-T	FH-ST2
SFP+ transceiver of 10GBASE-Т	FH-10SFP-T
SFP+ Direct Attach Cable
SFP+ Direct attach cable, 10G, 1m	FH-DP1T30SS01
SFP+ Direct attach cable, 10G, 2m	FH-DP1T30SS02
SFP+ Direct attach cable, 10G, 3m	FH-DP1T30SS03
SFP+ Direct attach cable, 10G, 5m	FH-DP1T30SS05

Descriptions

Data Sheet

Software

MES14xx, MES24xx, MES3708P_guide_for_firmware_version_upgrade (publication date: 17.06.2022)

MIB files (publication date: 06.03.2024)

Firmware version 10.3.5 R3 (publication date: 06.03.2024)

Documentations

MES14xx_MES24xx_MES3708P_user_manual_10.2.10

MES14xx, MES24xx, MES3708P_configuration_and_monitoring_via_SNMP_10.2.7.2
