Ethernet Access Switch MES2408C

Mass production
Key features
  • Advanced L2 features
  • Support for Multicast (IGMP Snooping, MVR)
  • Advanced security functions (L2-L4 ACL, IP SourceGuard, Dynamic ARP Inspection, etc.)
MES2408x series switches provide connection of end users to networks of large enterprises, small and mid-sized businesses and service providers via Gigabit Ethernet interfaces.
The switches support Virtual Local Area Networks (VLAN), multicast groups and advanced security functions.

Specifications
Modules and additional devices
Documents and files
Warranty
Interfaces
  • 8 ports 10/100/1000BASE-T
  • 2 ports Combo 10/100/1000BASE-T/100BASE-FX/1000BASE-X
  • Console port RS-232/RJ-45
Performance
  • Bandwidth 20 Gbps
  • Throughput for 64-byte packets 14.88 MPPS
  • Buffer memory 512 KB
  • RAM (DDR3) 256 MB
  • ROM (SPI Flash) 32 MB
  • MAC table 8192
  • ARP table 1000
  • VLAN table 4094
  • L2 Multicast groups (IGMP Snooping) 509
  • SQinQ rules number 128 (ingress)/256 (egress)
  • MAC ACL rules 381
  • IРv4/IPv6 ACL rules 219/128
  • L3 interfaces - 8 VLAN, up to 5 of IРv4 addresses for each VLANs, up to 300 of IРv6 GUA for all VLANs in summary
  • Link Aggregation Groups (LAG) - 8 groups, up to 8 ports in one LAG
  • Quality of Service (QoS) - 8 egress queues per port
  • Jumbo frame size -  the maximum packet size is 10 000 bytes
Interface features
  • Head-of-line blocking (HOL) protection
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow Control IEEE 802.3X
  • Port mirroring (SPAN, RSPAN)
MAC table
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses
  • Static MAC Entries
  • MAC change events monitoring per ports
  • MAC Flapping
VLAN features
  • IEEE 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
  • MAC-based VLAN
  • Protocol-based VLAN
L2 Multicast features
  • Multicast profiles
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • IGMP Snooping fast-leave
  • IGMP Proxy reporting
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • MLD Snooping fast-leave
  • IGMP Querier
  • MVR
L2 features
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spanning Tree Protocol, IEEE 802.1d)
  • MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
  • STP Root Guard
  • STP Loop Guard
  • STP BPDU Guard
  • BPDU Filtering
  • Spanning Tree Fast Link option
  • Layer 2 Protocol Tunneling (L2PT)
  • Loopback Detection (LBD)
  • Port isolation
  • Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
Link Aggregation functions
  • Static LAG
  • Dynamic LAG (LACP)
  • LAG Balancing Algorithm
Service functions
  • Virtual cable Test (VCT)
  • Optical transceiver diagnostics
IPv6
  • IPv6 Host
  • Dual-stack
Security functions
  • DHCP Snooping
  • DHCP Option 82
  • IP Source Guard
  • Dynamic ARP Inspection (Protection)
  • MAC-based authentication, Port Security, static MAC entries
  • IEEE 802.1x based interface authentication
  • DoS attacks prevention
  • Traffic segmentation
  • DHCP clients filtering
  • BPDU attacks prevention
  • PPPoE Intermediate agent
  • DHCPv6 Snooping
  • IPv6 Source Guard
  • IPv6 ND Inspection
  • IPv6 RA Guard
Quality of service (QoS) and rate limiting
  • Port rate limiting (shaping, policing)
  • IEEE 802.1p Class of Service (CoS)
  • Queue scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
  • IEEE 802.1p priority tagging for management VLAN
  • ACL-based traffic classification
  • ACL-based CoS/DSCP mark assignment
  • DSCP to CoS remarking
  • CoS to DSCP remarking
  • ACL-based VLAN assignment
Access control lists (ACL)
  • L2-L3-L4 ACL (Access Control List)
  • IPv6 ACL
  • ACL based on:
    • Switch port
    • IEEE 802.1p priority
    • VLAN ID
    • EtherType
    • DSCP
    • IP protocol type
    • TCP/UDP port number
    • User Defined Bytes
ОАМ
  • IEEE 802.3ah, Ethernet OAM
  • Dying Gasp
  • IEEE 802.3ah Unidirectional Link Detection (UDLD)
Main management functions
  • Download and upload of configuration file via TFTP/SFTP
  • Automated backup of configuration file via TFTP/SFTP
  • Simple Network Management Protocol (SNMP)
  • Command Line Interface (CLI)
  • Web interface
  • Syslog
  • Simple Network Time Protocol (SNTP)
  • Traceroute
  • LLDP (IEEE 802.1ab) + LLDP MED
  • Two 802.1Q headers traffic control
  • Commands Authorization using TACACS+ server
  • IPv4/IPv6 ACL support for device control
  • Switch access management — privilege levels for users
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS and TACACS+ clients (Terminal Access Controller Access Control System)
  • Telnet client, SSH client
  • Telnet server, SSH server
  • Macro commands
  • Input commands logging via TACACS+
  • DHCP auto configuration
  • DHCP Relay (support for IPv4)
  • DHCP Relay Option 82
  • PPPoE Circuit-ID tag adding
  • Flash File System
  • Debug commands
  • CPU traffic limiting
  • Password encryption
  • Ping (support for IPv4/IPv6)
  • IPv4/IPv6 static routes support
  • Support for several versions of configuration file
Monitoring functions
  • Interface statistics
  • CPU utilization monitoring per task and per queue
  • RAM utilization monitoring
  • Temperature monitoring
  • TCAM monitoring
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 2465 IPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 3289 MIB for Diffserv
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 793 TCP
  • RFC 2474, 3260 Definition of the DS field in the IPv4 and IРv6 Headers
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC 2572, RFC 2573, RFC 2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet
  • IEC 61850
Physical specifications and ambient parameters
  • Power supply: 110–250 V AC, 50-60 Hz
  • Maximum power consumption 10 W
  • Heat dissipation 10 W
  • Input current: 0.15–0.1 A
  • Hardware support for Dying Gasp
  • Operating temperature: from -20 to +50 °С
  • Storage temperature: from -40 to +70 °С
  • Operating humidity: no more than 80%
  • Cooling: passive
  • Form factor: 19", 1U
  • Dimensions (WxHxD), mm: 310x44x177
  • Waight 1,77 kg

SFP modules (doesn't included in basic package)

    1 fiber

Part Number

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS3 / FH-SB5312CDS3

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL3 / FH-SB5312CDL3

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS20 / FH-SB5312CDS20

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL20 / FH-SB5312CDL20

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM, INDUSTRIAL

FH-SB3512IDS20 / FH-SB5312IDS20

 SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL40 / FH-SB5312CDL40

 SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS40 / FH-SB5312CDS40

 SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL80 / FH-SB5412CDL80

 SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS80 / FH-SB5412CDS80

 SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL120 / FH-SB5412CDL120

 SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS120 / FH-SB5412CDS120

 SFP 1.25 GE module 160 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL160 / FH-SB5412CDL160

 2 fibers

 SFP 1.25 GE module 550 m, MM, 2 fibers, 850 nm,  LC,  DDM

FH-S8512CDL05

 SFP 1.25 GE module 2 km, ММ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL2

 SFP 1.25 GE module 20 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL20

 SFP 1.25 GE module 40 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL40

 SFP 1.25 GE module 80 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL80

 SFP 1.25 GE module 120 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL120

 SFP 1.25 GE module 160 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL160

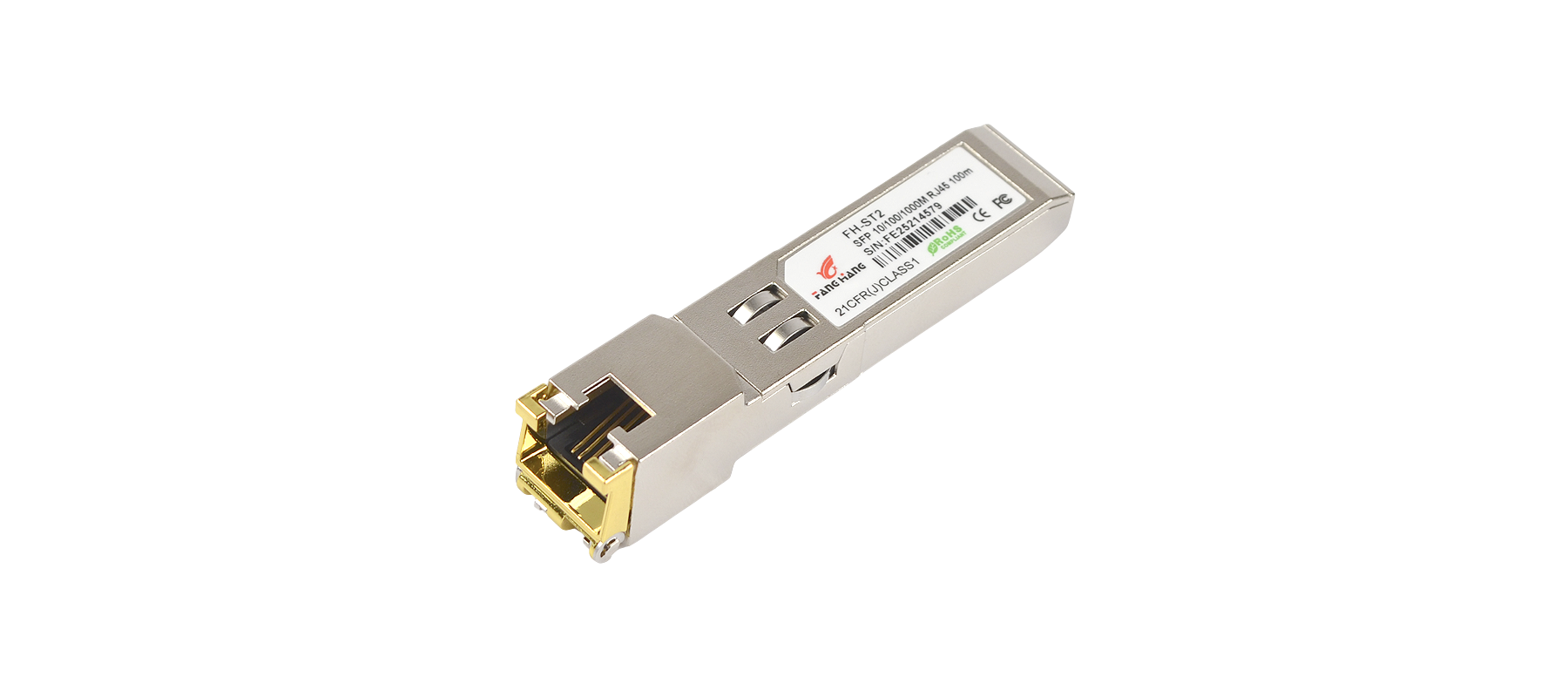

 SFP transceivers with RJ-45 interface

 SFP transceiver of 10/100/1000 BASE-T

FH-ST2



Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
