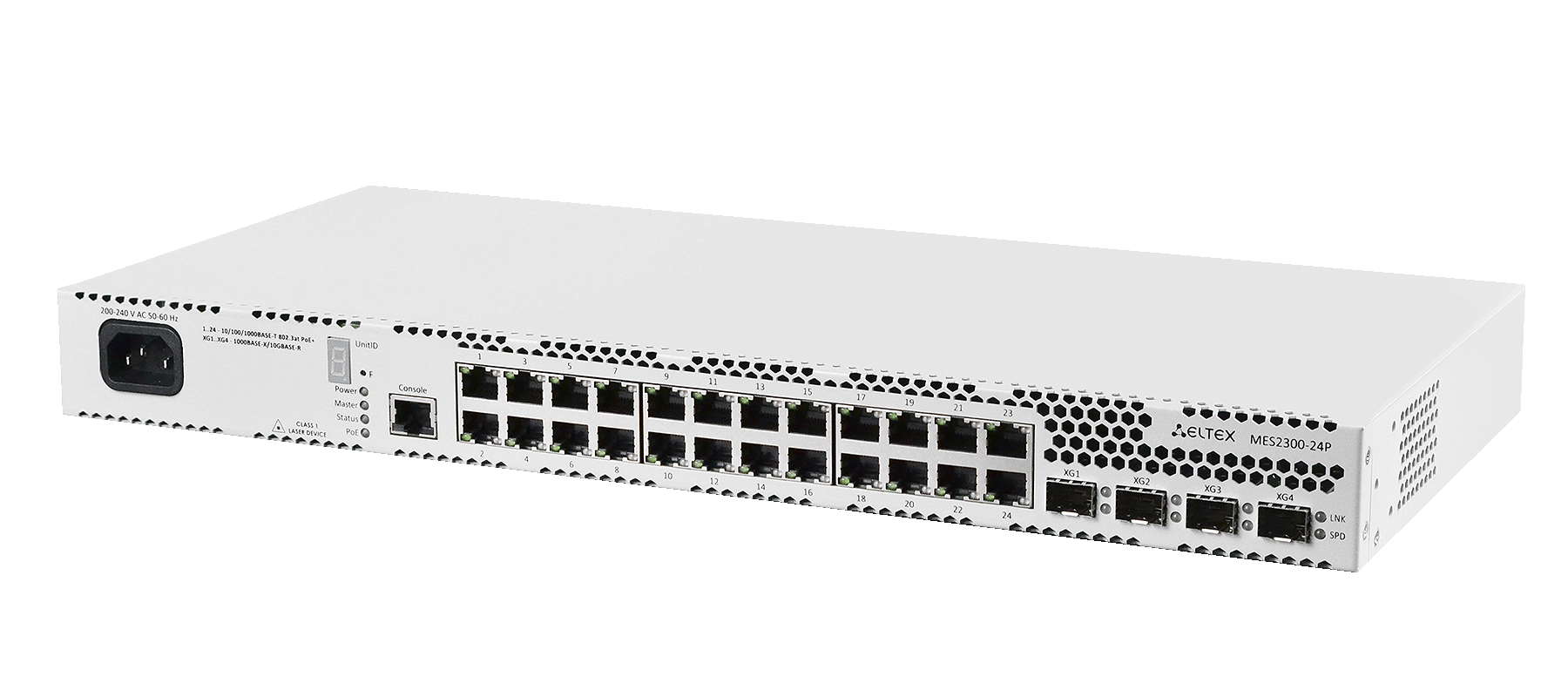

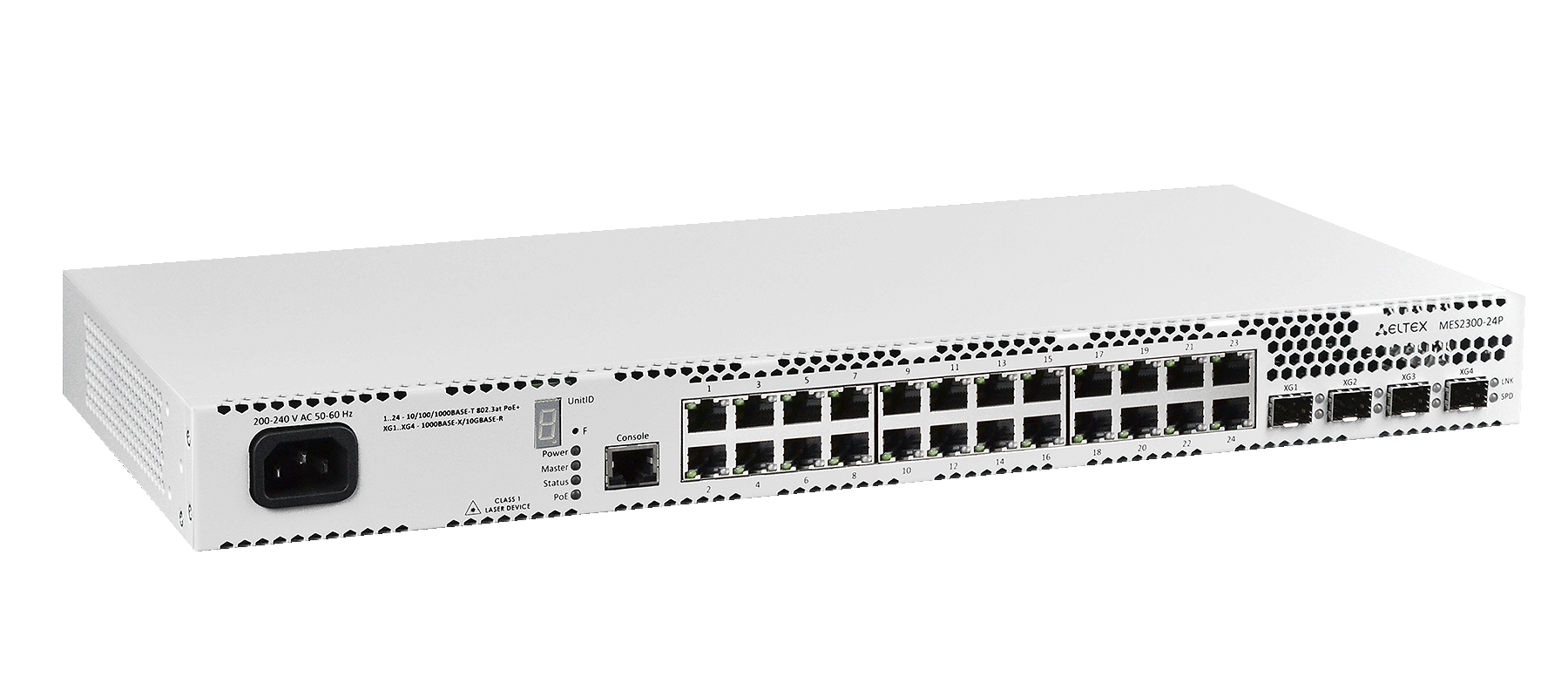

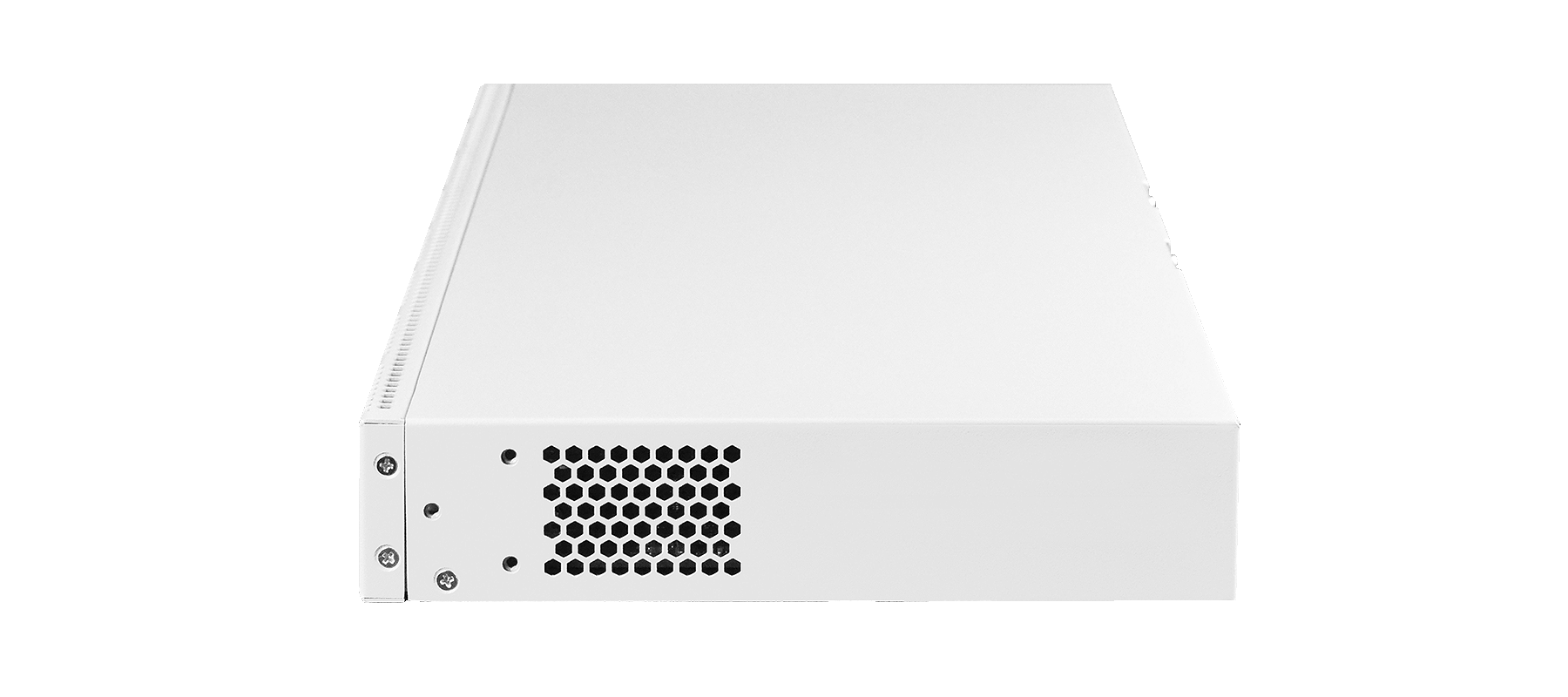

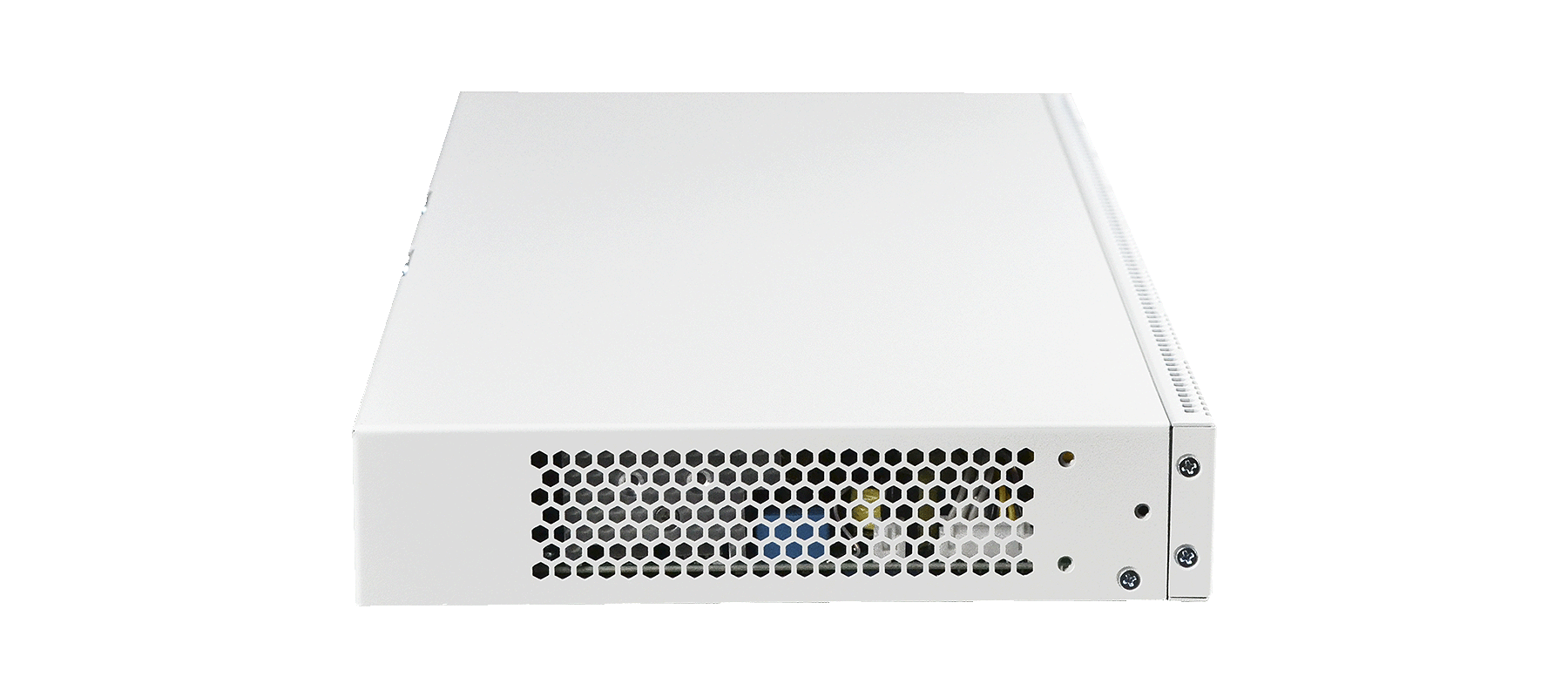

Ethernet access switch MES2300-24P

Mass production

Bandwidth up to 176 Gbps
Non-blocking architecture
L3 switches
4 ports of 10G
Stacking up to 8 devices
Support for Multicast (IGMP Snooping, MVR)
Advanced security functions (L2-L4 ACL, IP Source Guard, Dynamic ARP Inspection and etc.)

MES2300-24P, MES2300D-24P and MES2300-48P switches with PoE support provide end users connection to networks of large enter-prises,small and middle-sized business and service providers via 1G/10G. The switches functionality includes physical stacking,VLAN support,multicast groups,and advanced security features.

Show all

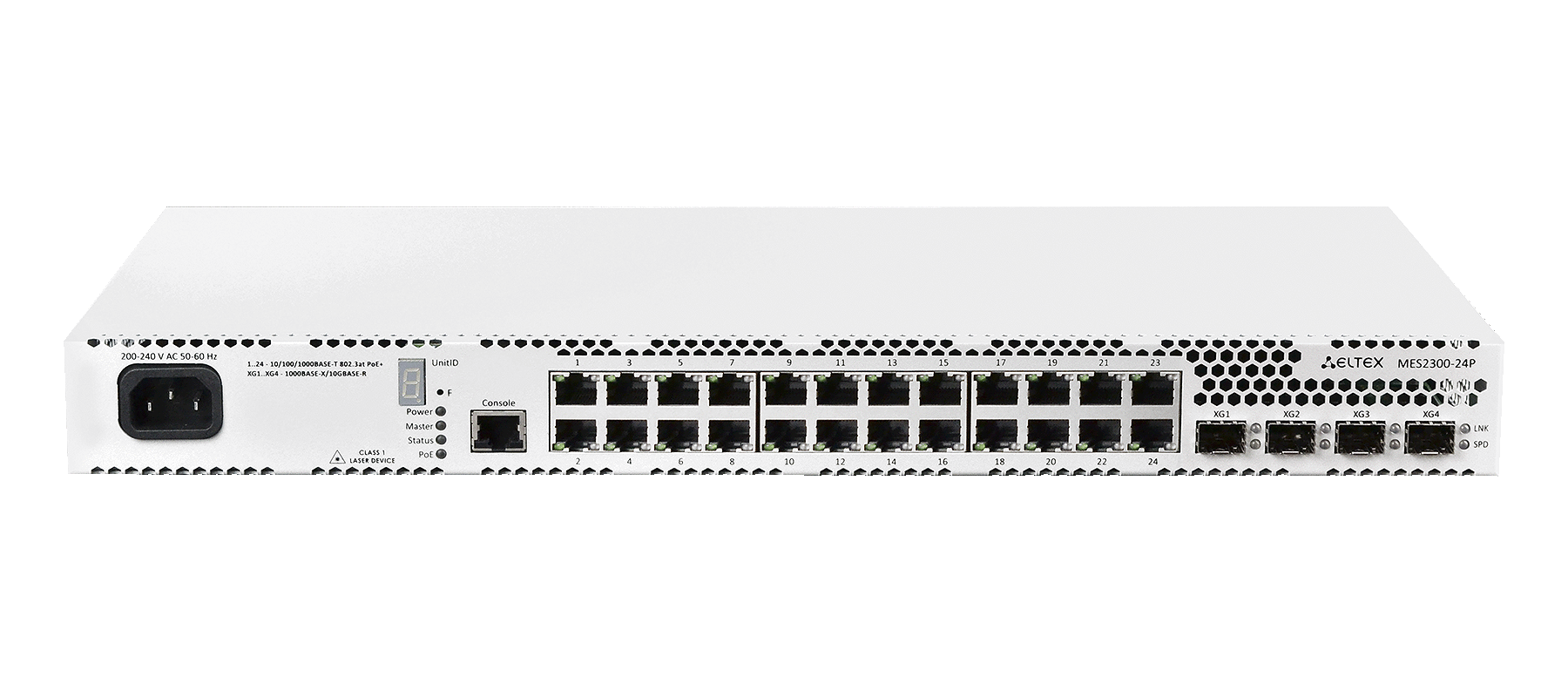

Interfaces

10/100/1000BASE-T (RJ-45) PoE/PoE+ - 24
10GBASE-R (SFP+)/1000BASE-X (SFP) - 4
Console port RS-232 (RJ-45) - 1

Performance

Bandwidth - 128 Gbps
Throughoutput for 64 bytes¹ - 94.49 MPPS
Buffer memory - 1.5 MB
RAM (DDR4) - 2 GB
ROM (RAW NAND) - 512 MB
MAC table - 16384
ARP table² - 2039
VLAN table - 4094
L2 Multicast groups - 2048
SQinQ rules - 988 (ingress), 988 (egress)
MAC ACL rules - 1966
IPv4/IPv6 ACL rules - 1975/988
L3 IPv4 Unicast routes³ - 4066
L3 IPv6 Unicast routes³ - 1015
L3 IPv4 Multicast (IGMP Proxy, PIM) routes³ - 2029
L3 IPv6 Multicast (IGMP Proxy, PIM) routes³ - 505
VRRP routers - 255
Maximum size of ECMP groups - 8
VRF number - 16 (including default VRF)
L3 interfaces - 2032
Link Aggregation Groups (LAG) - 32, up to 8 ports in one LAG
Quality of Service (QoS) - 8 egress queues per port
Jumbo frames - 10240 bytes
Stacking - 8 devices

Interface features

Head-of-line blocking (HOL) protection
Back Pressure
Auto MDI/MDIX
Jumbo Frames
Flow Control (IEEE 802.3X)
Port Mirroring (SPAN, RSPAN)
Stacking

МAC address functions

Independent learning mode per VLAN
MAC Multicast Support
Configurable aging time of MAC addresses
Static MAC Entries
MAC Flapping

VLAN support

Voice VLAN
802.1Q
Q-in-Q
Selective Q-in-Q
GVRP

L2 Multicast functions

Multicast profiles
Static Multicast groups
IGMP Snooping v1,2,3
Host/port-based IGMP Snooping Fast Leave
Pim-Snooping
IGMP proxy-report
IGMP authorization through RADIUS
MLD Snooping v1,2
IGMP Querier
MVR

L2 functions

STP (Spanning Tree Protocol, IEEE 802.1d)
RSTP (Rapid Spaning Tree Protocol, IEEE 802.1w)
MSTP (Multiple Spanning Tree Protocol, IEEE802.1s)
PVSTP+
RPVSTP+
Spanning Tree Fast Link option
STP Root Guard
BPDU Filtering
STP BPDU Guard
Loopback Detection
ERPS (G.8032v2)
Flex-link
Private VLAN
Layer 2 Protocol Tunneling (L2PT)

L3 functions

IP routes
RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP⁴ (IPv4 Unicast, IPv4 Multicast)
BFD protocol (for BGP)
Address Resolution Protocol (ARP)
Proxy ARP
VRRP
Multicast dynamic routing protocols PIM SM, PIM DM, IGMP Proxy
ECMP Load Balancing
IP Unnumbered
VRF lite

Link Aggregation functions

LAG group creation
LACP
LAG Balancing Algorithm
Multi-Switch Link Aggregation Group (MLAG)

IPv6 support

IPv6 Host
Dual-stack IPv4, IPv6

Service functions

Virtual Cable Testing (VCT)
Optical transceiver diagnostics
Green Ethernet

Security functions

Protection against unauthorized DHCP servers (DHCP Snooping)
DHCP option 82
IP Source Guard
Dynamic ARP Inspection
First Hop Security
sFlow
MAC-based authentication, Port Security, Static MAC entries
Port-based authentication IEEE 802.1x
Guest VLAN
DoS attack prevention
Traffic segmentation
DHCP clients filtering
BPDU attack prevetion
NetBIOS/NetBEUI filtering

Quality of Service (QoS)

QoS statistics
Shaping, policing
IEEE 802.1p Class of Service
Storm Control for different traffics (broadcast, multicast, unknown unicast)
Bandwidth management
Strict priority/Weighted Round Robin (WRR) scheduling algorithms
Three marking colors
ACL-based CoS/DSCP mark assignment
ACL-based VLAN mark assignment
Setting the IEEE 802.1p priority for management VLAN
DSCP to CoS, CoS to DSCP remarking
802.1p DSCP metric assignment for IGMP

ОАМ

802.3ah Ethernet Link OAM
802.3ah Unidirectional Link Detection

Access Control Lists (ACL)

L2-L3-L4 ACL (Access Control List)
Time-Based ACL
IPv6 ACL
ACL based on:
- Switch port
- 802.1p priority
- VLAN ID
- EtherType
- DSCP
- Protocol type
- TCP/UDP port number
- User Defined Bytes

Management functions

Upload/download of configuration file and firmware via TFTP
SNMP (Simple Network Management Protocol)
CLI (Command Line Interface)
Web interface
Syslog
SNTP (Simple Network Time Protocol)
Traceroute
LLDP (802.1ab) + LLDP MED
TACACS+
Switch access control — Privilege levels for users
Management interface blocking
Local authentication
IP addresses filtering for SNMP
RADIUS, TACACS+ (Terminal Access Controller Access Control System) clients
SSH, Telnet server
SSH, Telnet client
SSL
Macrocommands support
CLI commands logging
System log
DHCP autoprovision
DHCP Relay (Option 82)
DHCP Option 12
Debugging commands
Rate limit of traffic to CPU
Password encryption
Password recovery
Ping (IPv4/IPv6)

Monitoring functions

Interface statistics
RMON/SMON
IP SLA
CPU utilization monitoring per task and traffic type
Random Access Memory (RAM)
Temperature monitoring
TCAM monitoring

MIB/IETF

RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1493, 4188 Bridge MIB
RFC 1157, 2571-2576 SNMP MIB
RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
RFC 1271, 1757, 2819 RMON MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2737 Entity MIB
RFC 4293 IPv6 SNMP Mgmt Interface MIB
Private MIB
RFC 3289 DIFFSERV MIB
RFC 2021 RMONv2 MIB
RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
RFC 2668 802.3 MAU MIB
RFC 2674, 4363 802.1p MIB
RFC 2233, 2863 IF MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 2620 RADIUS Accounting Client MIB
RFC 2925 Ping & Traceroute MIB
RFC 768 UDP
RFC 791 IP
RFC 792 ICMPv4
RFC 2463, 4443 ICMPv6
RFC 4884 Extended ICMP to support Multi-Part Messages
RFC 793 TCP
RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6
RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
RFC 826 ARP
RFC 854 Telnet
EC 61850

Physical parameters and environmental features

Power supply	200–240 V AC, 50–60 Hz
Input current	including PoE: 1.5–2.8 A excluding PoE: 0.2–0.3 A
Maximum power consumption (including PoE)	445 W
PoE budget	380 W
Heat dissipation	65 W
Dying Gasp support	no
Operating temperature	from -20 to +50 °С
Storage temperature	from -50 to +70 °С
Operating humidity	no more than 80 %

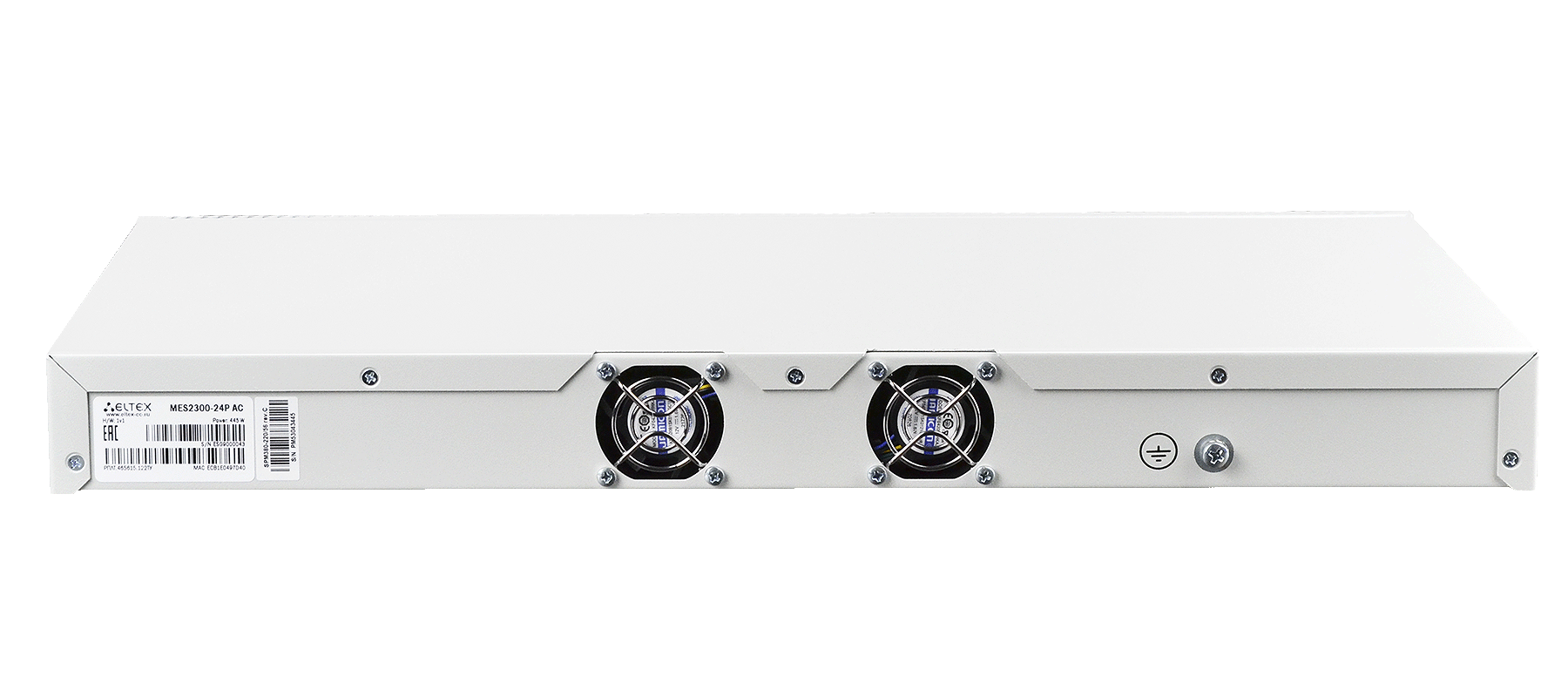

Cooling	2 fans
Form factor	19", 1U
Dimensions (W × H × D)	430 × 44 × 203 mm
Weight	3.2 kg

¹Values are given for one-way transmission.

² For each host in the ARP table, an additional entry is created in the switching table.

³ IPv4/IPv6 Unicast/Multicast routes use shared hardware resources.
⁴ BGP protocol support is provided under license.
