Data Center Switch MES5500-32

Level:: L3

Bandwidth:: 6.4 Tbps

Interfaces:: 2х10G SFP+, 32х100G QSFP28, 1xOOB

Description

MES5500-32 switches are high performance devices with 40GBASE-R and 100GBASE-R interfaces that can be used as aggregation switches in carrier networks and as Top-of-Rack or End-of-Row switches for data centers.

The devices ports support operation at rates of 10 Gbps (SFP+), 40 Gbps (QSFP+) and 100 Gbps (QSFP28). In the HG interface splitting mode, operation at speeds of 1 Gbps, 10 Gbps, 25 Gbps is supported. The splitting mode allows splitting up to 30 HG interfaces, which in total gives 120 TWE interfaces.

The non-blocking architecture guarantees lossless packet forwarding at wire speed with minimum and predictable delays for all types of traffic.

The front-to-back cooling provides effective cooldown in modern data centers.

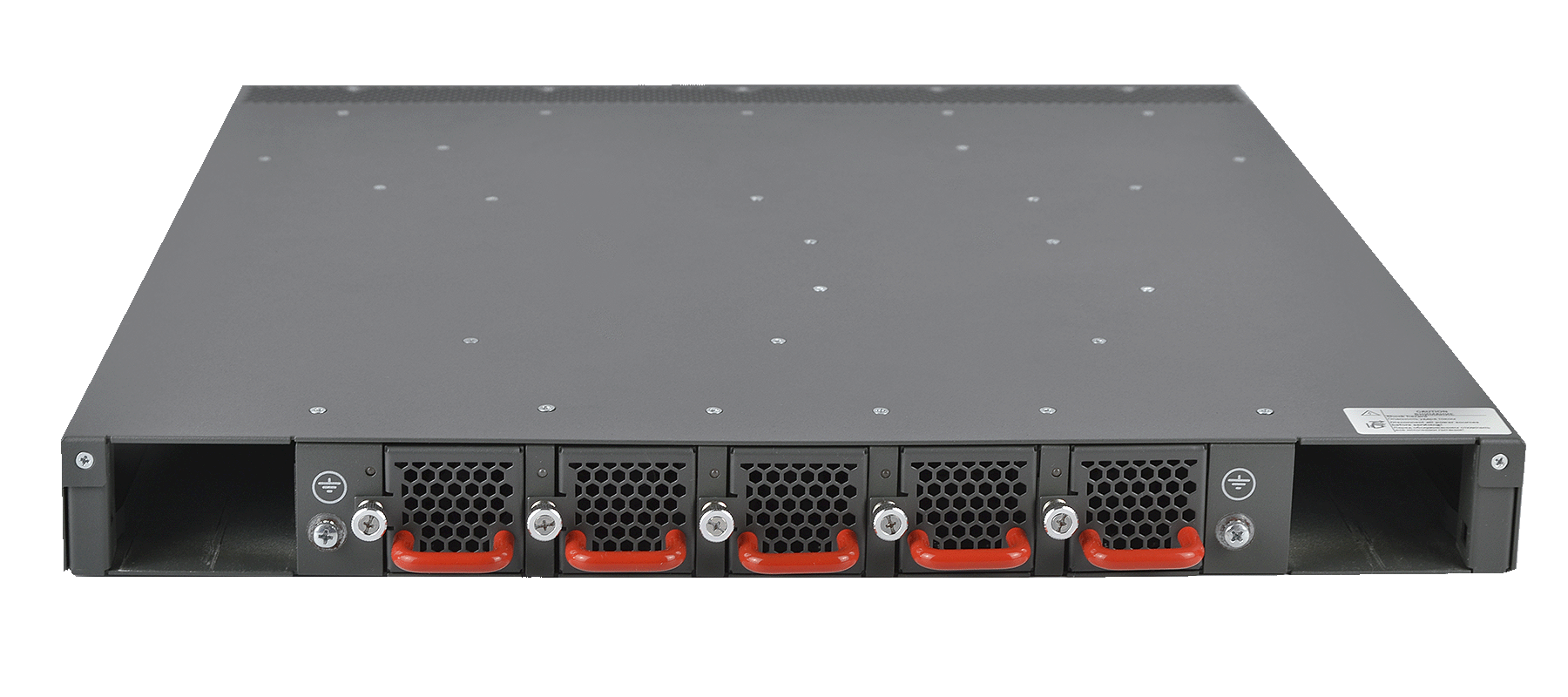

Fault tolerance of the devices is ensured by redundant power supplies (1+1) and the use of replaceable fans. The redundant and hot-swappable fans and AC/DC power supplies along with advanced hardware monitoring functions provide high reliability and uninterrupted services.

The devices support EVPN/VXLAN technology to create networks with simple, high-performance and scalable data center architecture
