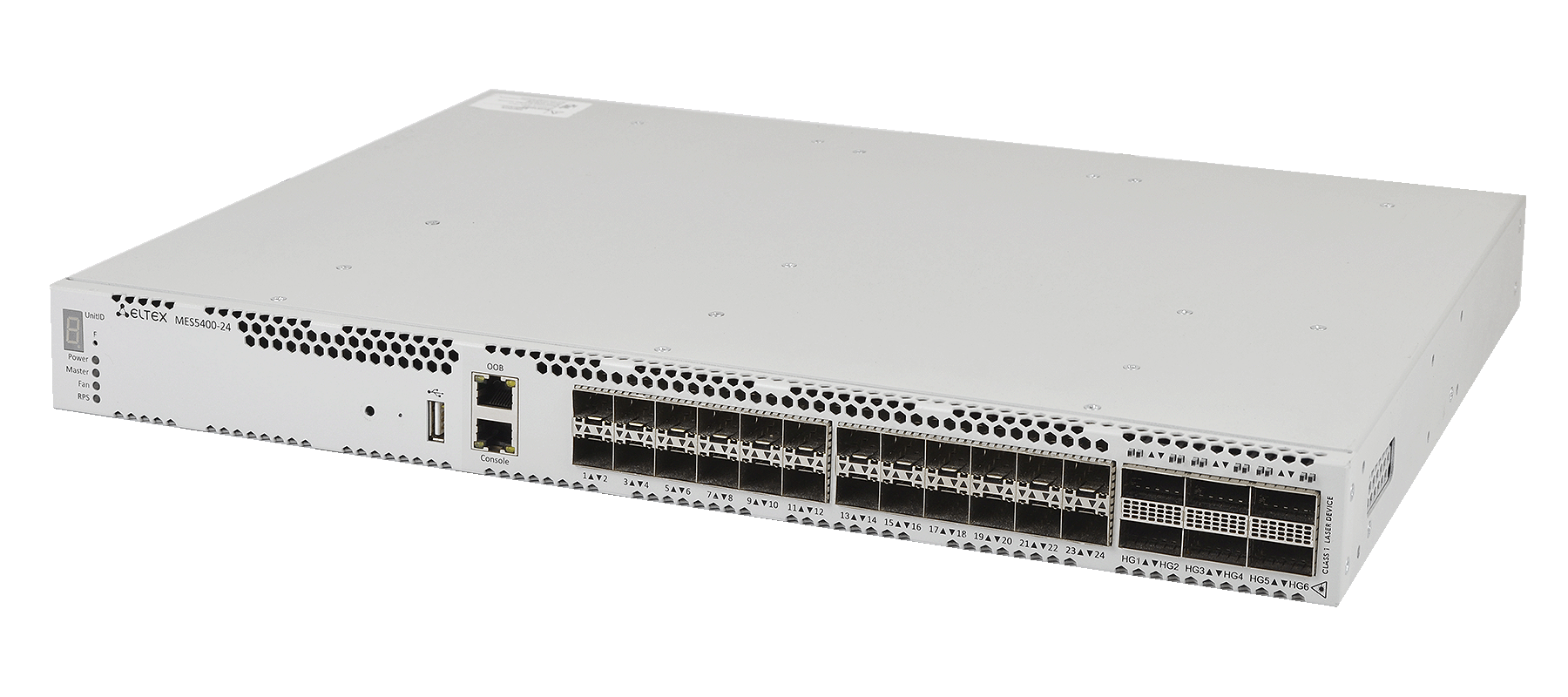

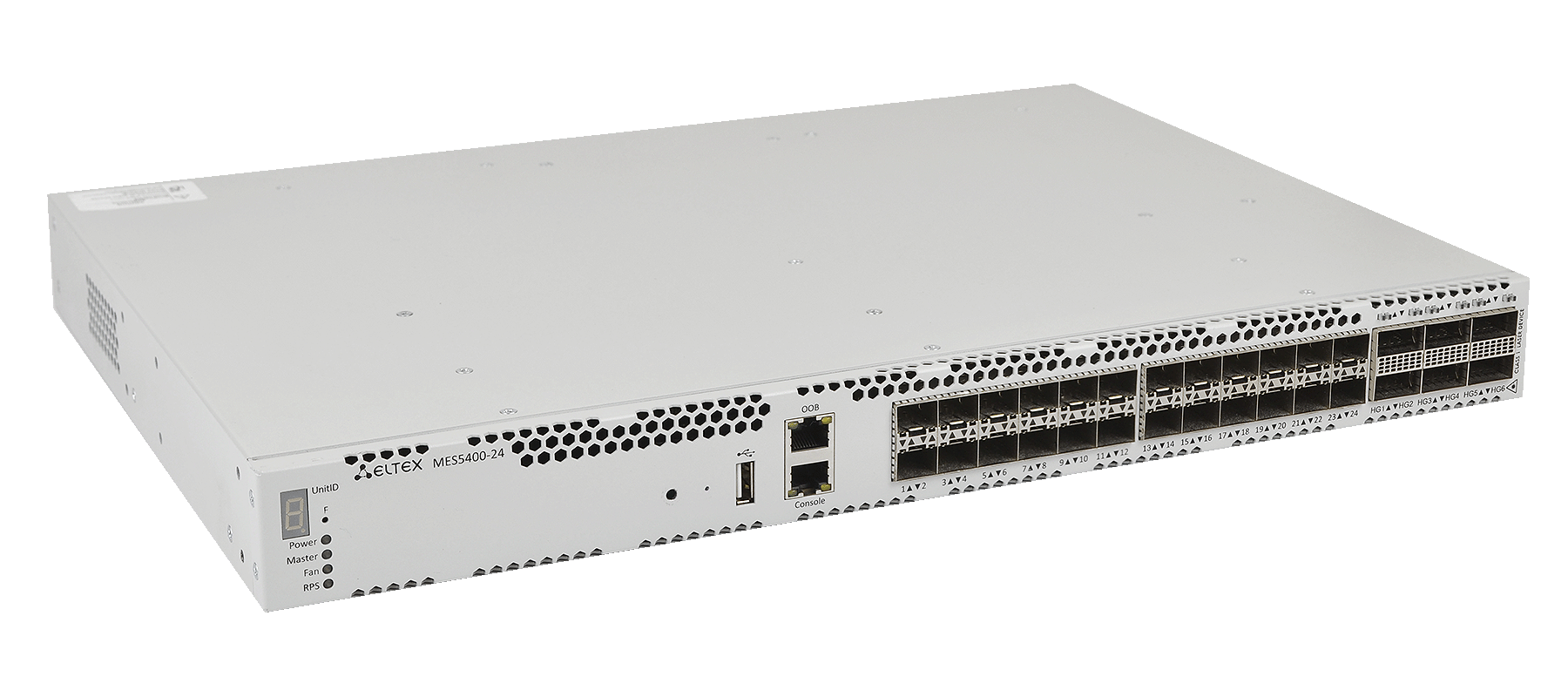

Data center switch MES5400-24

Level:
L3
Bandwidth:
1.68 Tbps
Interfaces:
24х10G SFP+, 6х100G QSFP28
Power supply:
AC/DC

Description

MES5400-24 switches are high performance devices with 40GBASE-R and 100GBASE-R interfaces that can be used as aggregation switches in carrier networks and as Top-of-Rack or End-of-Row switches for data centers.


The switch ports support speed of 1 Gbps (SFP), 10 Gbps (SFP+), 40 Gbps (QSFP+), and 100 Gbps (QSFP28). HG interface split mode supports speed of 1 Gbps, 10 Gbps, and 25 Gbps. Split mode allows to split up to 6 HG interfaces for a total of 24 TWE interfaces .

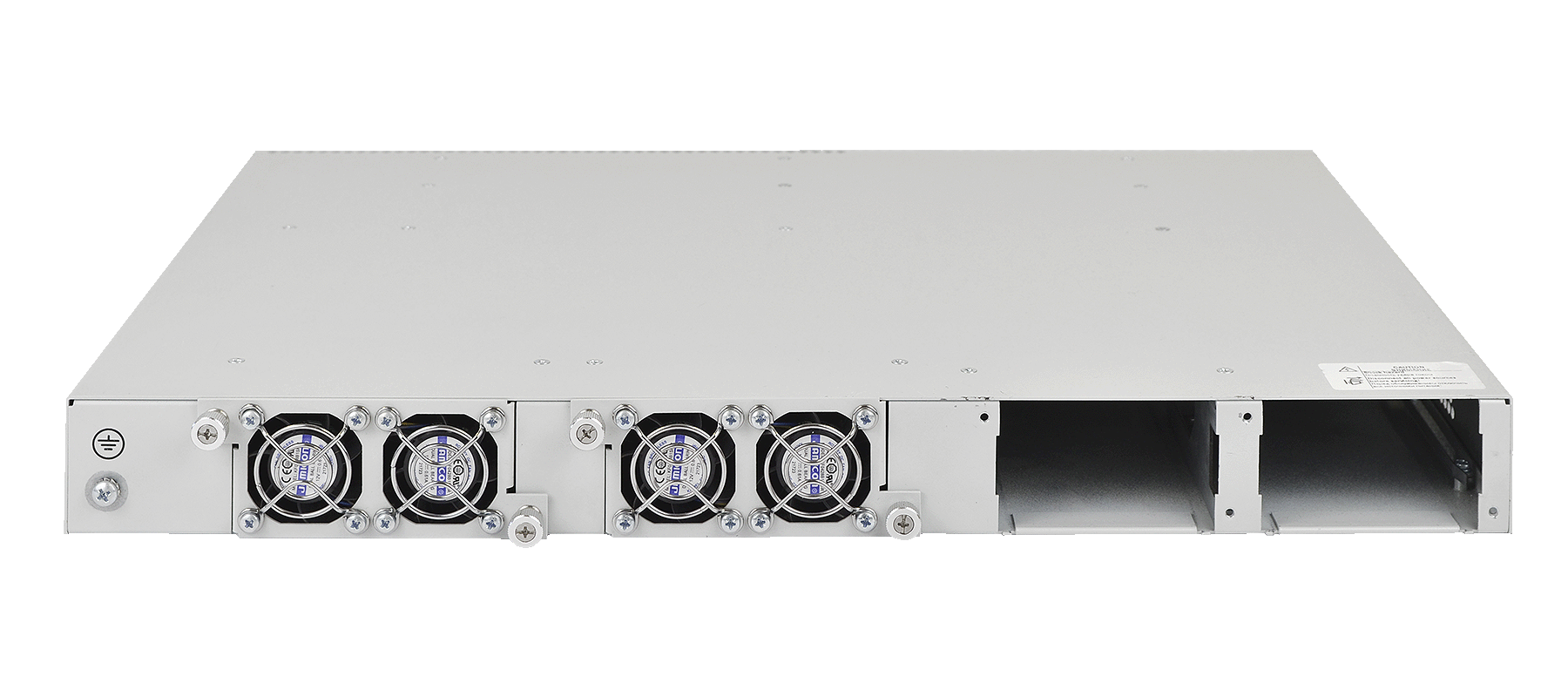

Fault tolerance of the devices is ensured by redundant power supplies (1+1) and the use of replaceable fans.


The redundant and hot-swappable fans and AC/DC power supplies along with advanced hardware monitoring functions provide high reliability and uninterrupted services.


The devices support EVPN/VXLAN technology to create networks with simple, high-performance and scalable data center architecture.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Interfaces:
24х10G SFP+, 6х100G QSFP28
MAC table:
65536
Dynamic routing:
RIP/OSPF/IS-IS/BGP
ARP:
32759
Bandwidth:
1.68 Tbps
Power supply:
AC/DC
Cooling:
front-to-back
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
ECCM
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
10/100/1000BASE-T (OOB)
1
1000BASE-X (SFP)/10GBASE-R (SFP+)
24
40GBASE-R4 (QSFP+)/100GBASE-R4 (QSFP28)
6
USB 2.0
1
Console port RS-232 (RJ-45)
1
Performance:
Bandwidth
1.68 Tbps
Buffer memory
12 MB
RAM (DDR4)
8 GB
ROM (embedded uSSD)
8 GB
MAC table
65536
VLAN table
4094
VRRP routers
127
Link Aggregation Groups (LAG)
128, up to 8 ports in one LAG
Quality of Service (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Stacking
Up to 8 devices
Physical parameters:
Power supply
100–240 V AC, 50–60 Hz
36–72 V DC
Power supply options
One AC/DC power supply
Two AC/DC hotswappable power supplies
Dying Gasp support
No
Operating temperature
From 0 to +45 °С
Storage temperature
From -50 to +70 °С
Cooling
Front-to-Back, 4 fans
Operating humidity
No more than 80 %
Dimensions
440x44x321 mm
