Aggregation Switch MES2300B-24F
In development
- Bandwidth up to 128 Gbps
- Non-blocking architecture
- Up to 4 ports of 10G
- L3 switches
- Stacking up to 8 devices
- Uninterrupted power from battery
MES2300-24F can be also used in service provi-der networks as the aggregation or transport switches.
The device ports support both 1 Gbps and 10 Gbps speeds, providing flexibility in use and the ability to gradually upgrade to higher data rates. The non-blocking architecture allows correct processing of packets under maximum loads, while maintaining minimal and predictable delays on all types of traffic.
The switch functionality provides physical stacking, support for VLANs, multicast groups, and advanced security features.
Uninterrupted Power
The MES2300B-24F switches have the ability to connect a rechargeable battery to ensure guaranteed power supply in case of the 220 V primany network failure. The switch is equipped with a power module that allows charging the battery when 220 V is available. The backup power system makes it pos-sible to monitor the state of the primary network and notify of a power type switching.
Show all
Specifications
Documents and files
Warranty
The values given in the technical documentation are approximate as the device is under development. The actual specifications will be published after final testing and the model launch into pre-production.

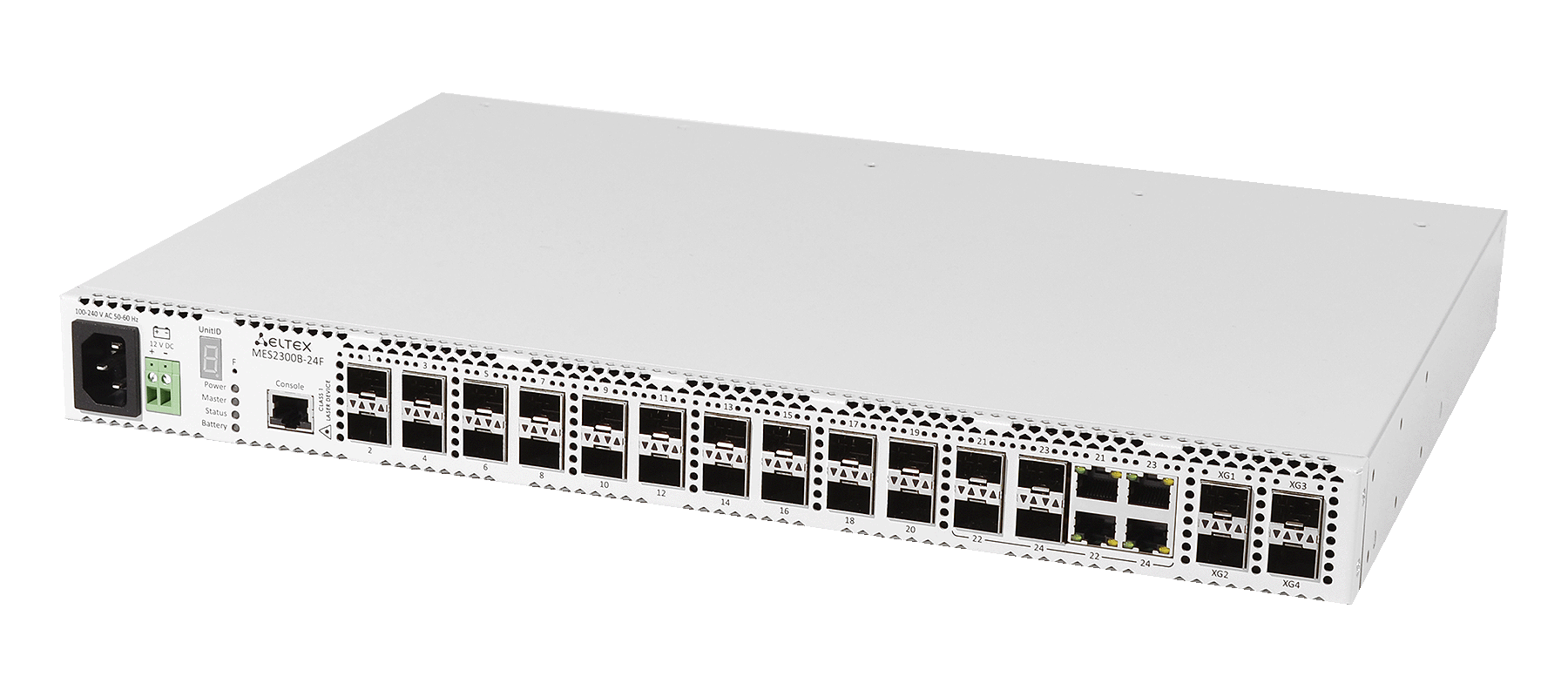

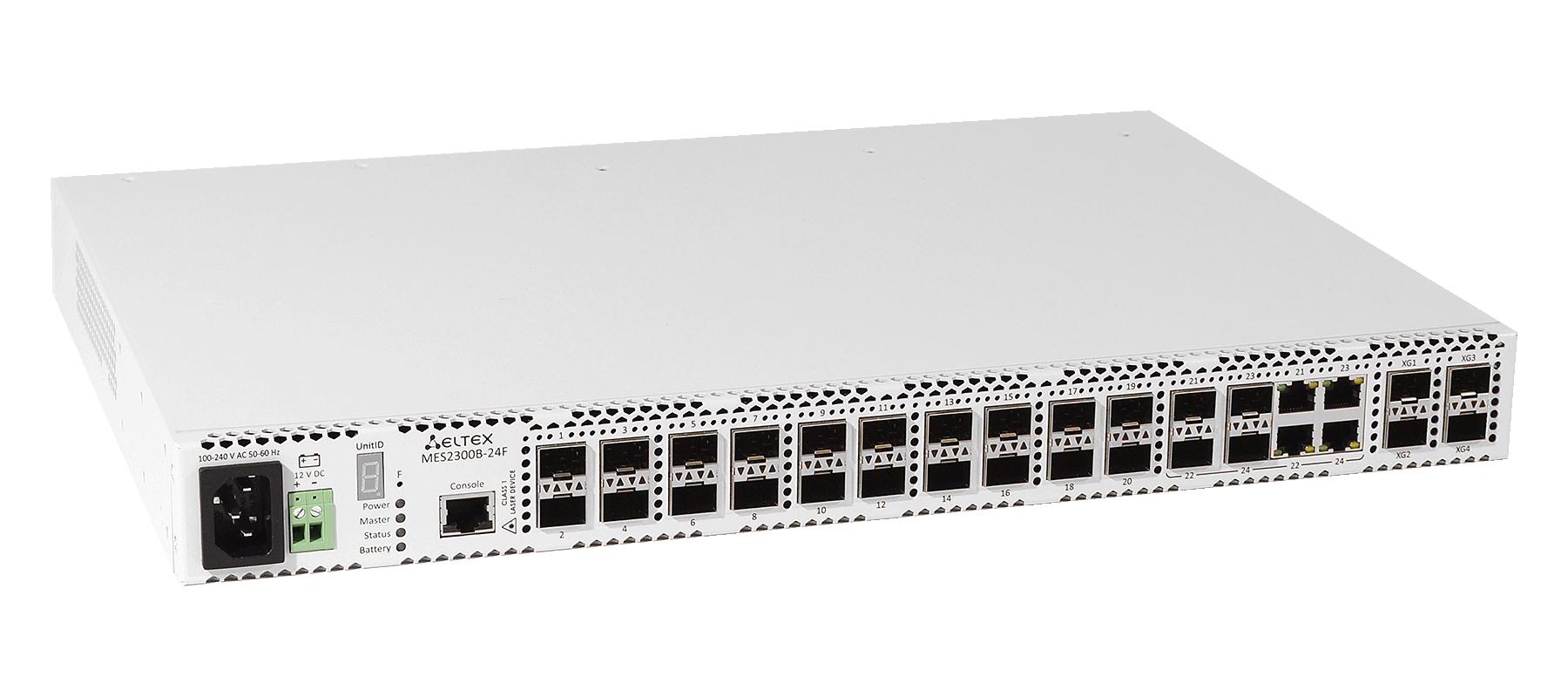

Interfaces
- 1000BASE-X/100BASE-FX (SFP) - 20
- 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo - 4
- 10GBASE-R (SFP+)/1000BASE-X (SFP) - 4
- Console port RS-232 (RJ-45) - 1
- Bandwidth - 128 Gbps
- Throughput for 64 bytes1 - 95.2 MPPS
- Buffer memory - 1.5 MB
- RAM (DDR4) - 1024 MB
- ROM (RAW NAND) - 512 MB
- MAC table - 16384
- ARP table - 1970
- VLAN table - 4094
- L2 Multicast groups - 1024
- SQinQ rules - 1320 (ingress/egress)
- ACL rules - 1971
- L3 IPv4 Unicast2 routes - 2048
- L3 IPv6 Unicast2 routes - 981
- L3 IPv4 Multicast (IGMP Proxy, PIM)2 routes - 1958
- L3 IPv6 Multicast (IGMP Proxy, PIM)2 routes - 489
- VRRP routers - 255
- Maximum size of ECMP groups - 8
- L3 interfaces - 1968
- Link Aggregation Groups (LAG) - 32, up to 8 ports per LAG
- Quality of Service (QoS) - 8 egress queues per port
- Jumbo frames - 10240 bytes, maximum packet size
- Stacking - 8 devices
- HOL blocking protection
- Back pressure support
- Auto MDI/MDIX
- Jumbo frames
- IEEE 802.3X flow control
- Port mirroring (SPAN, RSPAN)
- Stacking
- Independent learning mode per VLAN
- MAC Multicast Support
- Configurable aging time of MAC addresses
- Static MAC Entries
- MAC Flapping
- Voice VLAN
- IEEE 802.1Q
- Q-in-Q
- Selective Q-in-Q
- GVRP
- Multicast profiles
- Static Multicast groups
- IGMP Snooping v1,2,3
- IGMP Snooping Fast Leave based on the host/port
- IGMP proxy-report
- IGMP authorization via RADIUS
- MLD Snooping v1,2
- IGMP Querier
- MVR
- STP (Spanning Tree Protocol, IEEE 802.1d)
- RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
- MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
- PVSTP+
- RPVSTP+
- Spanning Tree Fast Link option
- STP Root Guard
- BPDU Filtering
- STP BPDU Guard
- Loopback Detection (LBD)
- ERPS (G.8032v2)
- Private VLAN
- Layer 2 Protocol Tunneling (L2PT)
- Static IP routes
- Dynamic routing protocols: RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP3 (IPv4 Unicast, IPv4 Multicast)
- BFD (for BGP)
- Address Resolution Protocol (ARP)
- Proxy ARP
- VRRP
- Multicast routing protocols: PIM SM, IGMP Proxy, MSDP
- ECMP load balancing
- IP Unnumbered
- VRF support
- Static LAG
- Dynamic LAG (LACP)
- LAG Balancing Algorithm
- Multi-Switch Link Aggregation Group (MLAG)
- IРv6 Host
- Dual-stack IРv6, IРv4
- Virtual cable testing (VCT)
- Optical transceiver diagnostics
- Green Ethernet
- Protection against unauthorized DHCP servers (DHCP Snooping)
- DHCP option 82
- IP Source Guard
- Dynamic ARP Inspection
- sFlow
- MAC-based authentication, Port Security, static MAC entries
- Port-based authentication IEEE 802.1x
- Guest VLAN
- DoS attack prevention
- Traffic segmentation
- DHCP client filtering
- BPDU attack prevention
- NetBIOS/NetBEUI filtering
- L2-L3-L4 ACL (Access Control List)
- Time-Based ACL
- IРv6 ACL
-
ACL based on:
- Switch port
- IEEE 802.1p priority
- VLAN ID
- EtherType
- DSCP
- IP protocol type
- TCP/UDP port number
- User Defined Bytes
- QoS statistics
- Shaping, Policing
- IEEE 802.1р Class of Service (CoS)
- Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
- Bandwidth management
- Queue scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
- Three marking colors
- ACL-based traffic classification
- ACL-based CoS/DSCP mark assignment
- Setting the IEEE 802.1p priority for management VLAN
- DSCP to COS, COS to DSCP remarking
- ACL-based VLAN assignment
- 802.1p, DSCP mark assignment for IGMP
- 802.3ah Ethernet Link OAM
- 802.3ah Unidirectional Link Detection
- Upload/download of configuration file and software via TFTP
- SNMP (Simple Network Management Protocol)
- CLI (Command Line Interface)
- Web interface
- Syslog
- SNTP (Simple Network Time Protocol)
- Traceroute
- LLDP (802.1ab) + LLDP MED
- LLDP (IEEE 802.1ab)
- Swtch access control — privilege levels for users
- Management ACL
- Management interface blocking
- Local authentication
- IP addresses filtering for SNMP
- RADIUS/TACACS+ (Terminal Access Controller Access Control System) clients
- Telnet server, SSH server
- Telnet client, SSH client
- SSL
- Macrocommands
- CLI commands logging
- System log
- DHCP autoprovision
- DHCP Relay (IPv4 support)
- DHCP Option 12
- Debugging commands
- Rate limit of traffic to CPU
- Password encryption
- Password recovery
- Ping (IPv4/IPv6)
- Interface statistics
- RMON/SMON remote monitoring
- IP SLA
- CPU utilization monitoring per task and traffic type
- RAM monitoring
- Temperature monitoring
- TCAM monitoring
- RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
- RFC 1212 Concise MIB Definitions
- RFC 1213 MIB II
- RFC 1215 MIB Traps Convention
- RFC 1493, 4188 Bridge MIB
- RFC 1157, 2571-2576 SNMP MIB
- RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
- RFC 1271,1757, 2819 RMON MIB
- RFC 2465 IPv6 MIB
- RFC 2466 ICMPv6 MIB
- RFC 2737 Entity MIB
- RFC 4293 IPv6 SNMP Mgmt Interface MIB
- Private MIB
- RFC 2021 RMONv2 MIB
- RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
- RFC 2668 IEEE 802.3 MAU MIB
- RFC 2674, 4363 IEEE 802.1p MIB
- RFC 2233, 2863 IF MIB
- RFC 2618 RADIUS Authentication Client MIB
- RFC 4022 MIB for TCP
- RFC 4113 MIB for UDP
- RFC 3289 MIB for Diffserv
- RFC 2620 RADIUS Accounting Client MIB
- RFC 2925 Ping & Traceroute MIB
- RFC 768 UDP
- RFC 791 IP
- RFC 792 ICMPv4
- RFC 2463, 4443 ICMPv6
- RFC 4884 Extended ICMP to support Multi-Part Messages
- RFC 793 TCP
- RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6 Headers
- RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
- RFC 2571-2574 SNMP
- RFC 826 ARP
- RFC 854 Telnet
- Power supply:
- 100–240 V AC, 50–60 Hz
- 12 V DC
- Maximum power consumption - 55 W
- Maximum power consumption excluding battery charge - 40 W
- Heat dissipation - 43 W
- Dying Gasp hardware support - yes
- Operating temperature - from -20 to +65 °C
- Storage temperature - from -50 to +70 °С
- Humidity - no more than 80 %

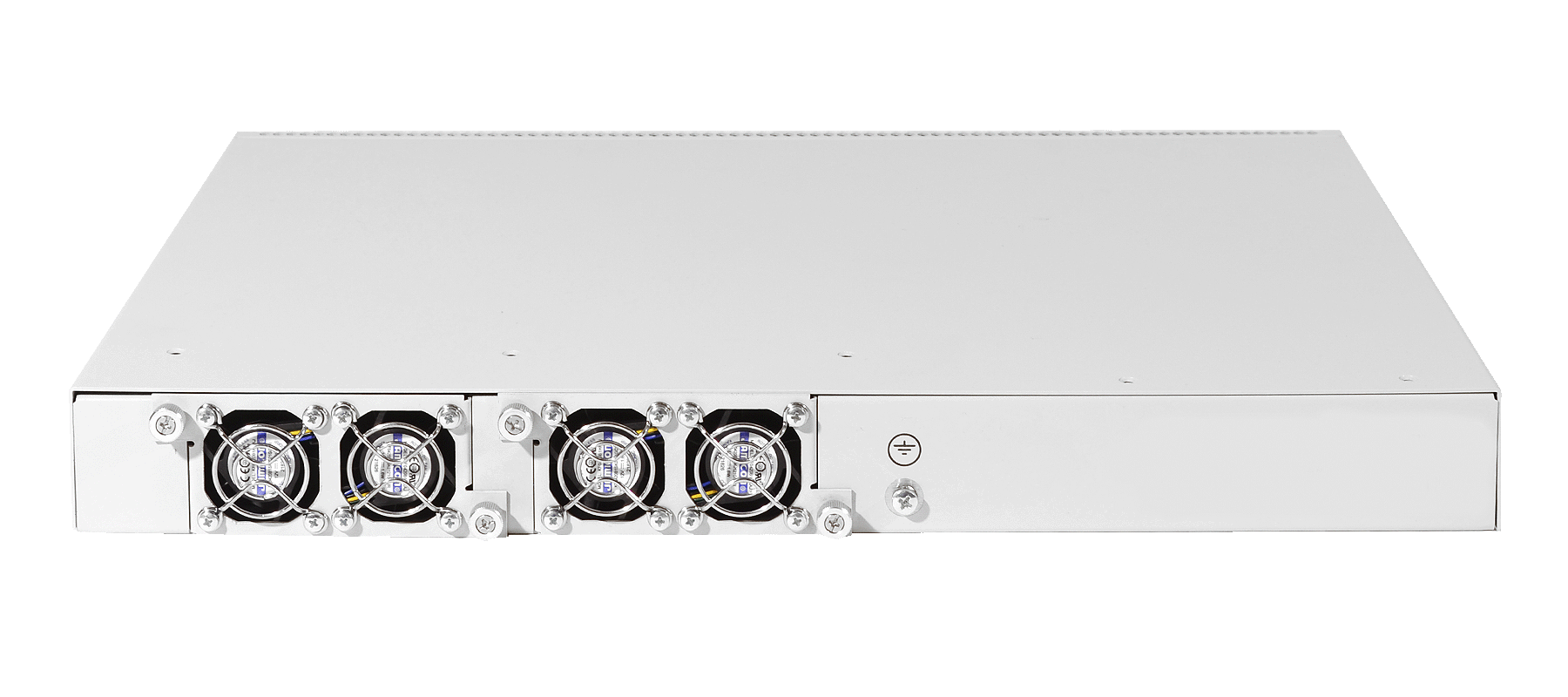

- Cooling - Front-to-Back, 4 fans
- Form factor - 19", 1U
- Dimensions (W × H × D) - 430 × 44 × 305 mm
- Weight - 4.08 kg
1Values are given for one-way transmission
2IPv4/IPv6 Unicast/Multicast routes share hardware resources
3BGP protocol support is provided under the license.
Show all
The values given in the technical documentation are approximate as the device is under development. The actual specifications will be published after final testing and the model launch into pre-production.
