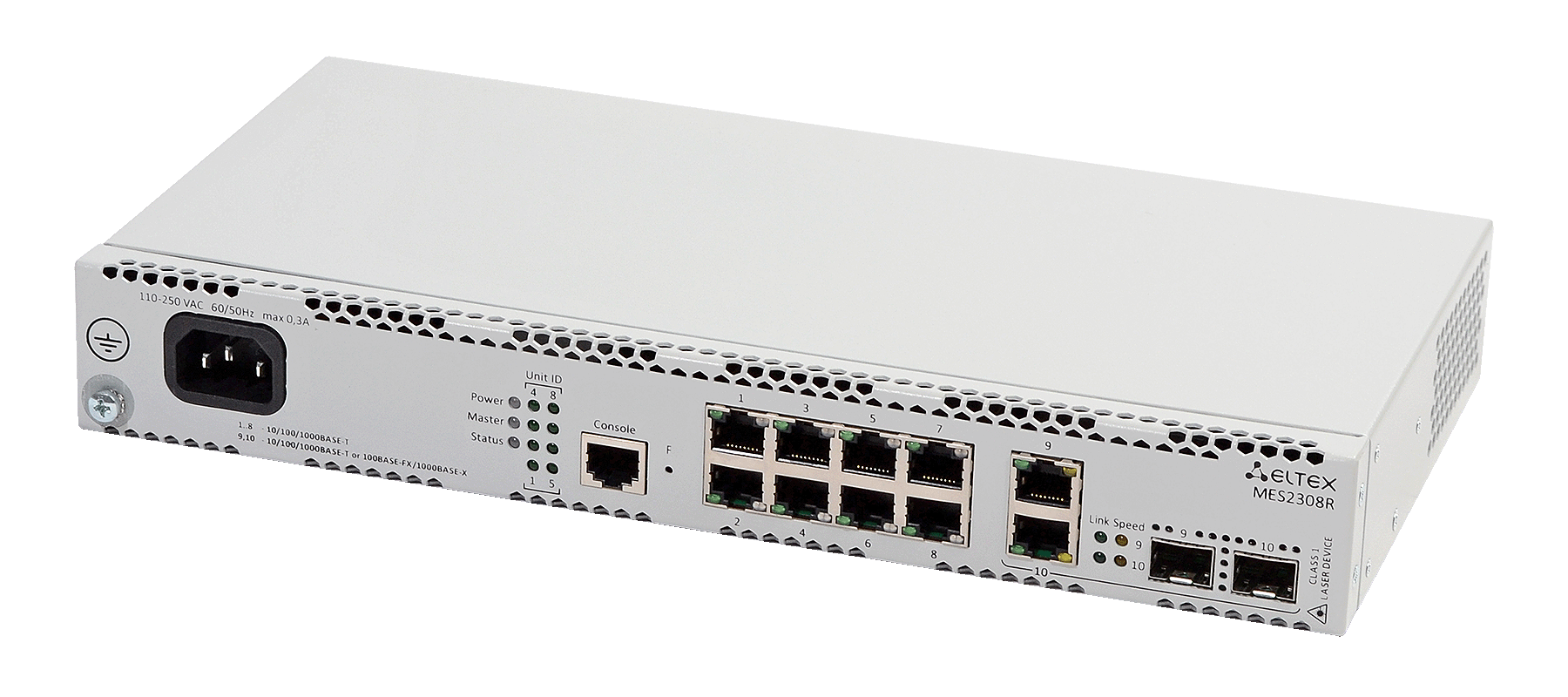

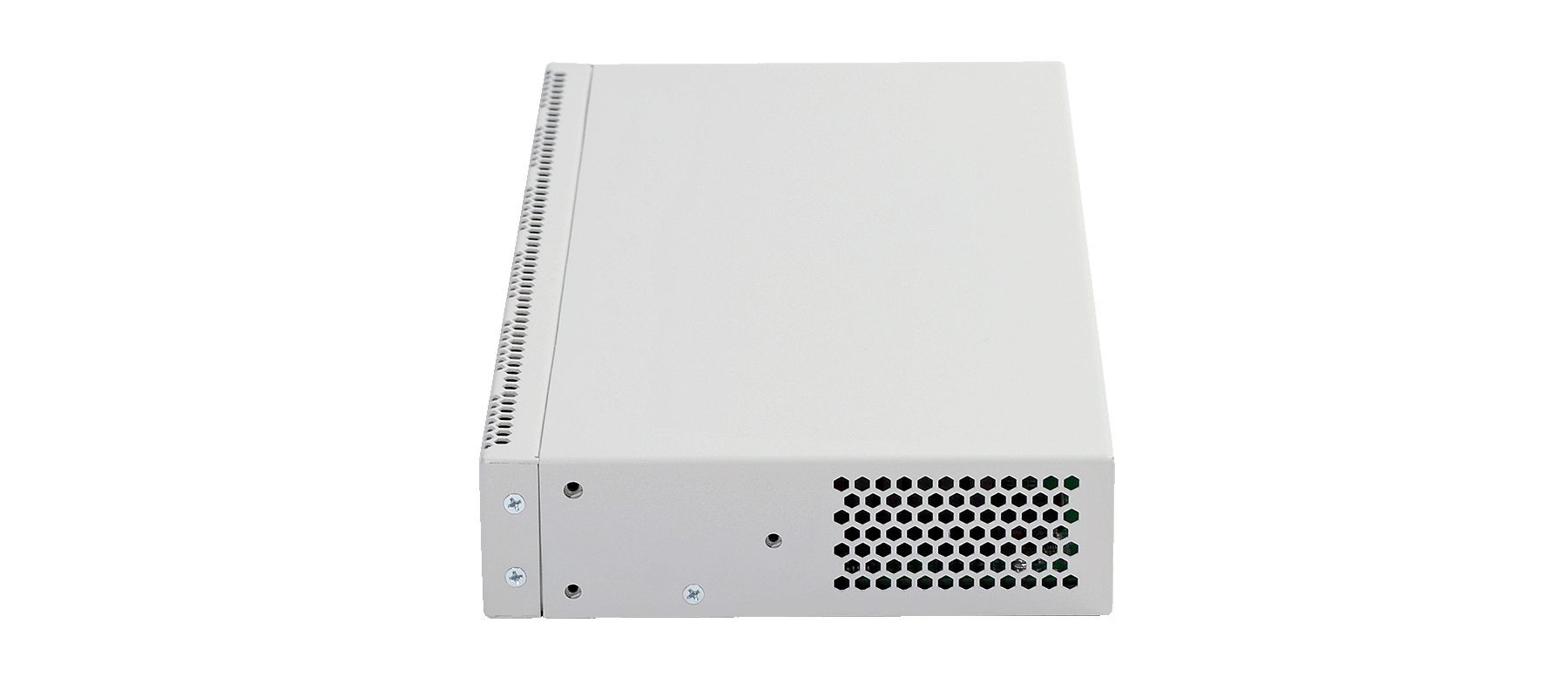

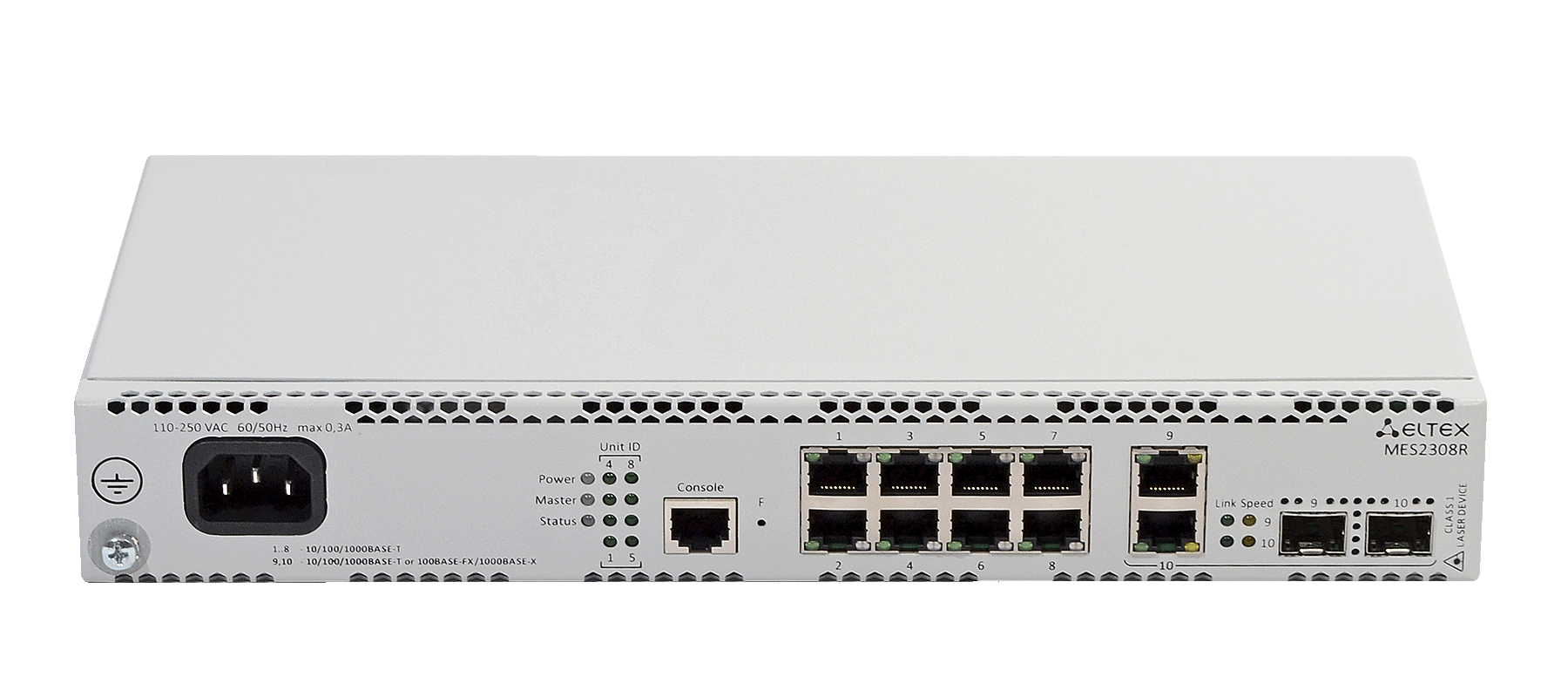

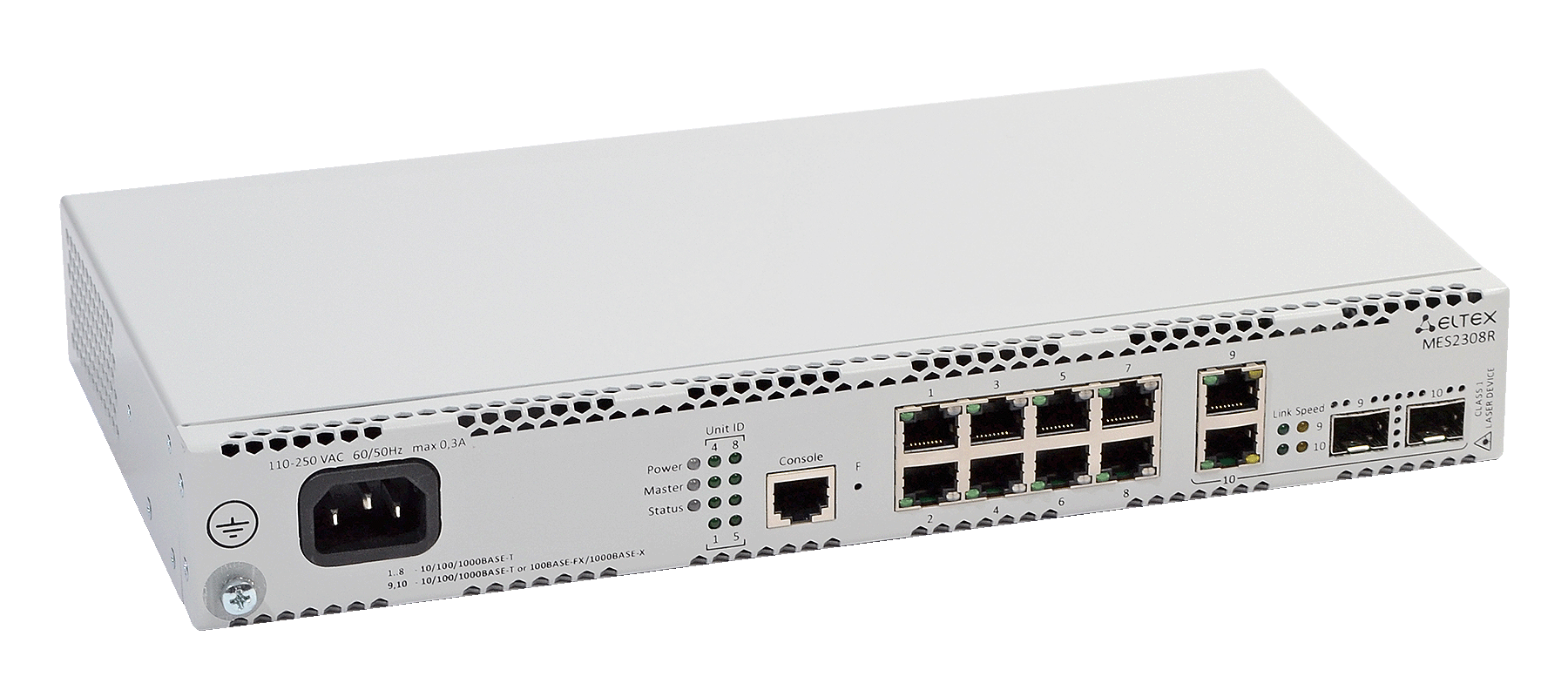

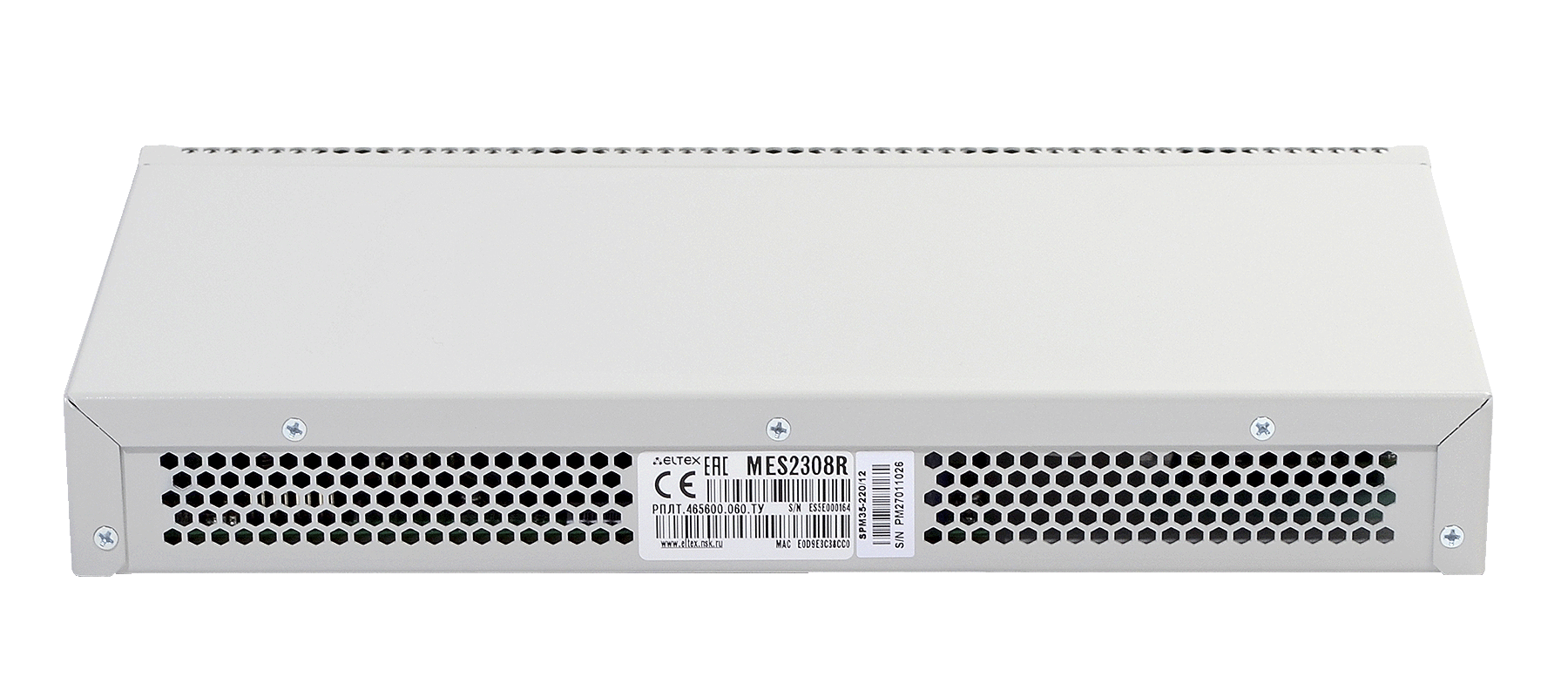

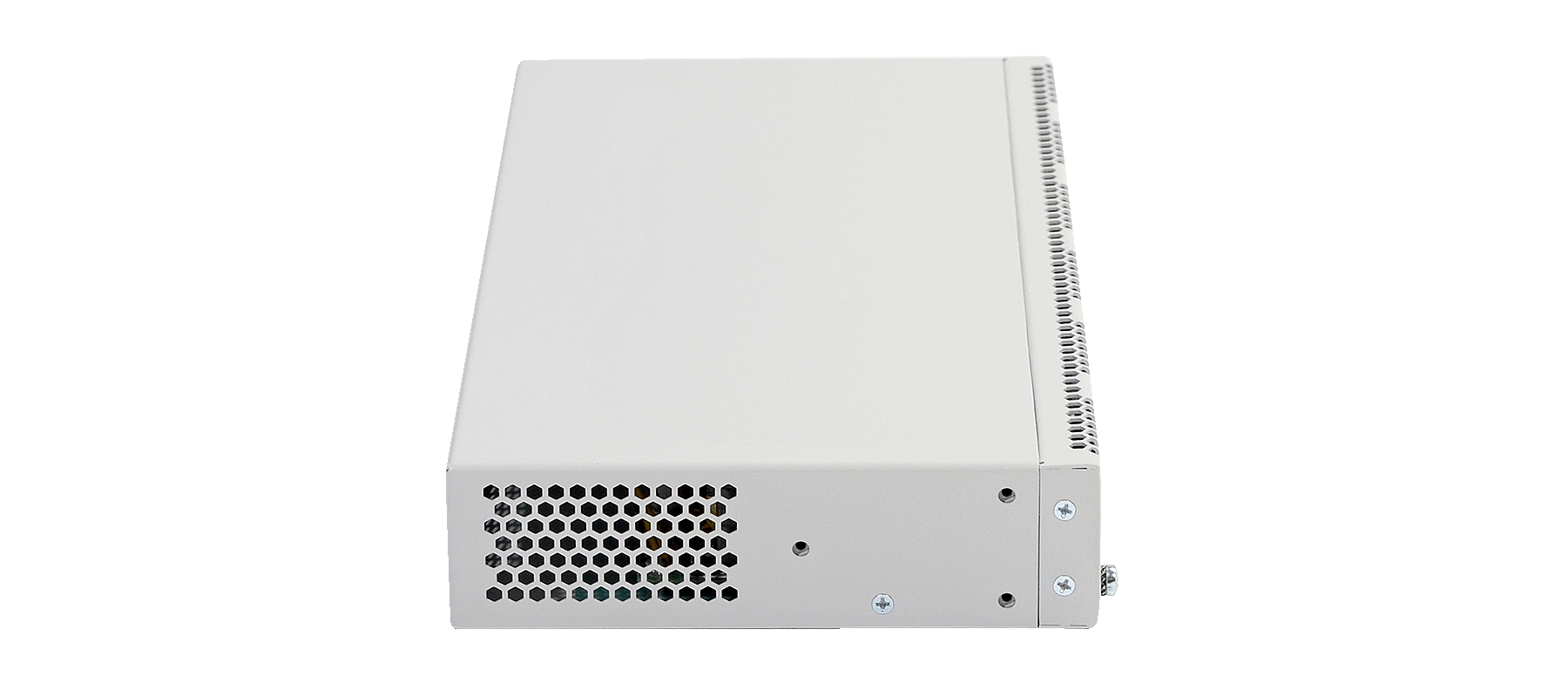

Ethernet Access Switch MES2308R

Mass production
Key features
  • L2+ switches
  • Stacking support
  • Multicast support (IGMP Snooping, MVR)
  • Advanced security functions (L2-L4 ACL, IP Source Guard, Dynamic ARP Inspection, etc.)
MES2308х series access switches are managed L2+ switches with 10 ports of 10/100/1000BASE-T (on MES2308P 8 out of 10 ports support PoE/PoE+) and 2 ports of  10/100/1000BASE-X (SFP).

The switches are designed to connect end users to large-scale corporate network, small and medium business networks and to the service provider networks using Gigabit Ethernet interfaces.

The switches support physical stacking, VLAN, multicast groups and advanced security functions.
Specifications
Documents and files
Warranty
  • Packet processor - Marvell 98DX3233
Interfaces
  • 10/100/1000BASE-T (RJ-45) - 8
  • 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo - 2
  • Console port RS-232 (RJ-45) - 1
Performance
  • Bandwidth - 20 Gbps
  • Throughput - 14.9 MPPS
  • Buffer memory - 1.5 MB
  • RAM (DDR3) - 512 MB
  • ROM (RAW NAND) - 512 MB
  • MAC table - 16384
  • ARP table1 - 820
  • VLAN table - 4094
  • L2 Multicast groups - 2046
  • SQinQ rules - 360 (ingress) / 72 (egress)
  • ACL rules - 958
  • L3 IPv4 Unicast2 - 818
  • L3 IPv6 Unicast2 - 210
  • L3 IPv4 Multicast (IGMP Proxy, PIM)2 - 412
  • L3 IPv6 Multicast (IGMP Proxy, PIM)2 - 103
  • VRRP switches - 50
  • Maximum size of ECMP groups - 8
  • L3 interfaces - 130
  • Link Aggregation Groups (LAG) - 48, up to 8 ports per LAG
  • Quality of Service (QoS) - 8 egress queues per port
  • Jumbo frames size - 10240 bytes
  • Stacking - 8 devices
Interface functions
  • Head-of-line blocking (HOL) protection
  • Back pressure
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow control (IEEE 802.3X)
  • Port mirroring (SPAN, RSPAN)
  • Stacking
MAC table functions
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses
  • Static MAC Entries
  • MAC Flapping logging
VLAN functions
  • Voice VLAN
  • 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
L2 Multicast functions
  • Multicast profiles
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Port/host-based IGMP Snooping Fast Leave
  • Pim-Snooping
  • IGMP proxy-report
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • IGMP Querier
  • MVR
L2 functions
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spaning Tree protocol, IEEE 802.1w)
  • MSTP (Multiple Spanning Tree, IEEE 802.1s)
  • STP Multiprocess
  • PVSTP+
  • RPVSTP+
  • Spanning Tree Fast Link option
  • STP Root Guard
  • STP Loop Guard
  • BPDU Filtering
  • STP BPDU Guard
  • VLAN-based Loopback Detection (LBD)
  • ERPS (G.8032v2)
  • Flex-link
  • Private VLAN, Private VLAN Trunk
  • Layer 2 Protocol Tunneling (L2PT)
L3 functions
  • Static IP routes
  • Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP3 (IPv4 Unicast, IPv4 Multicast)
  • BFD (for BGP)
  • Address Resolution Protocol (ARP)
  • Proxy ARP
  • Policy-Based Routing (IPv4)
  • VRRP
  • PIM SM, PIM DM, IGMP Proxy, MSDP
  • IP Unnumbered
  • ECMP Load Balancing
Link Aggregation functions
  • Static LAG
  • Dynamic LAG (LACP)
  • LAG Balancing Algorithm
  • Multi-Switch Link Aggregation Group (MLAG)
IPv6 functions
  • IPv6 Host
  • Dual-stack
Service functions
  • Virtual Cable Testing (VCT)
  • Optical transceiver diagnostics
  • Green Ethernet
Security functions
  • DHCP Snooping
  • DHCP Option 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • First Hop Security
  • sFlow
  • MAC-based authentication, Port Security, Static MAC entries
  • Port-based authentication IEEE 802.1x
  • Guest VLAN
  • DoS attack prevention
  • Traffic segmentation
  • Protection against non-authorized DHCP servers
  • DHCP clients filtering
  • BPDU attacks prevention
  • NetBIOS/NetBEUI filtering
  • PPPoE Intermediate Agent
ACL (Access Control List)
  • L2-L3-L4 ACL
  • Time-Based ACL
  • IPv6 ACL
  • ACL based on:
  • Physical port number
  • IEEE 802.1p
  • VLAN ID
  • EtherType
  • DSCP
  • Protocol type
  • TCP/UDP port number
  • User Defined Bytes
Quality of Service (QoS) and rate limiting
  • QoS statistics
  • Shaping, Policing
  • IEEE 802.1p Class of Service (CoS)
  • Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
  • Bandwidth management
  • Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
  • Three marking colors
  • ACL-based CoS/DSCP mark assignment
  • Setting the IEEE 802.1p priority for management VLAN
  • DSCP to CoS/CoS to DSCP remarking
  • ACL-based VLAN assignment
  • 802.1p, DSCP mark assignment for IGMP
ОАМ/CFM
  • 802.3ah Ethernet Link OAM
  • Dying Gasp
  • 802.1ag Connectivity Fault Management (CFM)
  • 802.3ah Unidirectional Link Detection (UDLD)
Main management functions
  • Download and upload of configuration file via TFTP/SCP
  • Redirecting the output of CLI commands to an arbitrary file on ROM
  • SNMP
  • Command Line Interface (CLI)
  • Web interface
  • Syslog
  • SNTP (Simple Network Time Protocol)
  • Traceroute
  • LLDP (802.1ab) + LLDP MED
  • Processing traffic management with two 802.1Q headers
  • Authorization of entered commands using TACACS+ server
  • Access control – privilege levels
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS, TACACS+ (Terminal Access Controller Access Control System) clients
  • Change of Authorization (CoA)
  • SSH server, Telnet server
  • SSH client, Telnet client
  • Remote start of commands via SSH
  • SSL
  • Macrocommands
  • CLI commands logging
  • System log
  • DHCP autoprovision
  • DHCP Relay (Option 82)
  • DHCP Option 12
  • DHCP Relay, DHCPv6 LDRA (Option 18, 37)
  • PPPoE Circuit-ID tag
  • Flash File System
  • Debugging commands
  • Rate limit of traffic to CPU
  • Password encryption
  • Password recovery
  • Ping (IPv4/IPv6 support)
  • DNS server (Resolver)
Monitoring functions
  • Statistics on interfaces
  • RMON/SMON
  • IP SLA
  • CPU utilization monitoring per task and per traffic type
  • RAM utilization monitoring
  • Temperature monitoring
  • TCAM utilization monitoring
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 1271,1757, 2819 RMON MIB
  • RFC 2465 IPv6 MIB
  • RFC 2466 ICMPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 3289 DIFFSERV MIB
  • RFC 2021 RMONv2 MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 2925 Ping & Traceroute MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 4884 Extended ICMP for Multi-Part messages support
  • RFC 793 TCP
  • RFC 2474, 3260 DS field definition in IPv4 and IPv6 headers
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet

1 For each host in the ARP table, an entry is created in the routing table — the device complies with CE requirements
2 Pv4/IPv6 Unicast/Multicast routes share hardware resources
3 BGP protocol support is provided under license
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
