Repeater RR-10

Mass production
Key features
  • Universal Wi-Fi repeater
  • 1 x Ethernet port
  • Dual-band Wi-Fi
  • Wi-Fi EasyMesh*

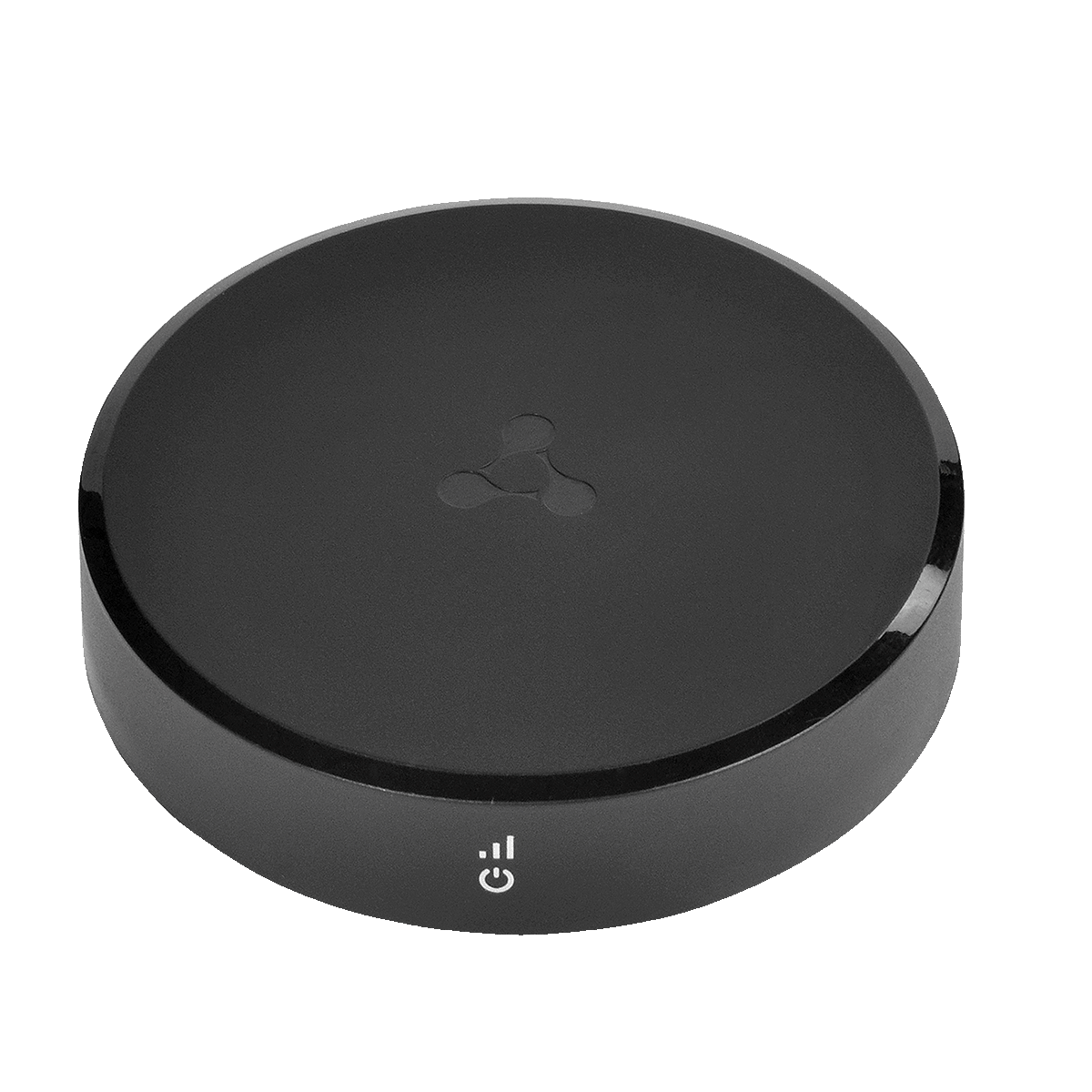

RR-10 is a universal wireless signal repeater designed to extend wireless networks coverage and amplify Wi-Fi signal strength. The solution helps to eliminate blind spots and optimize the operation of your Wi-Fi network.

Wireless connection
  RR-10 repeater provides high data rate due to the support for IEEE 802.11n/ac. The use of MIMO technology and internal antennas makes the RR-10 a universal solution for extending a home network and providing high-quality 4K multimedia transmission.

Advantages of EasyMesh* technology
  • Network intelligence: a self-organizing and self-optimizing network collects information and responds to network condi-tions for maximum performance
  • Efficient load balancing: allows for switching to a better connection and avoid interference
  • Scalability: allows adding multi-vendor Wi-Fi EasyMesh access points

* Not supported in the current firmware version 1.0.0

Specifications
Documents and files
Warranty

Main technical specifications
  • Realtek RTL8197FS-VG 1 GHz processor
  • WiFi:
    • RTL8197FS-VG (2.4 GHz),
    • RTL8812FR (5 GHz)
  • RAM 128 MB
  • Flash 16 MB
  • OS Linux 3.10
Interfaces

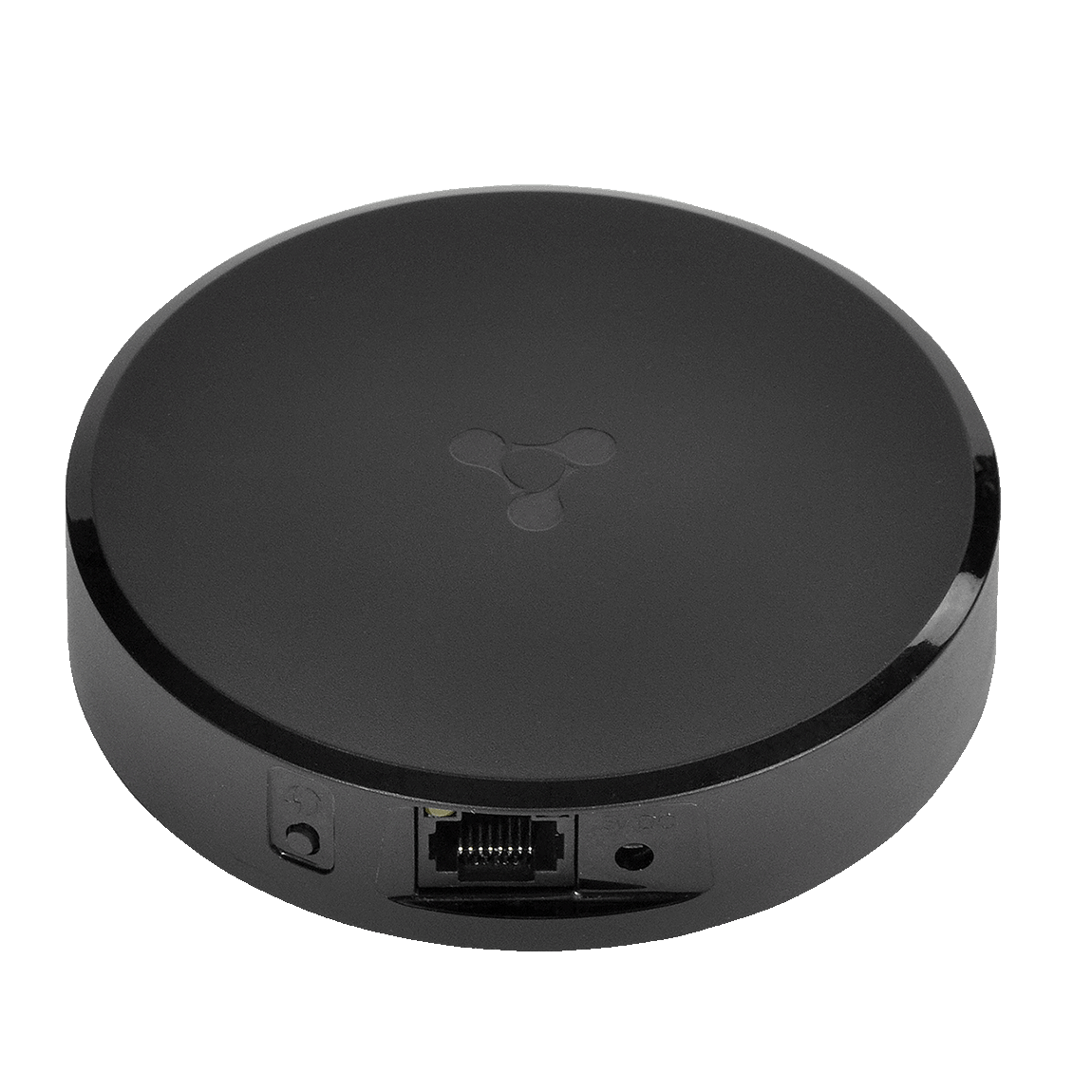

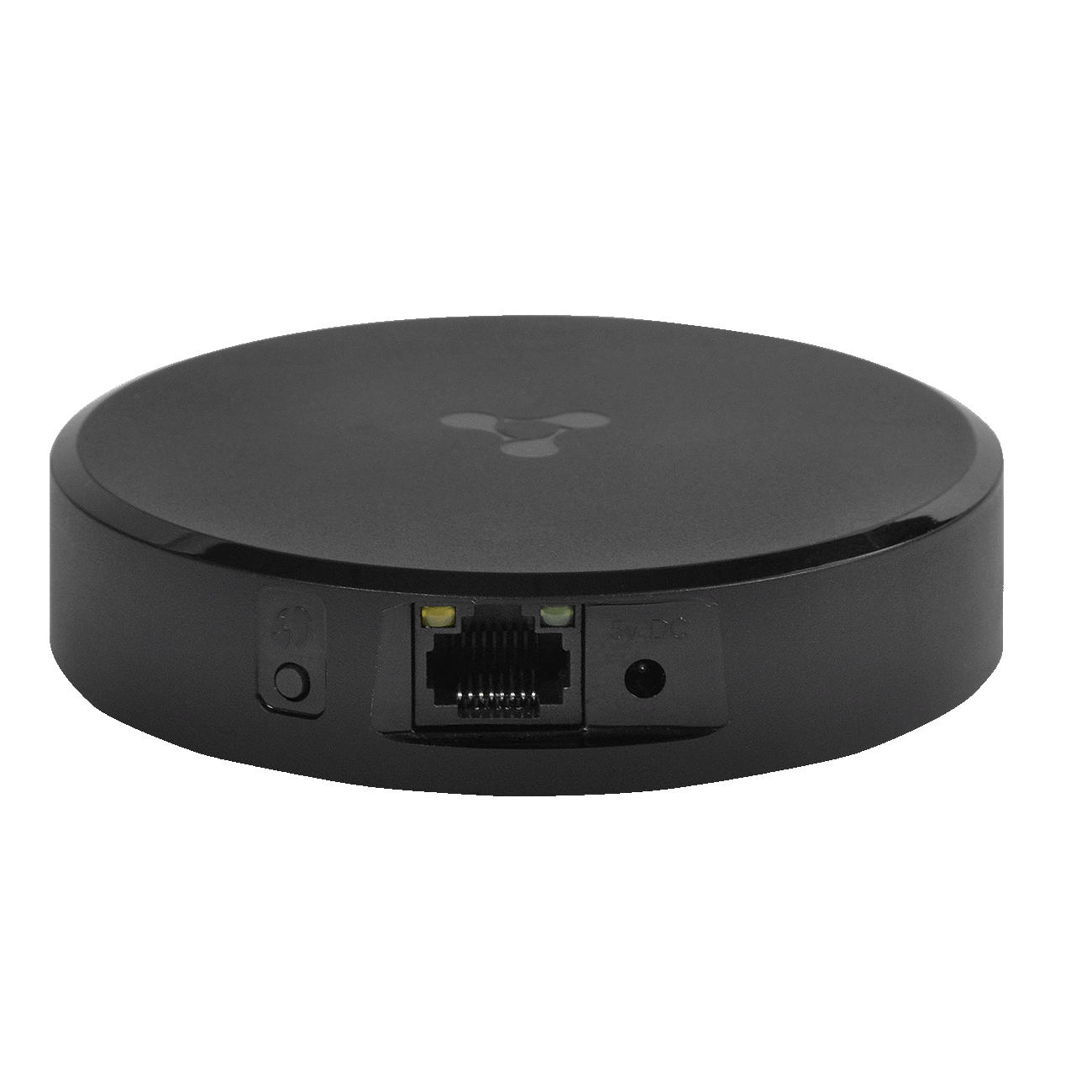

  • 1 x 10/100/1000 (RJ45) Ethernet port
  • WiFi IEEE 802.11b/g/n 2.4 GHz and 802.11a/n/ac 5 GHz
Wireless interface parameters
  • EasyMesh*
  • WPA/WPA2
  • WMM
  • WPS
  • Extended list of Wi-Fi interface configuration parameters
  • Wireless Multicast Forwarding
  • WiFi IEEE 802.11a/b/g/n/ac
  • Frequency range:
    • 2412-2472 MHz,
    • 5180-5320 MHz,
    • 5660-5805 MHz
  • MIMO:
    • 2.4 GHz 2х2
    • 5 GHz 2х2
Management and diagnostic
  • WEB interface
  • TR-069*

* Not supported in the current firmware version 1.0.0

Descriptions
Documentations
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
