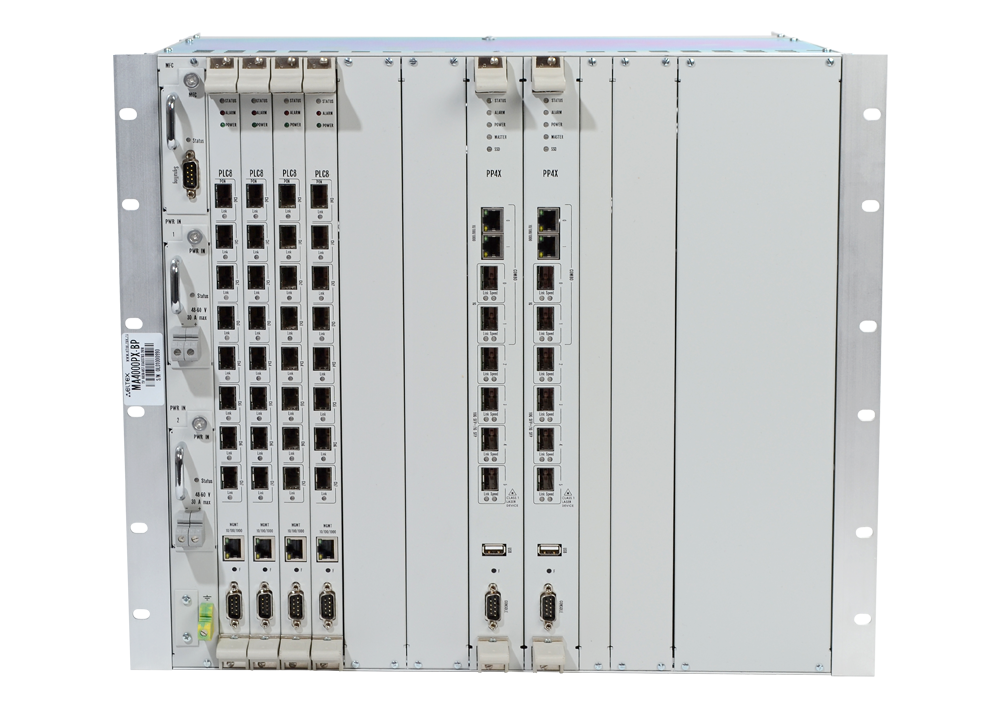

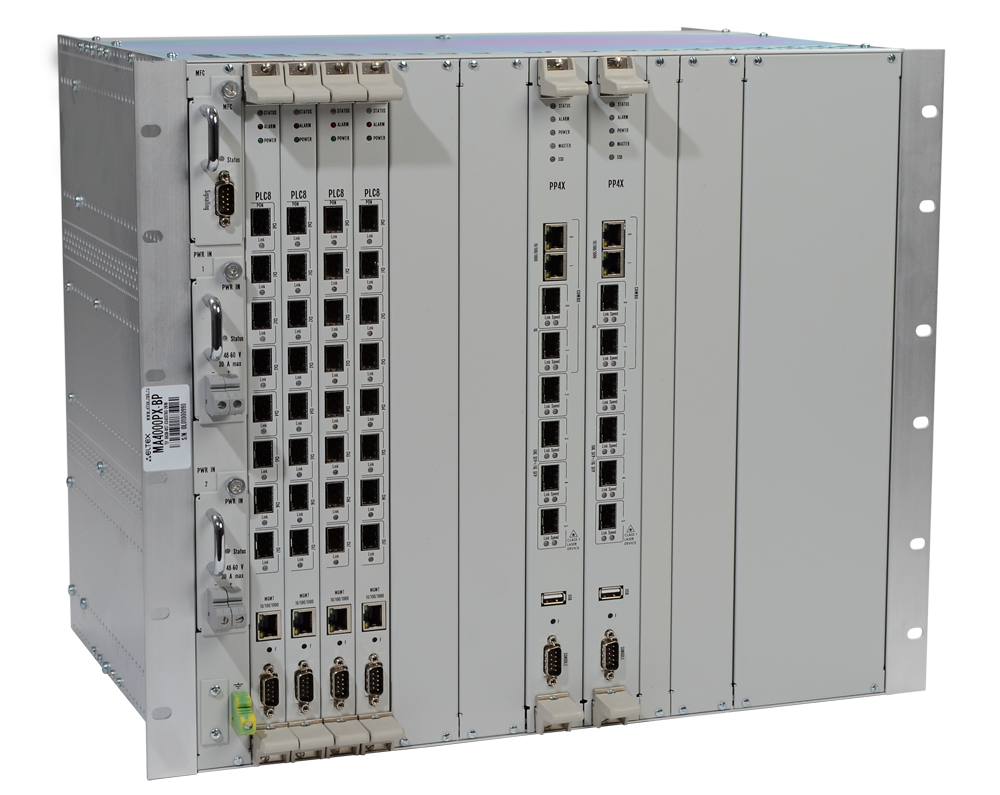

OLT MA4000-PX

Mass production
Key features
  • Modular device, form factor: 19" 9U Eurorack
  • 2 Switches (Uplink Controllers) with Hot Standby 1:1
  • Up to 16 GPON modules (128 GPON ports)
  • Up to 8192 ONT per node
  • Switching Capacity: 680 Gbps
  • Low power consumption
  • 2 separate power supplies
   Multi-service access and aggregation node MA4000-PX  allows to construct access networks based on GPON technology. The OLT allows an operator to construct scalable, failsafe "last mile" networks, ensuring high safety requirements in either urban or rural areas. MA4000-PX controls customer stations, traffic switching and transport network access.

A core element of the MA4000-PX is a scalable Ethernet L2+ switch (PP4X) that interacts with optical interface access modules PLC8 to connect customer devices via GPON technology.
The modules are installed in a standard 19" 9U Eurocase. The 9U case has two slots for PP4X switch circuit control modules installation and 16 slots for linear PCL8 modules (GPON). A single system can have one or two PP4X central switch control modules.
Installation of two modules improves the fault-tolerance on account of switch redundancy and improves the bandwidth capacity of the system through the distribution of data streams between modules via stacking.

The modules interact via 10Gbit/s interfaces.

Types of modules
  • PP4X: switching and control module
  • PLC8: 8 x GPON 2,5Gbps interface module
  • The quantity of interface modules: up to 16
  • Bus type and performance: 34х10GBASE-KX (XAUI), 680Gbps

Management and monitoring
  • Single management interface via CLI (Telnet, SSH, serial), SNMP
  • Processing of configuration data of all modules
  • Support for RADIUS, TACACS

Specifications
Modules and additional devices
Documents and files
Warranty
  • Modules
    • up to 16 PLC8 modules
    • up to 2 PP4X modules
Physical parameters
  • Number of power supply inputs - 2
  • Power supply voltage - 36..72V
  • Power consumption of full chassis - no more than 833 W
  • Power consumption of empty chassis - no more than 35 W
  • Power consumption of PP4X - no more than 70 W
  • Power consumption of PLC8 without SFP - no more than 30 W
  • Power consumption of PLC8 with SFP - no more than 40 W
  • Power consumption of fan panel - no more than 18
  • Weight of full chassis - no more than 25 kg
  • Dimensions (HxWxD) - 480х400х350 mm
  • Ambient operating temperature and humidity - from -10 to +45 С, humidity to 80%
Standard compliance
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-T Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3z Fiber Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay  auto-negotiation
  • IEEE 802.3x Full Duplex and flow control
  • IEEE 802.3ad Link aggregation
  • IEEE 802.1p Protocol for Traffic Prioritization
  • IEEE 802.1Q Virtual LANs
  • IEEE 802.1ad Provider Bridges (QinQ)
  • IEEE 802.1v VLAN Classification by Protocol and Port
  • IEEE 802.3ac VLAN tagging
  • IEEE 802.1d MAC bridges
  • IEEE 802.1w Rapid Reconfiguration of Spanning Tree
  • IEEE 802.1s Multiple Spanning Trees
  • IEEE 802.1x Port Based Network Access Control
  • ITU-T G.988 GPON
  • ITU-T G.984x GPON
Features
Aggregation switch functions with the following capabilities:
  • MAC address learning /aging
  • MAC address limiting
  • Processing of unknown МАС addresses
  • Broadband traffic limiting
  • Multicast traffic limiting
  • Number of multicast groups - 1024
  • Support for Q-in-Q in compliance  IEEE 802.1ad
  • STP, RSTP, MSTP
  • Static routing
  • Port isolation, port isolation within the same VLAN
  • LAG and LACP, including interfaces of PP4X module
  • Port mirroring, VLAN mirroring
  • QoS: 802.1p, DSCP, WRR
  • IGMP/MLD Fast Leave
  • IGMP/MLD Proxy
  • IGMP/MLD Snooping
  • IGMP/MLD Querier
  • DHCPv4 Snooping
  • IPv4 Source guard
  • DHCPv4/DHCPv6 Relay Agent (Option 82, IP helper)
  • LLDP (802.1ab)
  • PPPoE Intermediate agent
  • Utilization by ONT services
Management and switching hardware board PP4X

The module of the central switch, PP4X, is a main platform element performing management and diagnostics of periphery modules, switching and aggregation of traffic.
The installation of two modules improves fault-tolerance due to switch redundancy and increases the system's bandwidth capacity due to distribution of data streams between modules via stacking.

The module interaction is realized via two 10 Gbps interfaces distributing the load and ensuring redundancy.

CPU
  • Marvell Mv78x00, ARMv5TE, 1000МHz, 2 cores
  • Core frequency - 1000 MHz
  • DDR2 SDRAM 512 МB 800 МHz RAM
  • 2 Gb NAND Flash
Interfaces
  • USB (work with USB 2.0)
  • SATA II (support for SSD)
Network interfaces
  • External connections:
    • 4 x 10GBase-X(SFP+)/1000Base-X (SFP)
    • 2 x 10/100/1000Base-T/1000Base-X (SFP)
  • Interface modules connection:
    • 16 x 10G XAUI (10GBASE-KX4)
  • Central switch module connection:
    • 2 x 10G XAUI (10GBASE-KX4)
  • Optical transceivers - 1G SFP, 10G SFP+ (Copper Direct Attach connection support)
  • Console port - RS-232
Switch
  • Ethernet switch - Marvell Packet Processor
  • Bandwidth - 480 Gbps
  • MAC address table: 32K entries
  • Support for up to 4К VLANs according to 802.1Q
  • Quality of Service
  • 8 priority output queues per port
  • Quantity of ports - 24 ports, up to 10 Gbps per port
Port modes
  • Duplex/half-duplex mode, 10/100/1000 Mbps for electric ports
  • Duplex mode, 1/10 Gbps for optical ports
Management and monitoring
  • Interaction with external control and monitoring systems via Telnet, SSH, SNMP
  • Access rights limiting: by password, IP address, MAC address, privilege level
  • Support for RADIUS, TACACS+
  • Collection of alarm data on interface modules and the whole device. Generation of notification and alarm messages for monitoring systems.
  • Device temperature control, fan system management
  • Software update management for all device modules

GPON interfaces module PLC8

PLC8 module is intended to provide broadband access to the data network via GPON technology with data rate up to 2.5 Gbps downlink. The module is designed for a last mile connection and allows connecting up to 512 end users (ONT). The support of RSSI provides  measuring of optical line parameters.

Network interfaces
  • Connection with the central switching module:
    • 2 х 10G XAUI (10GBASE-KX4)
  • PON:
    • 8 ports of 2.5/1.25 Gbps GPON (SFP)
Port modes
  • Duplex/half-duplex 10/100/1000 Mbps for electric ports
  • Duplex mode 1/10 Gbps for optic ports

Processor
  • Processor - Marvell, ARMv5TE architecture
  • Core frequency - 800 MHz
  • 1 core
  • RAM - DDR2 SDRAM 256 MB 320 MHz
  • Non-volatile memory - 2 х 32 MB SPI Flash
Switch
  • Processor - Marvell Packet Processor
  • Switch bandwidth - 128 Gbps
  • MAC addresses - 16К entries
  • Support for up to 4К VLANs according to 802.1Q
  • Quality of Service
SFP PON parameters1
  • Transmission media -  optic cable  SMF -  9/125, G.652
  • Split ratio - up to 1:64
  • Received Signal Strength Indication (RSSI)
  • DDM support (parameters output to CLI):
    • Digital RSSI
    • Module Temperature
    • Supply Voltage
    • Laser Bias Current
    • Tx Optical Power Output
Class B+
  • Compliance with  ITU-T G.984.2, FSAN Class B+, SFF-8472
  • Maximum operating distance: 20 km
  • Transmitter: 1490nm DFB Laser
    • Data rate: 2488 Mbps
    • Average launch power:  +1,5..+5 dBm
    • Spectral line width: -20 dB 1.0 nm
  • Receiver: 1310nm APD/TIA
    • Data rate: 1244 Mbps
    • Receiver sensitivity: -28 dBm
    • Receiver optical overload: -8 dBm

Class C++

  • Compliance with  ITU-T G.984.2, FSAN Class C++, SFF-8472
  • Maximum operating distance: 40 km
  • Transmitter: 1490nm DFB Laser
    • Data rate: 2488 Mbps
    • Average launch output: +7..+10 dBm
    • Spectral line width: -20 dB 1.0 nm
  • Receiver: 1310nm APD/TIA Detector/Amplifier
    • Data rate: 1244 Mbps
    • Average launch output: -32 dBm
    • Receiver optical overload: -12 dBm
    • Receiver Burst Mode Dynamic Range: 20 dB

1 Upon a request




Name

Description

MA4000-PX frame OLT MA4000-PX switching unit frame
PP4X Ethernet switch PP4X, 2 ports of 10/100/1000Base-T/1000Base-X (SFP), 4 ports of 10GBase-R (SFP+)/1000Base-X (SFP), L2+
PLC8 OLT GPON optical access module, 8 ports of SFP-xPON, RSSI

Power supply devices

UEP2-3 frame  19" frame, 3U, enables installing of up to 3 МP800 modules, 48V or 60V upon a request
 МP800  Power supply module, 13A, 48V, 48V or 60V upon a request

Related software

EMS-МА4000 EMS-МА4000 option of Eltex.EMS system for Eltex network elements management and monitoring: 1 network element - MA4000-PX

1 You can choose this option in ordering process

Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
