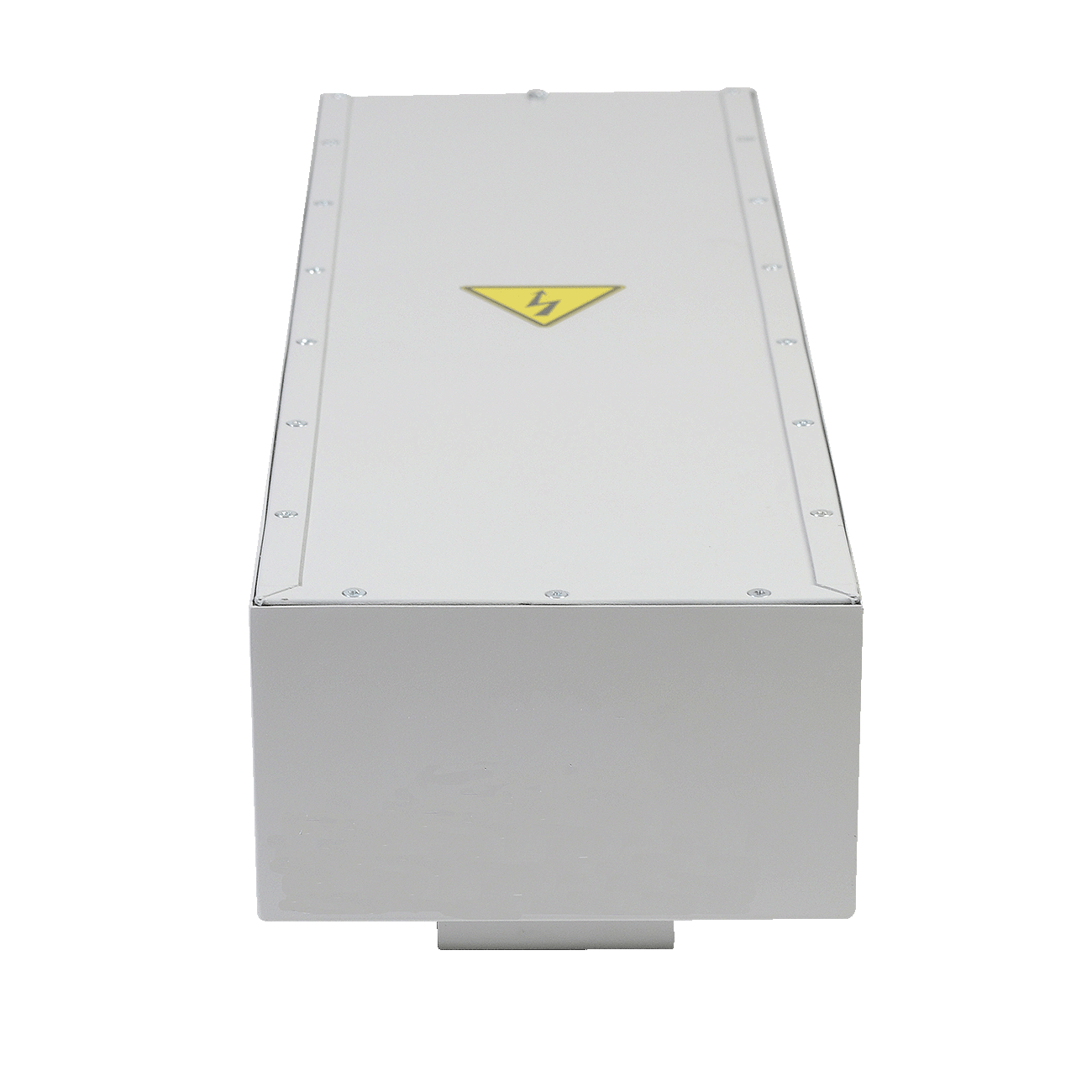

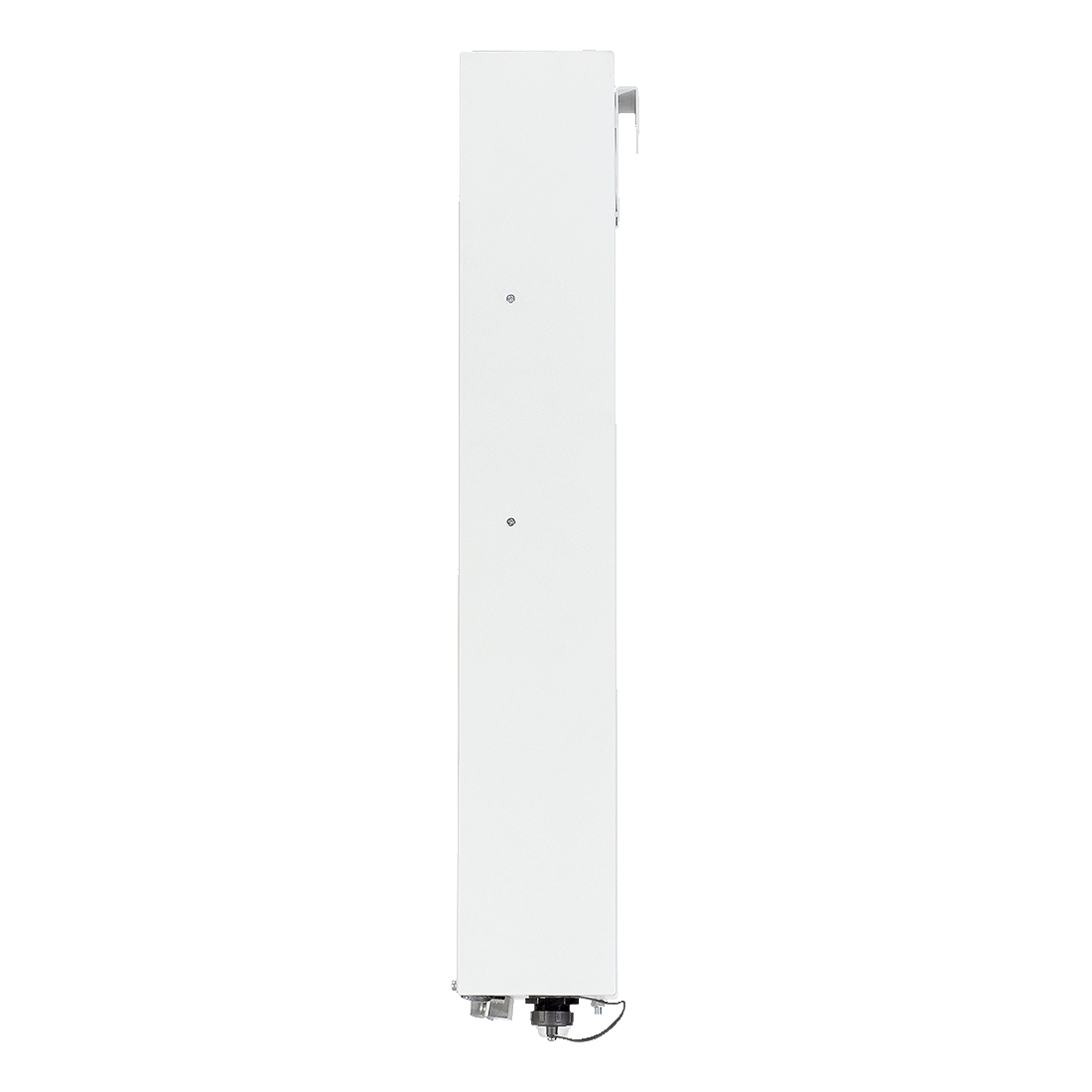

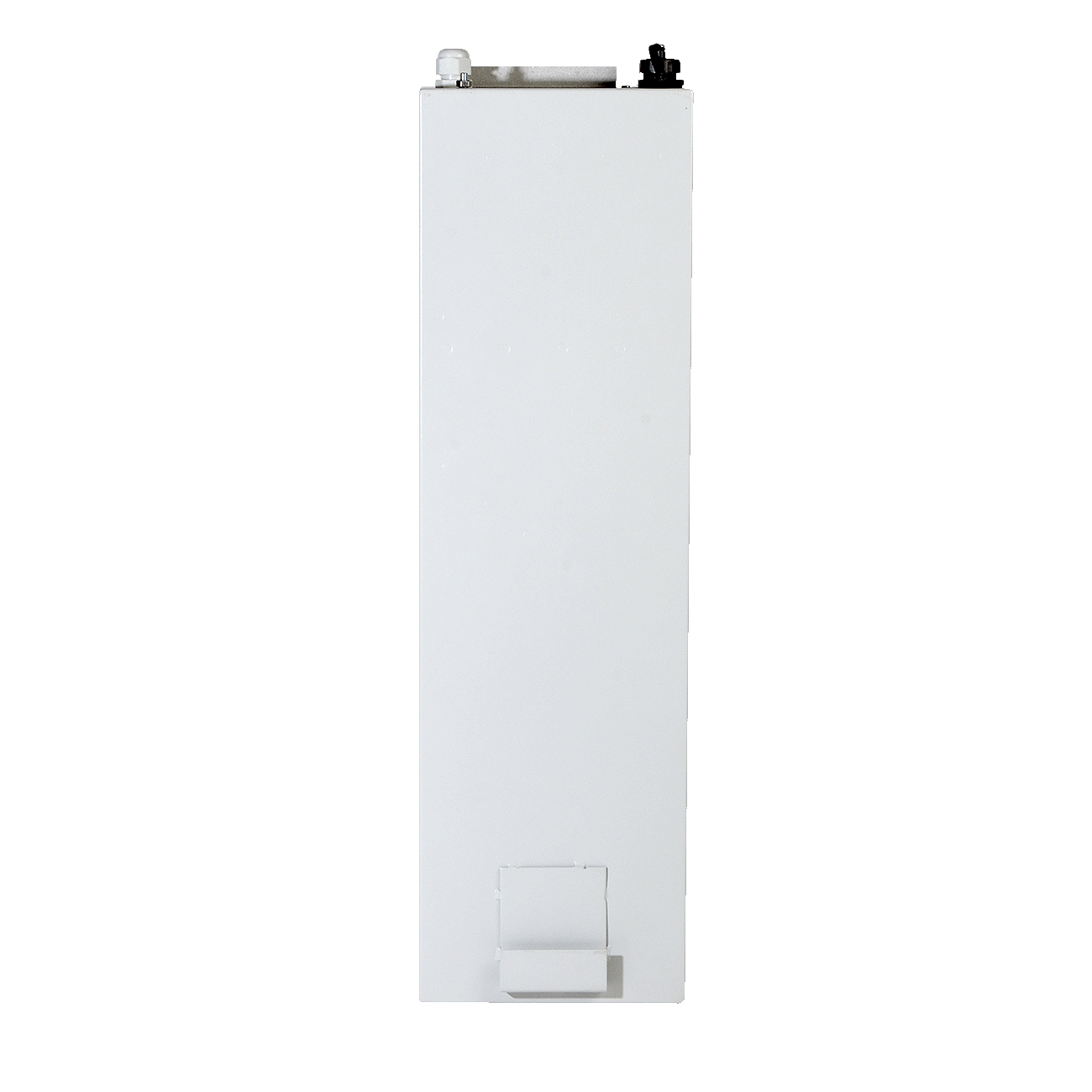

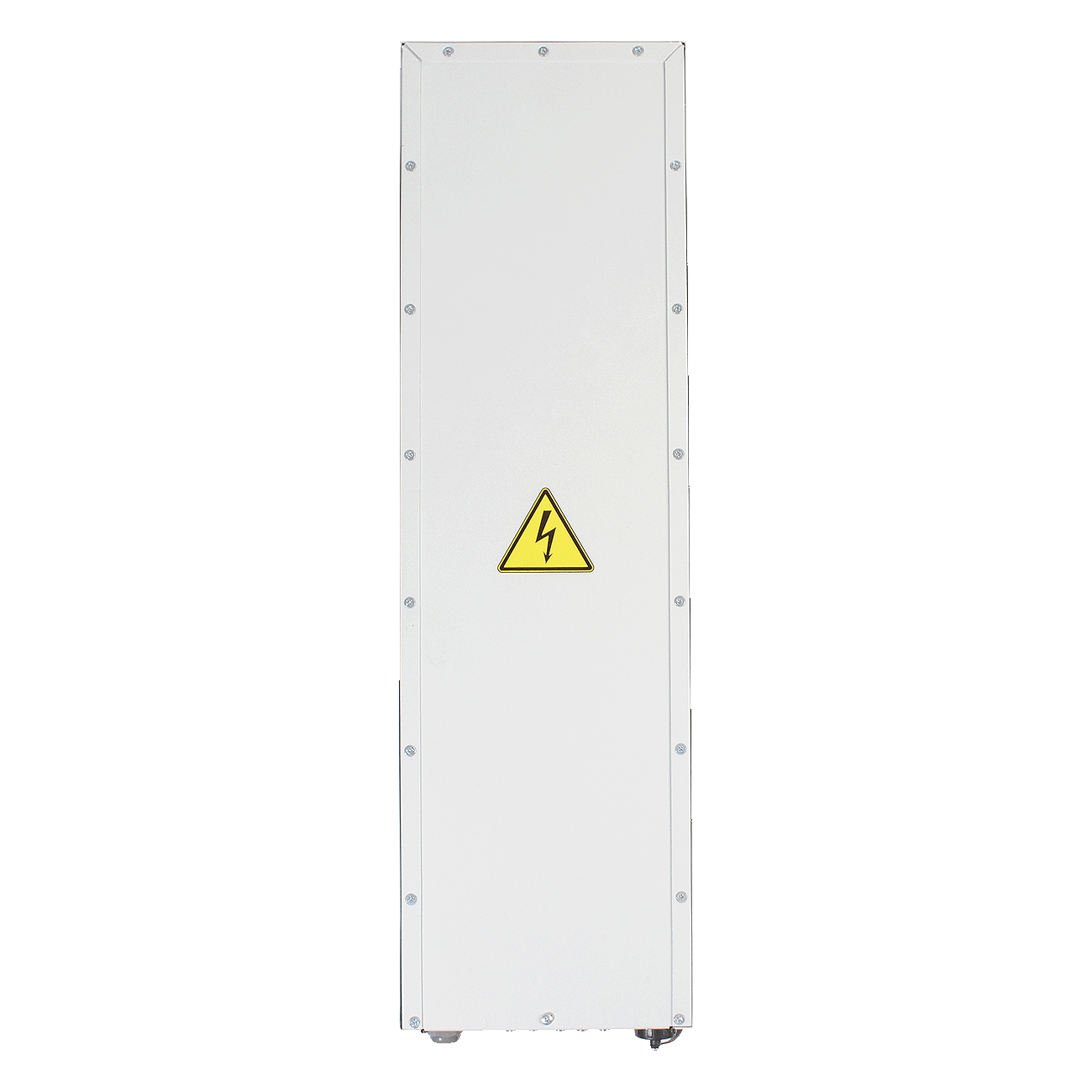

Industrial switch MES3708P

Personal order only
Key features
  • Advanced L2 features
  • Multicast support (IGMP Snooping, MVR)
  • Advanced security functions (L2-L4 ACL, IP Source Guard, Dynamic ARP Inspection, etc.)
MES3708P industrial switch is intended to be placed inside lighting (and other) poles with inner diameter of at least 185 mm and designed to organize secure fault-tolerant networks on sites where resistance to temperature, mechanical and other impacts should be provided.

The switch has 10/100/1000BASE-T ports with PoE/PoE+ support and 1000BASE-X/100BASE-FX ports for optical cable connection.
Specifications
Documents and files
Warranty
Interfaces
  • 10/100/1000BASE-T PoE/PoE+ (RJ-45) - 8

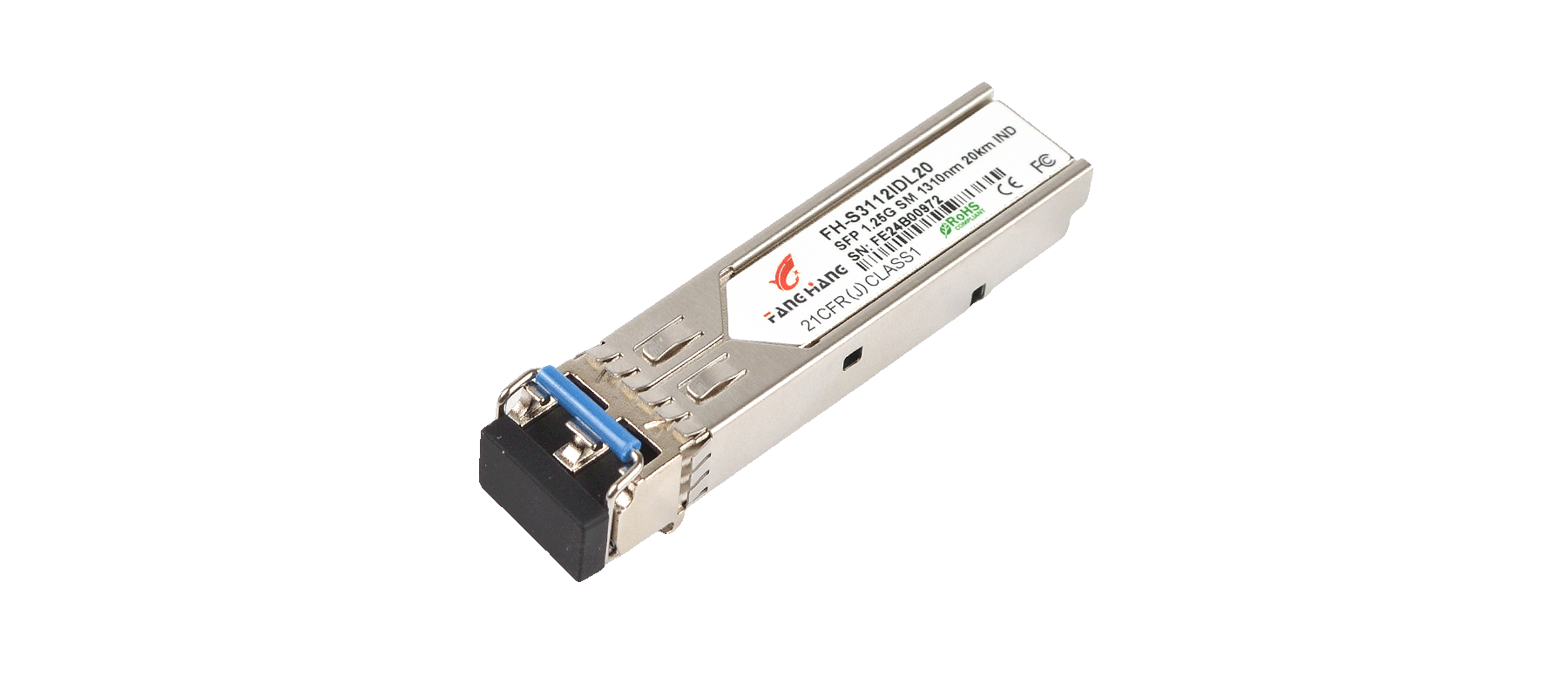

  • 100BASE-FX/1000BASE-X (SFP) - 2
  • Console port - RS-232 (RJ-45)
Performance
  • Bandwidth - 20 Gbps
  • Throughput for 64 bytes1 - 14.88 MPPS
  • Buffer memory - 512 KB
  • RAM (DDR3) - 256 MB
  • ROM (SPI Flash) - 32 MB
  • MAC table - 8192
  • ARP table - 1000
  • VLAN table - 4094
  • L2 Multicast groups (IGMP Snooping) - 509
  • SQinQ rules number - 128 (ingress)/256 (egress)
  • MAC ACL rules - 381
  • IРv4, IPv6 ACL rules - 219/128
  • L3 interfaces - 8 VLANs, up to 5 of IPv4 for each VLAN, up to 300 of IPv6 GUA for all VLANs in summary
  • Link Aggregation Groups (LAG) - 8 groups, up to 8 ports in one LAG
  • Quality of Service (QoS) - 8 output queues per port
  • Jumbo frames - maximum packet size is 10000 bytes
Interface features
  • Head-of-line blocking (HOL) protection
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow Control IEEE 802.3X
  • Port mirroring (SPAN, RSPAN)
МAC table
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses
  • Static MAC Entries
  • MAC change events
VLAN features
  • IEEE 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
  • MAC-based VLAN
  • Protocol-based VLAN
L2 Multicast features
  • Multicast profiles
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Port-based IGMP Snooping fast-leave
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • MLD Snooping fast-leave
  • IGMP Querier
  • MVR
L2 features
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spanning Tree Protocol, IEEE 802.1d)
  • MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
  • STP Root Guard
  • STP Loop Guard
  • STP BPDU Guard
  • BPDU Filtering
  • Spanning Tree Fast Link option
  • Layer 2 Protocol Tunneling
  • Loopback Detection (LBD)
  • Port isolation
  • Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
Link Aggregation functions
  • Static LAG
  • Dynamic LAG (LACP)
  • LAG Balancing Algorithm
Service functions
  • Virtual cable Test (VCT)
  • Optical transceiver diagnostics
IPv6
  • IPv6 Host
  • Dual-stack IPv4, IPv6
Security functions
  • DHCP Snooping
  • DHCP Option 82
  • IP Source Guard
  • Dynamic ARP Inspection (Protection)
  • MAC-based authentication, Port Security, static MAC entries
  • IEEE 802.1x based interface authentication
  • DoS attacks prevention
  • Traffic segmentation
  • DHCP clients filtering
  • BPDU attacks prevention
  • PPPoE Intermediate agent
  • DHCPv6 Snooping
  • IPv6 Source Guard
  • IPv6 ND Inspection support
  • IPv6 RA Guard support
Access control lists (ACL)
  • L2-L3-L4 ACL (Access Control List)
  • IPv6 ACL
  • ACL based on:
    • Switch port
    • IEEE 802.1p priority
    • VLAN ID
    • EtherType
    • DSCP
    • IP protocol type
    • TCP/UDP port number
    • User Defined Bytes
Quality of Service (QoS) and rate limiting
  • Port rate limiting (shaping, policing)
  • IEEE 802.1p Class of Service (CoS)
  • Queue scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
  • ACL-based traffic classification
  • ACL-based CoS/DSCP mark assignment
  • DSCP to CoS remarking
  • CoS to DSCP remarking
  • ACL-based VLAN assignment
ОАМ
  • IEEE 802.3ah, Ethernet OAM
  • IEEE 802.3ah Unidirectional Link Detection (UDLD)
  • Dying Gasp
Main management functions
  • Download and upload of configuration file via TFTP/SFTP
  • Automatic backup of configuration file via TFTP/SFTP
  • Simple Network Management Protocol (SNMP)
  • Command LIne Interface (CLI)
  • Web interface
  • Syslog
  • Simple Network Time Protocol (SNTP)
  • Traceroute
  • LLDP (IEEE 802.1ab) + LLDP MED
  • Two 802.1Q headers traffic control
  • Commands Authorization using TACACS+ server
  • IPv4/IPv6 ACL support for device control
  • Switch access management – privilege levels for users
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS and TACACS+ clients (Terminal Access Controller Access Control System)
  • Telnet client, SSH client
  • Telnet server, SSH server
  • Macro commands
  • Input commands logging via TACACS+
  • DHCP auto configuration
  • DHCP Relay (support for IРv4)
  • DHCP Relay Option 82
  • PPPoE Circuit-ID tag adding
  • Flash File System
  • Debug commands
  • CPU traffic limiting
  • Password encryption
  • Password recovery
  • Ping (support for IPv4/IPv6)
  • IPv4/IPv6 static routes support
  • Support for several versions of configuration file
Monitoring functions
  • Interface statistics
  • CPU utilization monitoring per task and per queue
  • RAM usage monitoring
  • Temperature monitoring
  • TCAM monitoring
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 2465 IPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 3289 MIB for Diffserv
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 793 TCP
  • RFC 2474, 3260 Definition of the DS field in the IPv4 and IРv6 Headers
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC 2572, RFC 2573, RFC 2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet
  • IEC 61850
Physical specifications
  • Power supply - 100–240 V AC, 50-60 Hz
  • Input current - 1.7–0.5 A
  • Maximum power consumption (including PoE) - 150 W
  • PoE power budget - 120 W
  • Heat dissipation - 30 W
  • Ethernet 10/100/1000BASE-T ports overvoltage protection
  • Operating temperature - from -40 to +60 °С
  • Storage temperature - from -50 to +85 °С
  • Operating humidity (non-condensing) - no more than 90%
  • Cooling - passive
  • Casing - metal case, IP55

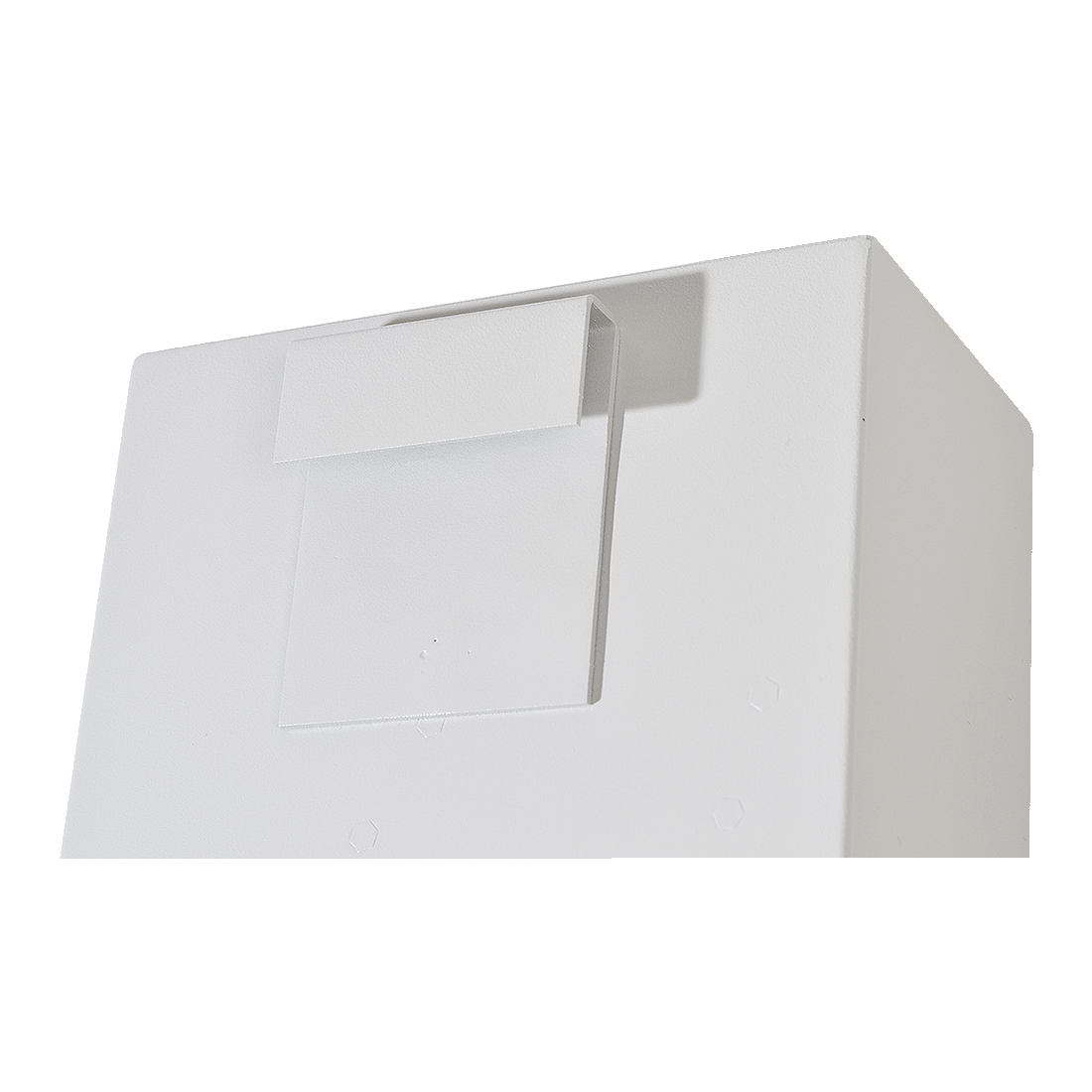

  • Mounting - hanging mounting rail with a diameter of maximum 8 mm
  • Form factor - 19", 1U
  • Dimensions  (WxHxD), mm - 152x517x85
  • Weight - 4.2 kg

1Values are given for one-way transmission
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
